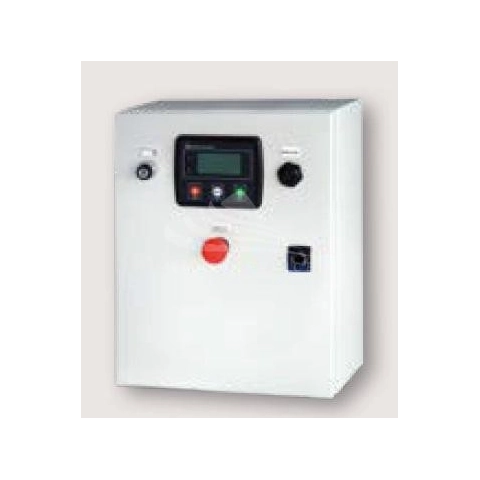

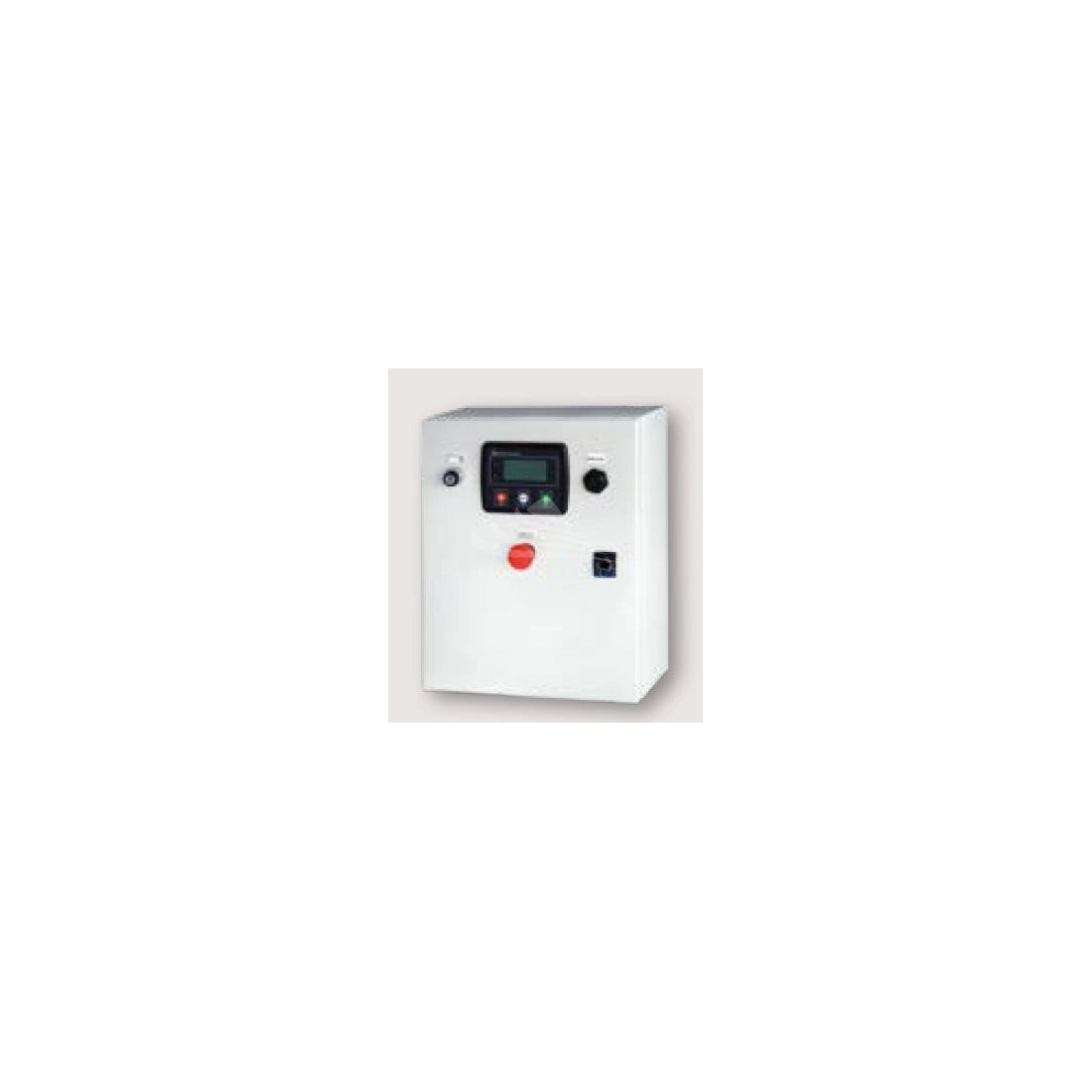

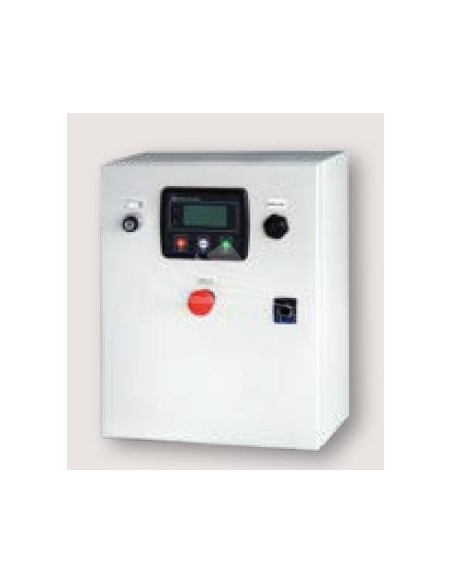

GENMAC AUTOMATIC TRANSFER SWITCH ATS-L4520 2P 50Hz 1PH 230V 72A
34795-KIT-M
Generator power singlephase: 17 KW
Protection degree: IP65
Length: 180 mm
Width: 350 mm
Height: 450 mm
Weight: 21 Kg
- Protection degree
- IP65
- Length (mm)
- 180
- Width (mm)
- Height (mm)
- 450
- Product type
- Switching Frame
- Weight (Kg)
- 21
- Brand
-
STANDARD EQUIPMENT INCLUDED:
- IP55 metal case for indoor or outdoor installation, grey colour RAL 7035
- AMFcontroller C-4520, sensing and reading the 3 phases
- selector key to power on/off and to force the load on the generator - audible warning device
- emergency stop button
- genset/mains changeover swiches mechanically and electrically interblocked
- current trasformers - terminal board for auxiliary connections
- terminal board for power load connections
- protection fuses - 10 pin connector interface to the generator
- rubber fairlead for cable inlet
- instruction manual and connection wiring diagram
- plates for wall mounting.
Not binding images and technical data.
