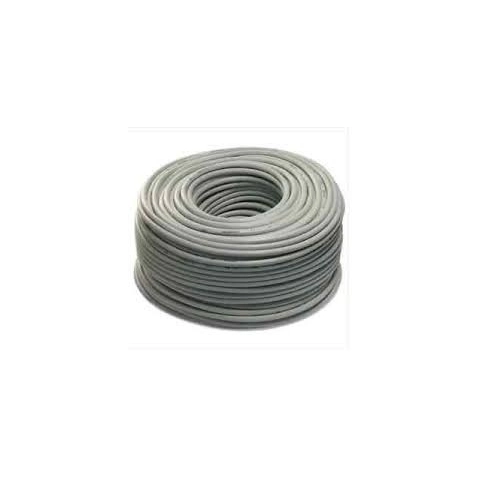

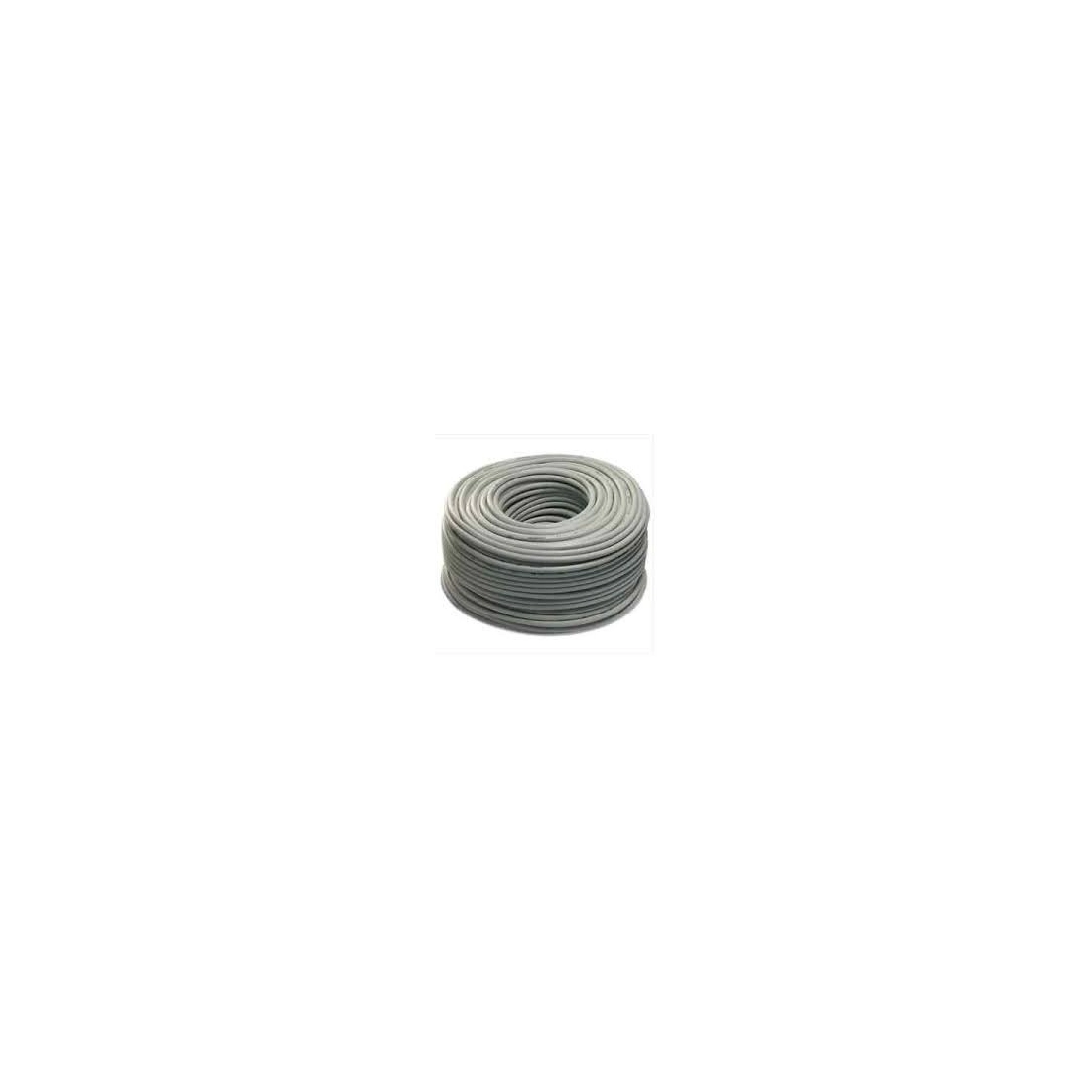

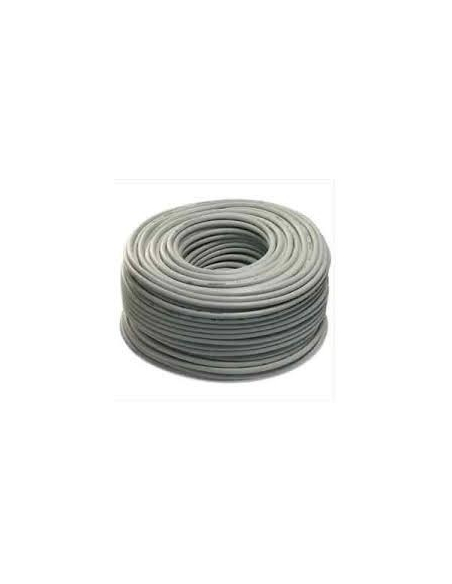

Grey Cable 3 G10B Multipole 10 mmq.

Grey Cable 3 G10B Multipole 10 mmq.
Grey Cable 3 G10B Multipole 10 mmq.
CPRFG16-3G 10B

Nominal voltage U0: 600V(AC) 1800V(DC)
Nominal voltage U: 1000V(AC) 1800V(DC)
Test voltage: 4000V
Maximum voltage Um: 1200V(AC) 1800V(DC)
Maximum operating temperature: 90 °C
Maximum short circuit temperature for sections up to 240mm²: 250 °C
Maximun short circuit temperature for sections over 240mm²: 220 °C
Min. operating temperature (without mechanical shocks): -15 °C
Minimum installation and use temperature: °C


Tube Diameter (mm)
10
Product type
Cable
Colour
Grey

DESCRIPTION
Multi-core power cable HEPR insulated (G16 quality), PVC sheated, with special fire reaction characteristics according to Costruction Products Regulation (CPR).

€4.25 €4.25
Download PDF
 Calculate Shipping Cost
Shipping all over the world

The minimum purchase order quantity for the product is 10.

Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
