Product type : Lathe
Tip height: 75 mm
Diam. turning on pallet: 150 mm
Distance between points: 265 mm
Spindle speed, infinitely adjustable: 120 - 3000 rpm
Speed number: electronically adjustable
Spindle cone: cm 1
Bar passage: diam. 11 cm
Pallet width: 700 mm
Upper slide stroke: 40 mm
Cross slide stroke: 55 mm
Tailstock cone: 1 cm reduced
Tailstock-tailstock stroke: 30 mm
Longitudinal feed: 0.05 to 0.1 mm/rev
Metric thread pitch: 0.5 to 1.5 mm/revolution
Length: 570 mm
Width: 340 mm
Height: 300 mm
Weight: 23 Kg.
Motor power: 450 W 230 V - 50 Hz

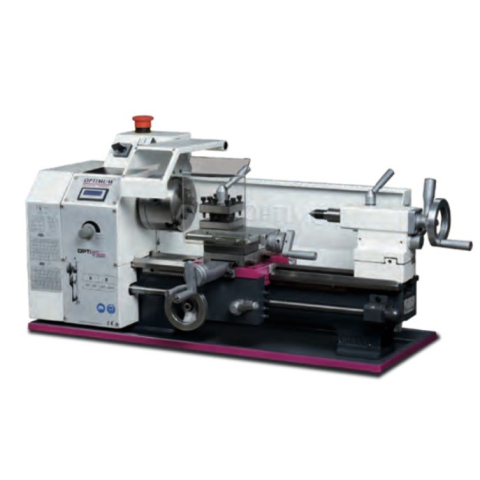

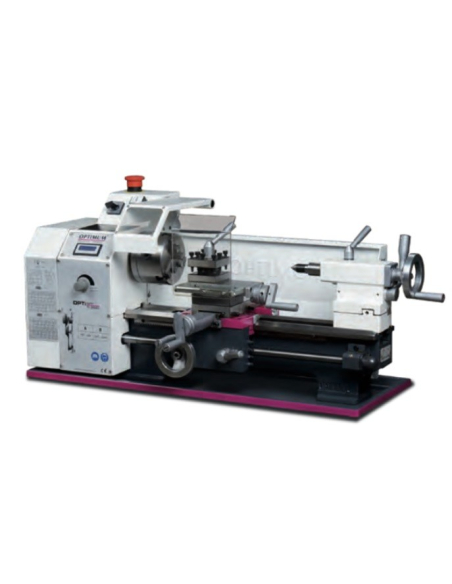

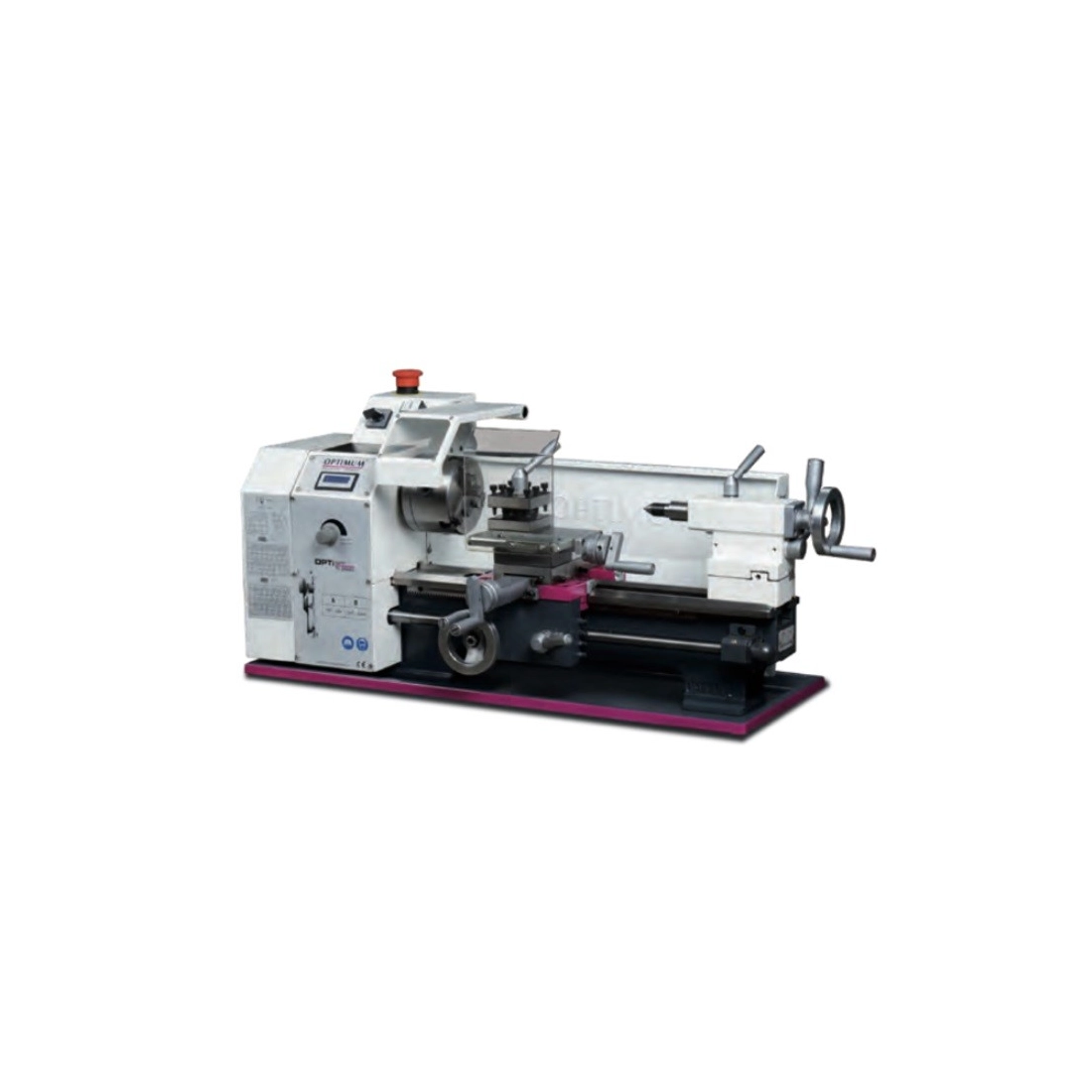

OPTIMUM TU 1503V COMPACT LATHE WITH ELECTRONICALLY ADJUSTABLE SPEED.
MAIN ADVANTAGES OF THE OPTIMUM TU 1503V LATHE
- DC brush motor;
- Prismatic pallet with reinforcement ribs, in grey cast iron, induction hardened and ground;
-Hardened and ground pallet guides;
- Spindle nose concentric rotation precision < 0.015 mm
TECHNICAL CHARACTERISTICS OF THE OPTIMUM TU 1503V LATHE
Product type : Iron lathe
Tip height: 75 mm
Diam. turning on pallet: 150 mm
Distance between points: 265 mm
Spindle speed, infinitely adjustable: 120 - 3000 rpm
Speed number: electronically adjustable
Spindle cone: cm 1
Bar passage: diam. 11 cm
Pallet width: 700 mm
Upper slide stroke: 40 mm
Cross slide stroke: 55 mm
Tailstock cone: 1 cm reduced
Tailstock-tailstock stroke: 30 mm
Longitudinal feed: 0.05 to 0.1 mm/rev
Metric thread pitch: 0.5 to 1.5 mm/revolution
Length: 570 mm
Width: 340 mm
Height: 300 mm
Weight: 23 Kg.
Motor power: 450 W 230 V - 50 Hz
images and technical data not binding
