BUILDING SITE SWITCHBOARD 5 x 16 A 230V 2 x 32 A 400V
C502D
Nominal voltage: 230 V - 400 V
Nominal current: 63 A
Nominal frequency: 50 - 60 Hz
Protection class: IP54

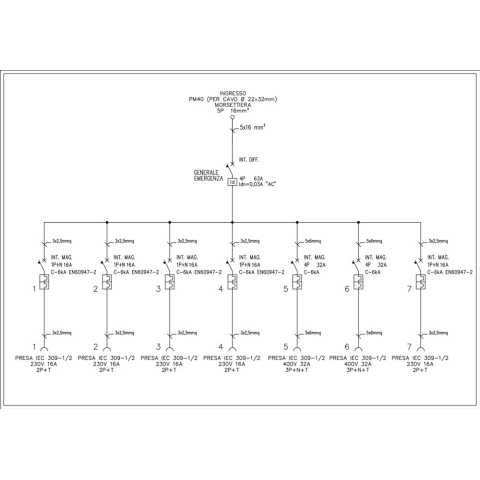

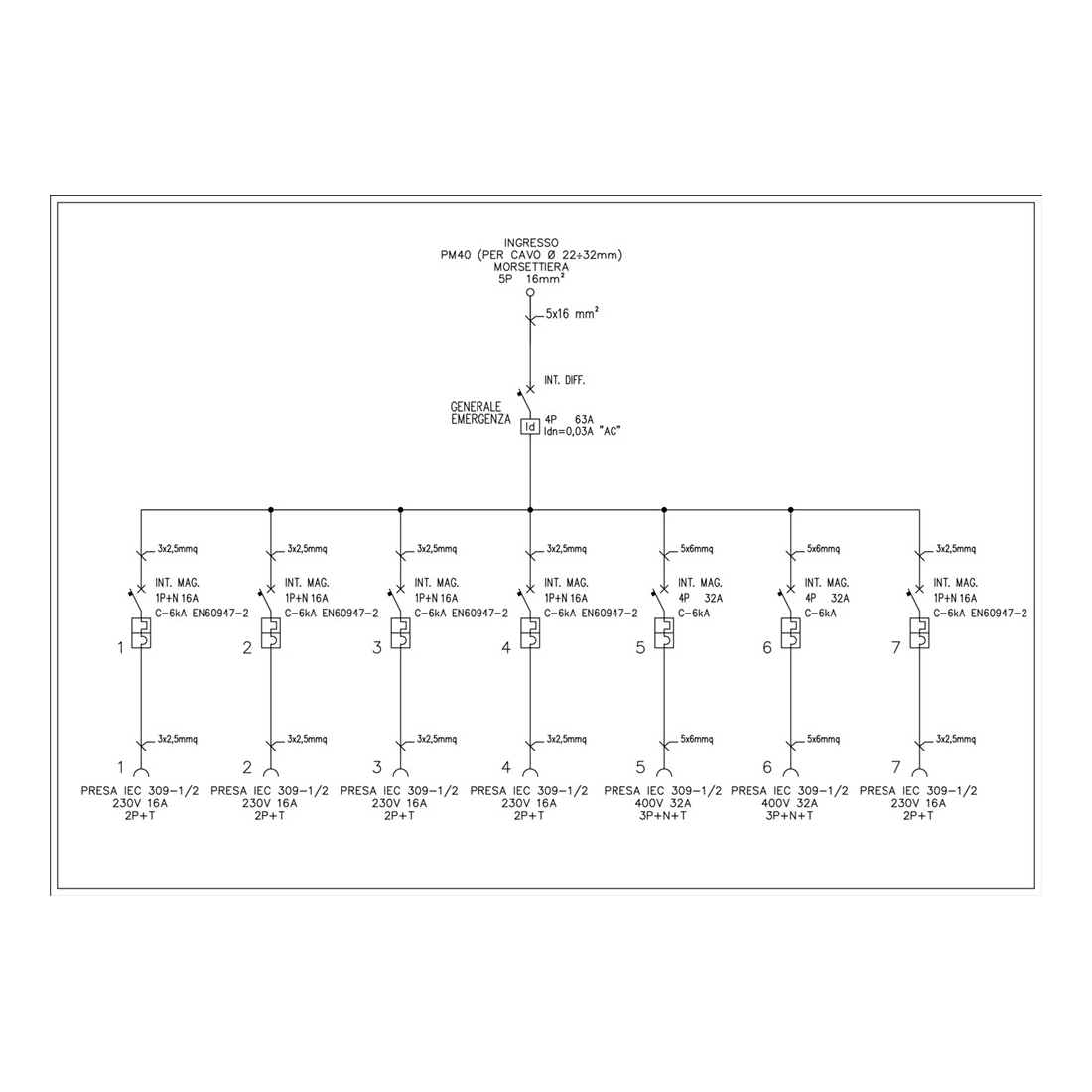

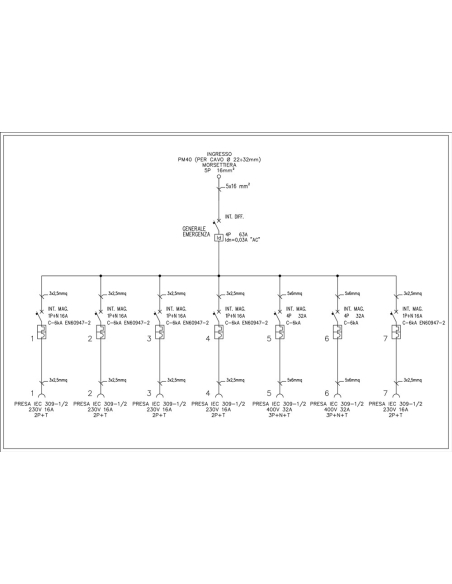

Socket configuration: 5 x 16 A 230V 2 x 32 A 400V

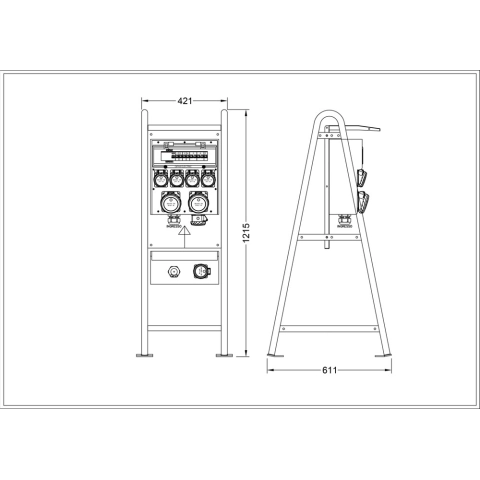

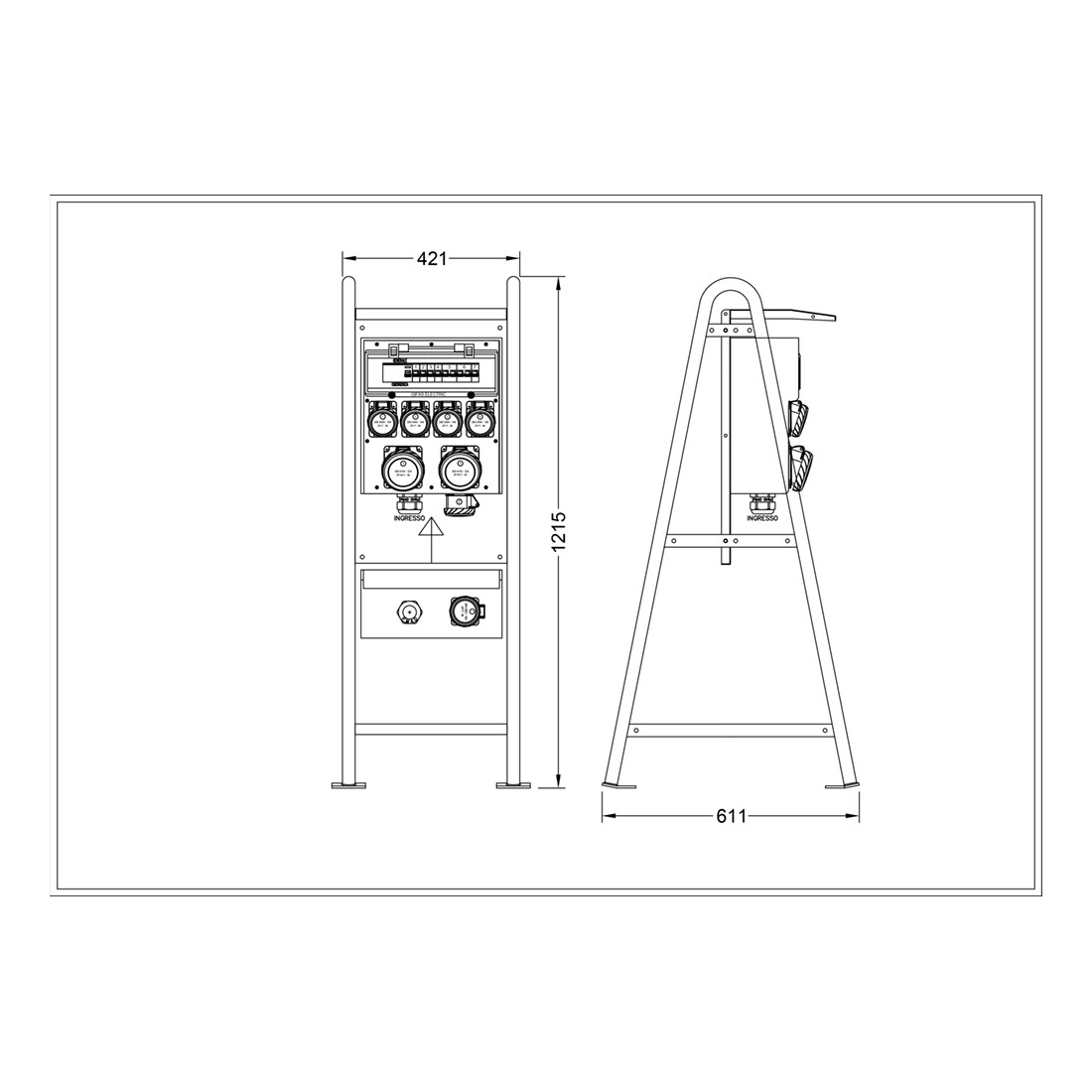

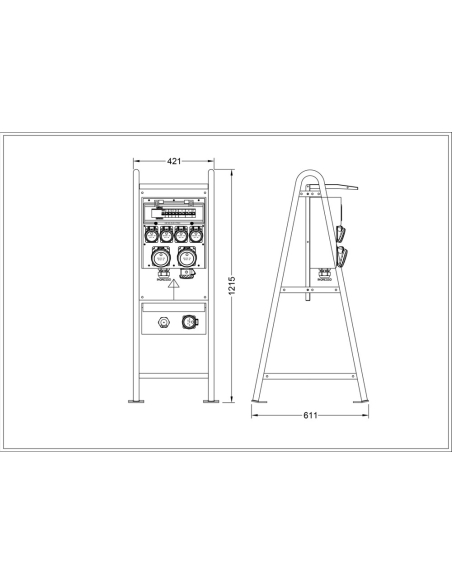

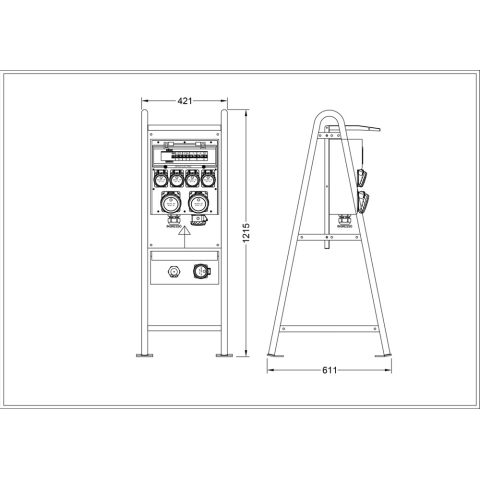

Width: 421 mm
Length: 610 mm
Height: 1215
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Sockets configuration
- 5 x 16 A 230V 2 x 32 A 400V
- Nominal current (A)
- 63 A
- Length (mm)
- 610
- Width (mm)
- 421
- Height (mm)
- 1215
BUILDING SITE SWITCHBOARD 5 x 16 A 230V 2 x 32 A 400V
BUILDING SITE SWITCHBOARD
Technical characteristics BUILDING SITE SWITCHBOARD
Nominal voltage: 230 V - 400 V
Nominal current: 63 A
Nominal frequency: 50 - 60 Hz
Protection class: IP54
Socket configuration: 5 x 16 A 230V 2 x 32 A 400V
Width: 421 mm
Length: 610 mm
Height: 1215
Are you looking for a BUILDING SITE SWITCHBOARD with different technical characteristics? Here you can find the full range of BUILDING SITE SWITCHBOARD from specialist brands
Images and technical data are not binding and may be subject to revisions by the manufacturer.
