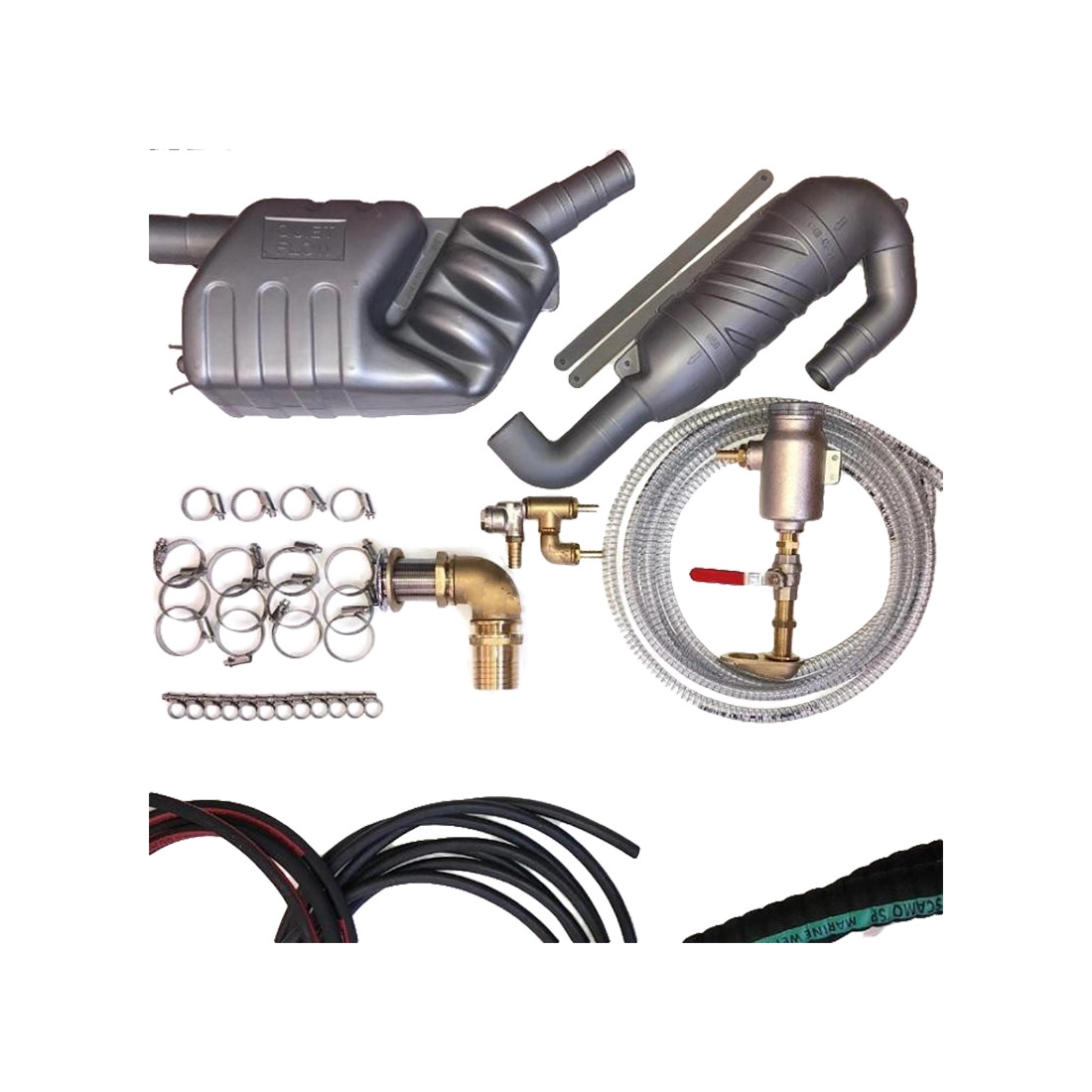

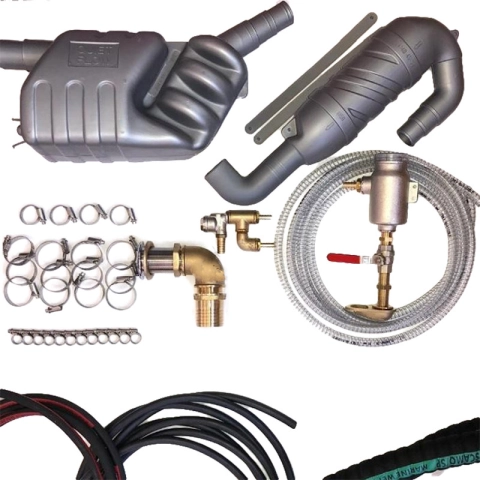

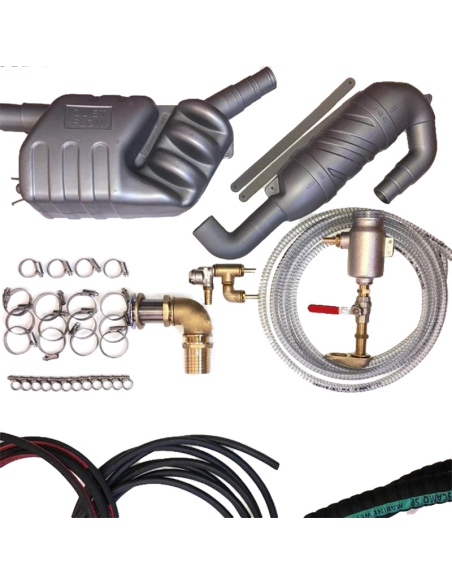

VTE PAGURO INSTALLATION KIT WITH FINAL MUFFLER FOR PAGURO 14000-18000-8500-12000V

Reference KIT000028-01

- No.1 sea water inlet 1/2'';
- n.1 1/2'' faucet;
- No.1 double brass screw 1/2'';
- n.1 raw water filter 1/2'';
- No.1 male hose connector 1/2'' x 20;
- n.2 meters seawater inlet hose Ø20 mm;
- n.4 hose clamp 20-32/12;
- no.1 siphon rupture valve >5 KVA
- No.1 plastic water lock type LP45 with rotary inlet;
- no.1 feto end silencer LT 45 Ø45;
- No.1 hull connection, elbow and hose Ø45 mm;
- no.4 R.I.NA. approved rubber exhaust hose Ø45 mm;
- no.12 hose clamp 50-70/12
- No.5 meters fuel filler hose Ø08x16 mm;
- n.5 meters fuel return hose Ø06x16 mm;
- no.12 hose clamp 08-16/9;
- n.1 water fuel separator filter

Product Details
Description

Product type: Installation kit with final muffler

Brand

VTE PAGURO INSTALLATION KIT WITH FINAL MUFFLER FOR PAGURO 14000-18000-8500-12000V

Includes:
- Kit seawater intake
(n.1 seawater intake 1/2''; n.1 valve 1/2''; n.1 double screw brass 1/2''; n.1 raw water strainer 1/2''; n.1 hose male connector 1/2'' x 20; n.2 mt seawater inlet pipe Ø20 mm; n.4 hose clamp 20-32/12; siphon-break valve >5 KVA)
- Kit exhaust line with final muffler
(n.1 plastic water-lock type LP45 with rotating inlet; n.1 vetus final muffler LT 45 Ø45; n.1 thru-hull, elbow and hose connection Ø45 mm; n.4 mt rubber exhaust pipe R.I.NA. approved Ø45 mm; n.12 hose clamp 50-70/12)
- Kit fuel plant
(n.5 mt fuel filling pipe Ø08x16 mm; n.5 mt fuel return pipe Ø06x16 mm; n.12 hose clamp 08-16/9; n.1 fuel/water separator filter)

Looking for an installation kit for a different marine genset? HERE you can find the area dedicated to accessories for VTE marine gensets or other specialized brands.

Not binding images and technical data.
