Length x width x height: 350 x 167 x 180 mm (13.8" x 6.6" x 7.1" inch)
Weight ± 10%: 24.0 kg (52.9 lb.)
Nominal Capacity: 80 Ah
C10* or C20: C10
Nominal Voltage: 12.0 VDC
Terminal Type: M6 stainless steel
Number of Cells: 6
CHARGING/DISCHARGING PARAMETERS
Constant Charging Voltage (UI, float): 13.60 .. 13.80 VDC at 25°C
Cyclic Charging Voltage (IUU, absorption): 14.25 .. 14.60 VDC at 25°C
Maximum Recommended Charging Current (possible higher): 40-50% of nominal capacity
Temperature Coefficient: -4mv/cell/°C
Discharge Voltage:
1.75 VDC @ (A) ? 0.2°C
1.70 VDC @ 0.2°C (A) ? 1.0°C
1.65 VDC @ (A) ? 1.0°C
Complete Discharge (100% DOD): 1.65 VDC @ (A) ? 1.0°C

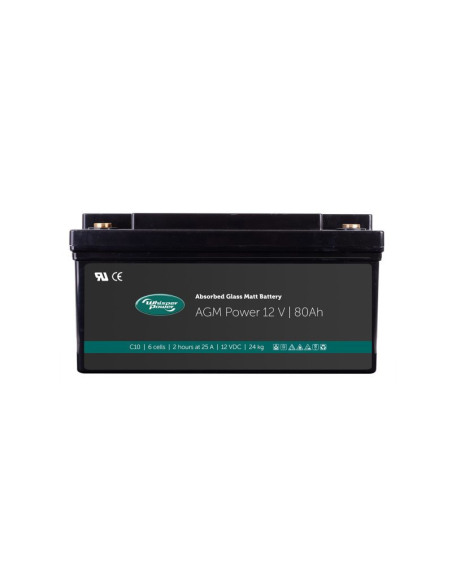

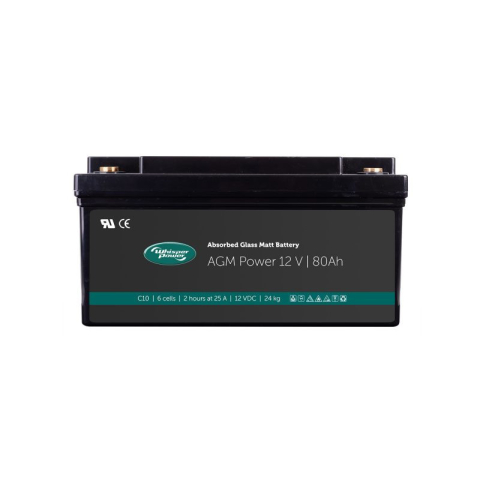

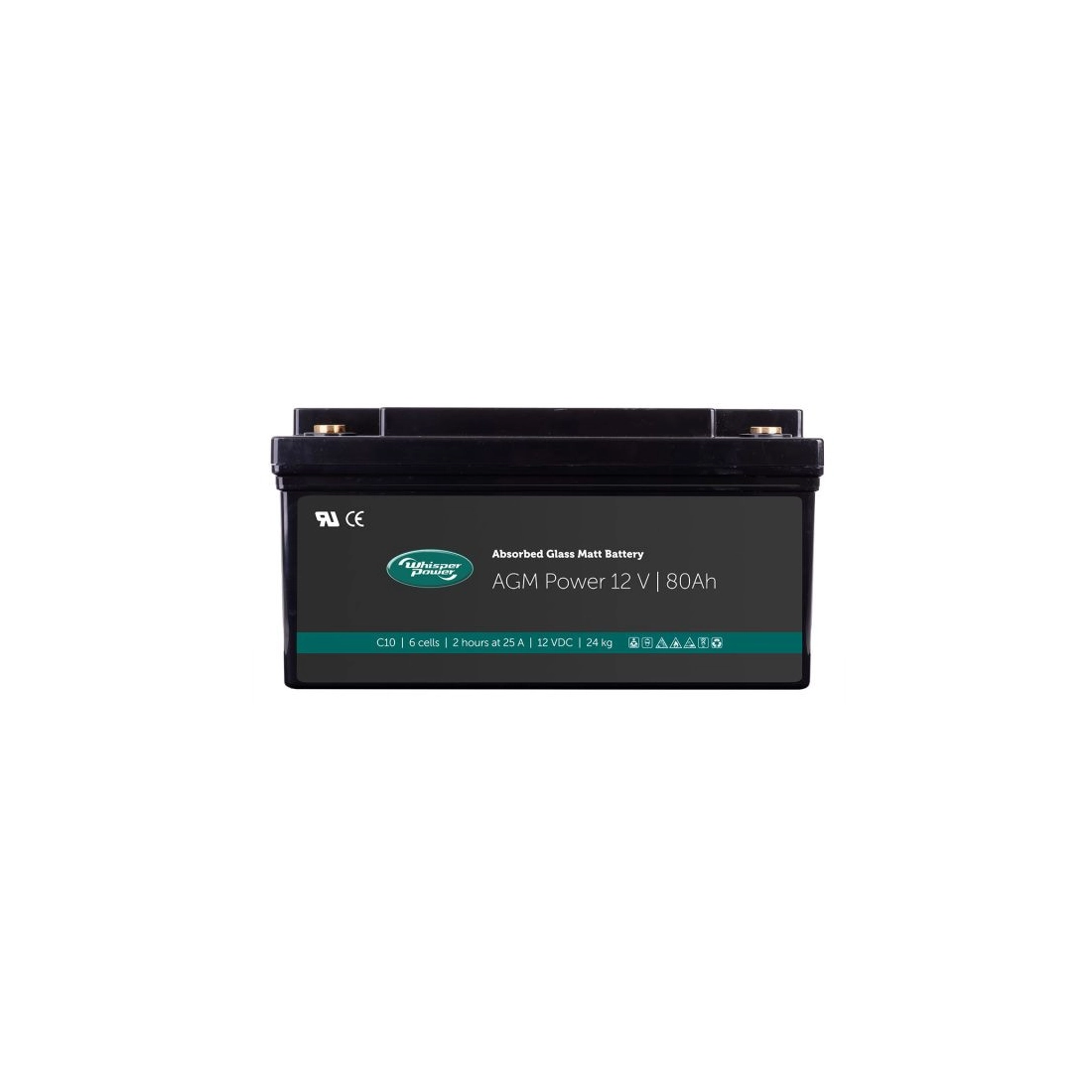

AGM-Power Batteries 12V 80Ah Absorbed Glass Matt
Technical Specifications:
Length x width x height: 350 x 167 x 180 mm (13.8" x 6.6" x 7.1" inch)
Weight ± 10%: 24.0 kg (52.9 lb.)
Nominal Capacity: 80 Ah
C10* or C20: C10
Nominal Voltage: 12.0 VDC
Terminal Type: M6 stainless steel
Number of Cells: 6
CHARGING/DISCHARGING PARAMETERS
Constant Charging Voltage (UI, float): 13.60 .. 13.80 VDC at 25°C
Cyclic Charging Voltage (IUU, absorption): 14.25 .. 14.60 VDC at 25°C
Maximum Recommended Charging Current (possible higher): 40-50% of nominal capacity
Temperature Coefficient: -4mv/cell/°C
Discharge Voltage:
1.75 VDC @ (A) ? 0.2°C
1.70 VDC @ 0.2°C (A) ? 1.0°C
1.65 VDC @ (A) ? 1.0°C
Complete Discharge (100% DOD): 1.65 VDC @ (A) ? 1.0°C
