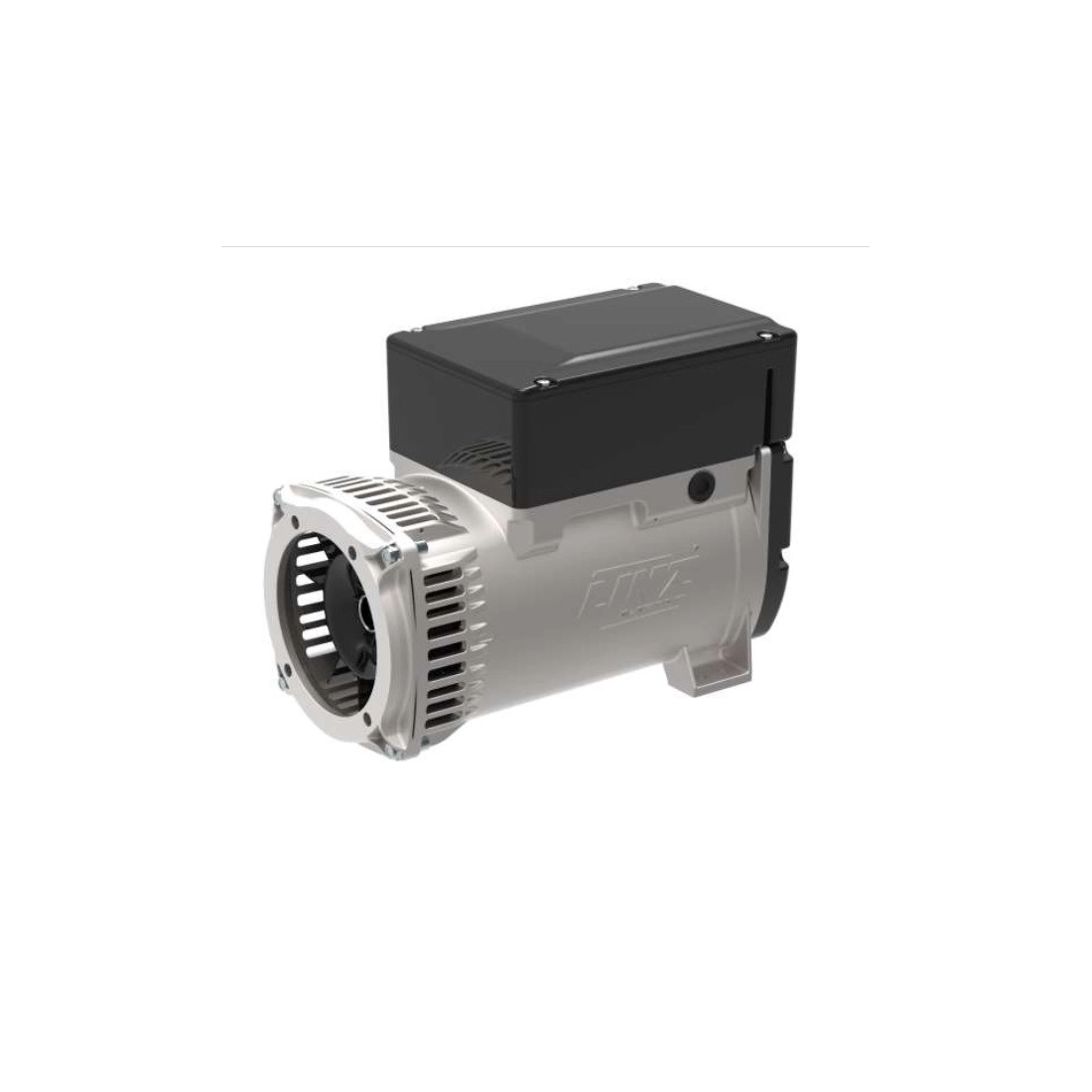

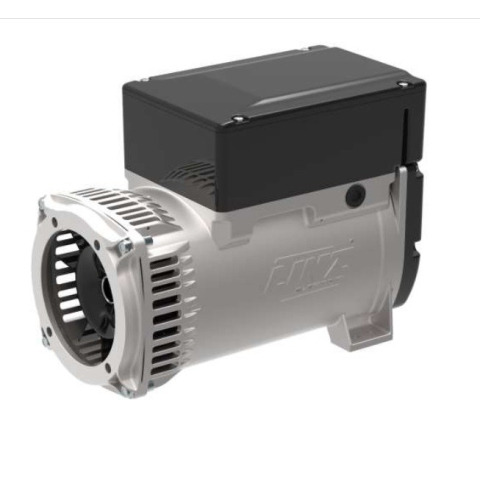

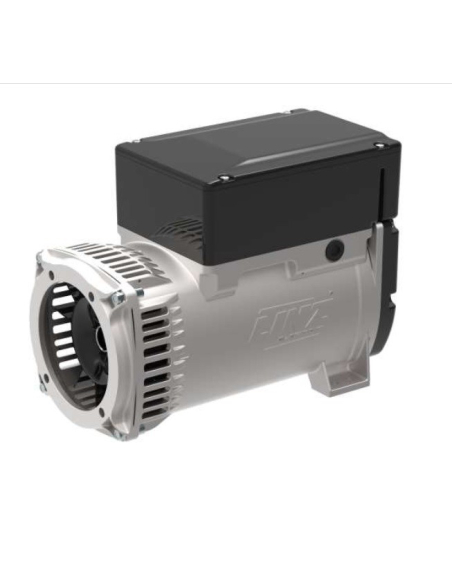

LINZ E1E10M I Single-phase alternator 115V/230V 7 kVA 50 Hz AVR
E1E10M I 50 Hz J609a
Rated power at 50Hz (kVA): 7
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Regulation type: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.5 at 50Hz
Suppression standard R.F.F.I. EN55011
- Phase
- Single phase
- Continuous power single phase (KW)
- 7
- Continuous power single phase (KVA)
- 7
- Frequency (Hz)
- 50
- Voltage (V)
- 115 / 230
- Engine rpm (rpm)
- 3000
- Alternator
- Synchronous, brushless
- Poles
- 2
- Single-phase power (KVA)
- 7
- Protection degree
- IP21
- Motor insulation class
- H

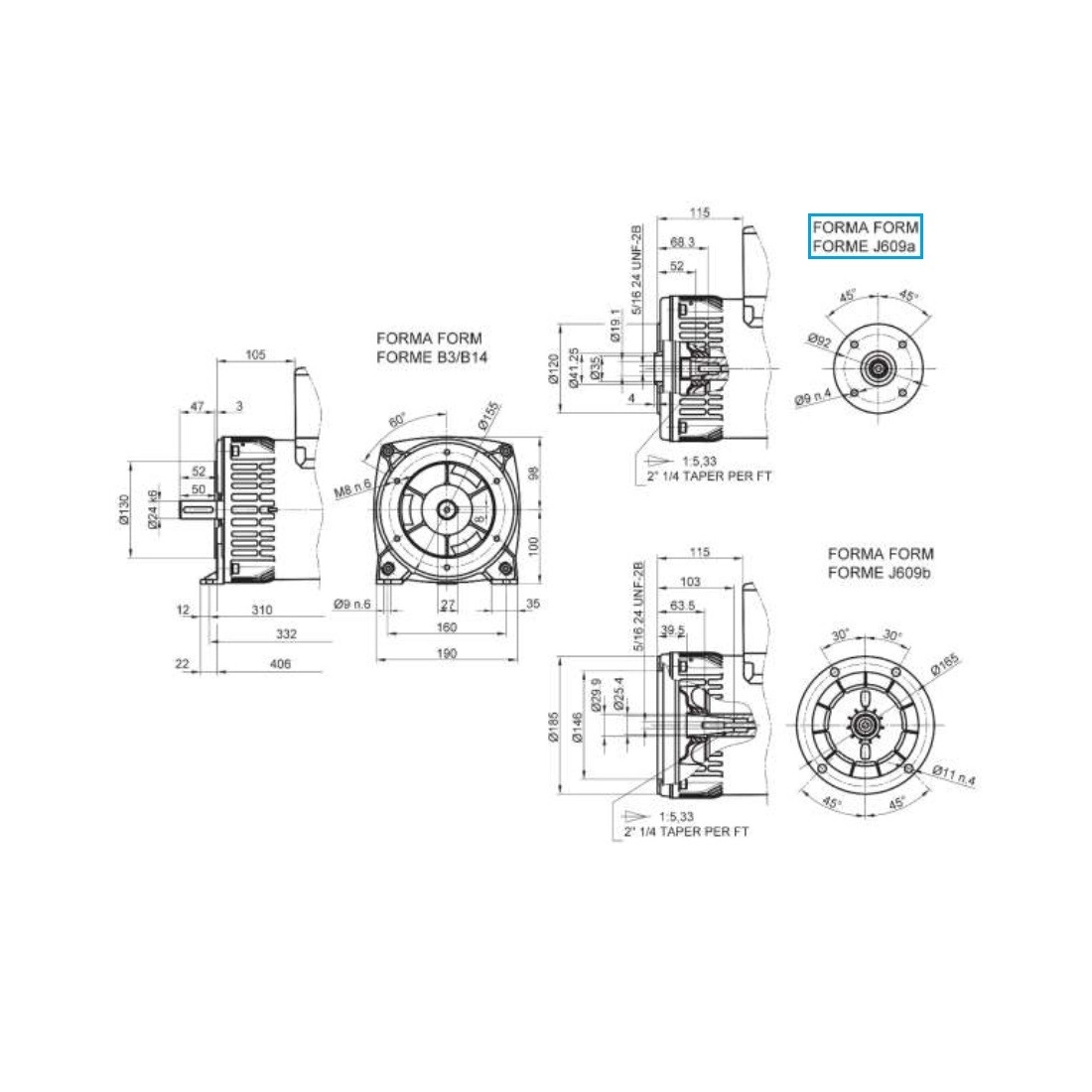

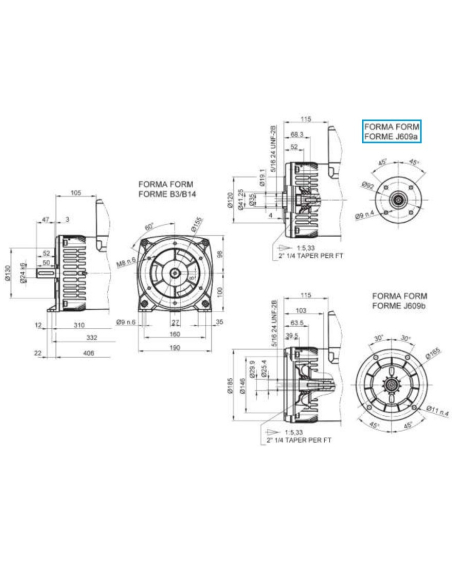

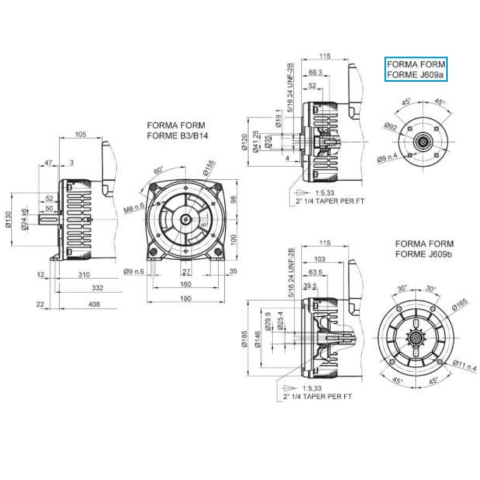

- Length (mm)
- 395
- Width (mm)
- 195
- Height (mm)
- 297
- Brushes
- Yes
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 34
- Brand
-
The SPE and E1E series consist of single-phase 2-pole alternators with brushes and AVR electronic regulation.
CHARACTERISTICS
- Compact and easy to assemble
- High voltage accuracy
- Wide range of accessories
- AVR with built-in protections
- Range: Single-phase alternators
- Poles: 2
- Phases: Single-phase
- Adjustment: AVR
- Application: PORTABLE
Images and technical data are not binding.
