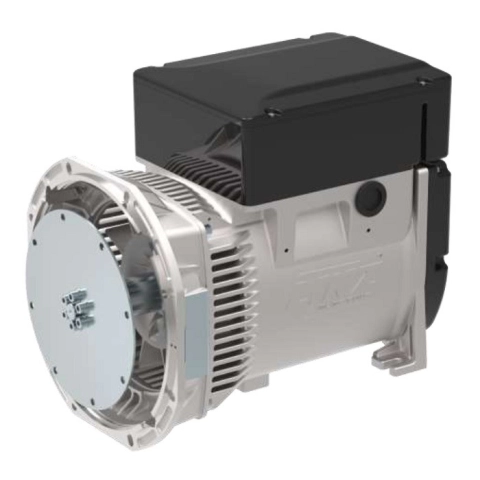

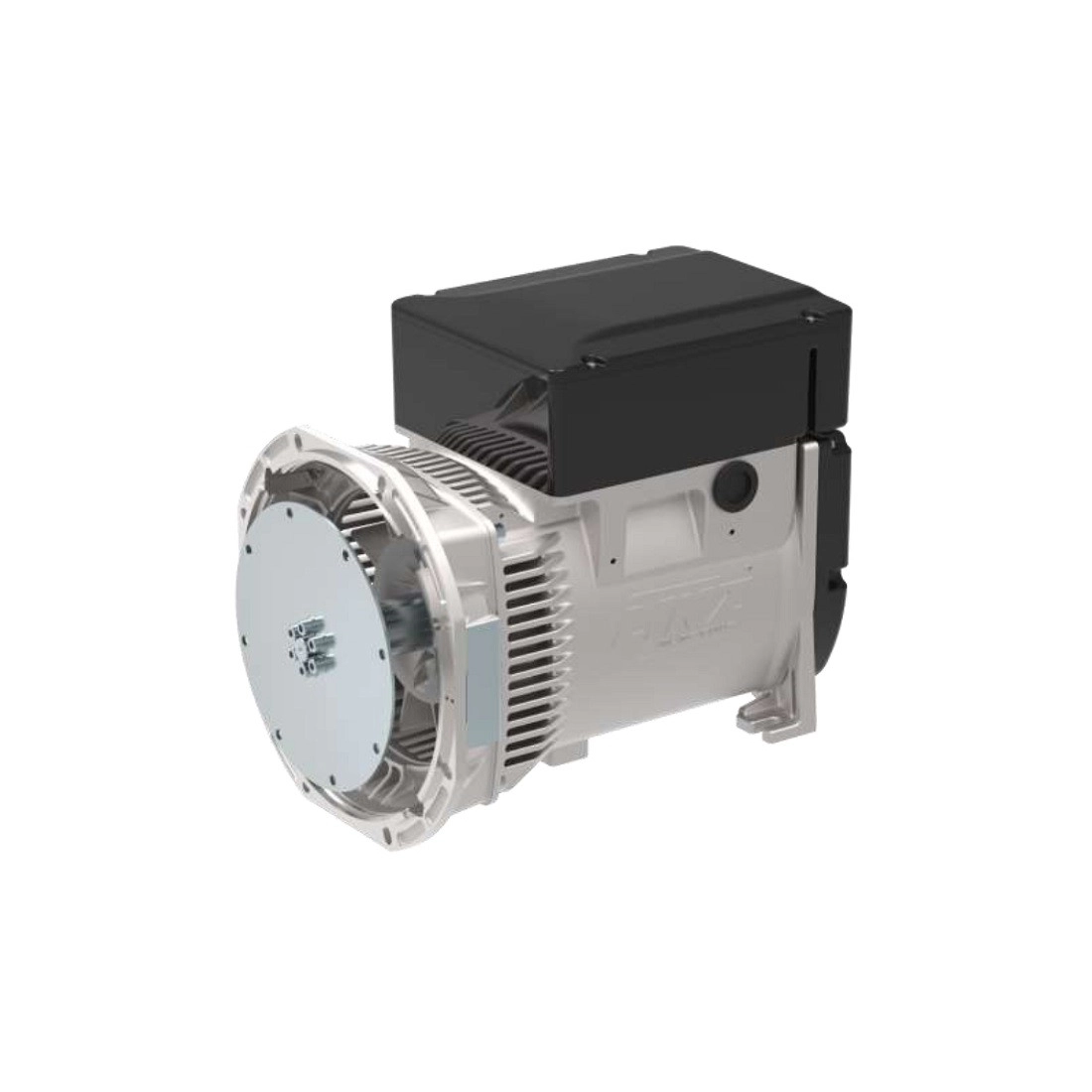

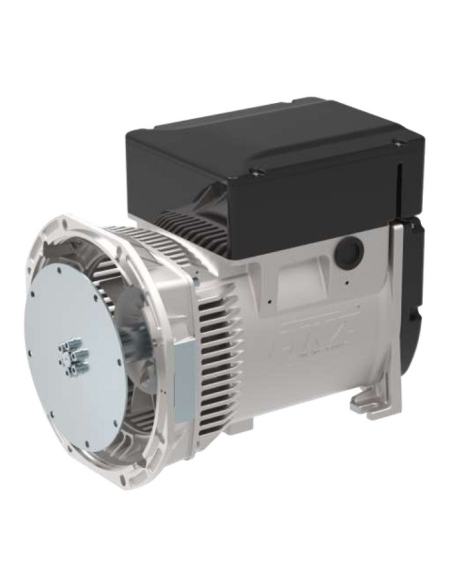

LINZ E1C13S C/4 Single-phase alternator 115/230V 8 kVA 50 Hz Brushless

LINZ E1C13S C/4 Single-phase alternator 115/230V 8 kVA 50 Hz Brushless
LINZ E1C13S C/4 Single-phase alternator 115/230V 8 kVA 50 Hz Brushless
LINZ E1C13S C/4 Single-phase alternator 115/230V 8 kVA 50 Hz Brushless
LINZ E1C13S C/4 Single-phase alternator 115/230V 8 kVA 50 Hz Brushless
E1C13S C/4 J609b 50 Hz

Rated power at 50Hz (kVA): 8
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.1 at 50Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1C13S C/4

Phase
Single phase
Continuous power single phase (KW)
8
Continuous power single phase (KVA)
8
Frequency (Hz)
50
Voltage (V)
115 / 230
Engine rpm (rpm)
1500
Alternator
Synchronous, brushless
Poles
4
Single-phase power (KVA)
8
Protection degree
IP21
Motor insulation class
H

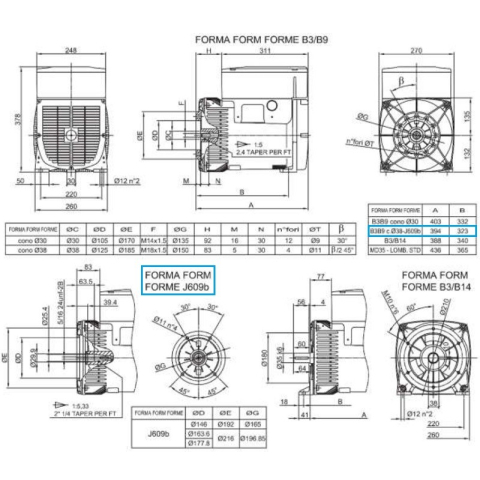

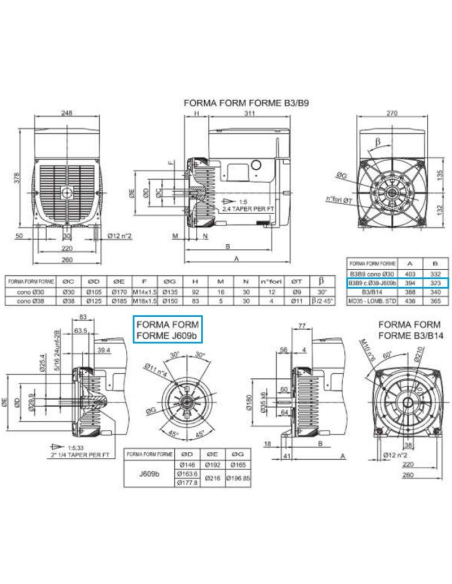

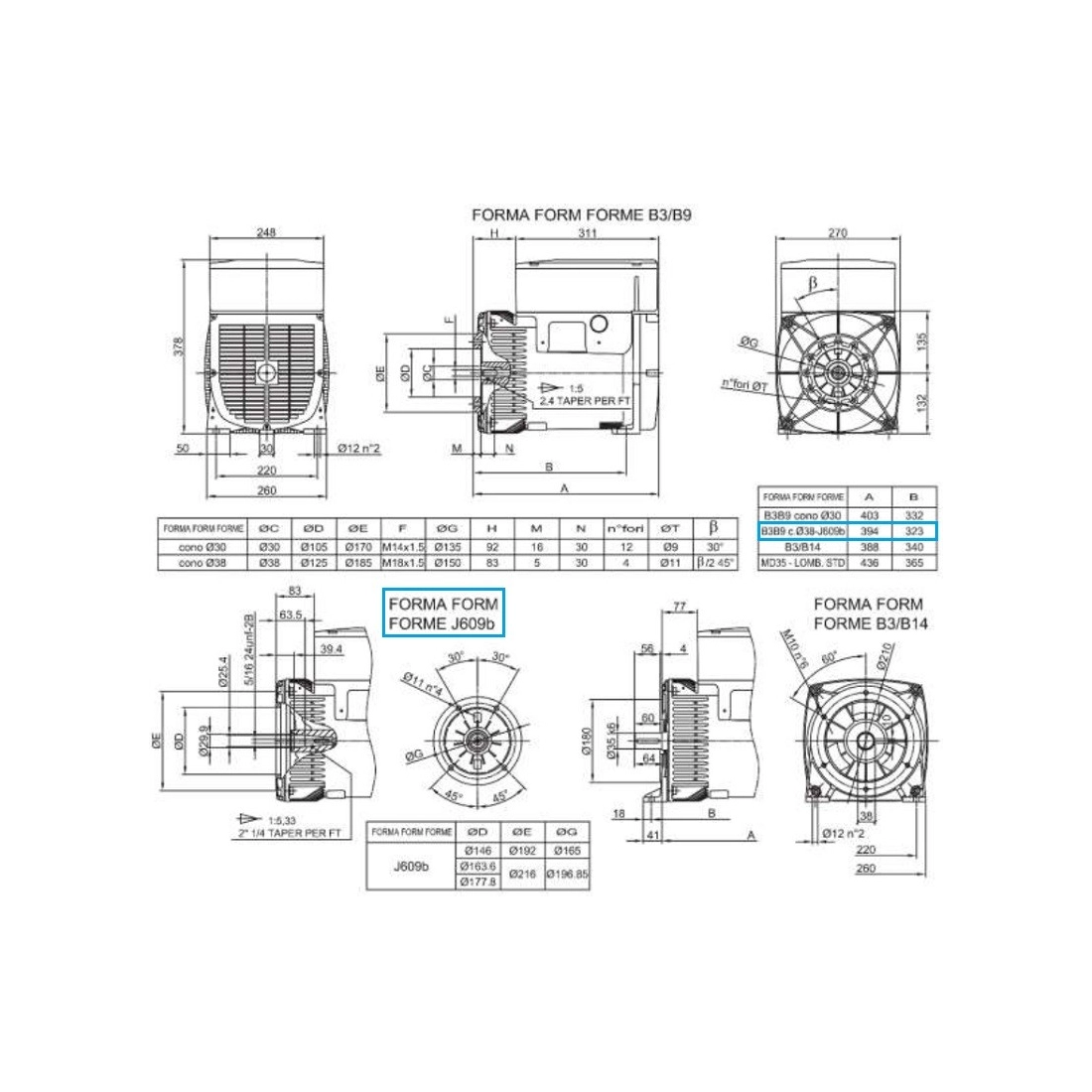

Length (mm)
405
Width (mm)
270
Height (mm)
379
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
57.5
Brand

LINZ E1C13/4 series are single-phase 4 poles brushless alternators with an auxiliary winding loaded on a capacitor regulating the voltage.
This series has been designed for application in light towers with metal halide, halogen lamps or LED.

CHARACTERISTICS

  • Innovative rotating diode system
  • Low harmonic content
  • High efficiency
  • Type: Single-phase alternators
  • Poles: 4
  • Phases: Single-phase
  • Regulation: CAPACITOR
  • Application: PORTABLE, LIGHTING TOWERS

Complete your order with:

Available only upon request
€852.74 €852.74
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
