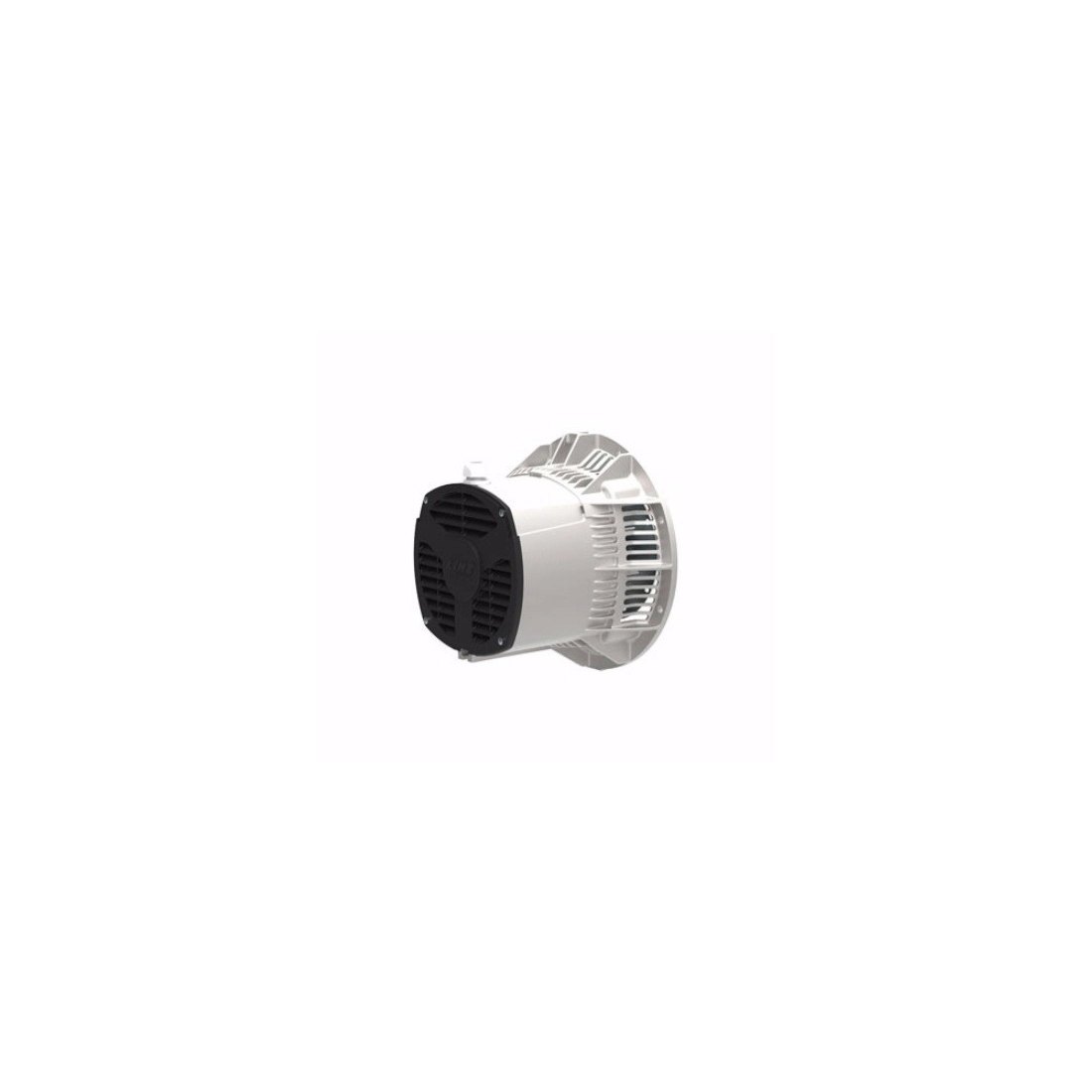

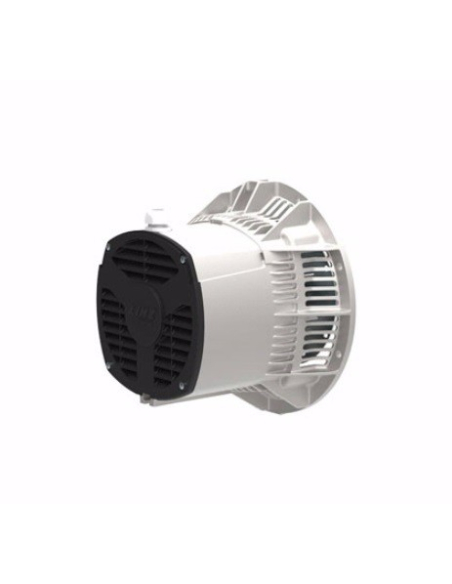

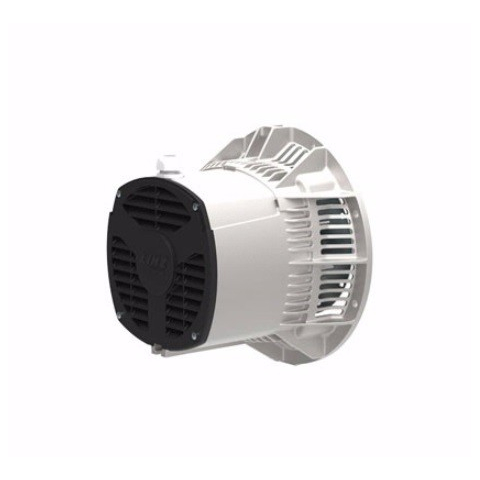

LINZ ALUMEN-X MD Single-phase alternator 6 kVA 60 Hz without Damping Cage

LINZ ALUMEN-X MD Single-phase alternator 6 kVA 60 Hz without Damping Cage
LINZ ALUMEN-X MD Single-phase alternator 6 kVA 60 Hz without Damping Cage
LINZ ALUMEN-X MD Single-phase alternator 6 kVA 60 Hz without Damping Cage
LINZ ALUMEN-X MD Single-phase alternator 6 kVA 60 Hz without Damping Cage
ALUMEN-X MD 6.5 60 Hz

Rated power at 60 Hz (kVA): 6
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.6 at 60 Hz
Suppression standard R.F.F.I. EN55011
Without damping cage and external cable extension

Download Technical Data ALUMEN-X MD

Phase
Single phase
Continuous power single phase (KW)
6
Continuous power single phase (KVA)
6
Frequency (Hz)
60
Voltage (V)
120 / 240
Engine rpm (rpm)
1800
Alternator
Synchronous, brushless
Poles
4
Single-phase power (KVA)
6
Protection degree
IP21
Motor insulation class
H

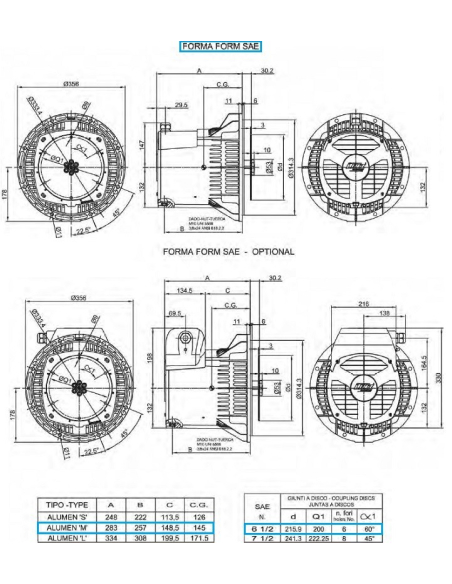

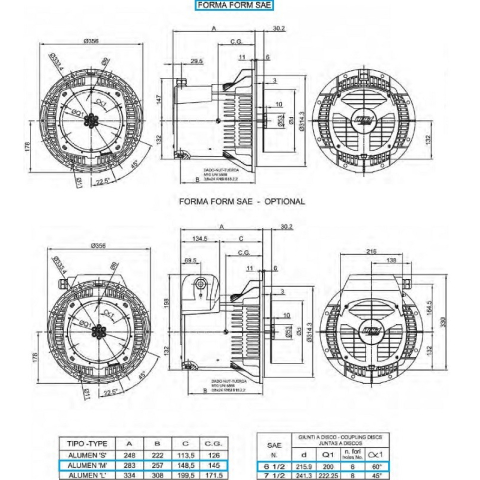

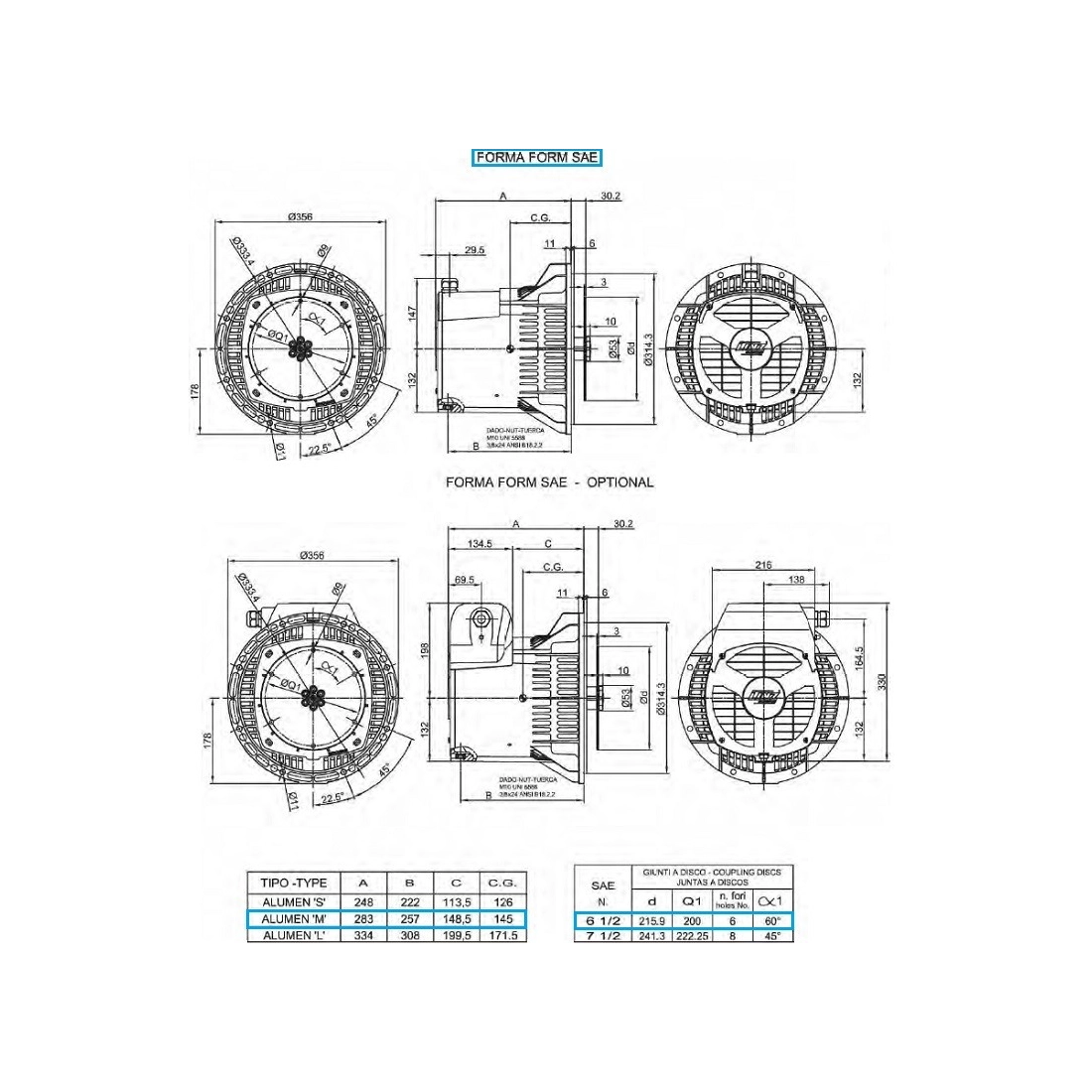

Length (mm)
283
Width (mm)
356
Height (mm)
356
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
41.7
Brand

The LINZ ALUMEN series is a set of single-phase, 4-pole brushless alternators with an auxiliary winding to regulate the voltage, loaded onto highly insulated capacitors to protect from high ignition voltage.
This series has been especially designed for use in LIGHTING TOWERS with metal halide, halogen or LED lamps.

CHARACTERISTICS

  • Best-in-class efficiency
  • Compact and easy to assemble
  • Flexible design
  • Easy maintenance
  • Type: Single-phase alternators
  • Poles: 4
  • Phases: Single-phase
  • Regulation: CAPACITOR
  • Application: PORTABLE, LIGHTING TOWERS

Complete your order with:

Available only upon request
€676.72 €676.72
Choose the type of coupling
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.

Download PDF
Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
