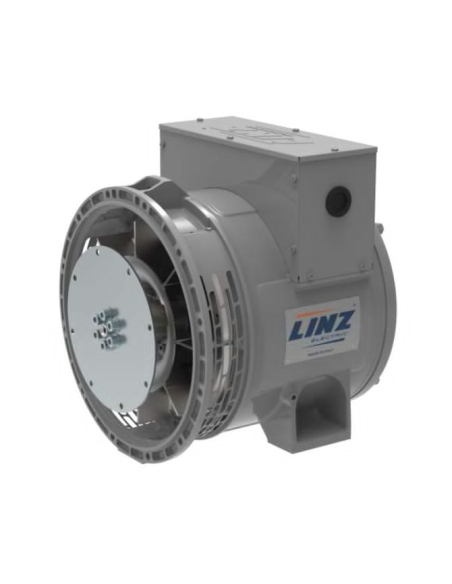

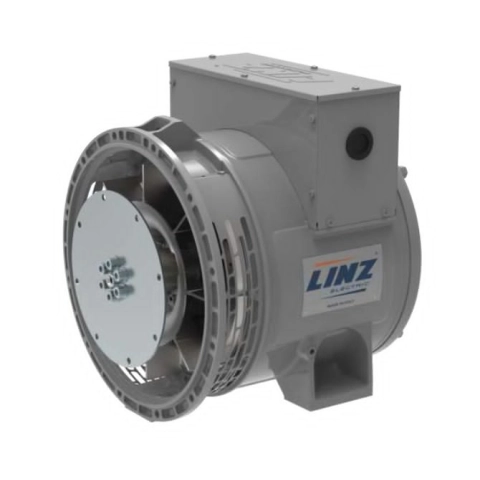

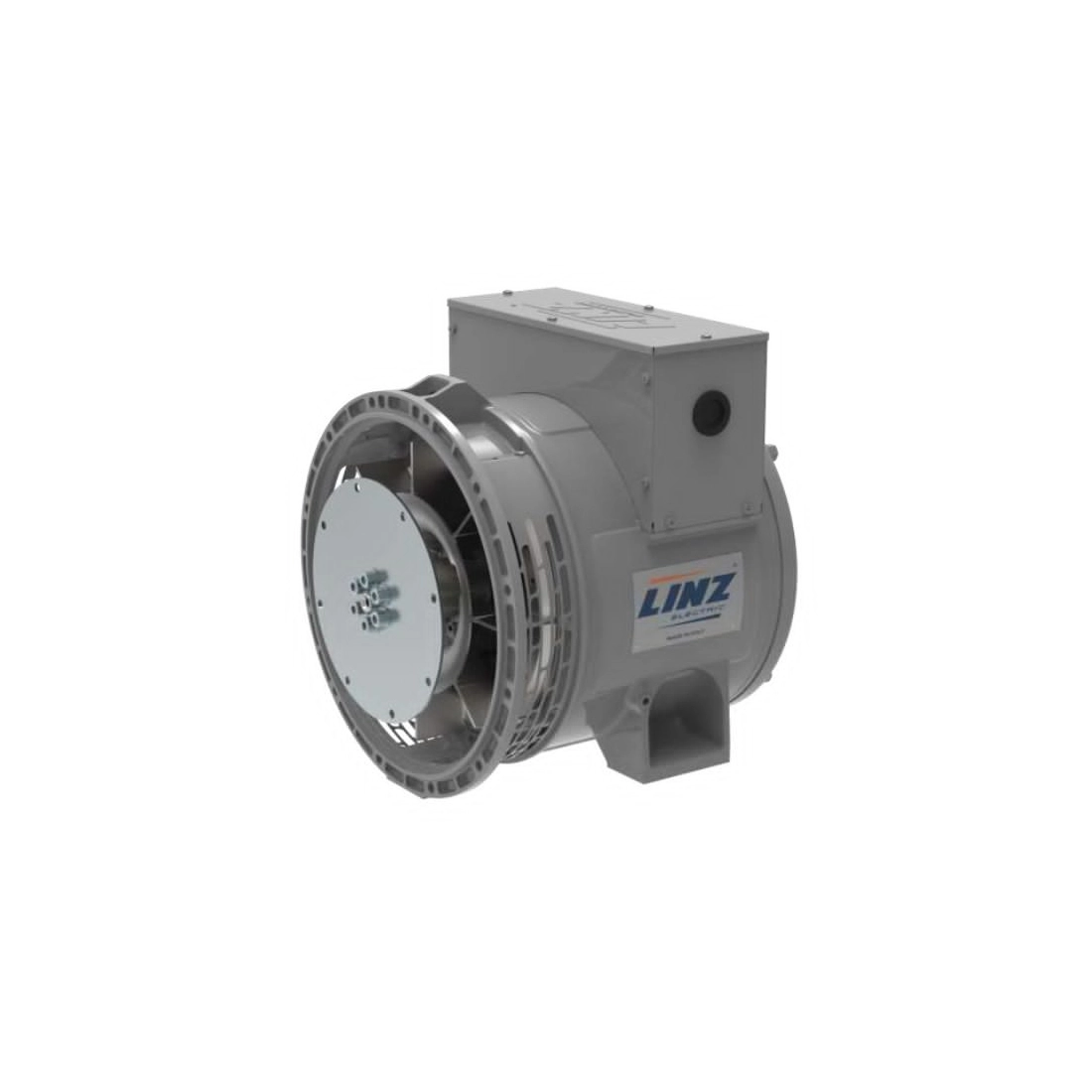

LINZ SLS18 MC Single-phase alternator 12 kVA 60 Hz with AVR
SLS18 MC 60 Hz SAE3 d6.5
Rated power at 60 Hz (kVA): 12
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP23
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.7 at 60 Hz
Suppression standard R.F.F.I. EN55011
With damping cage and external cable extension
- Phase
- Single phase
- Continuous power single phase (KW)
- 12
- Continuous power single phase (KVA)
- 12
- Frequency (Hz)
- 60
- Voltage (V)
- 220 / 230 / 240
- Engine rpm (rpm)
- 1800
- Alternator
- Synchronous, brushless
- Poles
- 4
- Single-phase power (KVA)
- 12
- Protection degree
- IP23
- Motor insulation class
- H
- Length (mm)
- 370
- Width (mm)
- 450
- Height (mm)
- 450
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 112
- Brand
-
The alternators of the SLS series are single-phase 4-pole, brushless, equipped with electronic regulator (AVR).
CHARACTERISTICS
- Compact and mechnically resistant
- Excellent wave form
- Minimum maintenance
- High efficiency
- Type: Single-phase alternators
- Poles: 4
- Phases: Single-phase
- Regulation: AVR
- Application: INDUSTRIAL, TELECOMMUNICATION
