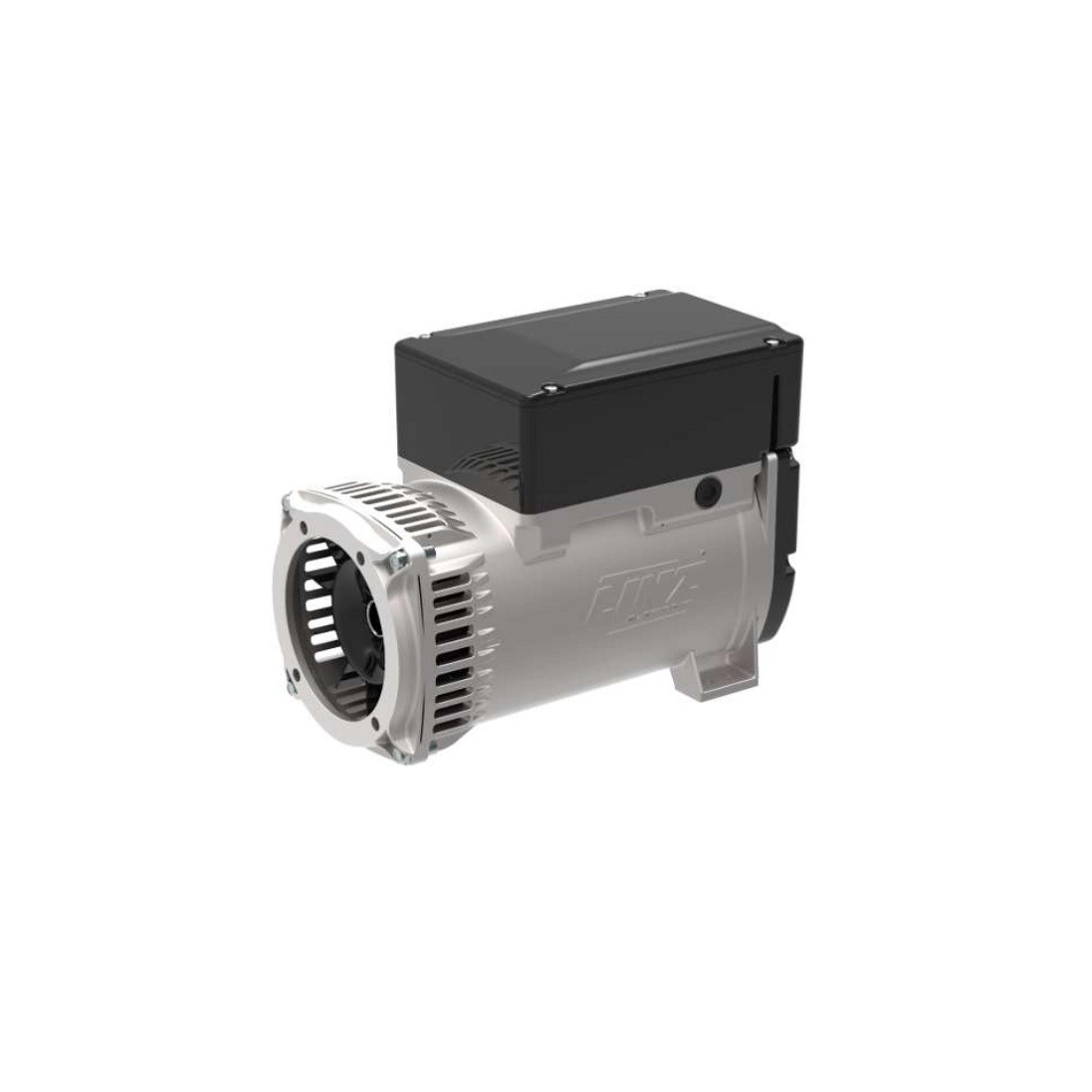

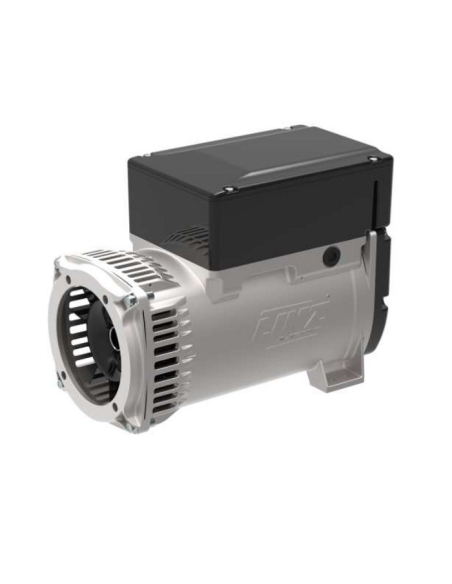

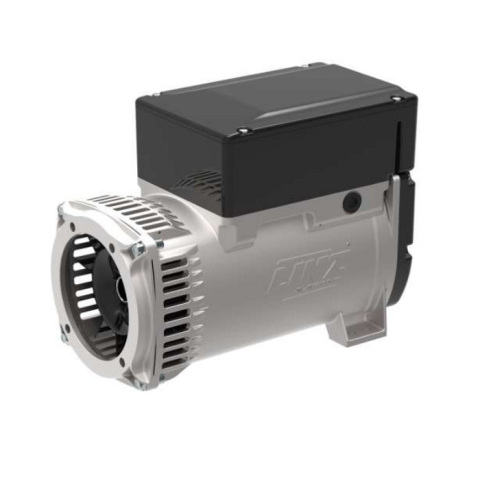

LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound

LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound
LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound
LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound
LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound
E1S11M AS 50 Hz J609b

Rated power at 50 Hz (kVA): 11.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: compound
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.9 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1S11M AS

Phase
Three phase
Continuous power three phase (KW)
9.2
Continuous power three phase (KVA)
11.5
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Single-phase power (KVA)
11.5
Protection degree
IP21
Motor insulation class
H
Length (mm)
415
Width (mm)
230
Height (mm)
325
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
50.5
Brand

E1S/2 series are three-phase 2 poles alternators with brushes and compound regulation..

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE
    product available in 50 Hz and 60 Hz versions

Complete your order with:

Available only upon request
€668.69 €668.69

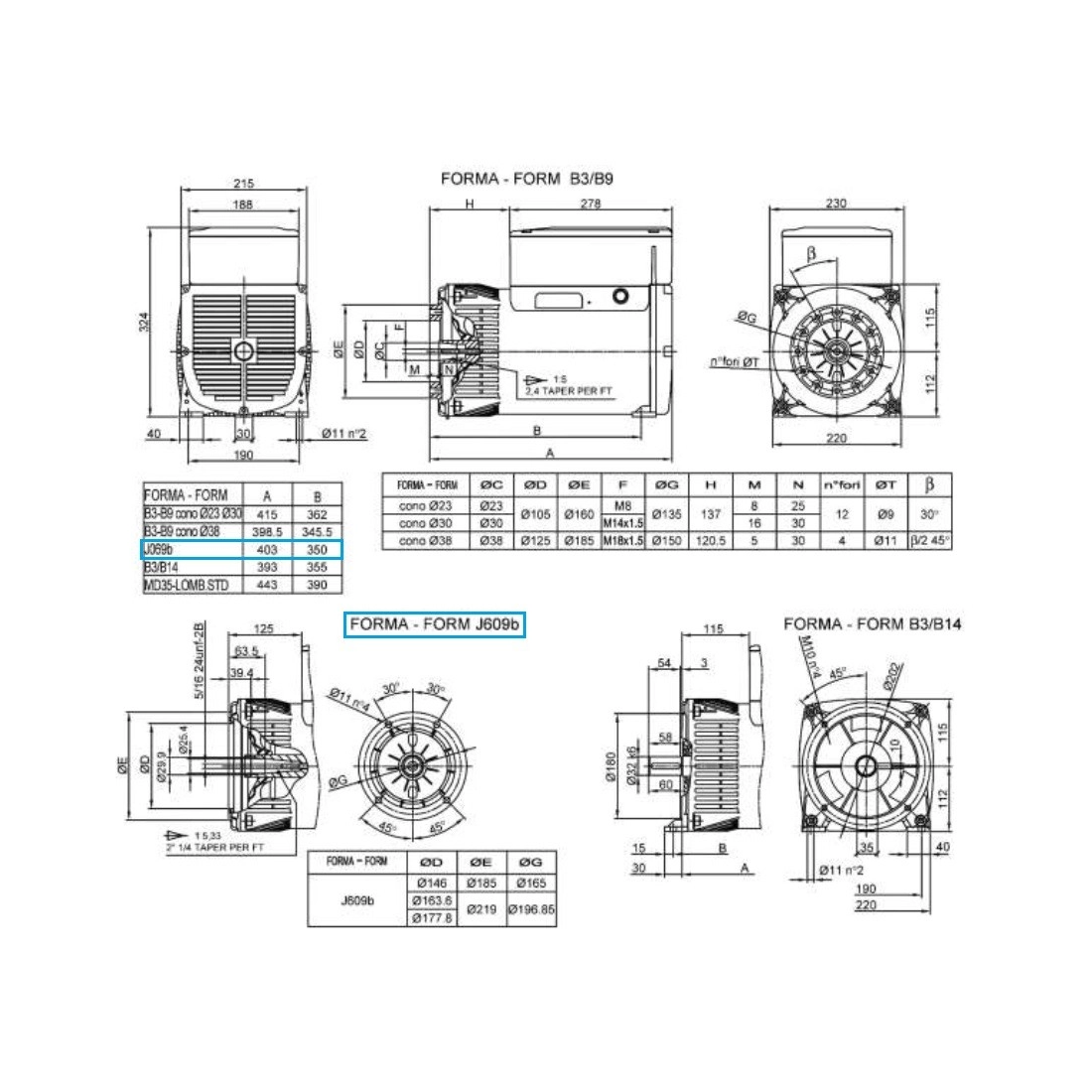

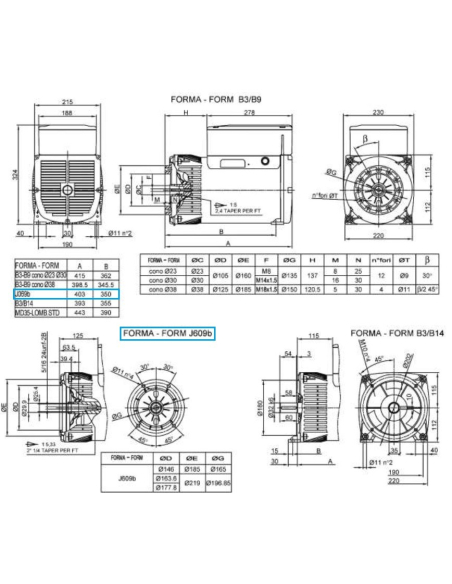

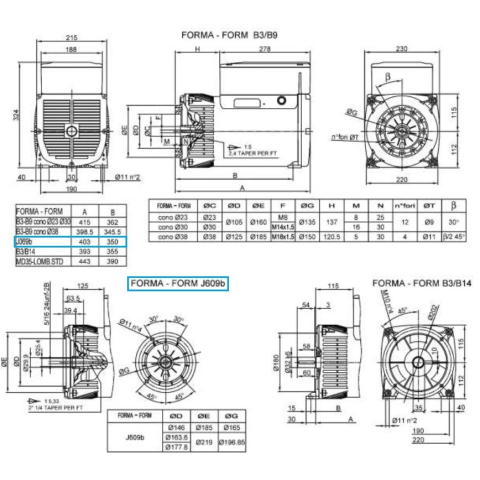

Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 23
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • Gear box coupling flange

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
