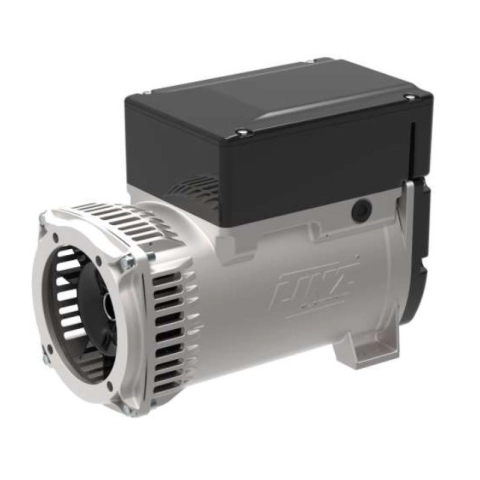

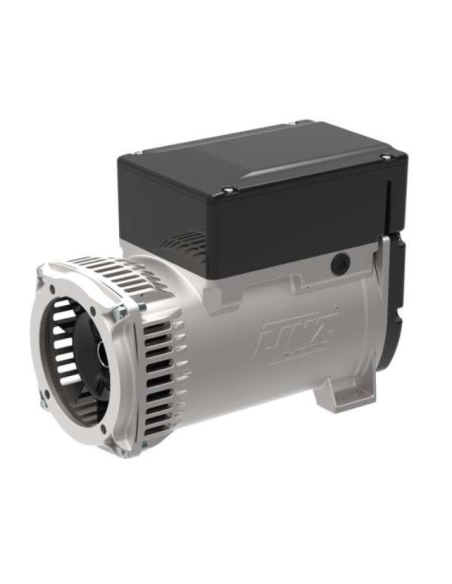

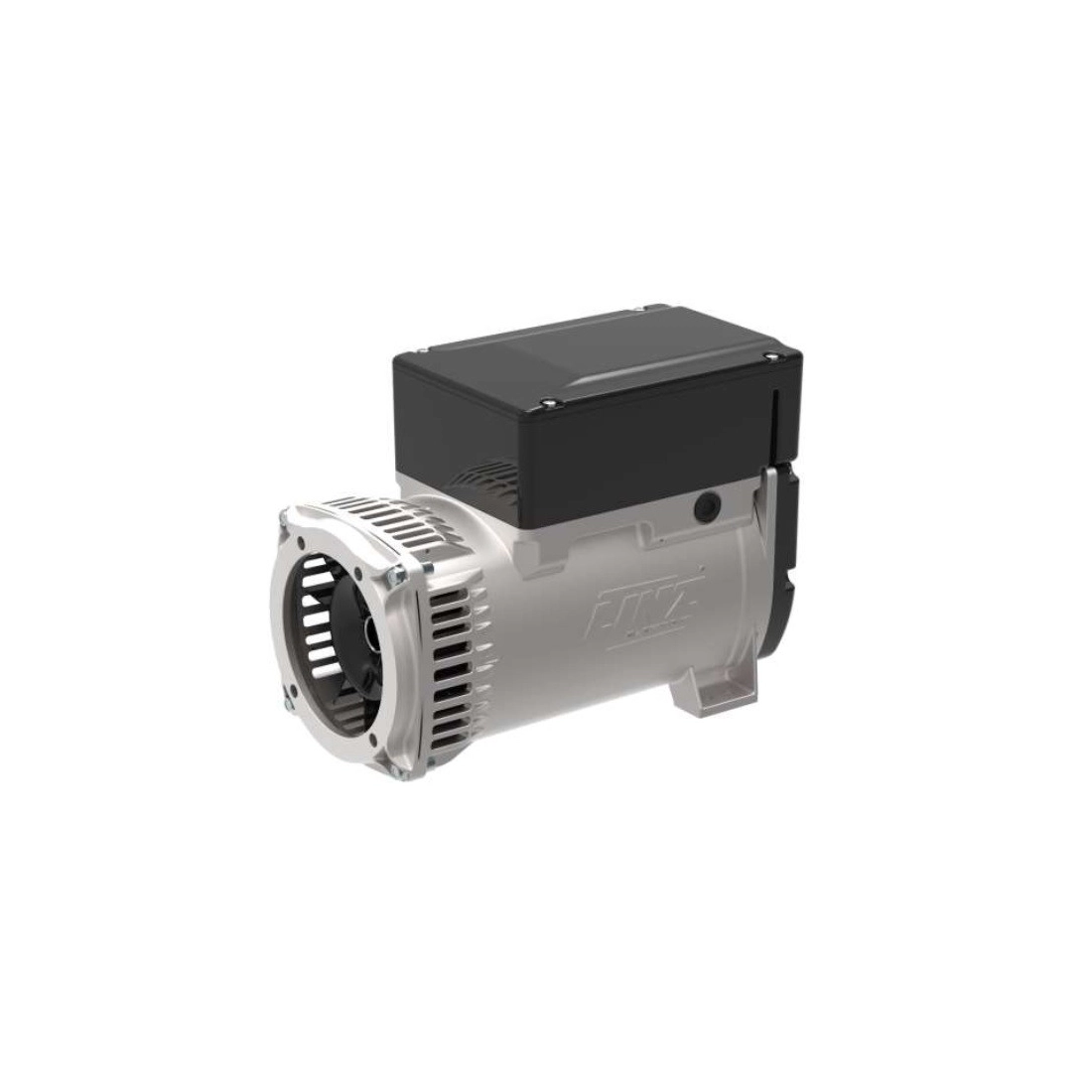

LINZ E1S10M I KE Three-phase alternator 277V/480V 8.5 kVA 60 Hz AVR + Compound

Name: LINZ E1S10M I KE Three-phase alternator 277V/480V 8.5 kVA 60 Hz AVR + Compound
Brand: LINZ ELECTRIC
SKU: E1S10M I KE 60 Hz
Price: 649.38 EUR
Availability: InStock

Reference E1S10M I KE 60 Hz J609a

Rated power at 60 Hz (kVA): 8.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: AVR + compound
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.5 at 60 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1S10M I KE

Product Details
Description

Phase: Three phase
Continuous power three phase (KW): 6.8
Continuous power three phase (KVA): 8.5
Frequency (Hz): 60
Voltage (V): 277 / 480
Engine rpm (rpm): 3600
Alternator: Synchronous
Poles: 2
Single-phase power (KVA): 8.5
Protection degree: IP21
Motor insulation class: H
Length (mm): 294
Width (mm): 195
Height (mm): 295
Brushes: Yes
Type of alternator: Constant Speed
Voltage regulator: AVR+Compound
Weight (Kg): 37

Brand

E1S-KE series are three-phase 2 poles alternators with brushes and mixed regulation: compound and electronic (AVR).

CHARACTERISTICS

Possibility to feed any type of load
Compact and easy to assemble
High starting capacity
High efficiency

Type: Three-phase alternators
Poles: 2
Phases: Three-phase
Regulation: COMPOUND AND AVR
Application: PORTABLE

Complete your order with:

LINZ AAJ 1 CEE 5p. socket (16A - 400V) + 1 Schuko socket + 1 breaker

Unavailable

€50.00 Tax included

€50.00 Tax excluded

View

LINZ AAP 1 CEE 5p. socket (16A - 400V) + 1 CEE socket (16A - 230V) + 1 breaker

Unavailable

€56.00 Tax included

€56.00 Tax excluded

View

LINZ ACI2 12 Vdc Isolated Battery Charger Winding

Unavailable

€14.42 Tax included

€14.42 Tax excluded

View

LINZ Impregnation for Marine Environment I1

Unavailable

€38.00 Tax included

€38.00 Tax excluded

View

LINZ IP23 Protection for E1C10 E1C11 Alternators

Unavailable

€6.00 Tax included

€6.00 Tax excluded

View

Available only upon request

€649.38 €649.38

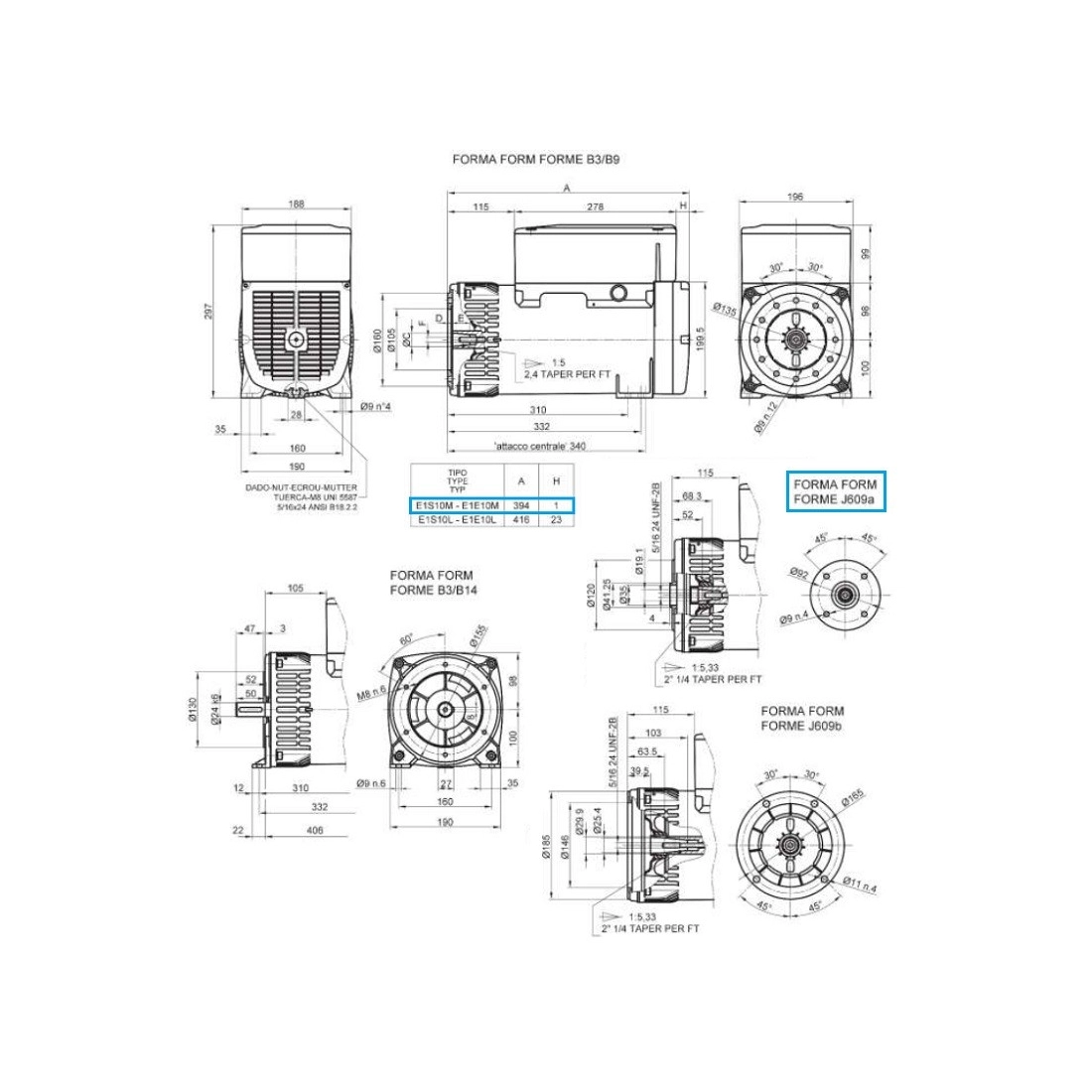

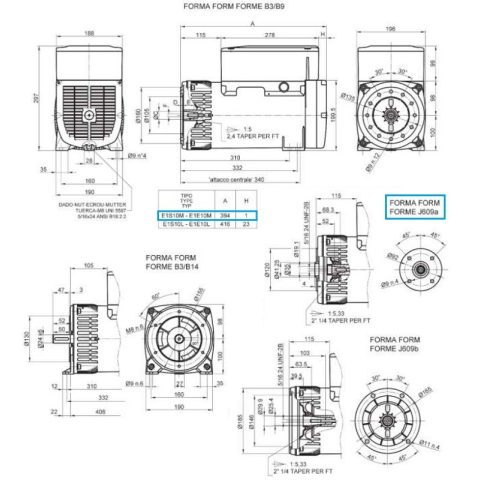

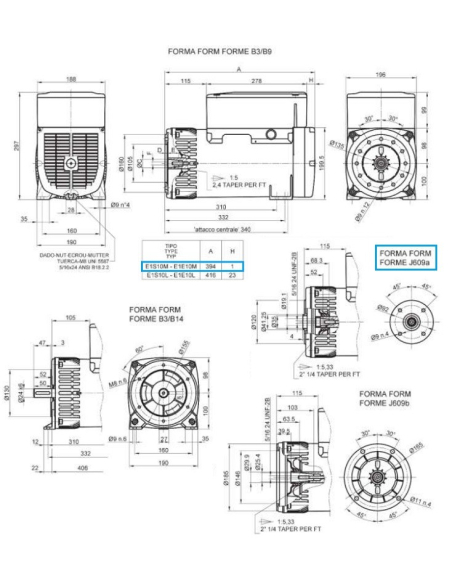

Choose the type of coupling

IMB35 J609b cone 25.4
IM B34 - B3/B14
IM B35 - B3/B9 cone 23
IM B35 - B3/B9 cone 30
IM B35 - J609a cone 19

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
