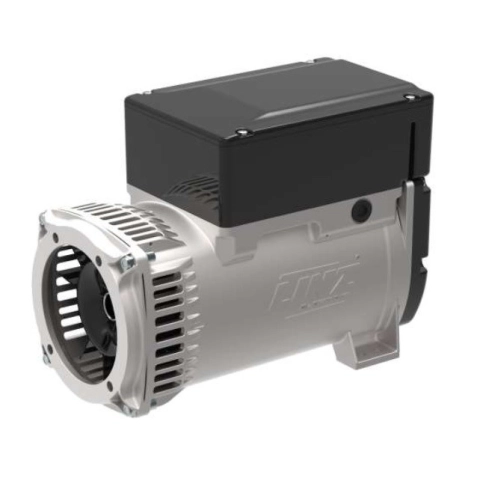

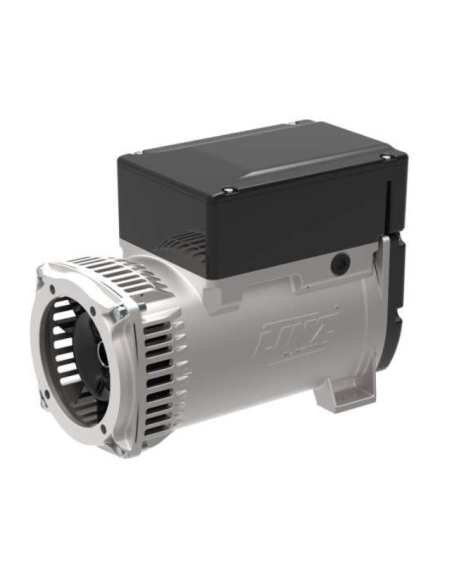

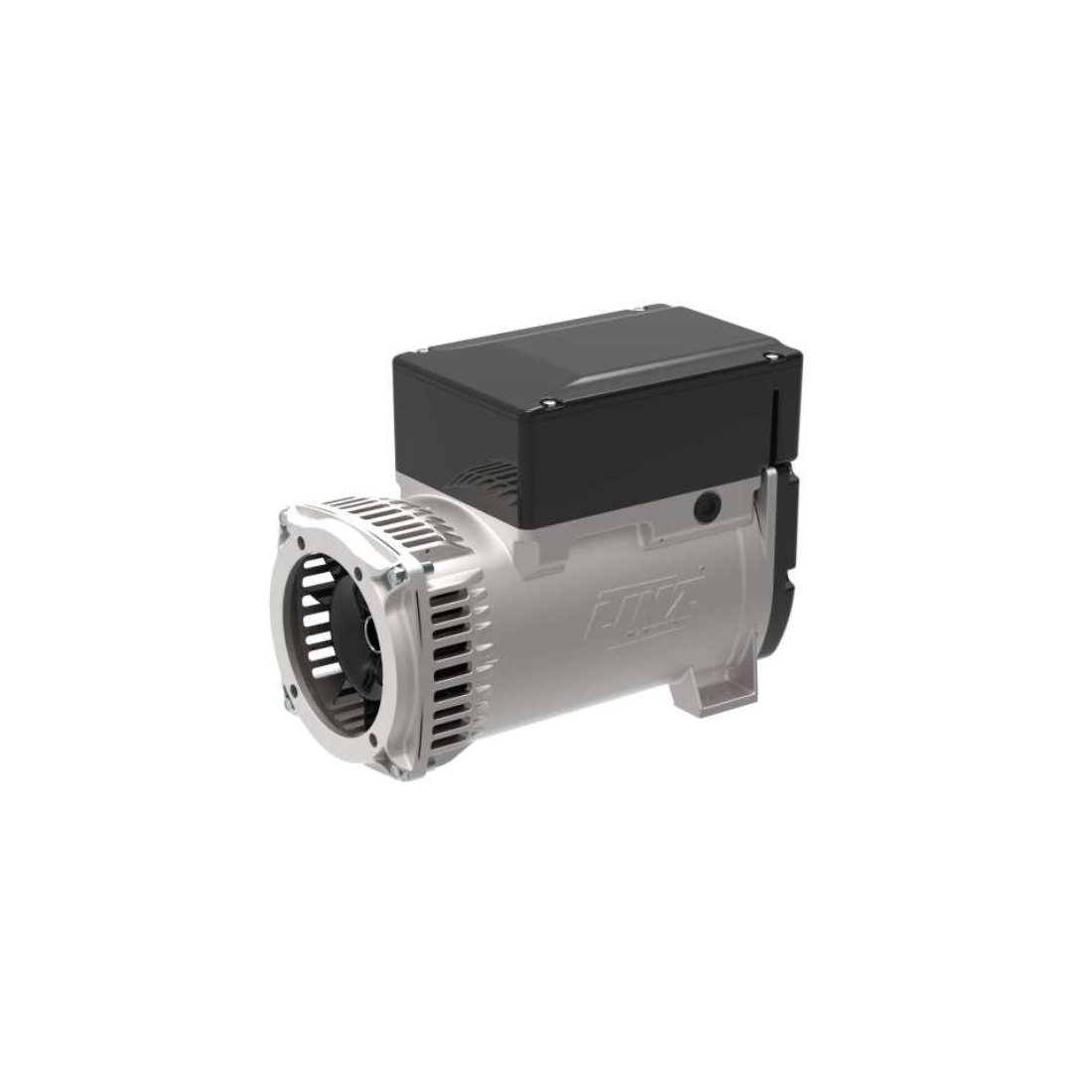

LINZ E1S10L L KE Three-phase alternator 230V/400V 9 kVA 50 Hz AVR + Compound

LINZ E1S10L L KE Three-phase alternator 230V/400V 9 kVA 50 Hz AVR + Compound
LINZ E1S10L L KE Three-phase alternator 230V/400V 9 kVA 50 Hz AVR + Compound
LINZ E1S10L L KE Three-phase alternator 230V/400V 9 kVA 50 Hz AVR + Compound
LINZ E1S10L L KE Three-phase alternator 230V/400V 9 kVA 50 Hz AVR + Compound
E1S10L L KE 50 Hz J609a

Rated power at 50 Hz (kVA): 9
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: AVR + compound
Insulation class: H
Frequency: 50 Hz and 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.6 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1S10L L KE

Phase
Three phase
Continuous power three phase (KW)
7.2
Continuous power three phase (KVA)
9
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Single-phase power (KVA)
9
Protection degree
IP21
Motor insulation class
H
Length (mm)
294
Width (mm)
195
Height (mm)
295
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR+Compound
Weight (Kg)
41.4
Brand

E1S-KE series are three-phase 2 poles alternators with brushes and mixed regulation: compound and electronic (AVR).

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND AND AVR
  • Application: PORTABLE
    product available in 50 Hz and 60 Hz versions

Complete your order with:

Available only upon request
€694.44 €694.44

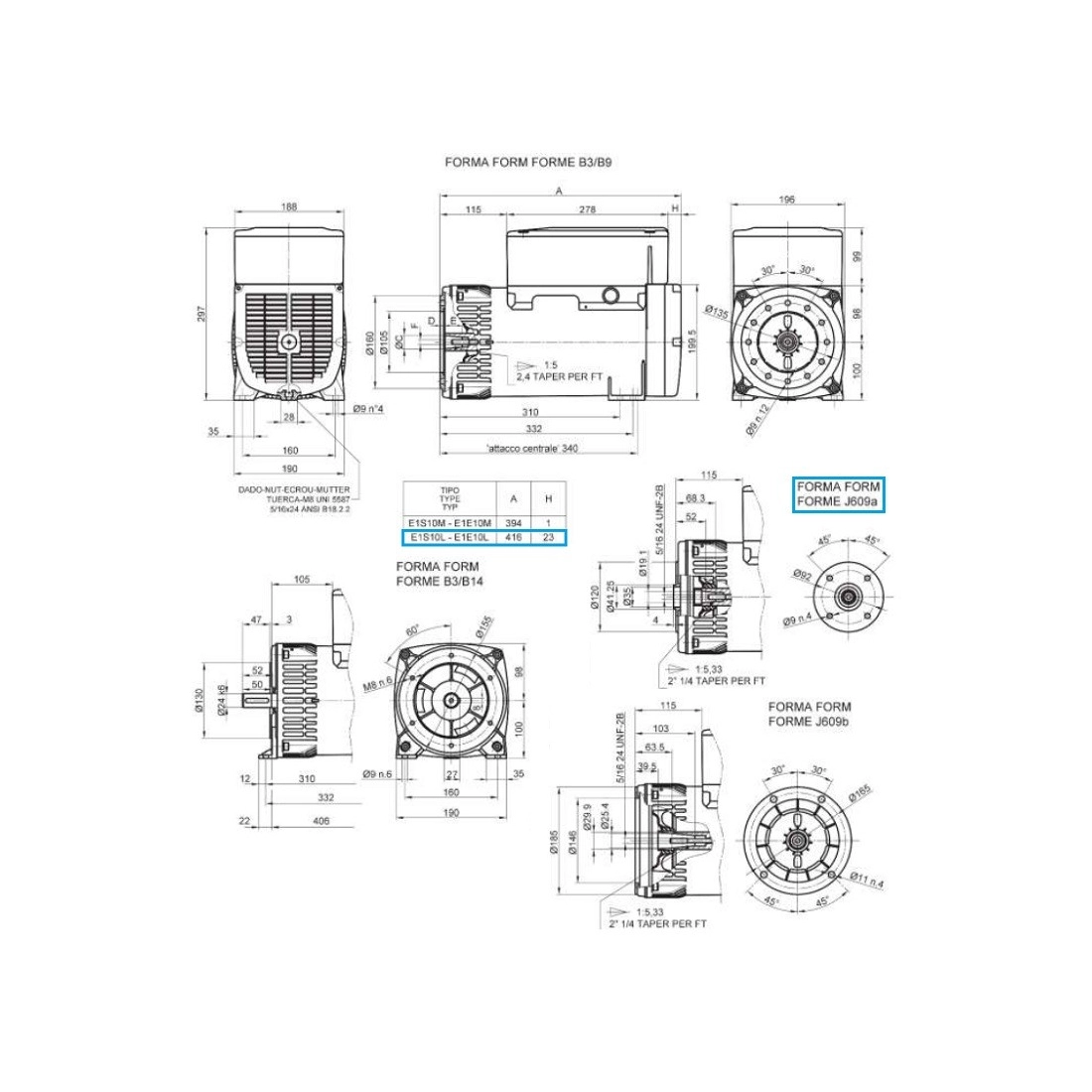

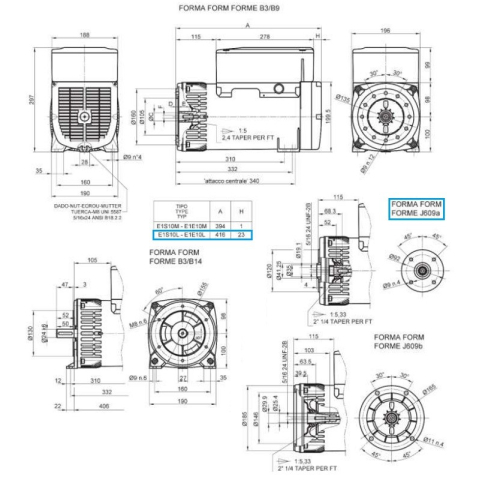

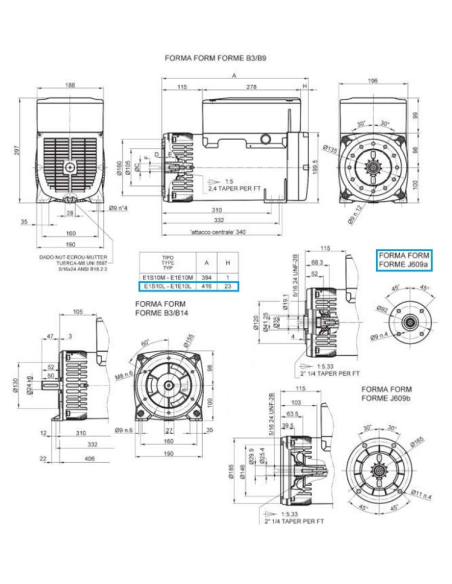

Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 23
  • IM B35 - B3/B9 cone 30
  • IM B35 - J609a cone 19

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
