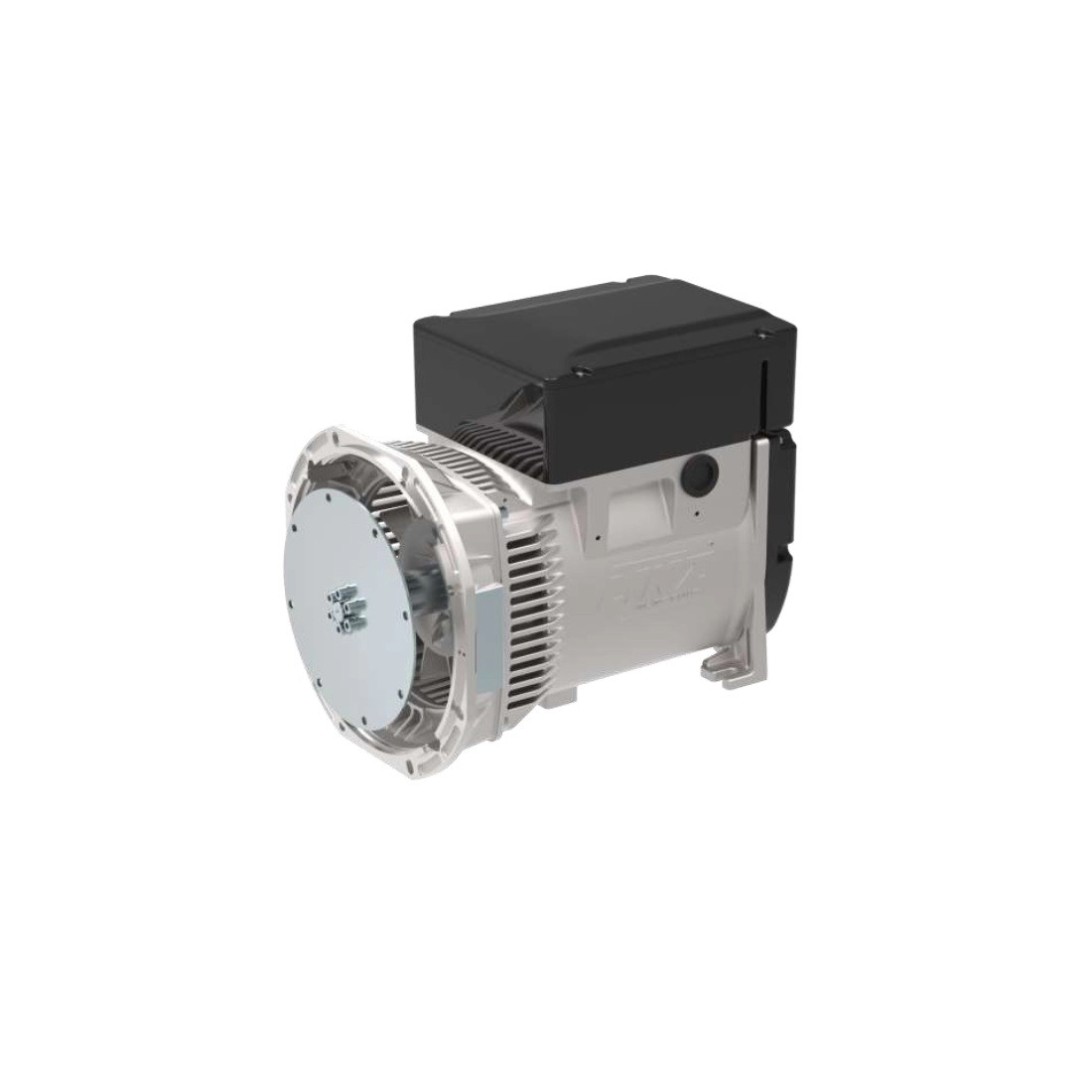

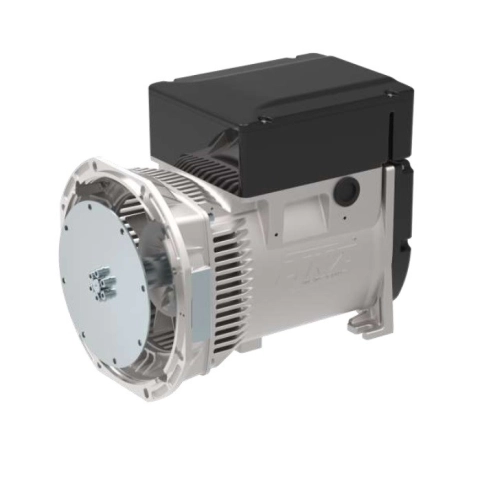

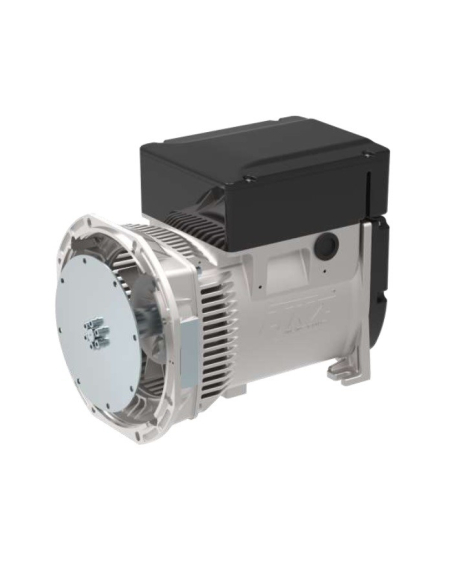

LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound

LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
E1S13S A/4 50 Hz J609b

Rated power at 50 Hz (kVA): 8
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Type of regulation: Compound
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.4 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1S13S A/4

Phase
Three phase
Continuous power three phase (KW)
6.4
Continuous power three phase (KVA)
8
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
8
Protection degree
IP21
Motor insulation class
H
Length (mm)
403
Width (mm)
270
Height (mm)
379
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
51
Brand

E1S13/4 series are three-phase 4 poles alternators with brushes and compound regulation.

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE

Complete your order with:

Available only upon request
€916.32 €916.32
Choose the type of coupling

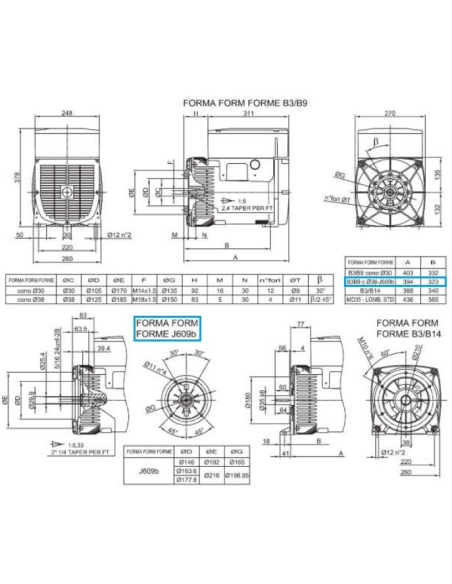

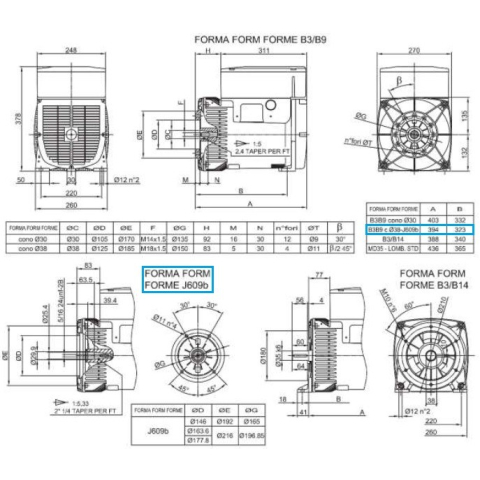

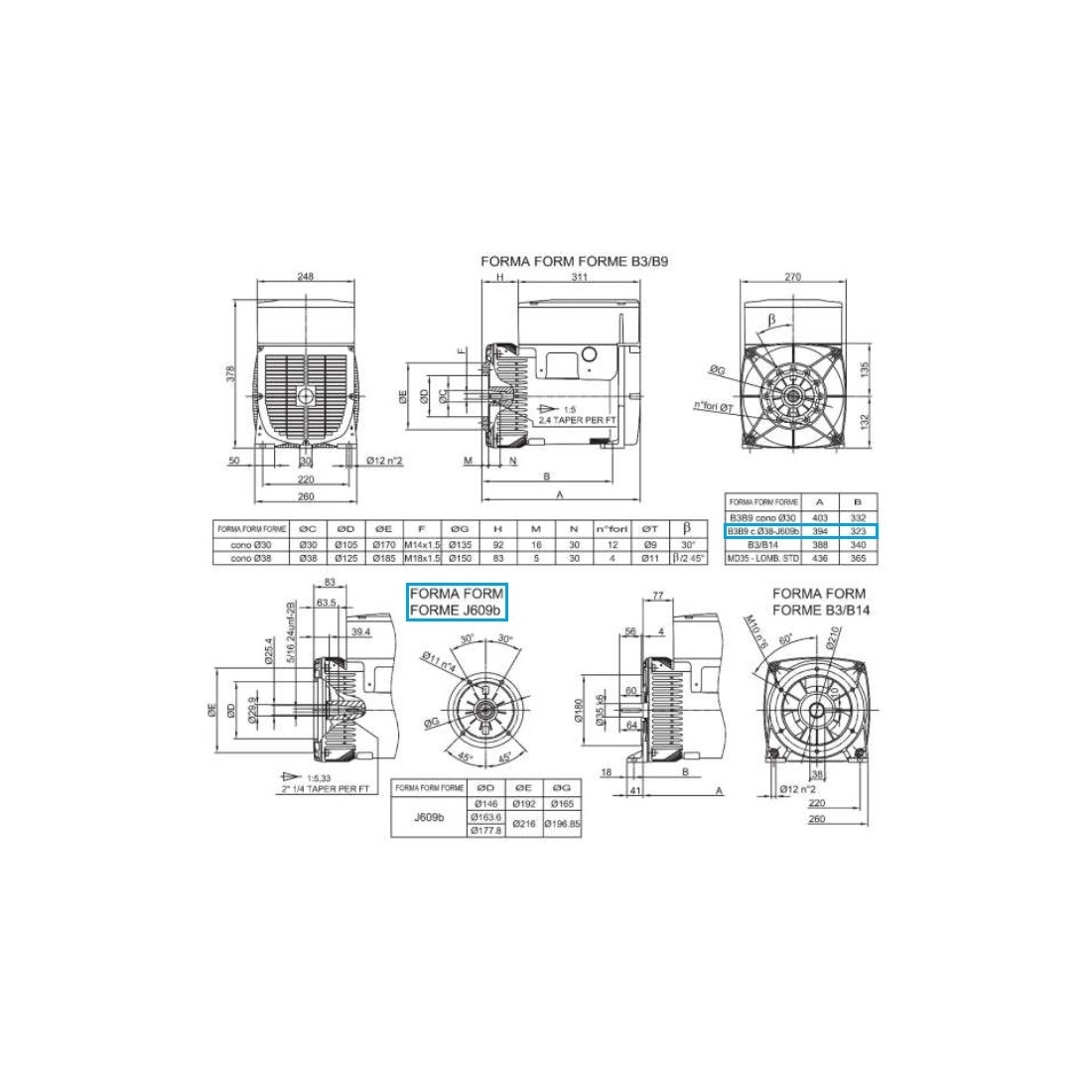

  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
