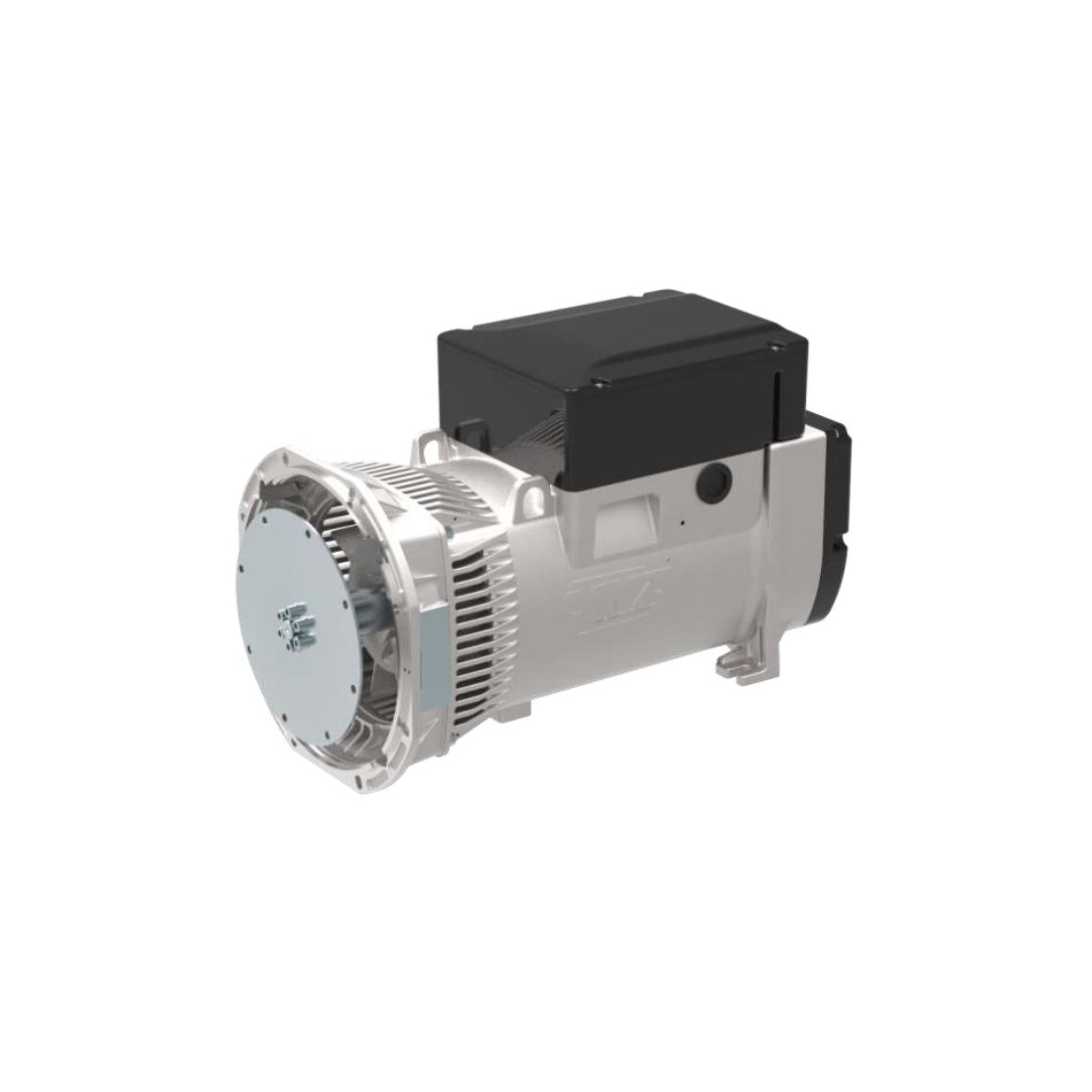

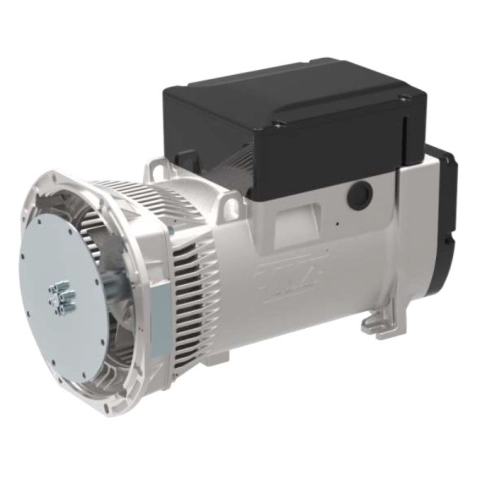

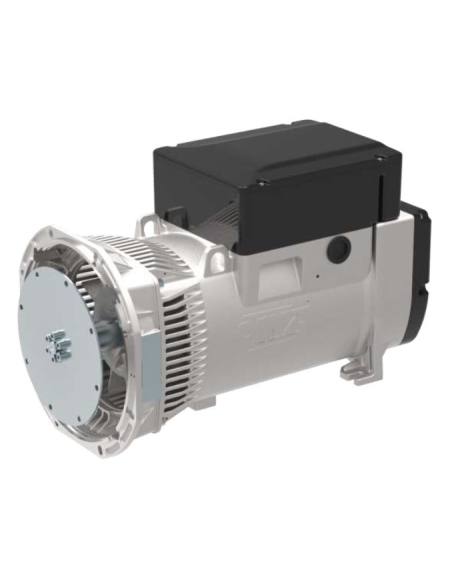

LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR

LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR
LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR
LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR
LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR
E1X13M F/4 50 Hz J609b

Rated power at 50 Hz (kVA): 16
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.5 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1X13M F/4

Phase
Three phase
Continuous power three phase (KW)
12.8
Continuous power three phase (KVA)
16
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
16
Protection degree
IP21
Motor insulation class
H

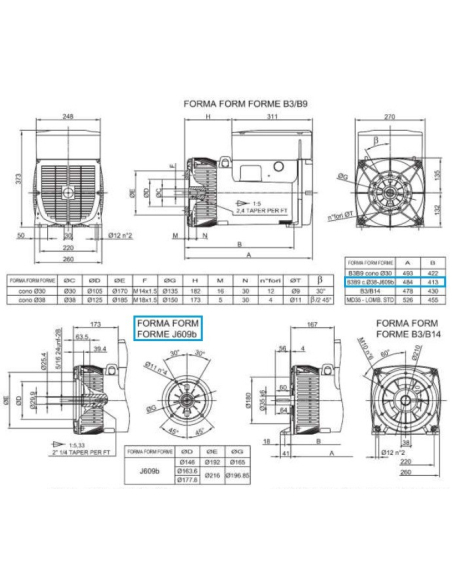

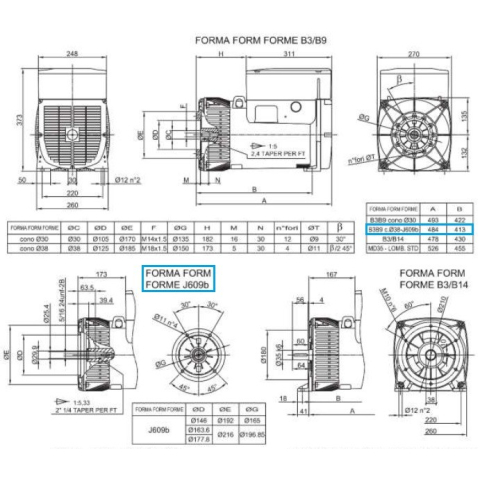

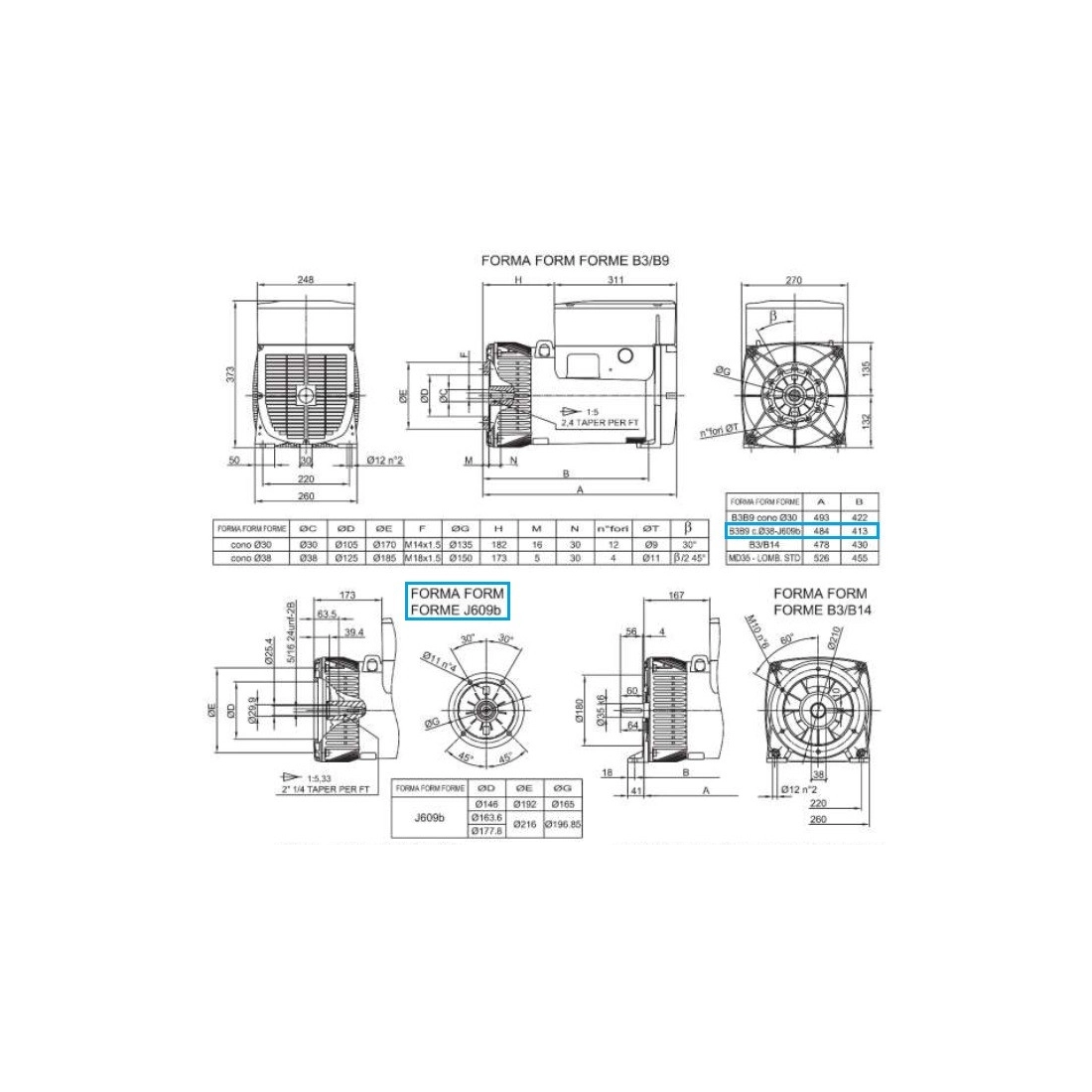

Length (mm)
544
Width (mm)
260
Height (mm)
373
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
96
Brand

E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR).

CHARACTERISTICS

  • Compact and mechnically resistant
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: PORTABLE, TELECOMMUNICATION

Complete your order with:

Available only upon request
€1,360.38 €1,360.38
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
