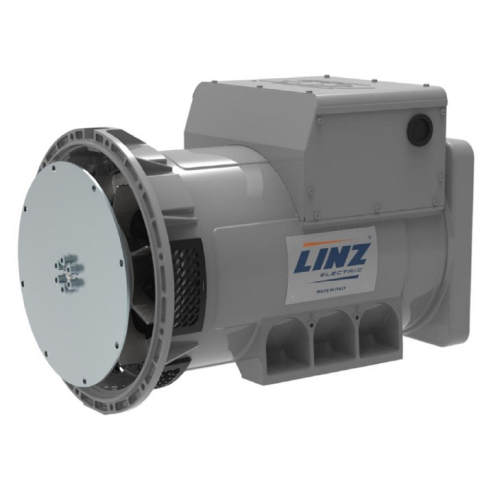

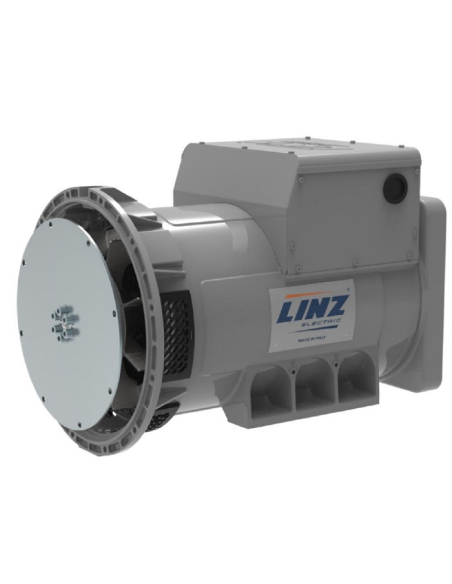

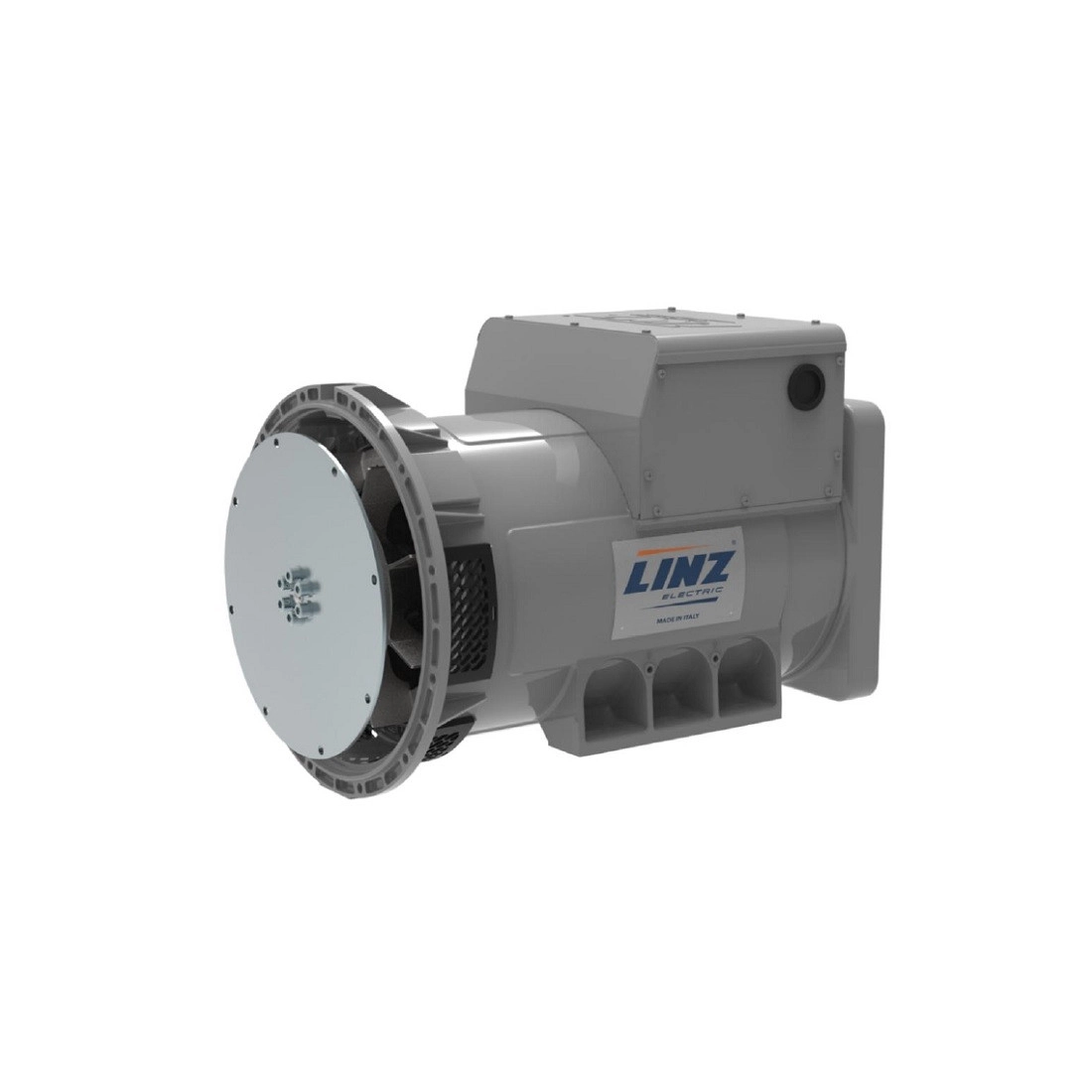

LINZ PRO18L F/4 Three-phase alternator 4 poles 50 kVA 50 Hz AVR

LINZ PRO18L F/4 Three-phase alternator 4 poles 50 kVA 50 Hz AVR
LINZ PRO18L F/4 Three-phase alternator 4 poles 50 kVA 50 Hz AVR
LINZ PRO18L F/4 Three-phase alternator 4 poles 50 kVA 50 Hz AVR
LINZ PRO18L F/4 Three-phase alternator 4 poles 50 kVA 50 Hz AVR
PRO18L F/4 50 Hz SAE3 d6.5

Rated power at 50 Hz (kVA): 50
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 10 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data PRO18L F/4

Phase
Three phase
Continuous power three phase (KW)
40
Continuous power three phase (KVA)
50
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
50
Protection degree
IP23
Motor insulation class
H

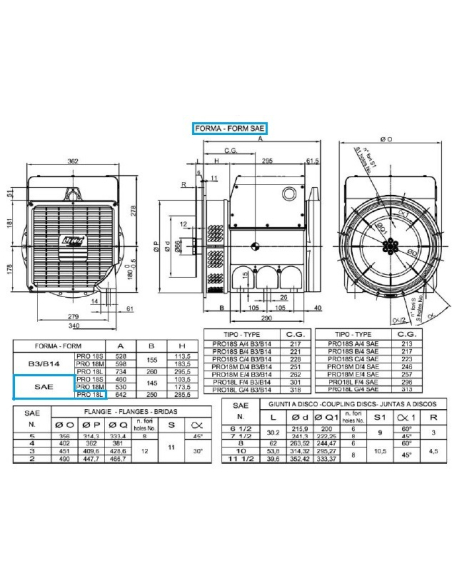

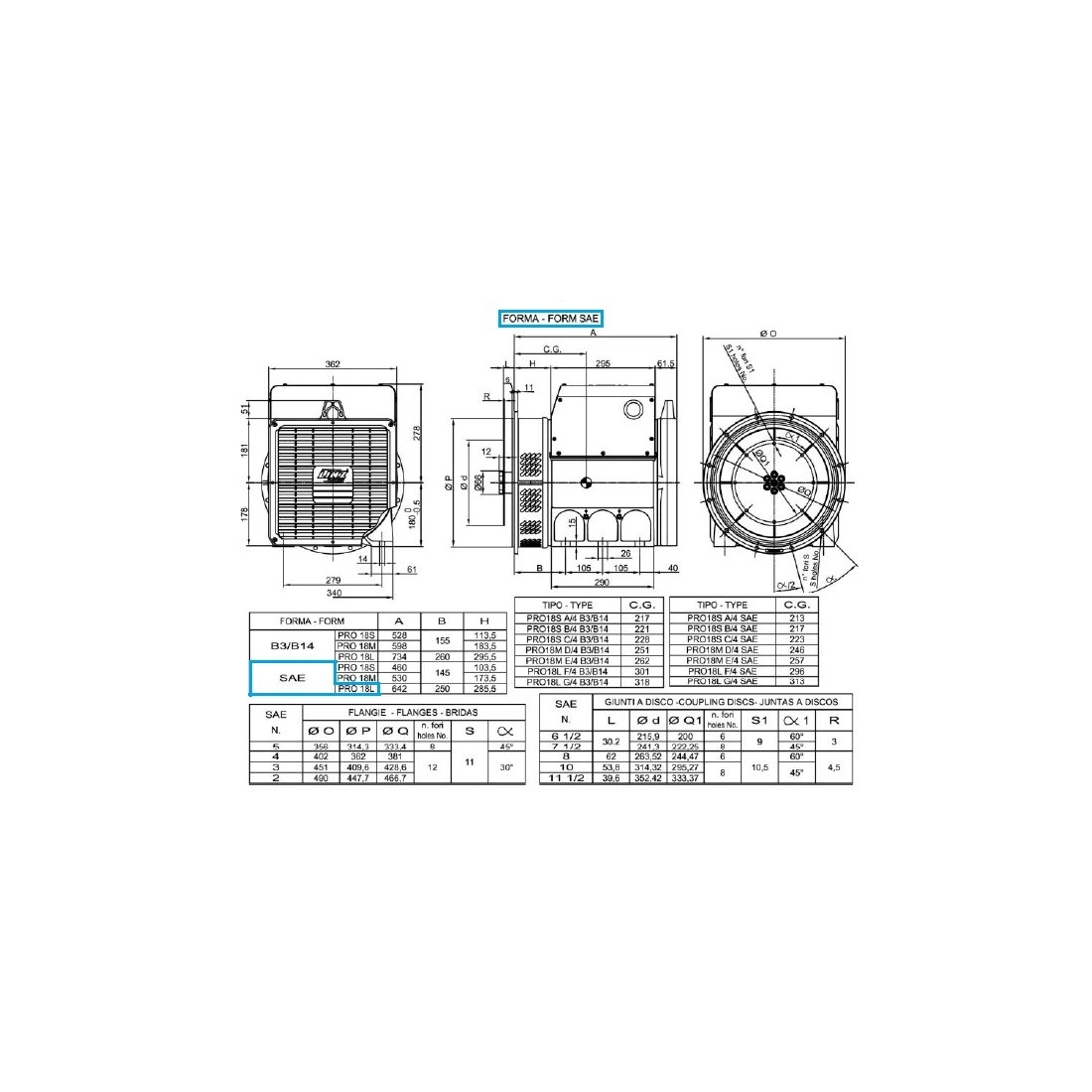

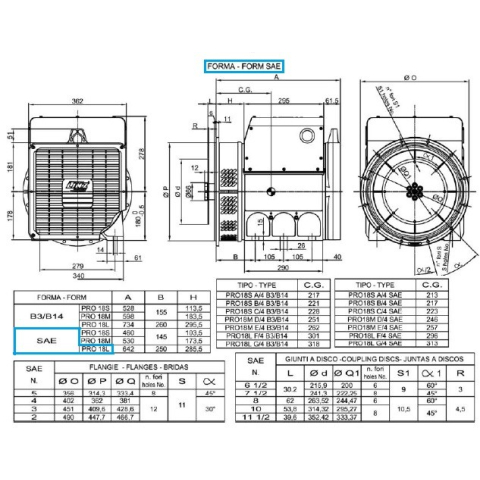

Length (mm)
642
Width (mm)
362
Height (mm)
458
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
236.5
Brand

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Complete your order with:

Available only upon request
€2,093.91 €2,093.91
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • SAE2 disk joint 6.5
  • SAE2 disk joint 7.5
  • SAE2 disk joint 8
  • SAE2 disk joint 10
  • SAE2 disk joint 11.5

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.

Download PDF
Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
