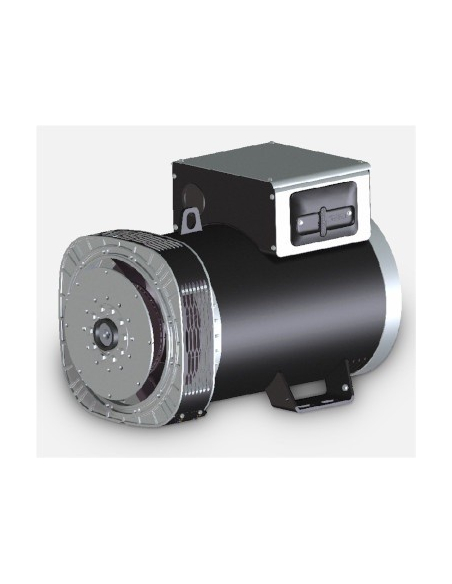

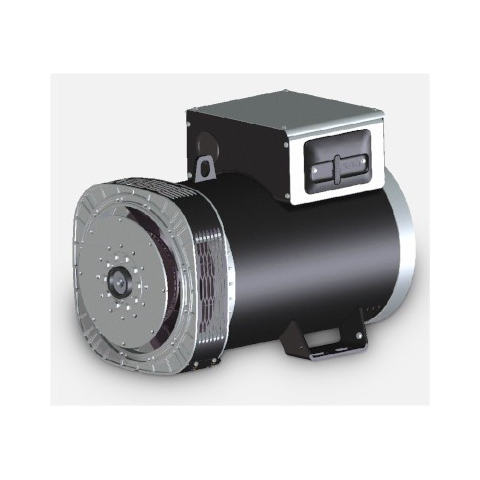

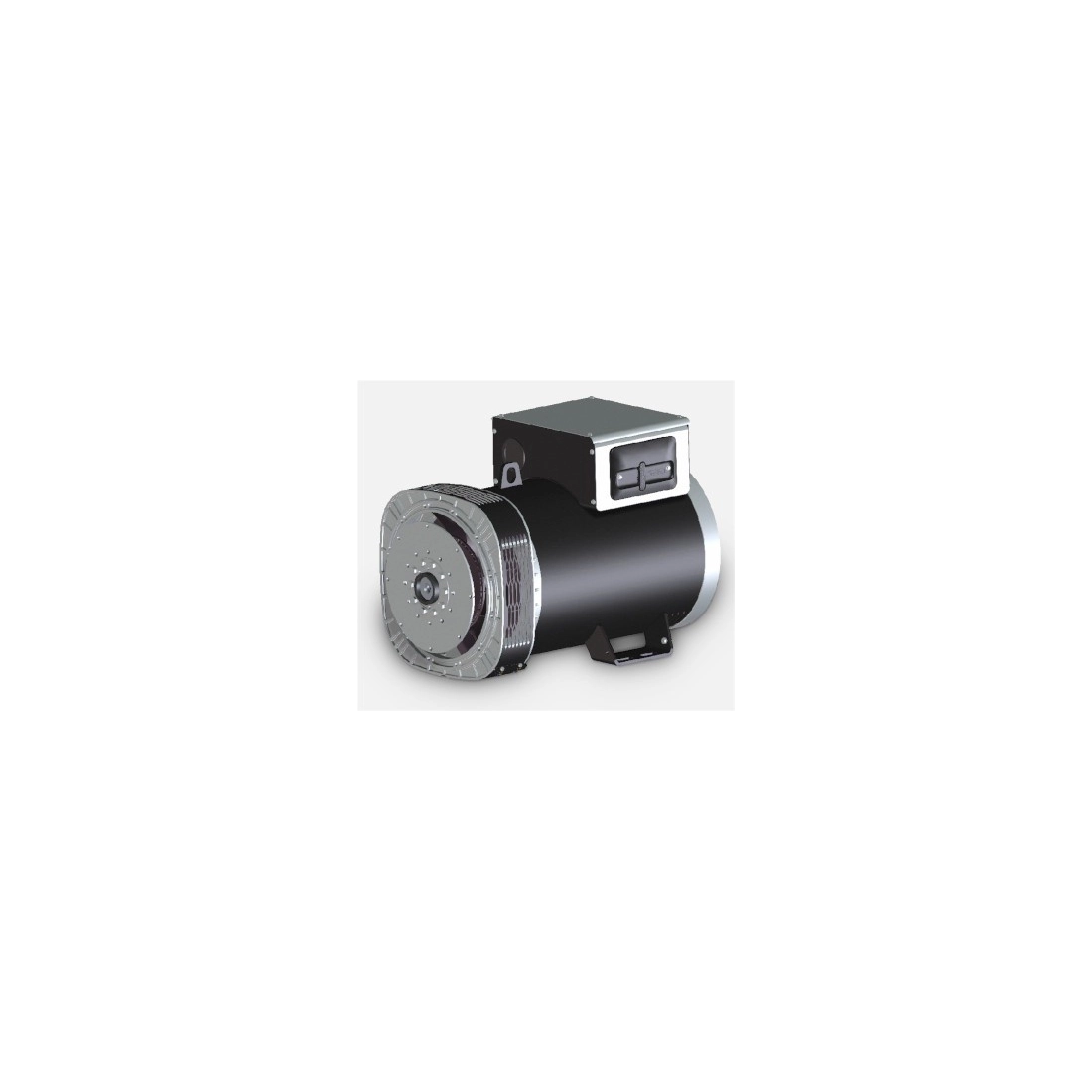

MECC ALTE ECP34-2S/4 C-TYPE THREE PHASE ALTERNATOR 100 KVA AVR

MECC ALTE ECP34-2S/4 C-TYPE THREE PHASE ALTERNATOR 100 KVA AVR
MECC ALTE ECP34-2S/4 C-TYPE THREE PHASE ALTERNATOR 100 KVA AVR
MECC ALTE ECP34-2S/4 C-TYPE THREE PHASE ALTERNATOR 100 KVA AVR
MECC ALTE ECP34-2S/4 C-TYPE THREE PHASE ALTERNATOR 100 KVA AVR
ECP34-2S/4 C B3/B14

Phase Type: Single Phase / Three Phase
Maximum Three Phase Power: 110 KVA / 88 KW
Three Phase Continuous Use Power: 100 KVA / 80 KW
Maximum Single Phase Power: 68 KVA / 68 KW
Single Phase Continuous Use Power: 62 KVA / 62 KW
Frequency: 50 / 60 Hz
Voltage: 230 / 400 V
Protection class: IP23
Alternator speed: 1500 /1800 rpm
Number of poles: 4
Efficiency: 92 %
Weight: 349 Kg
Constant speed alternator
Brushless
Voltage regulator: DSR (AVR)

Download Technical Data ECP34 4 C

Phase
Single phase / Three phase
Maximum power single phase (KW)
68
Continuous power single phase (KW)
62
Continuous power single phase (KVA)
62
Maximum power three phase (KW)
88
Continuous power three phase (KW)
80
Maximum power three phase (KVA)
110
Continuous power three phase (KVA)
100
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
1500 / 1800
Poles
4
Single-phase power (KVA)
68
Three-phase power (KVA)
110
Efficiency (%)
Protection degree
IP23
Acoustic pressure
65 dB(A) at 7 m
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
350
Brand

MECC ALTE ECP34-2S/4 C-TYPE

The ECP34 C-Type range has many product features designed into the alternator.
Type C alternators make the most of power conversion to produce the maximum power to size ratio.
C-Type is now one of the easiest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our goal was to provide maximum power from the smallest, lightest and most durable alternators, and the MECC ALTE designers have lavished the C-Type with much more flexibility.
The entire series is built to the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/CSA-C22.2 No14-95- No100-95.

Immagini e dati tecnici non impegnativi.

Complete your order with:

Available only upon request
€3,472.56 €3,472.56
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE2 disk joint 10
  • SAE2 disk joint 11.5
  • SAE1 disk joint 10
  • SAE1 disk joint 11.5
  • SAE3 disk joint 14
  • SAE2 disk joint 14
  • SAE1 disk joint 14

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
