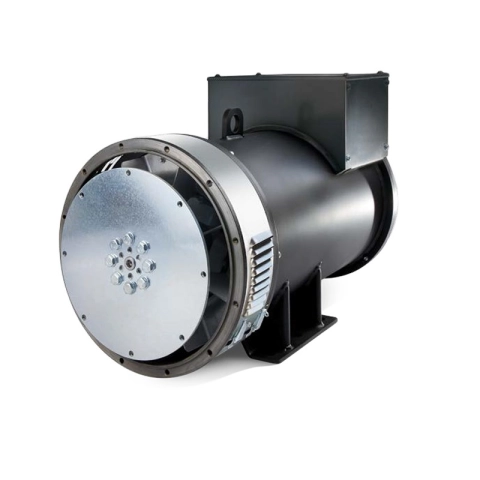

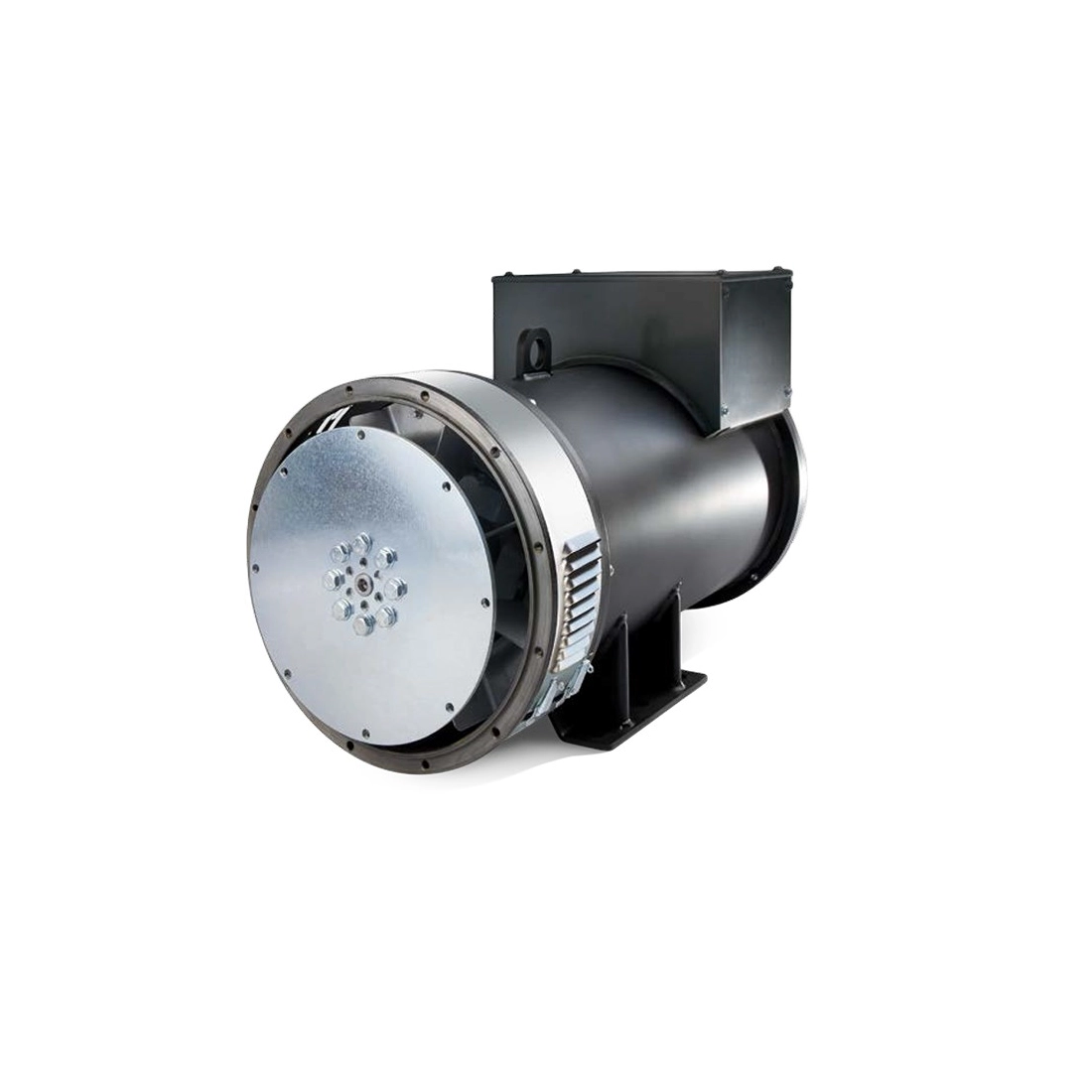

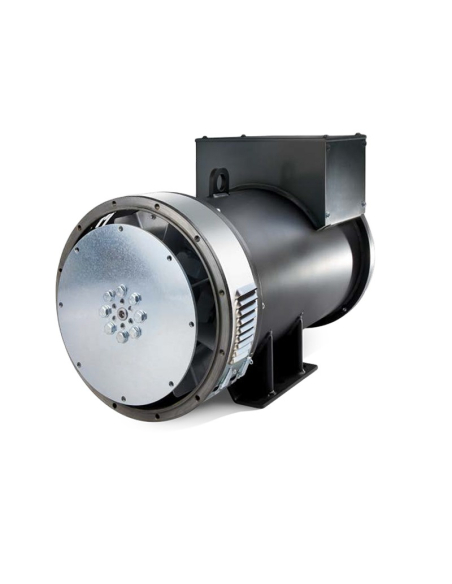

SINCRO SK225 ML SINGLE-THREE PHASE ALTERNATOR 110KVA AVR

SINCRO SK225 ML SINGLE-THREE PHASE ALTERNATOR 110KVA AVR
SINCRO SK225 ML SINGLE-THREE PHASE ALTERNATOR 110KVA AVR
SINCRO SK225 ML SINGLE-THREE PHASE ALTERNATOR 110KVA AVR
SINCRO SK225 ML SINGLE-THREE PHASE ALTERNATOR 110KVA AVR
SK225 ML SAE3 d8

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 110
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 308
Protection: IP23

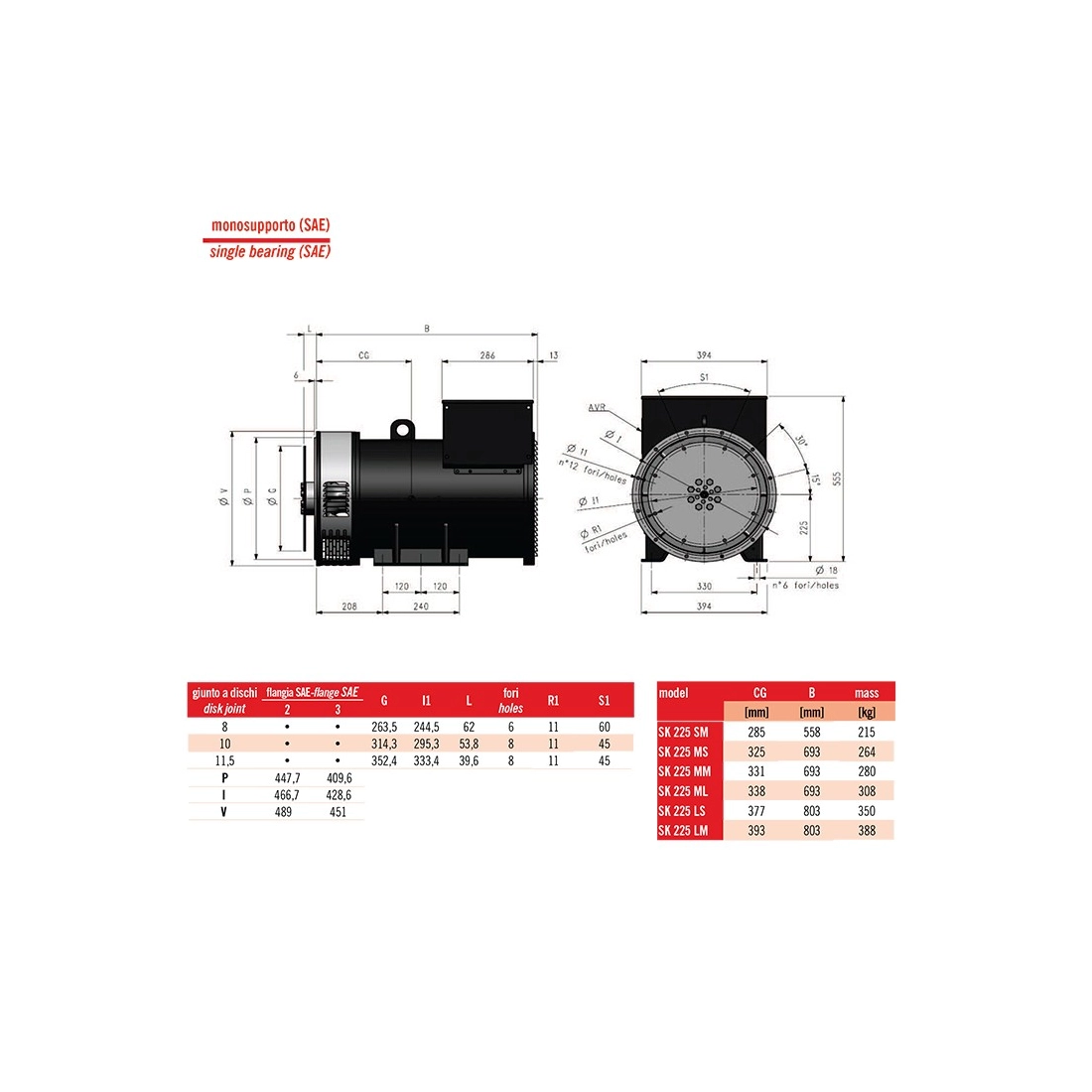

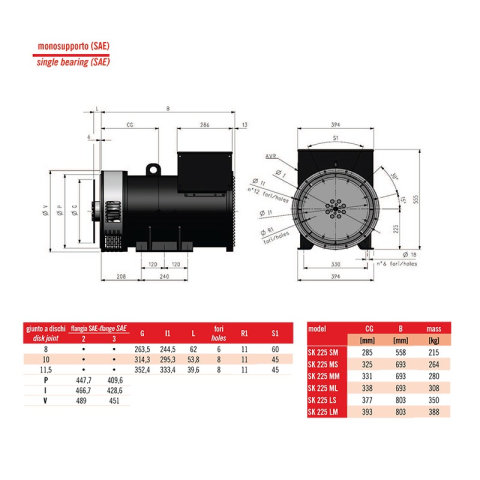

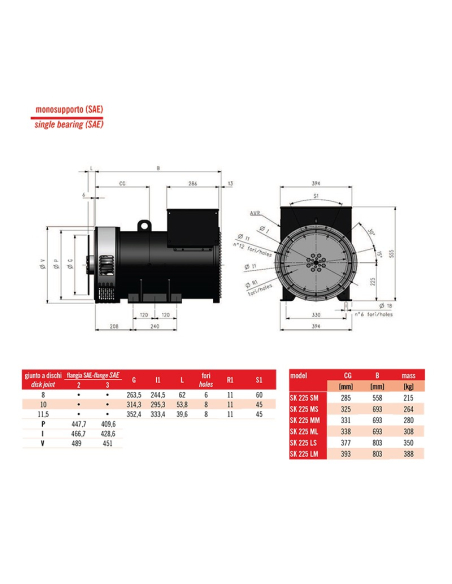

Download Technical data SK225

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
88
Three-phase power (KVA)
110
Efficiency (%)
91.9
Protection degree
IP23
Dry weight (Kg)
308
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The image is purely indicative.

Complete your order with:

Available only upon request
€3,490.00 €3,490.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE2 disk joint 8
  • SAE2 disk joint 10
  • SAE2 disk joint 11.5

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.

Download PDF
