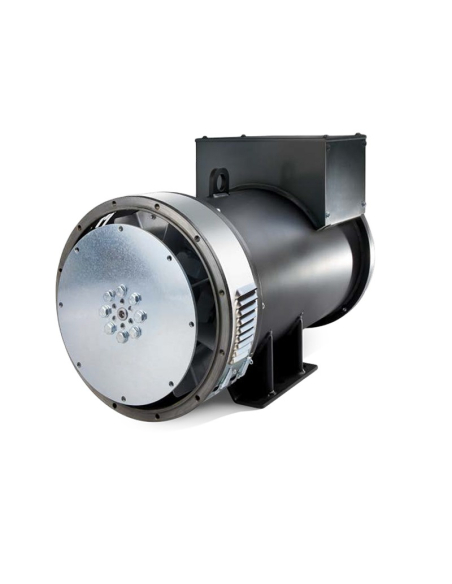

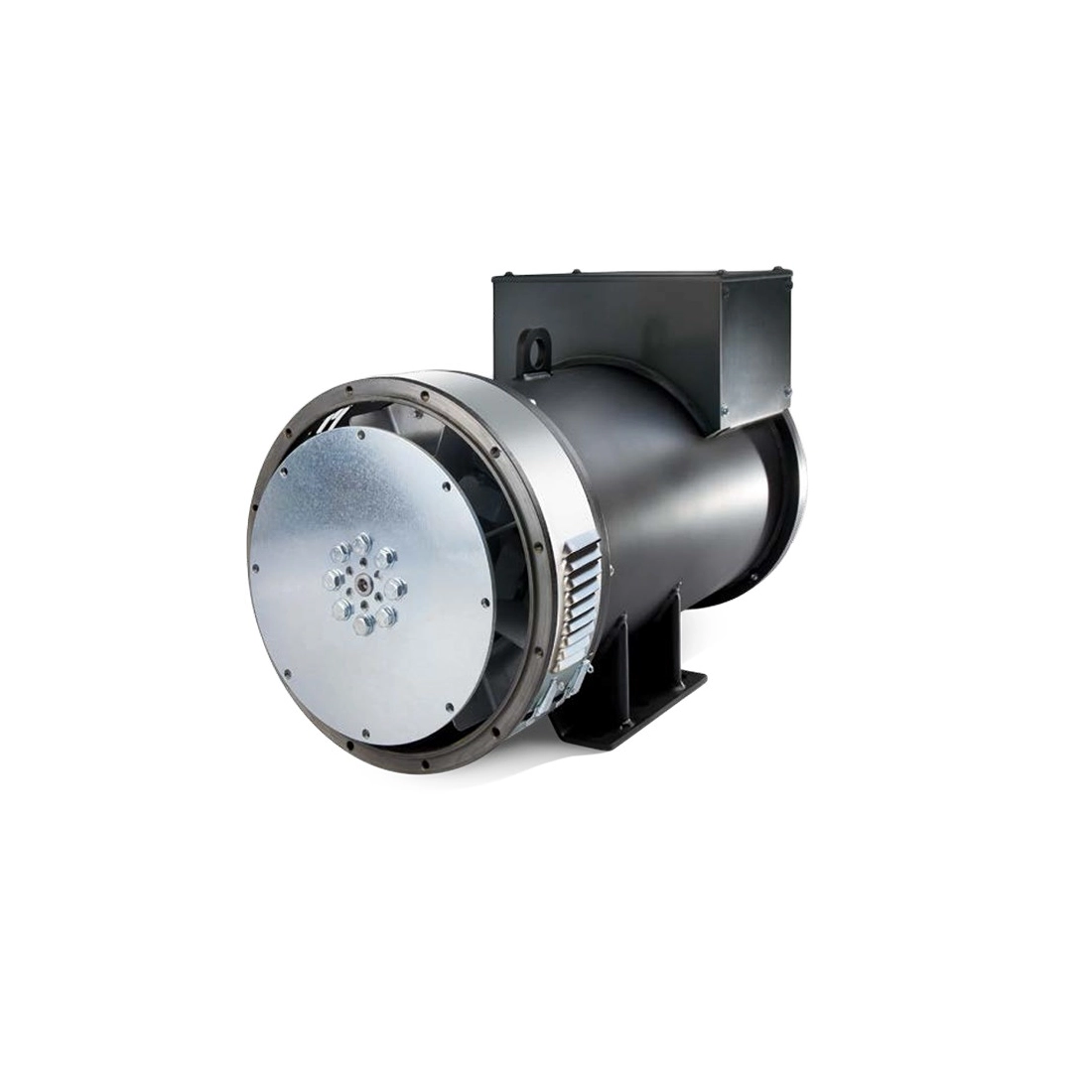

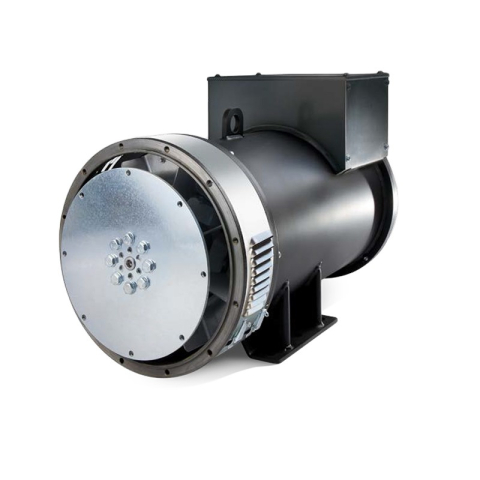

SINCRO SK250 MS SINGLE-THREE PHASE ALTERNATOR 180KVA AVR

SINCRO THREE PHASE ALTERNATOR SK250
SINCRO THREE PHASE ALTERNATOR SK250
SINCRO THREE PHASE ALTERNATOR SK250
SINCRO THREE PHASE ALTERNATOR SK250
SK250 MS SAE3 d11.5

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 180
Constant Speed Alternator
AVR
Brushless
Protection: IP23

Download Technical data SK250

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
128
Three-phase power (KVA)
160
Efficiency (%)
91.7
Protection degree
IP23
Dry weight (Kg)
459
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The image is purely indicative.

Complete your order with:

Available only upon request
€4,970.00 €4,970.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 11.5
  • SAE2 disk joint 11.5
  • SAE1 disk joint 11.5
  • SAE1 disk joint 14

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
