SINCRO SK355 WL SINGLE-THREE PHASE ALTERNATOR 720KVA D-AVR

SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SK355 WL SAE1 d14

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 720
Constant Speed Alternator
D-AVR
Brushless
Weight (Kg): 1630
Protection: IP23

Download Technical data SK355

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
576
Three-phase power (KVA)
720
Efficiency (%)
94.8
Protection degree
IP23
Dry weight (Kg)
1630
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

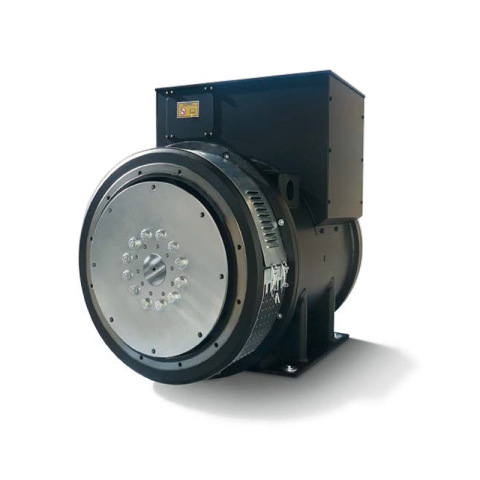

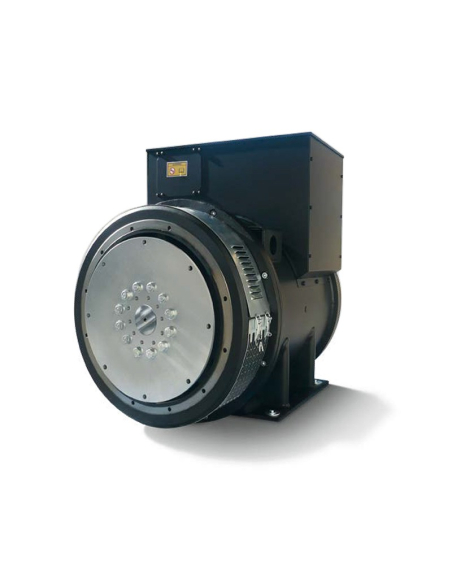

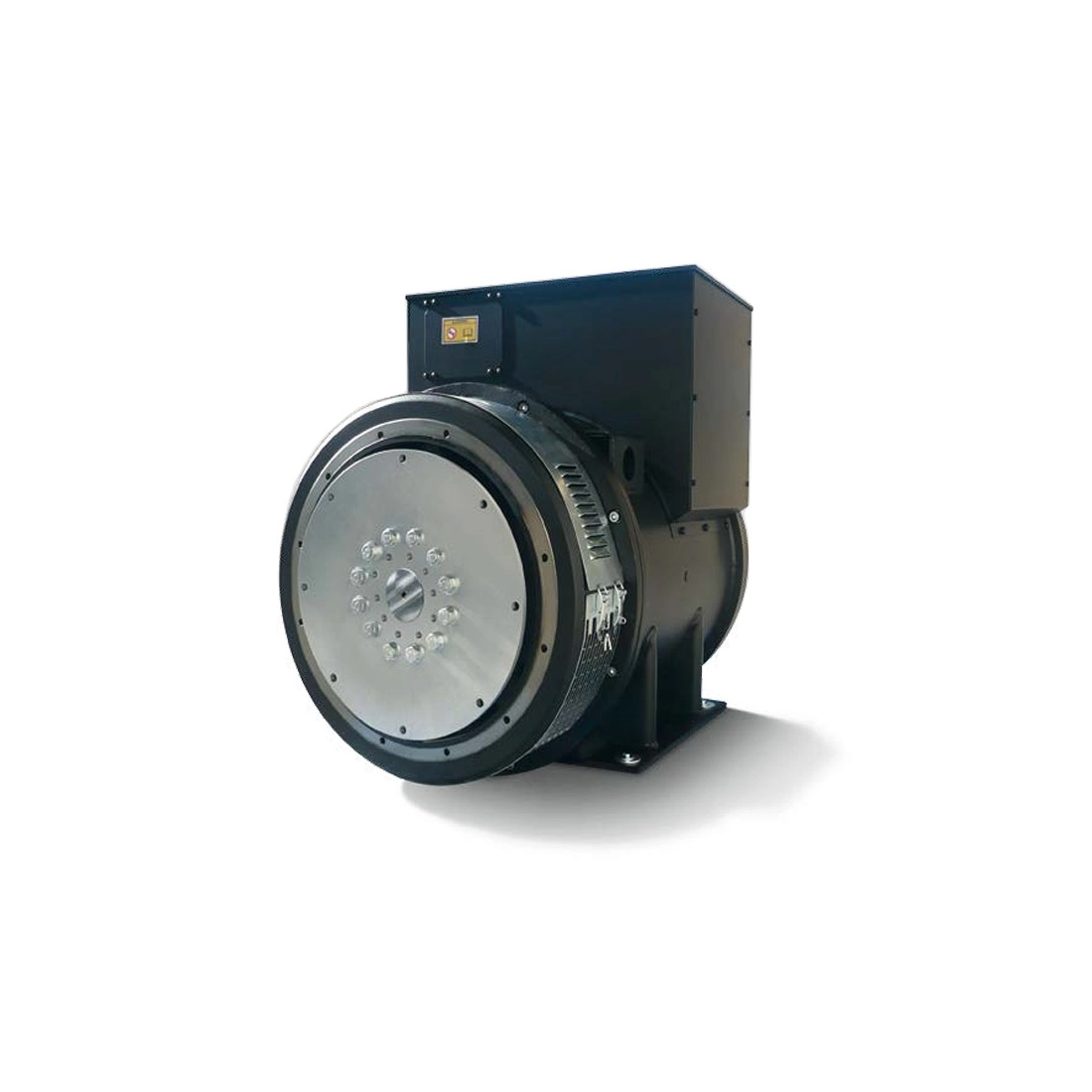

The image is purely indicative.

Complete your order with:

Available only upon request
€16,080.00 €16,080.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE1 disk joint 14
  • SAE1/2 disk joint 14
  • SAE0 disk joint 14
  • SAE0 disk joint 18

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
