SINCRO SK400 SD SINGLE-THREE PHASE ALTERNATOR 800KVA D-AVR

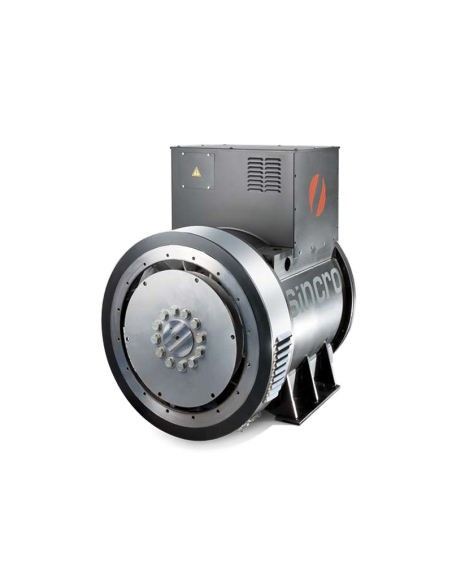

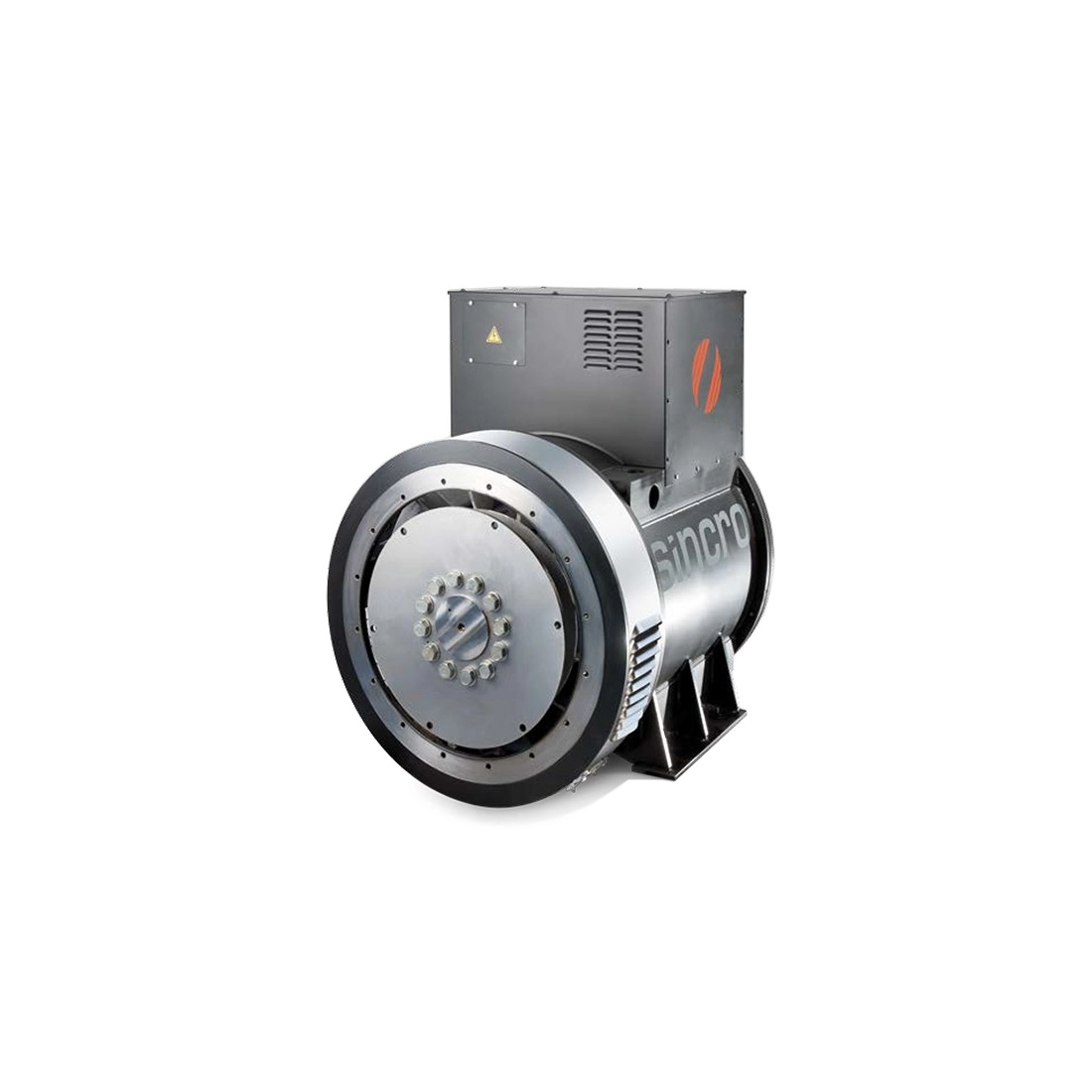

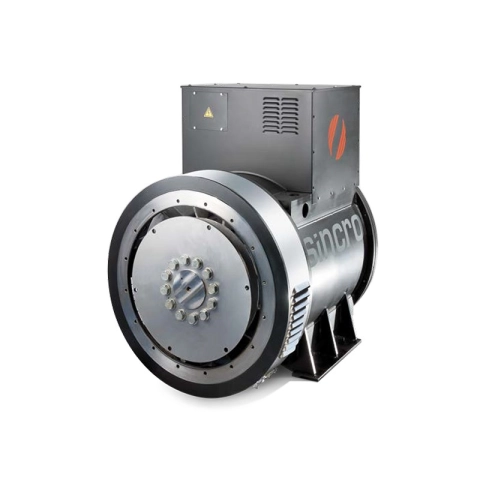

SINCRO THREE PHASE ALTERNATOR SK400
SINCRO THREE PHASE ALTERNATOR SK400
SINCRO THREE PHASE ALTERNATOR SK400
SINCRO THREE PHASE ALTERNATOR SK400
SK400 SD SAE1/2 d18

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 800
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 1610
Protection: IP23

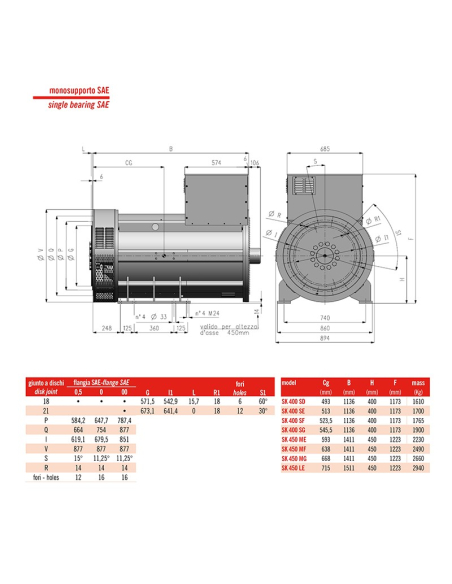

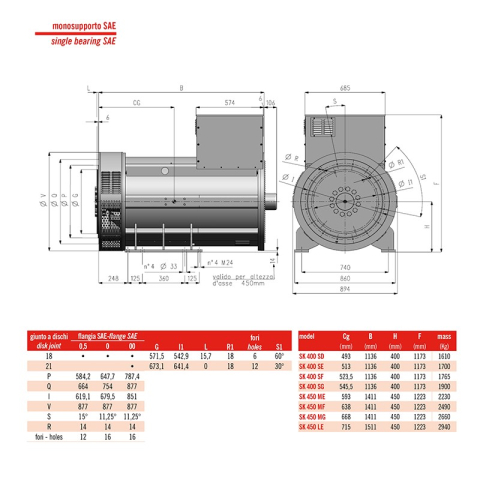

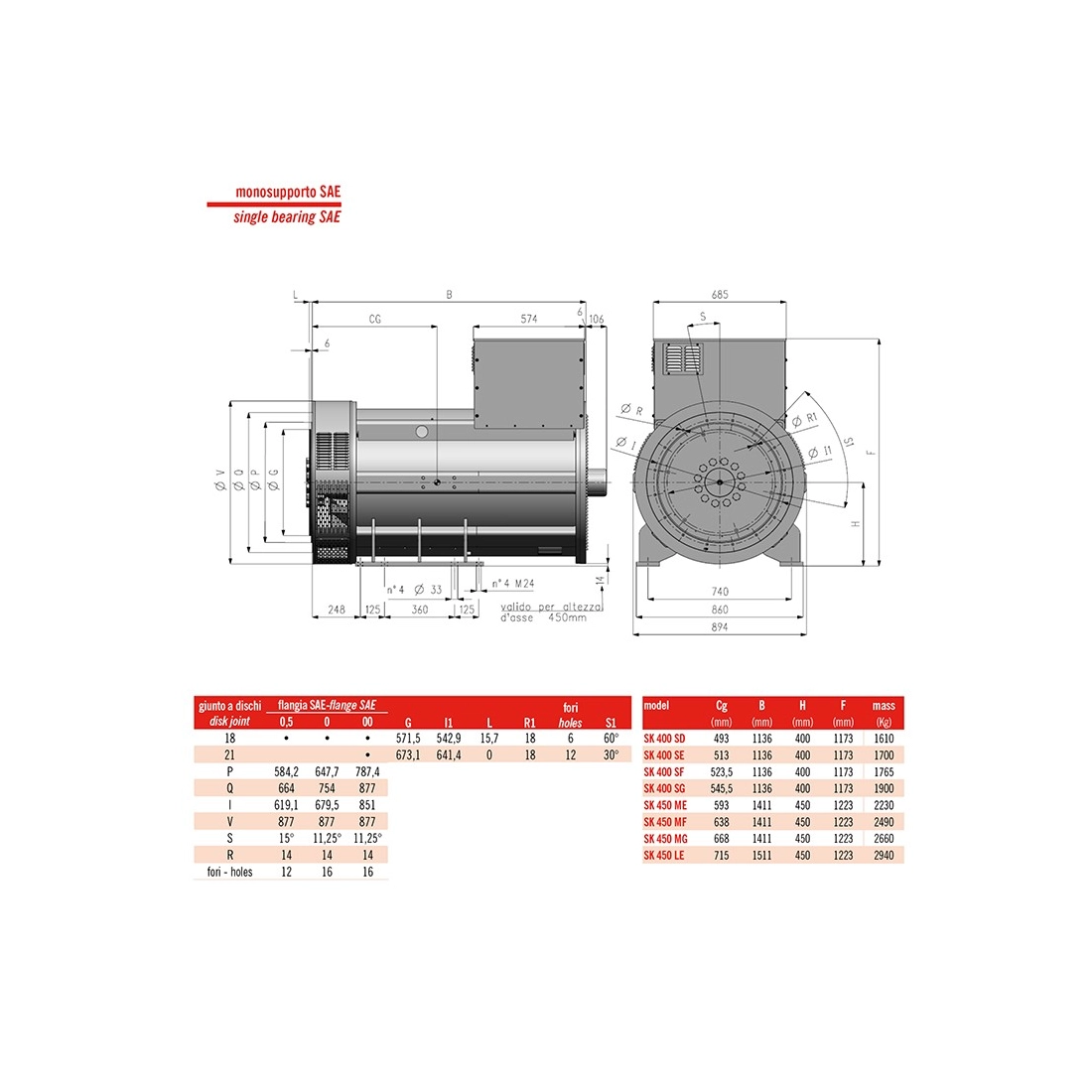

Download Technical data SK400

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
640
Three-phase power (KVA)
800
Efficiency (%)
94.7
Protection degree
IP23
Dry weight (Kg)
1610
Brushes
No
PMG
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Winding pitch: 2/3
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The images are purely indicative.

Complete your order with:

Available only upon request
€18,450.00 €18,450.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE1/2 disk joint 18
  • SAE0 disk joint 18
  • SAE00 disk joint 18
  • SAE00 disk joint 21

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
