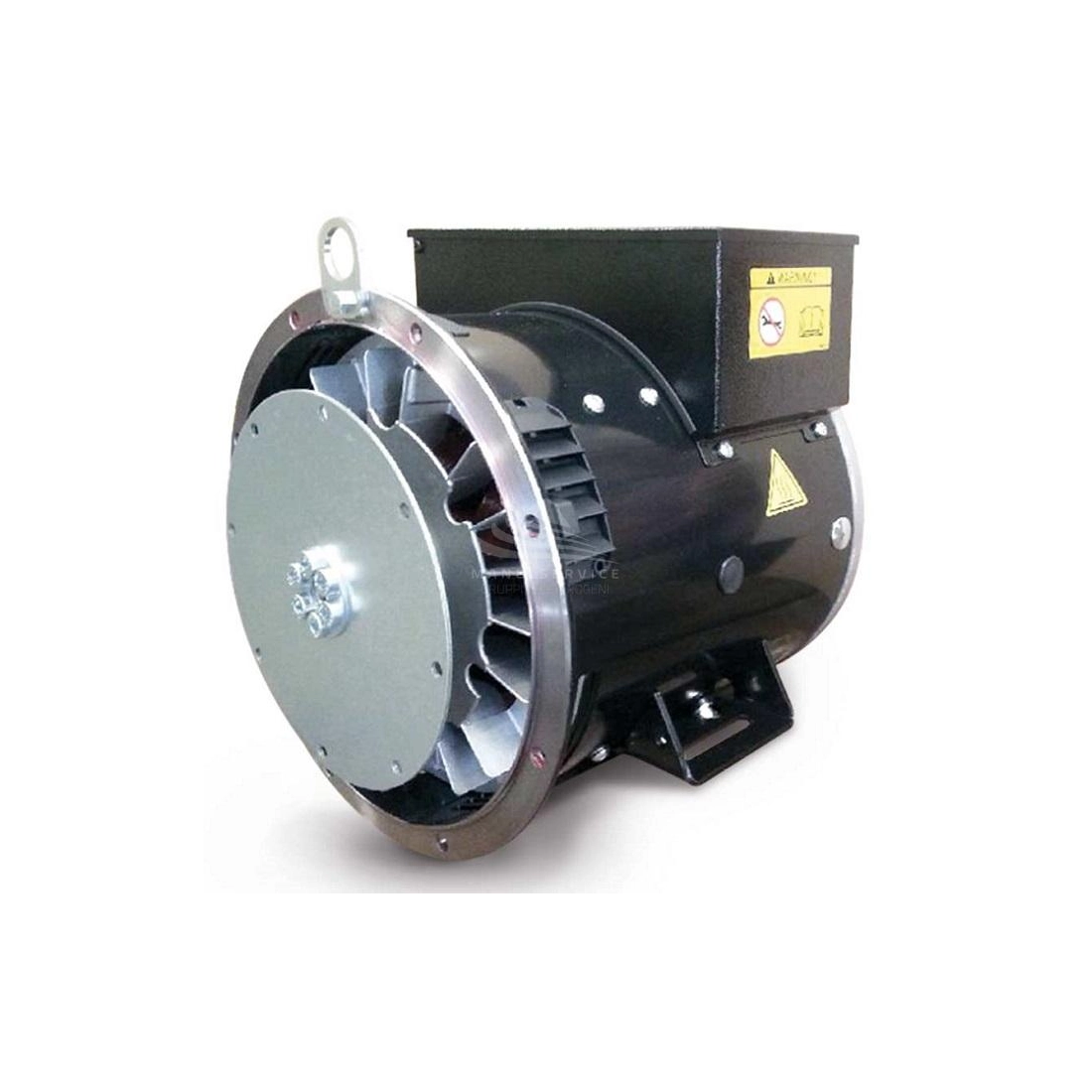

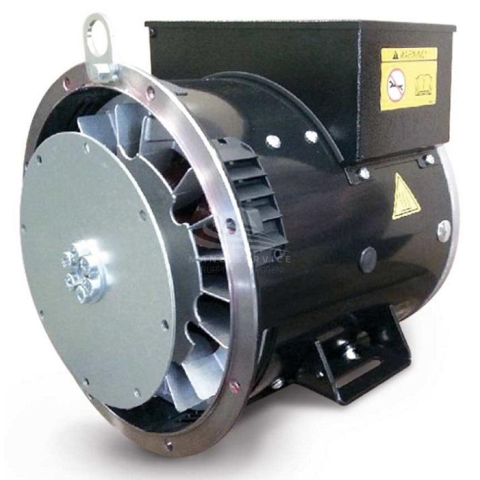

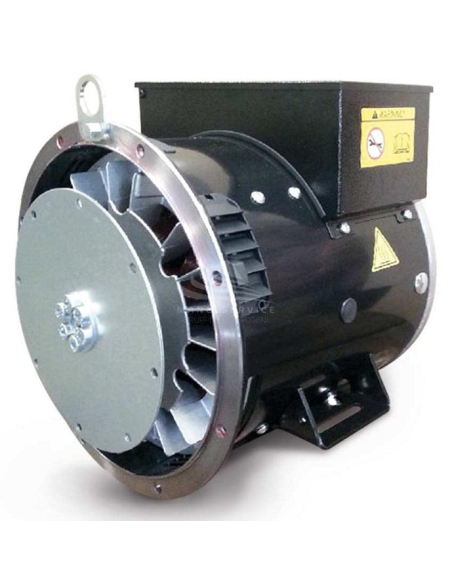

SINCRO SK160 MA2 SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR

SINCRO THREE PHASE ALTERNATOR SK160
SINCRO THREE PHASE ALTERNATOR SK160
SK160 MA2 SAE3 d8

Phase: Single / Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 12
Three Phase Output (kVA): 20
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 81
Protection: IP23

Download Technical data SK160 2 poles

Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
9.6
Single-phase power (KVA)
12
Three-phase power (KW)
16
Three-phase power (KVA)
20
Efficiency (%)
83.7
Protection degree
IP23
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
81
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard

Not binding images and technical data.

Available only upon request
€1,535.00 €1,535.00
Choose the type of coupling
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
