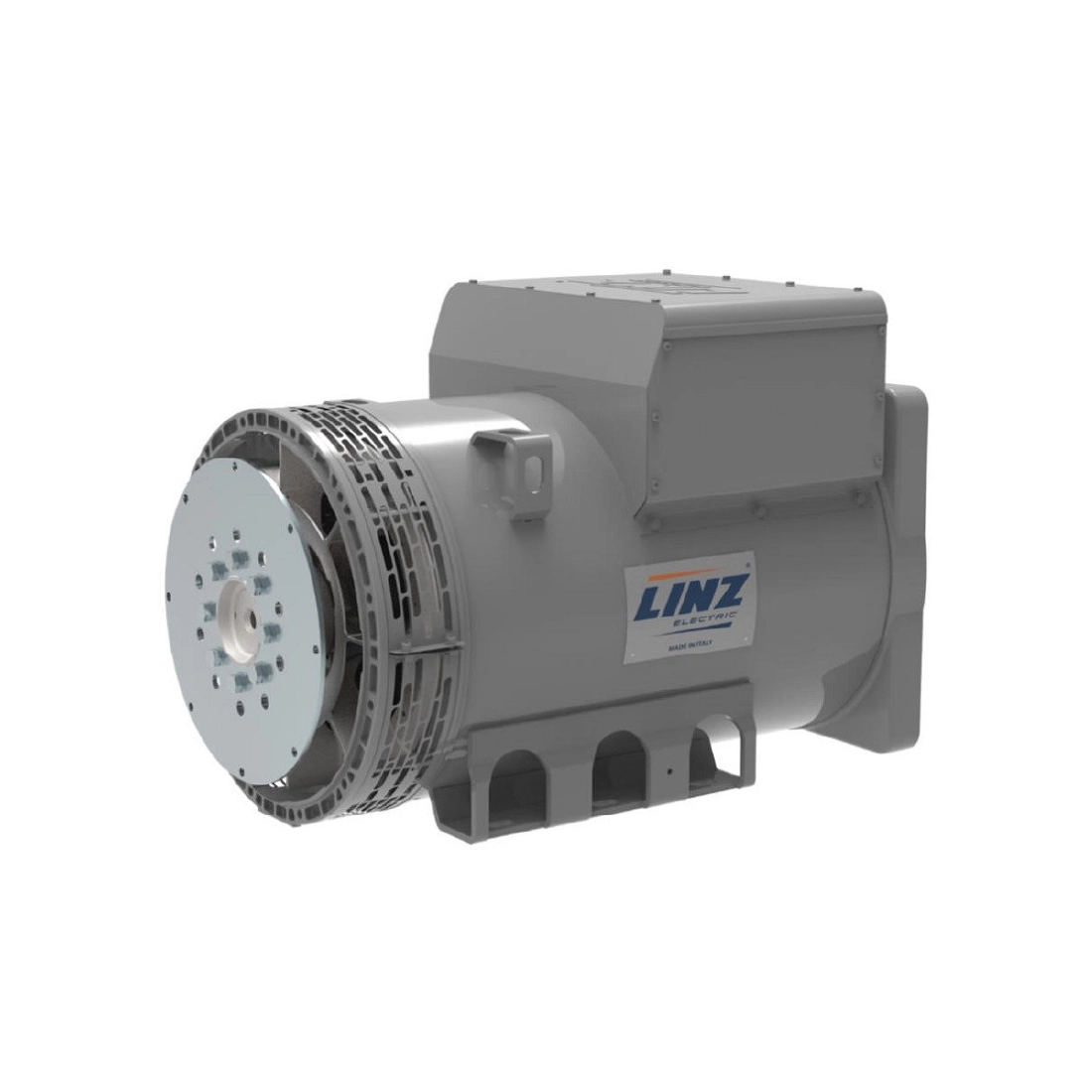

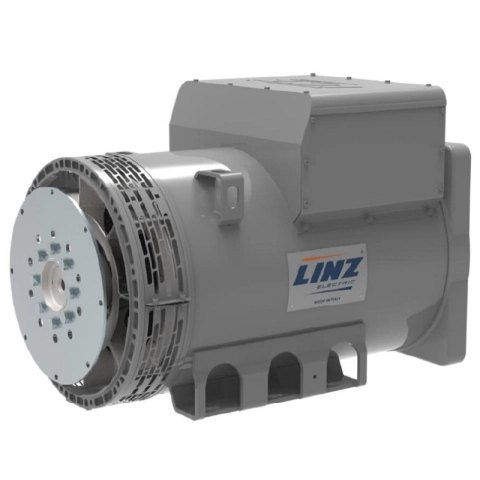

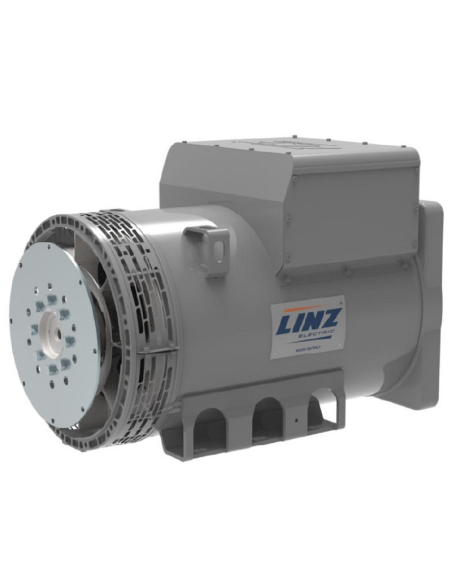

LINZ PRO22M F/4 Three-phase alternator 4 poles 180 kVA 60 Hz AVR
PRO22M F/4 60 Hz SAE3 d11.5
Rated power at 60 Hz (kVA): 180
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
- Phase
- Three phase
- Continuous power three phase (KVA)
- 180
- Frequency (Hz)
- 60
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1800
- Alternator
- Synchronous
- Poles
- 4
- Three-phase power (KVA)
- 150
- Protection degree
- IP23
- Motor insulation class
- H
- Length (mm)
- 760
- Width (mm)
- 450
- Height (mm)
- 566
- Brushes
- No
- PMG
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 499
- Brand
-
The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).
CHARACTERISTICS
- Compact and mechanically resistant
- Excellent wave form
- Minimum maintenance
- High efficiency
- Type: Three-phase alternators
- Poles: 4
- Phases: Three-phase
- Regulation: AVR
- Application: INDUSTRIAL, COGENERATION
