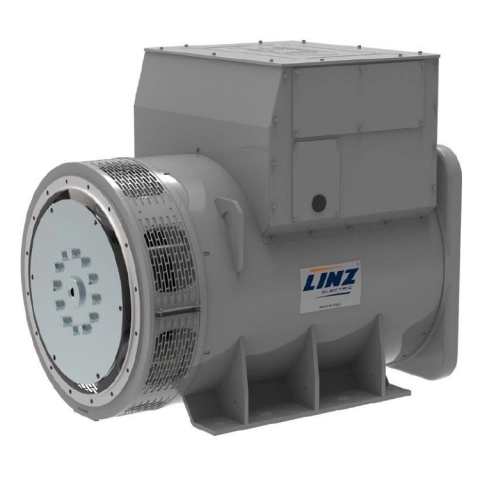

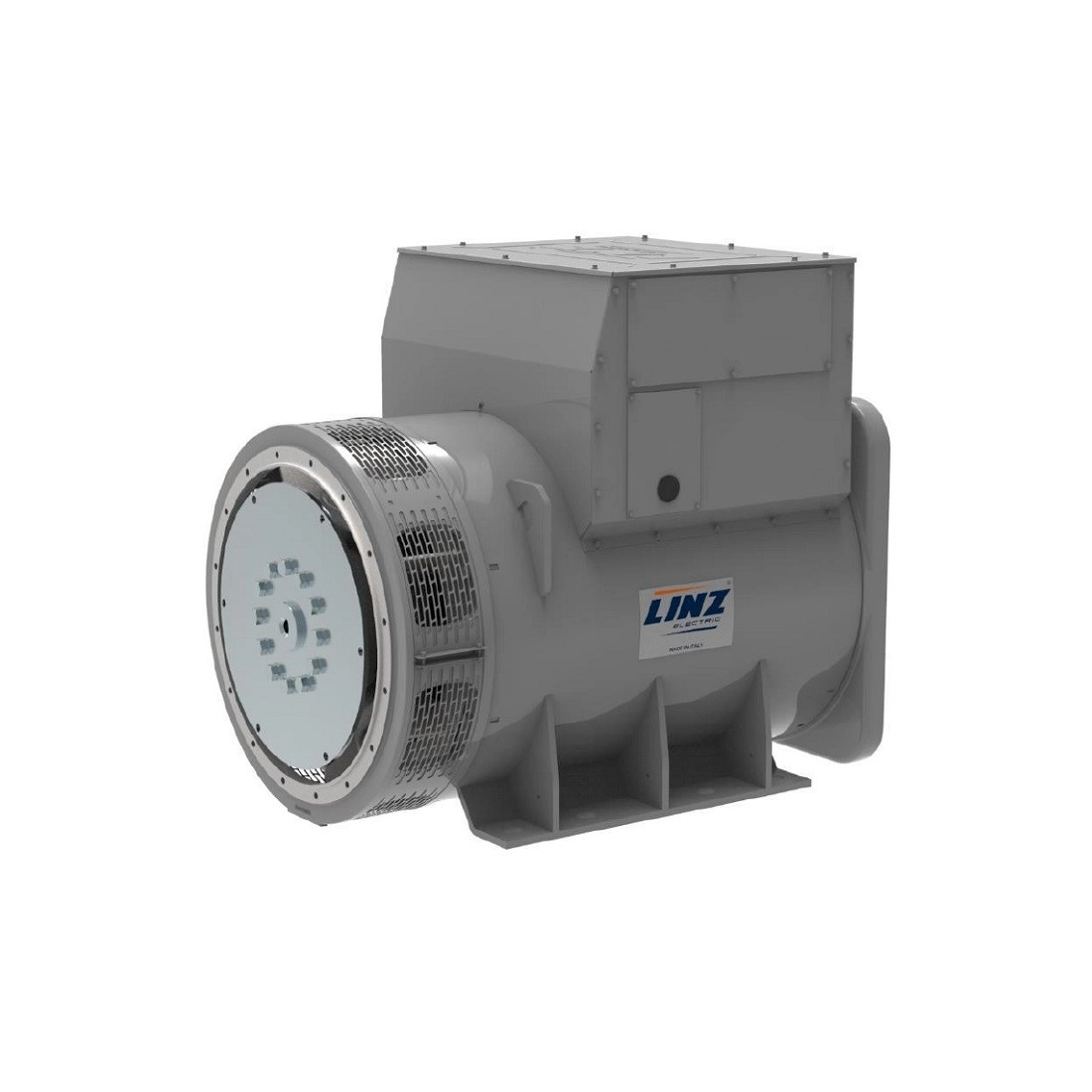

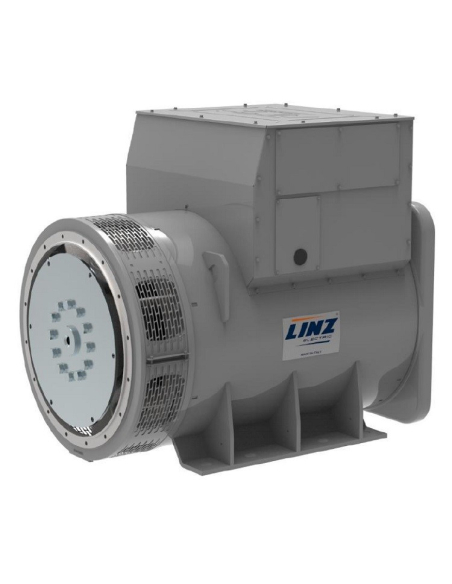

LINZ PRO40S B/4 Three-phase alternator 4 poles 1260 kVA 60 Hz AVR

LINZ PRO40S B/4 Three-phase alternator 4 poles 1050 kVA 50 Hz AVR
LINZ PRO40S B/4 Three-phase alternator 4 poles 1050 kVA 50 Hz AVR
LINZ PRO40S B/4 Three-phase alternator 4 poles 1050 kVA 50 Hz AVR
LINZ PRO40S B/4 Three-phase alternator 4 poles 1050 kVA 50 Hz AVR
PRO40S B/4 60 Hz SAE0 d14

Rated power at 60 Hz (kVA): 1260
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011


Phase
Three phase
Continuous power three phase (KVA)
1260
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
1050
Protection degree
IP23
Motor insulation class
H
Length (mm)
1225
Width (mm)
800
Height (mm)
1110
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
2045
Brand

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Complete your order with:

Available only upon request
€17,327.03 €17,327.03
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE0 disk joint 14
  • SAE0 disk joint 18
  • SAE00 disk joint 14
  • SAE00 disk joint 18
  • SAE0 disk joint 21
  • SAE00 disk joint 21

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
