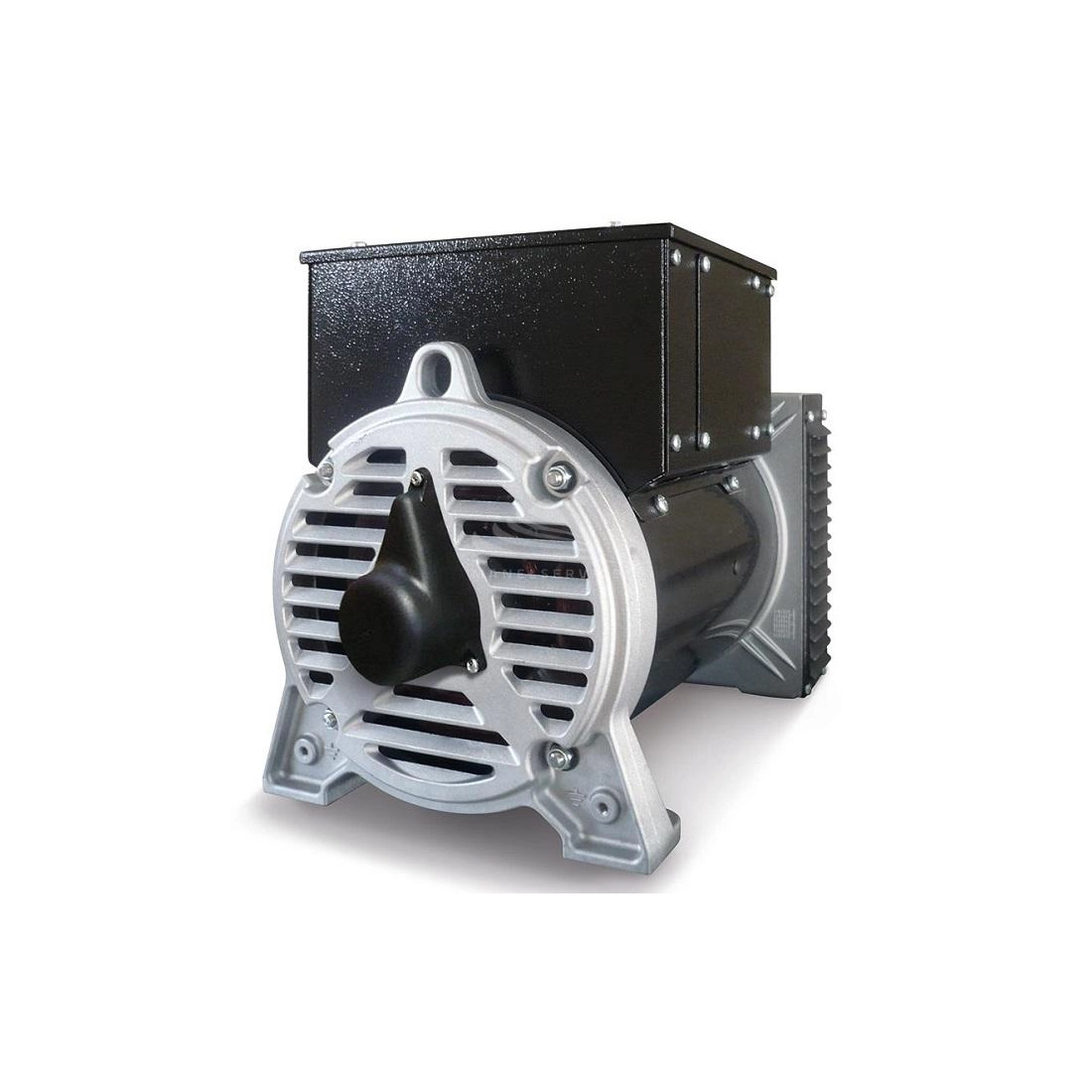

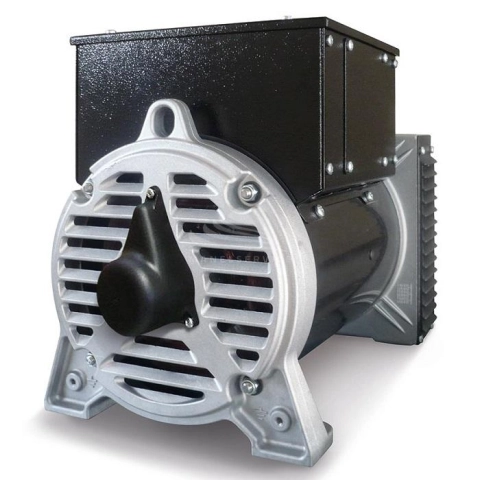

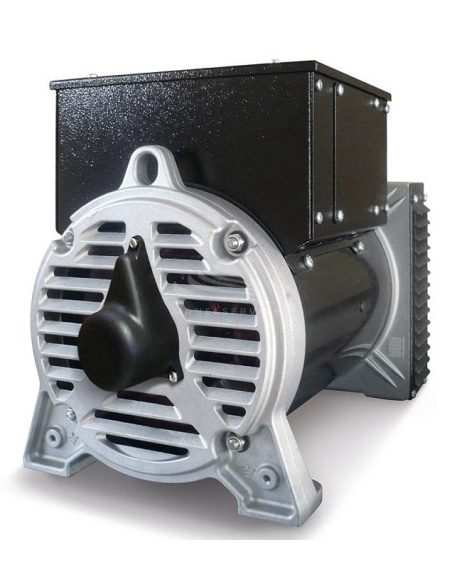

SINCRO FKR2 LA Single Phase Synchronous AC Alternator 15 kVA D-AVR

SINCRO SINGLE PHASE ALTERNATOR FKR2
SINCRO SINGLE PHASE ALTERNATOR FKR2
SINCRO SINGLE PHASE ALTERNATOR FKR2
SINCRO SINGLE PHASE ALTERNATOR FKR2
FKR2 LA Steel J609b c25.4

Phase: Single Phase
Poles: 2
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 15
Constant Speed Alternator
Digital AVR
Brushes
Weight (Kg): 63
Protection: IP23

Download Technical data FKR

Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
15
Single-phase power (KVA)
15
Efficiency (%)
82
Protection degree
IP23
Dry weight (Kg)
63
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Single phase brushes alternator - AVR.

- Self-regulated
- IP23
- Standard voltage 230 V - 50 Hz
- Short circuit current greater than 3 In
- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- DIGITAL AVR

The image is purely indicative.

Complete your order with:

Available only upon request
€943.40 €943.40
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
