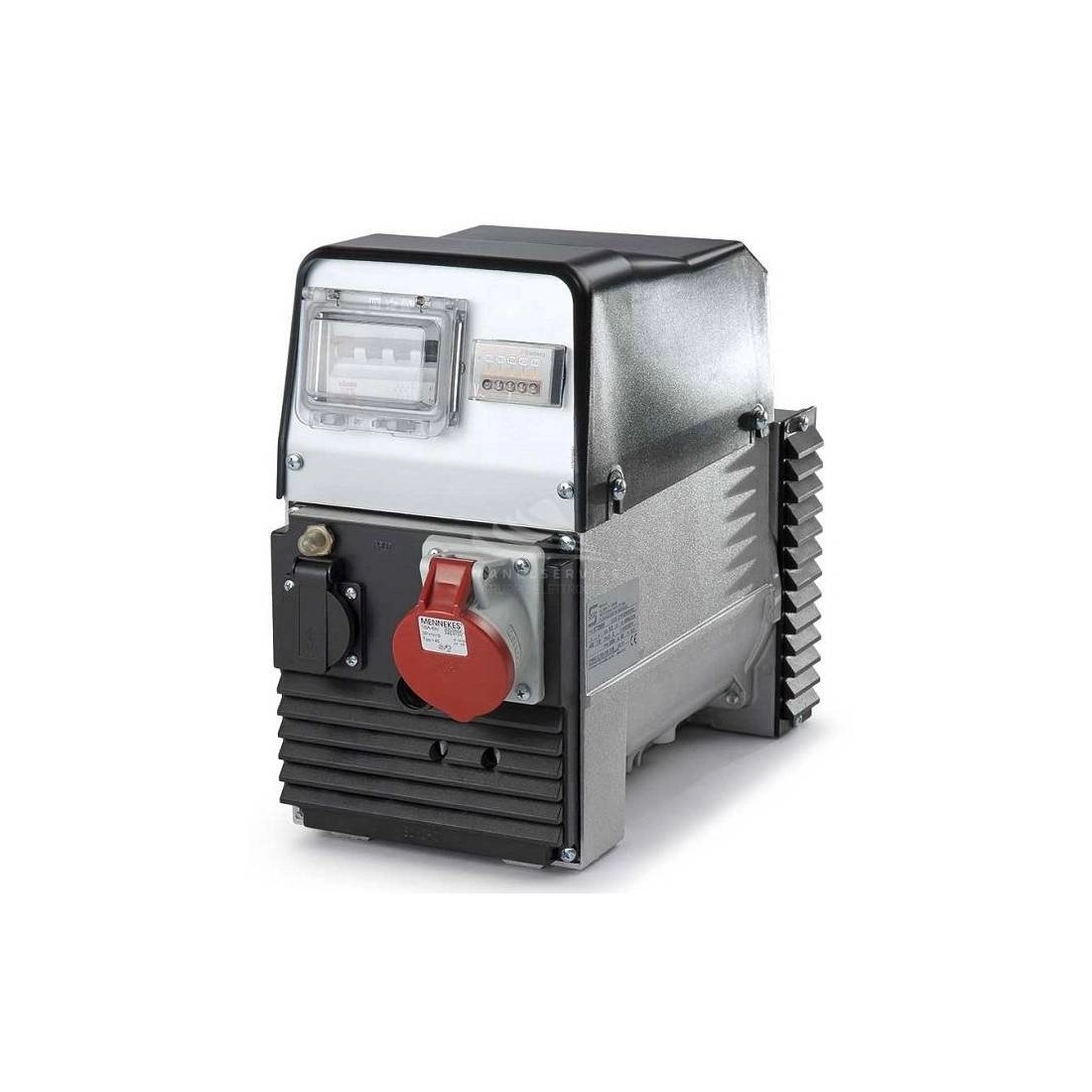

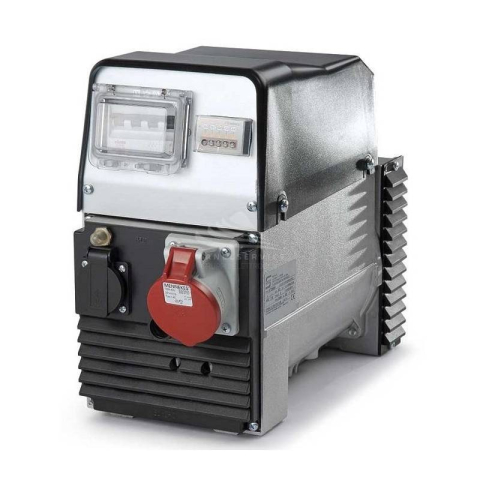

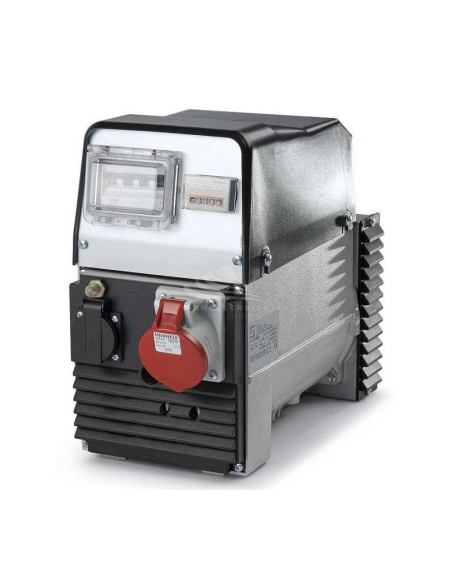

SINCRO ET2 MCS Three Phase Synchronous AC Alternator 7 kVA Compound

SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
ET2 MCS J609b c25.4

Phase: Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Three Phase Output (kVA): 7
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 32.3
Protection: IP23

Download Technical data ET2

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
5.6
Three-phase power (KVA)
7
Efficiency (%)
78
Protection degree
IP23
Dry weight (Kg)
32.3
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Brand

Three phase brushes alternator - Compound.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

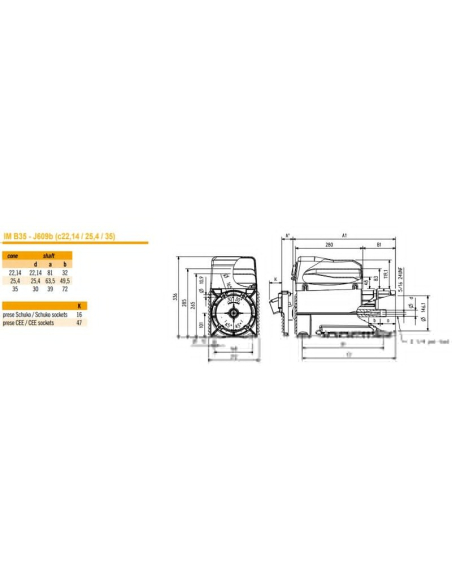

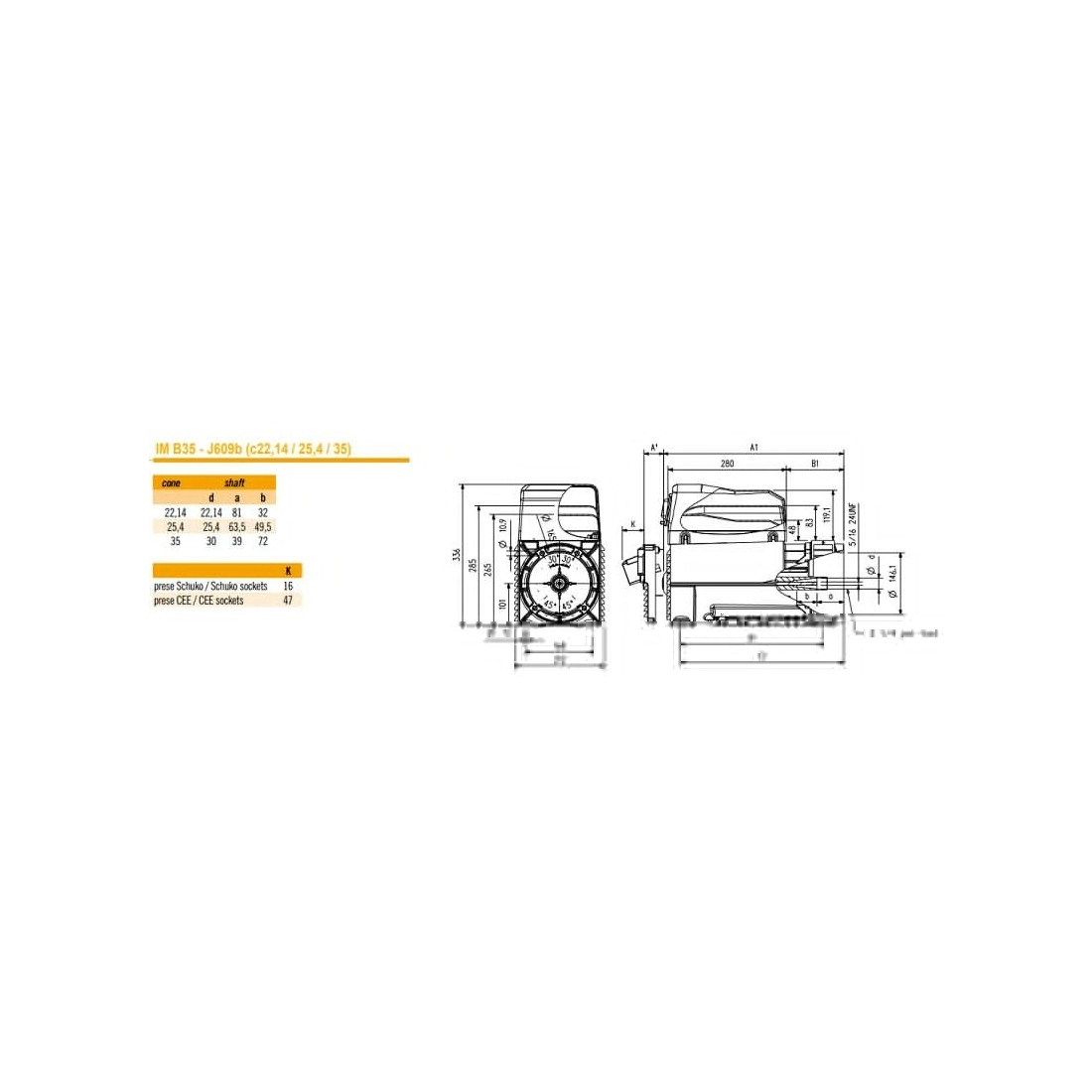

- Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

The image is purely indicative.

Complete your order with:

Available only upon request
€445.00 €445.00
Choose the type of coupling
  • IM B35 - J609b cone 22.14
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 23
  • IM B35 - B3/B9 cone 30
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE6 disk joint 6.5
  • SAE6 disk joint 7.5
  • SAE6 disk joint 8

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
