SINCRO ET2 LBF Single / Three Phase Synchronous AC Alternator 10 kVA Compound

SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
ET2 LBF J609b c22.14

Phase: Single / Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 6
Three Phase Output (kVA): 10
Constant Speed Alternator
Compound
Brushless
Weight (Kg): 41.2
Protection: IP23

Download Technical data ET2

Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
4.8
Single-phase power (KVA)
6
Three-phase power (KW)
8
Three-phase power (KVA)
10
Efficiency (%)
85
Protection degree
IP23
Dry weight (Kg)
41.2
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Brand

Three phase brushes alternator - Compound.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

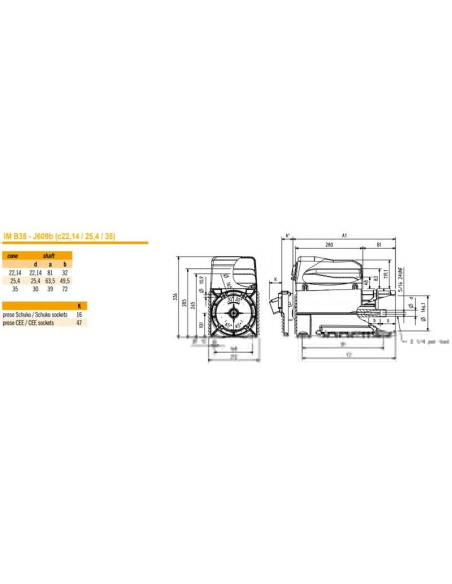

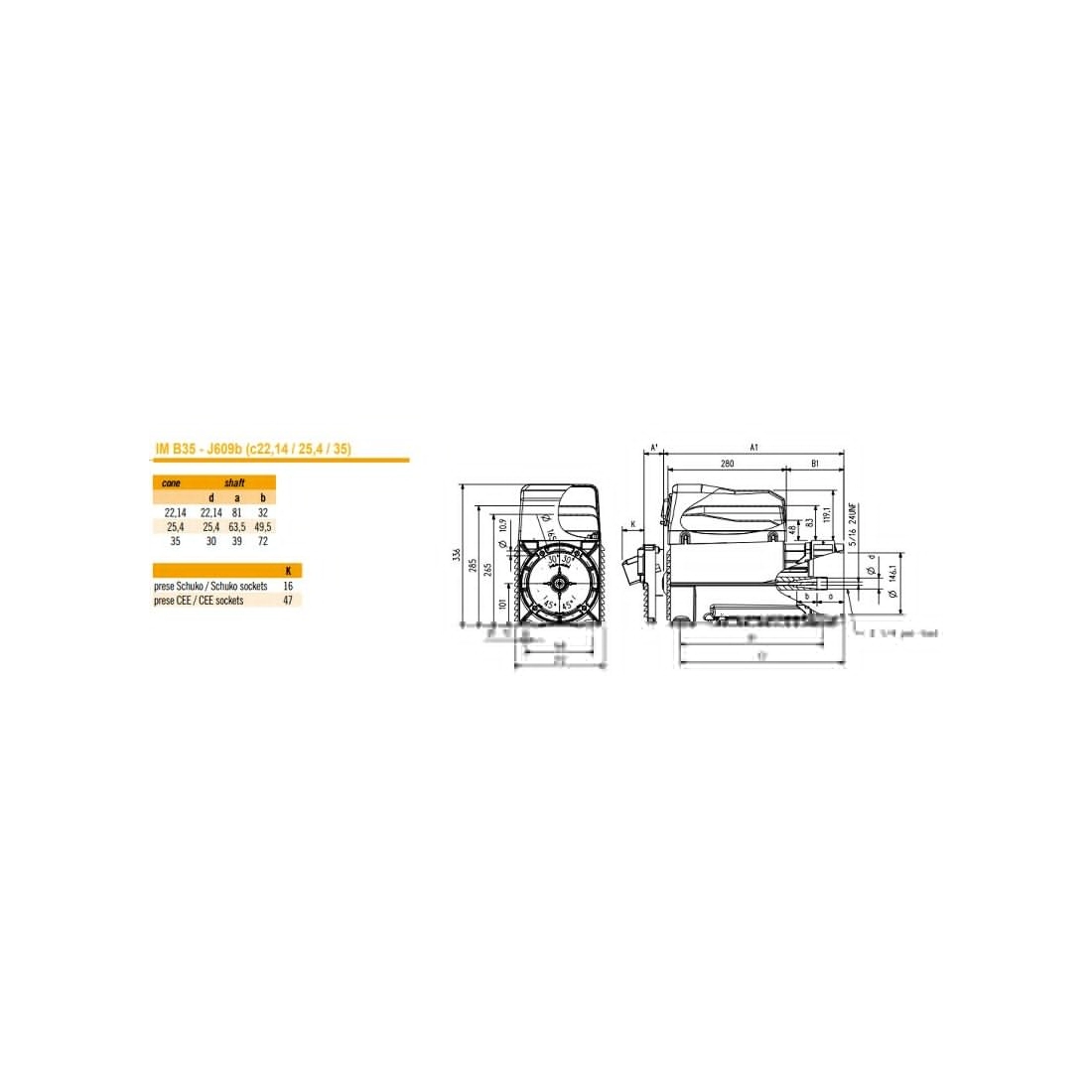

- Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- With reinforced phase

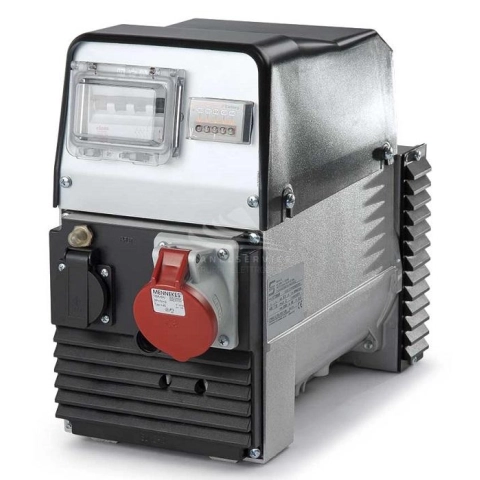

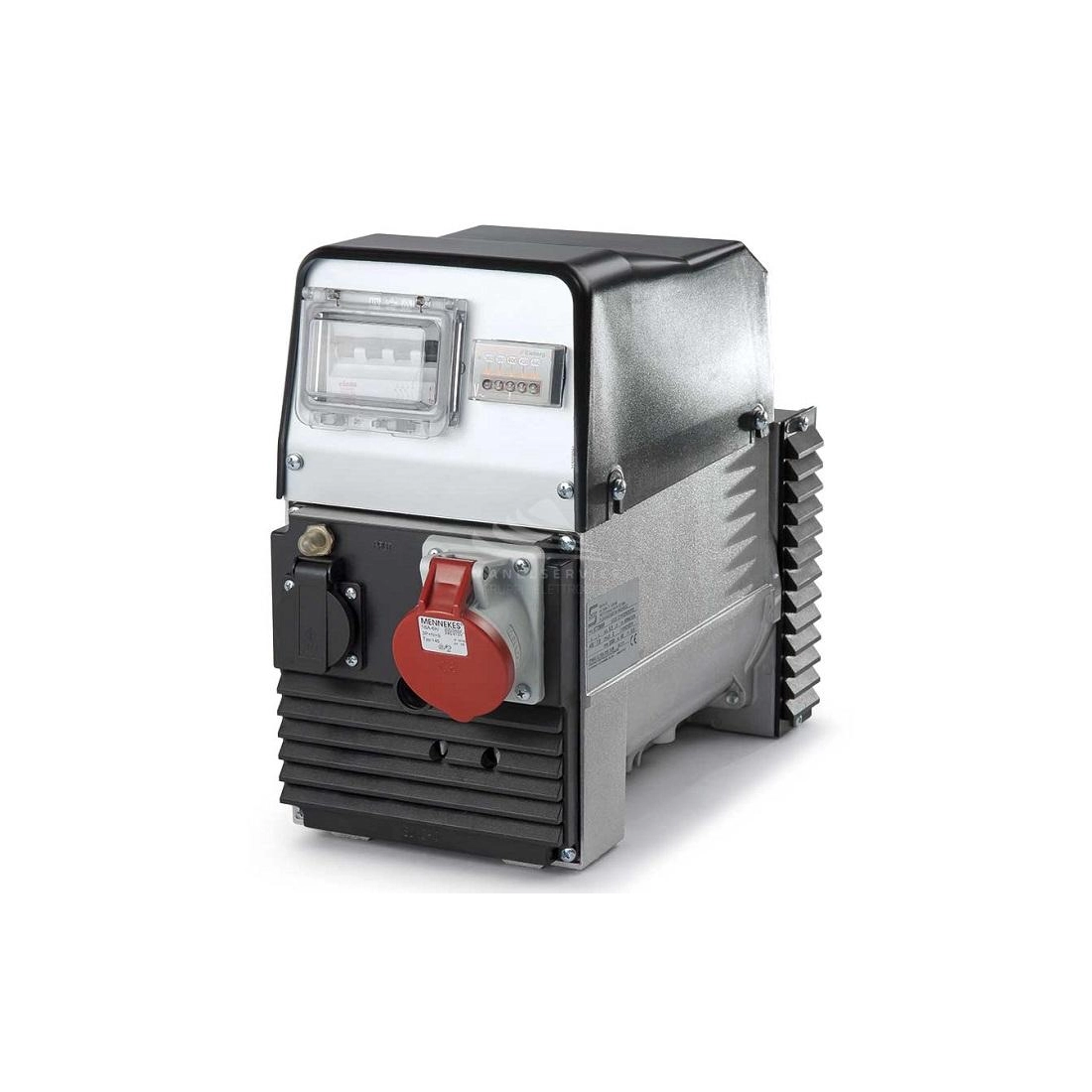

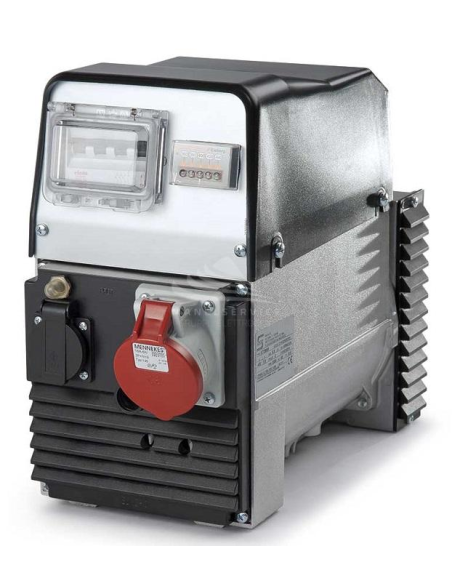

The image is purely indicative.

Complete your order with:

Available only upon request
€582.00 €582.00
Choose the type of coupling
  • IM B35 - J609b cone 22.14
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 23
  • IM B35 - B3/B9 cone 30
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE6 disk joint 6.5
  • SAE6 disk joint 7.5
  • SAE6 disk joint 8

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
