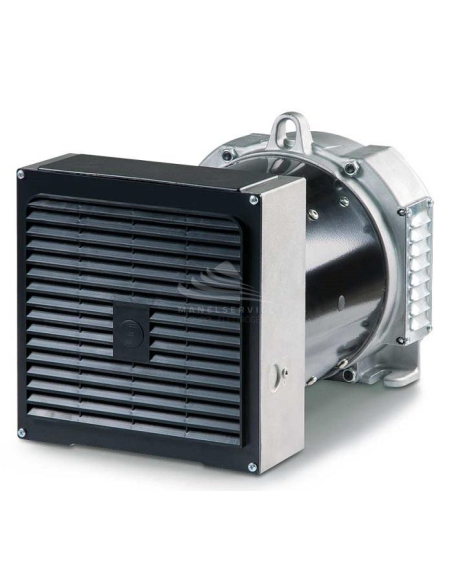

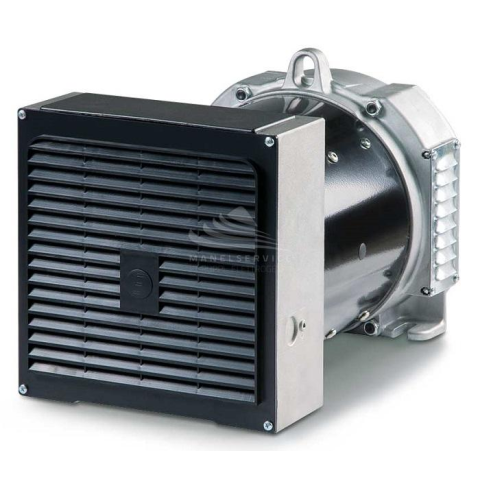

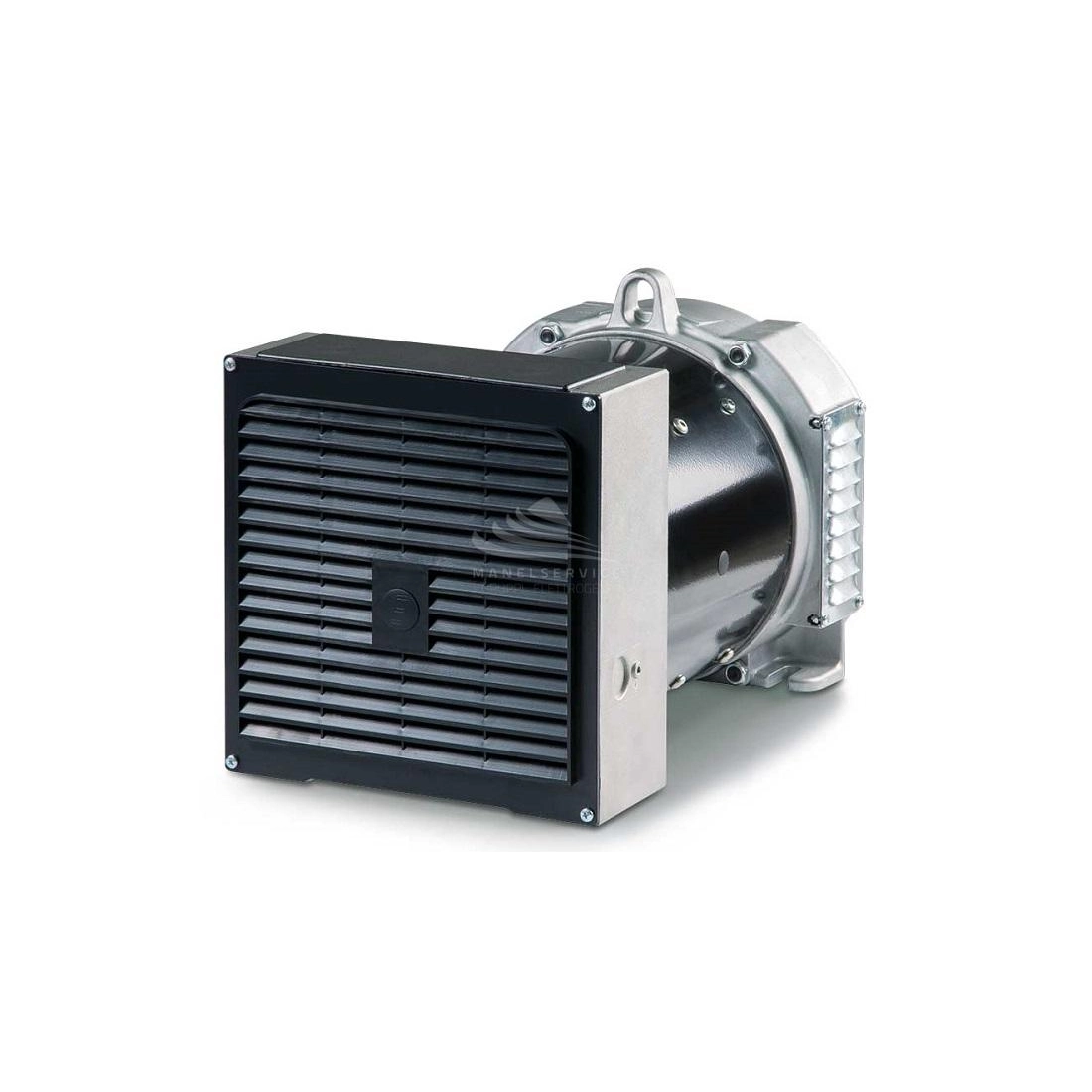

SINCRO GTR2 LA Three Phase Synchronous AC Alternator 31.5 kVA D-AVR

SINCRO THREE PHASE ALTERNATOR GTR2
SINCRO THREE PHASE ALTERNATOR GTR2
SINCRO THREE PHASE ALTERNATOR GTR2
SINCRO THREE PHASE ALTERNATOR GTR2
GTR2 LA J609b c25.4

Phase: Three phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): ----
Three Phase Output (kVA): 31.5
Constant Speed Alternator
D-AVR
Brushes
Weight (Kg): 104
Protection: IP23

Download Technical data GTR

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
25.2
Three-phase power (KVA)
31.5
Efficiency (%)
87
Protection degree
IP23
Dry weight (Kg)
104
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushes alternator - DIGITAL AVR.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In
- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- DIGITAL AVR

The image is purely indicative.

Complete your order with:

Available only upon request
€1,412.56 €1,412.56
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
