SINCRO FK4 MBS Single Phase Synchronous AC Alternator 5.5 kVA Capacitor

SINCRO SINGLE PHASE ALTERNATOR FK4
SINCRO SINGLE PHASE ALTERNATOR FK4
SINCRO SINGLE PHASE ALTERNATOR FK4
SINCRO SINGLE PHASE ALTERNATOR FK4
FK4 MBS J609b c25.4

Phase: Single Phase
Poles: 4
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 5.5
Constant Speed Alternator
Capacitor
Brushless
Weight (Kg): 36
Protection: IP23

Download Technical data FK

Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
5.5
Single-phase power (KVA)
5.5
Efficiency (%)
77
Protection degree
IP23
Dry weight (Kg)
36
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Brand

Single phase brushless alternator - Capacitor.

- Self-regulated
- IP23
- Standard voltage 230 V - 50 Hz
- Short circuit current greater than 3 In

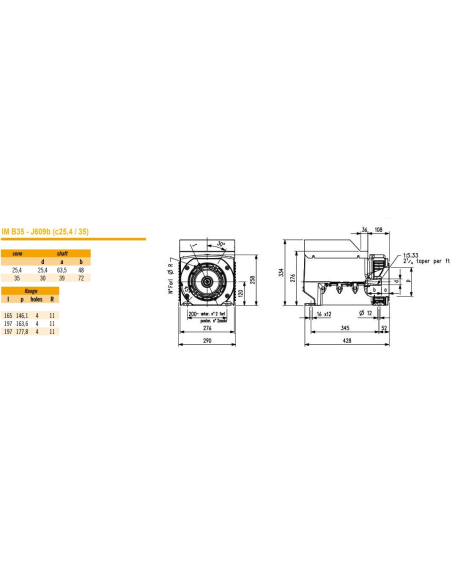

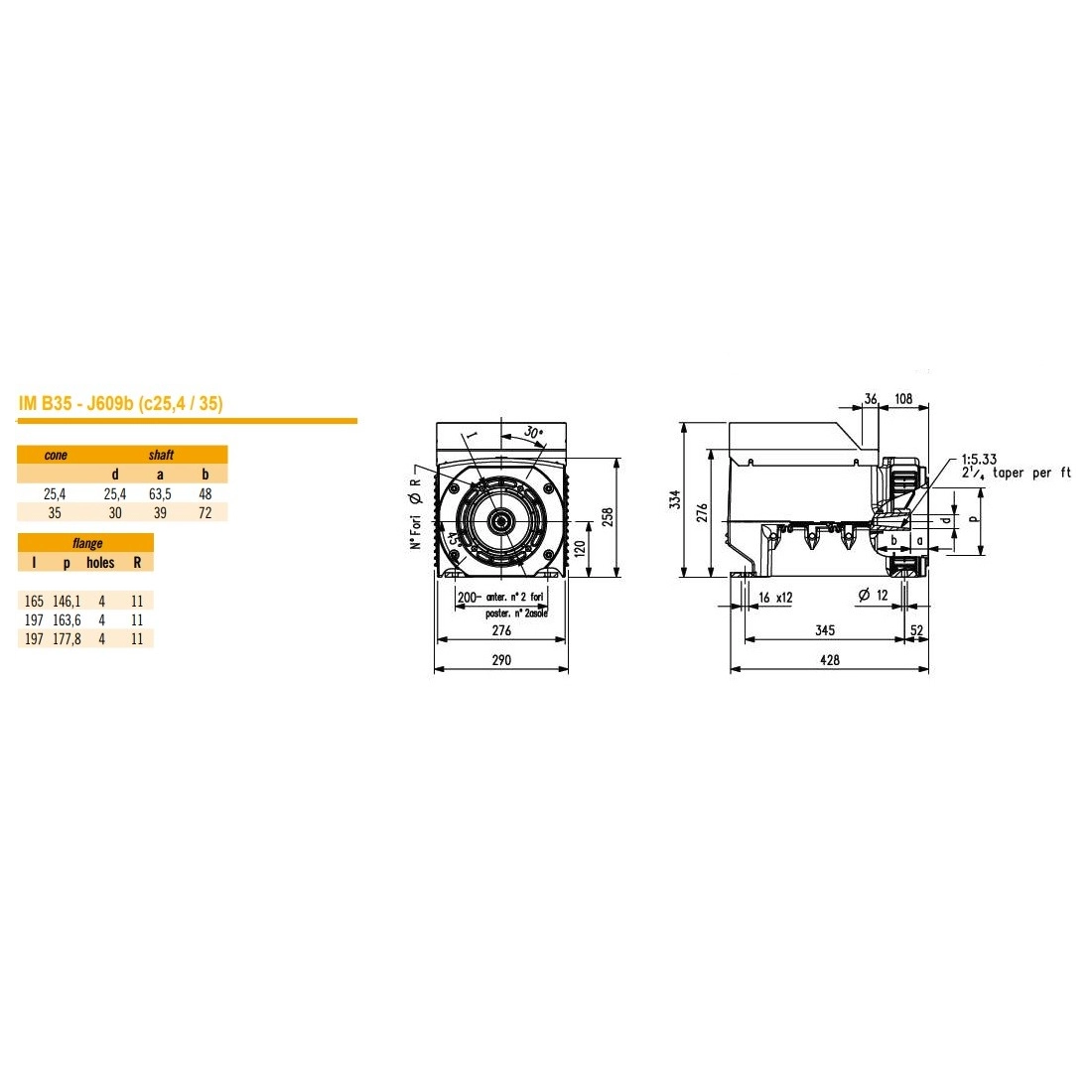

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

The image is purely indicative.

Complete your order with:

Available only upon request
€629.29 €629.29
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
