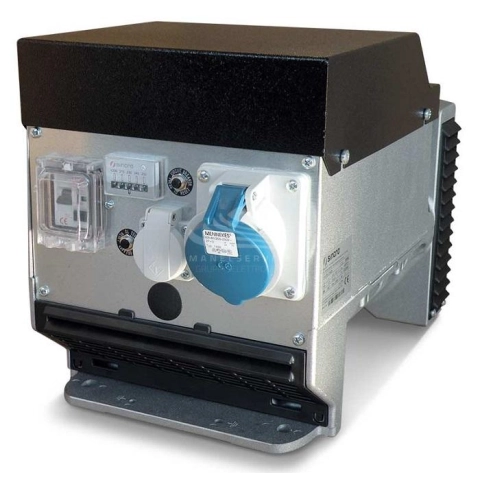

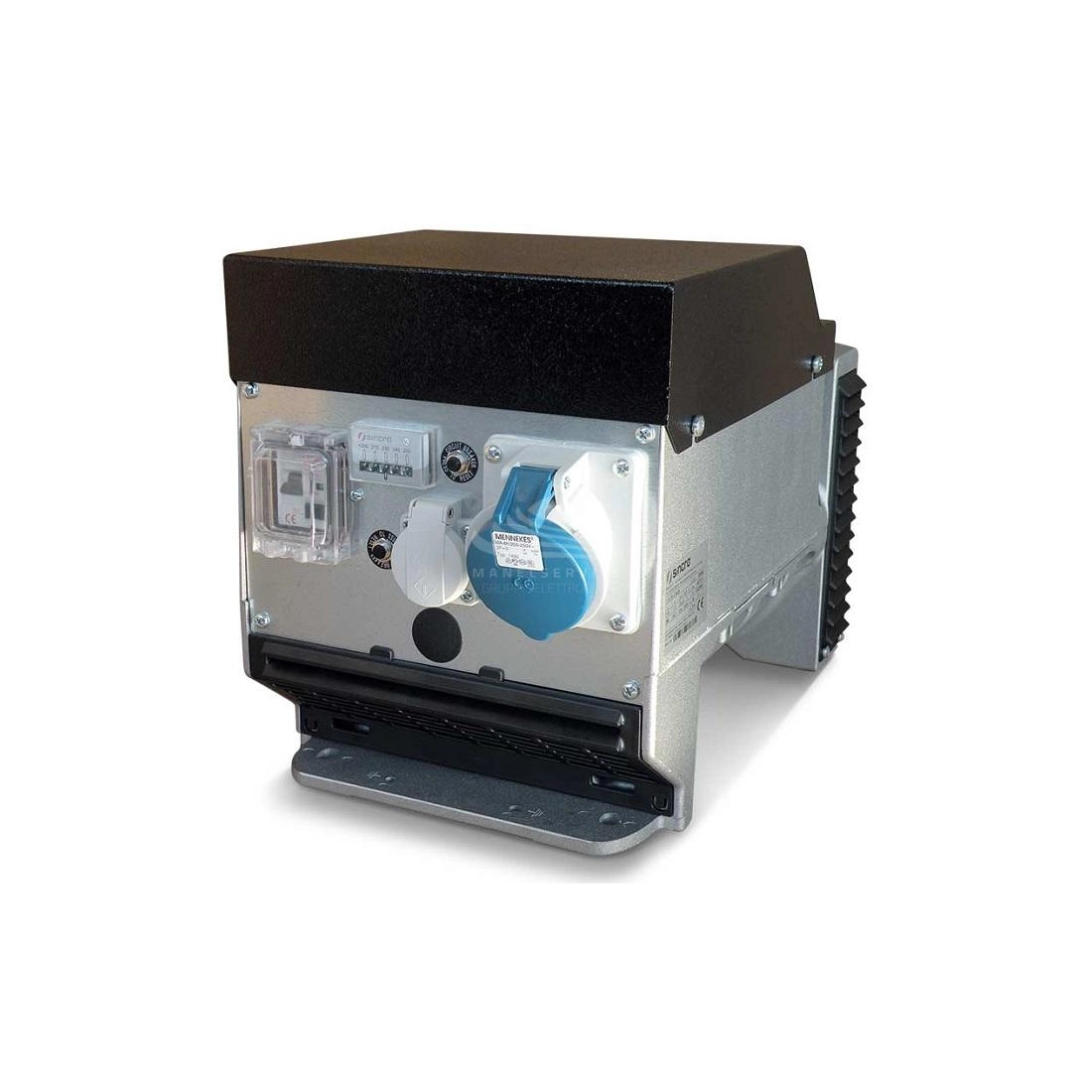

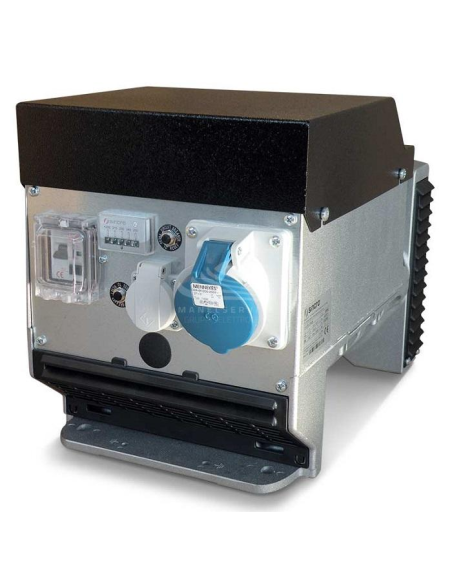

SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor

SINCRO SINGLE PHASE ALTERNATOR FK4
SINCRO SINGLE PHASE ALTERNATOR FK4
SINCRO SINGLE PHASE ALTERNATOR FK4
SINCRO SINGLE PHASE ALTERNATOR FK4
FK4 MDS J609b c25.4

Phase: Single Phase
Poles: 4
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 8
Constant Speed Alternator
Capacitor
Brushless
Weight (Kg): 56
Protection: IP23

Download Technical data FK

Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
8
Single-phase power (KVA)
8
Efficiency (%)
81
Protection degree
IP23
Dry weight (Kg)
56
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Brand

Single phase brushless alternator - Capacitor.

- Self-regulated
- IP23
- Standard voltage 230 V - 50 Hz
- Short circuit current greater than 3 In

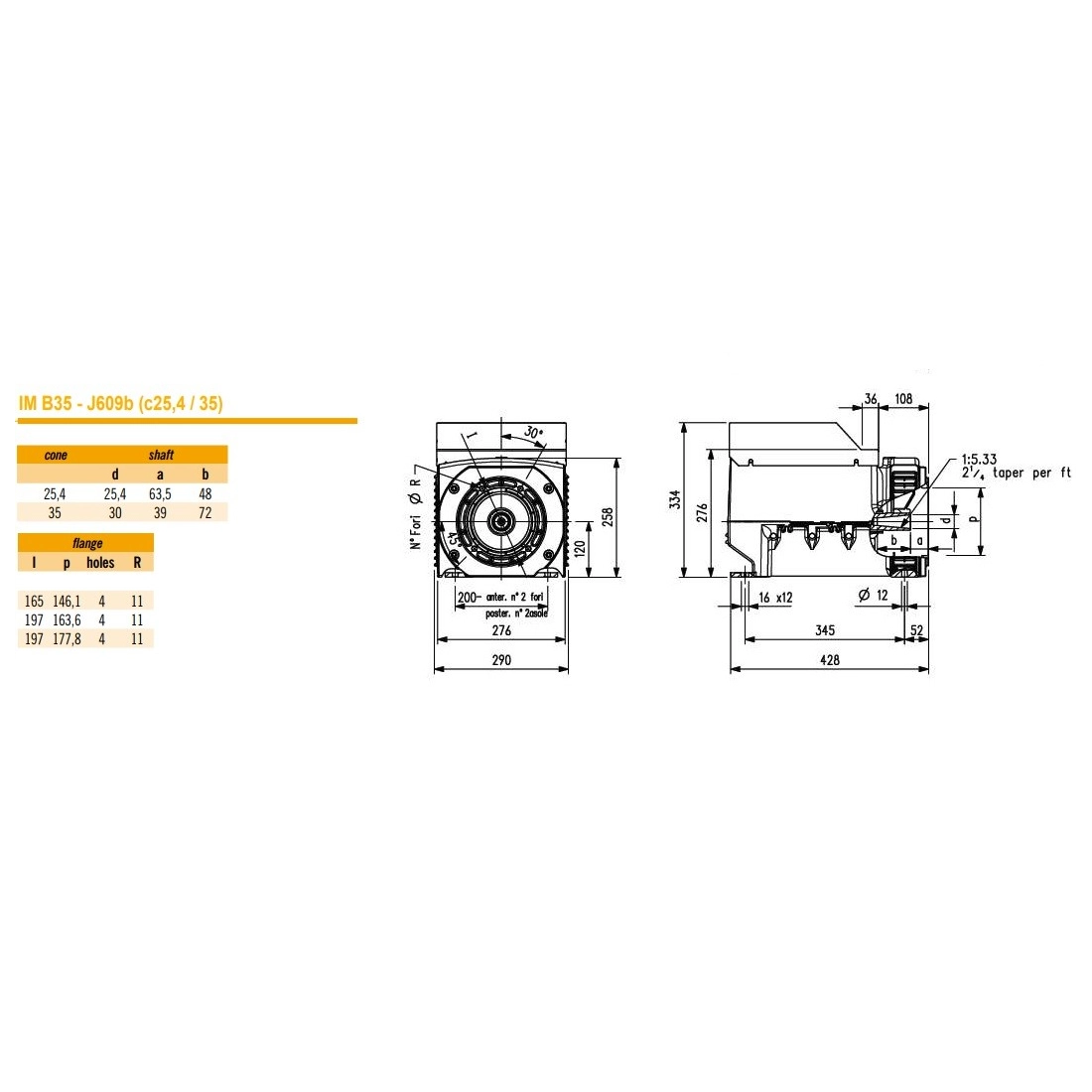

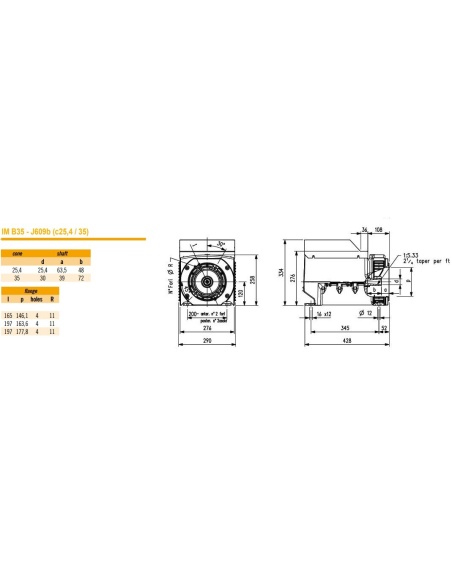

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

The image is purely indicative.

Complete your order with:

Available only upon request
€736.59 €736.59
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.

Download PDF
Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
