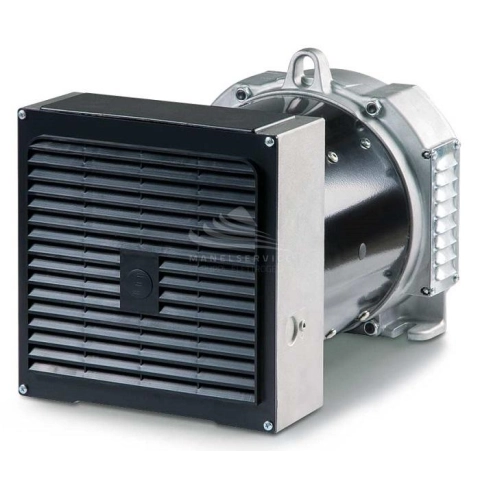

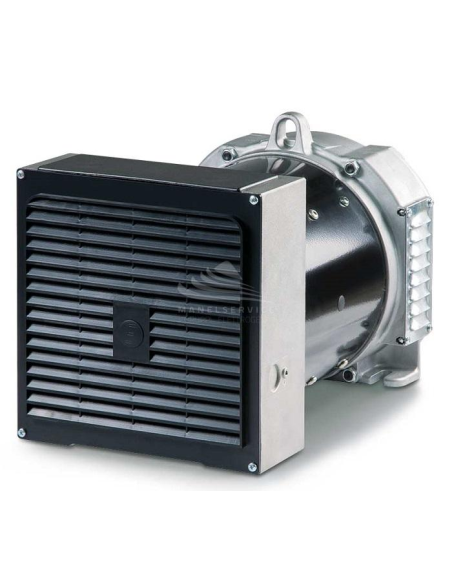

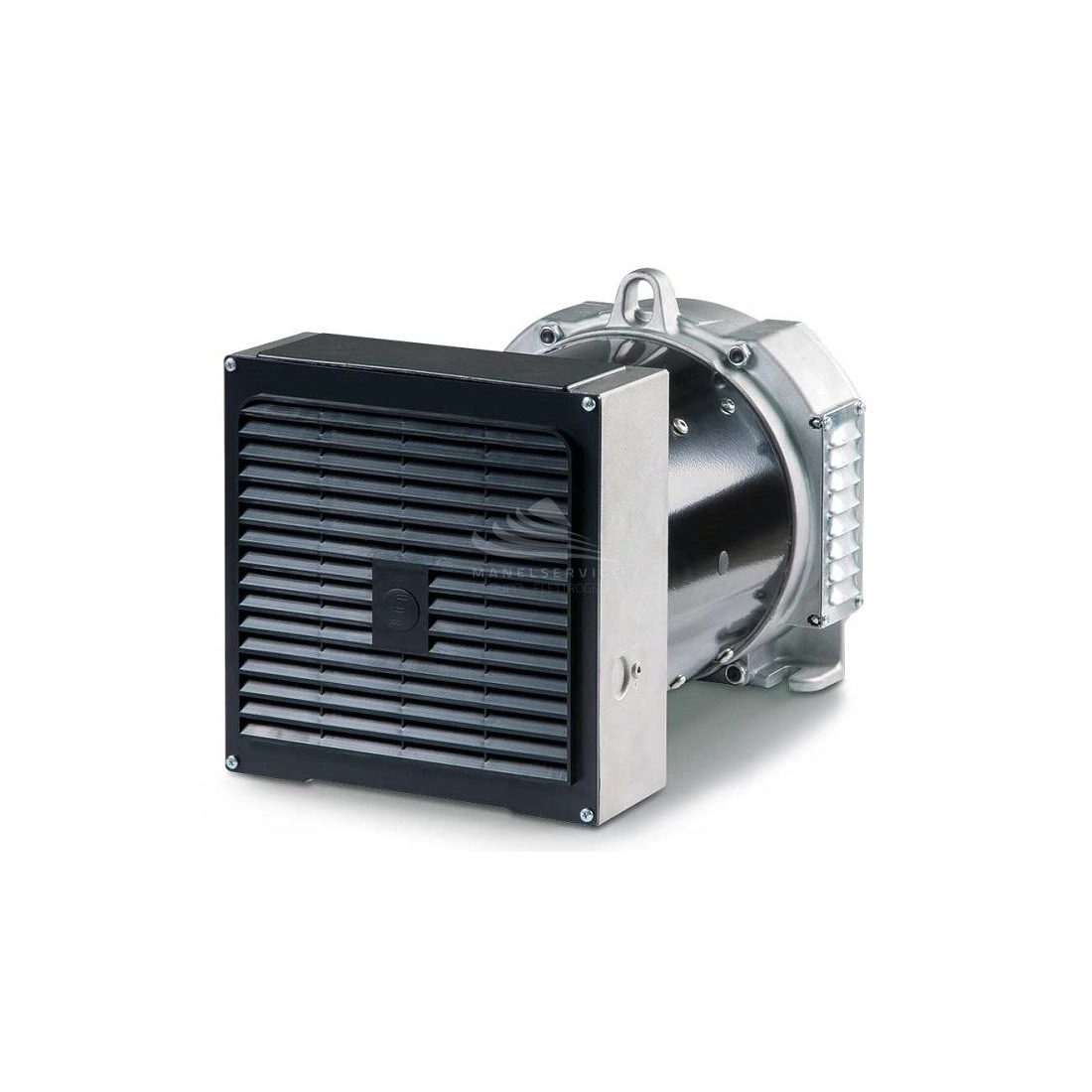

SINCRO GT4 LB Three Phase Synchronous AC Alternator 30 kVA Compound

SINCRO THREE PHASE ALTERNATOR GT4
SINCRO THREE PHASE ALTERNATOR GT4
SINCRO THREE PHASE ALTERNATOR GT4
SINCRO THREE PHASE ALTERNATOR GT4
GT4 LB J609b c25.4

Phase: Three phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 30
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 128
Protection: IP23

Download Technical data GT STEEL

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
24
Three-phase power (KVA)
30
Efficiency (%)
89.2
Protection degree
IP23
Dry weight (Kg)
128
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Brand

Three phase brushes alternator - Compound.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

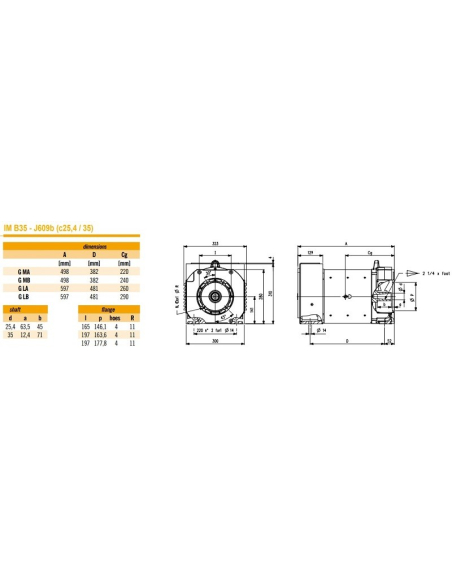

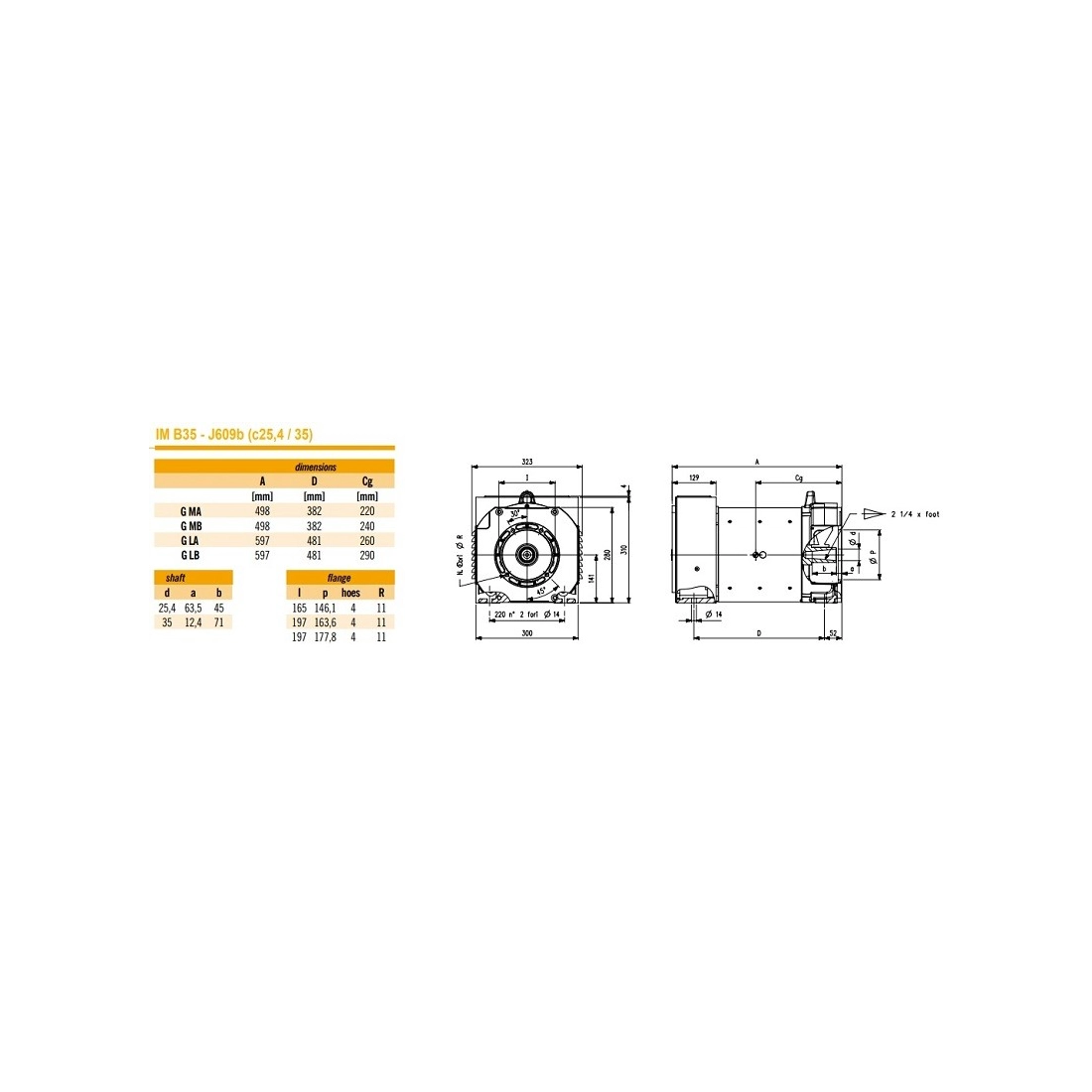

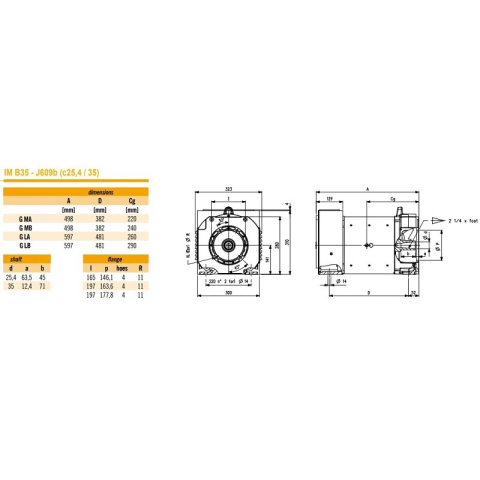

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

The image is purely indicative.

Complete your order with:

Available only upon request
€1,561.70 €1,561.70
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
