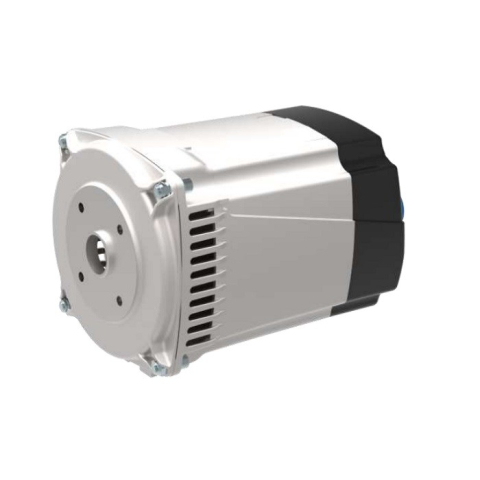

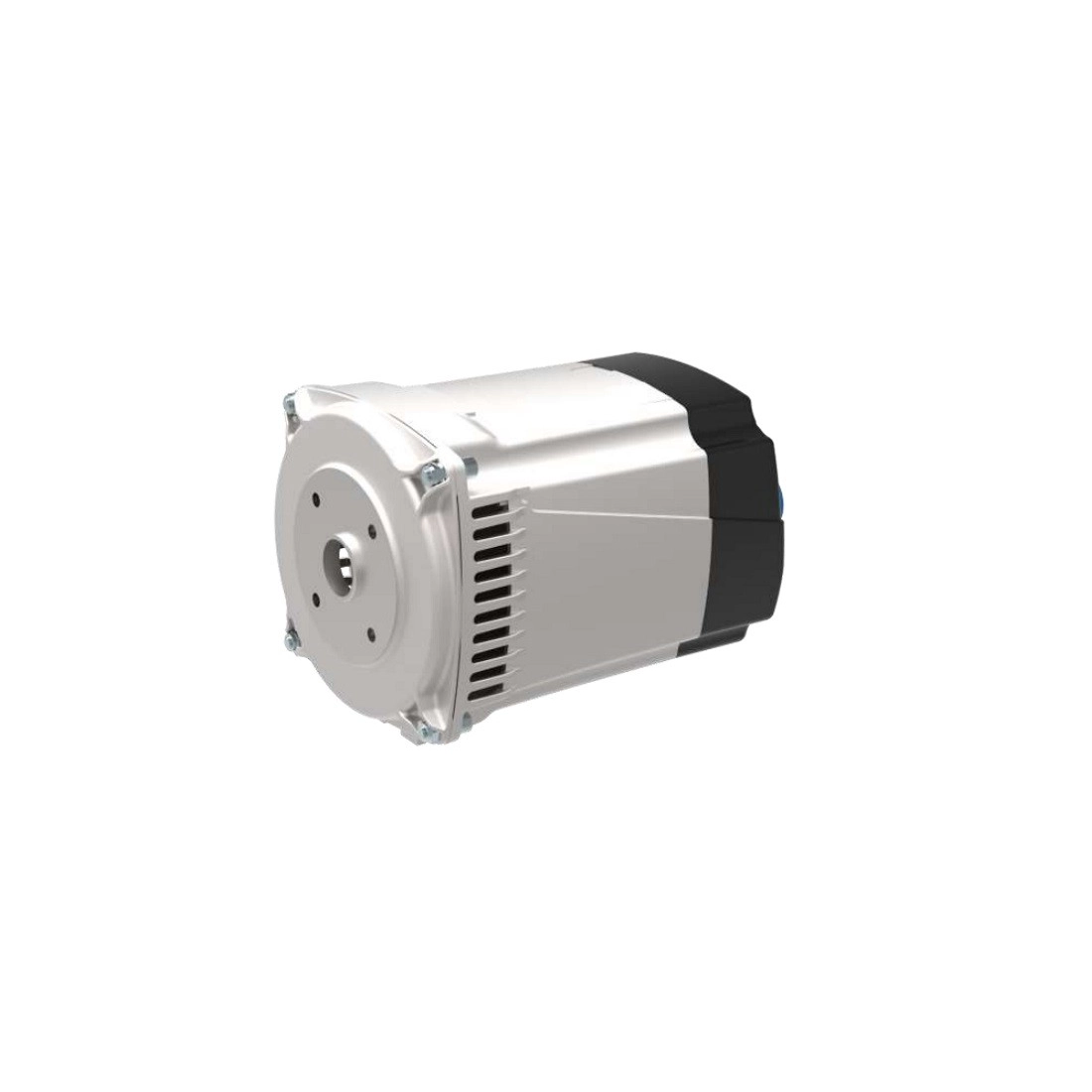

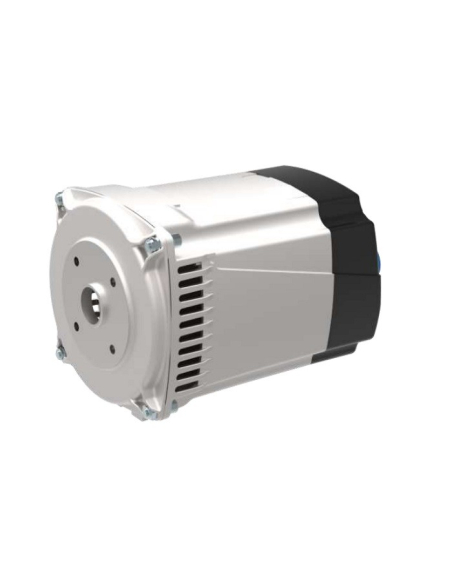

LINZ SP10S B 2.7 kVA 60 Hz Single-phase Brushless Alternator with Capacitor

LINZ SP10S B 2.7 kVA 60 Hz Single-phase Brushless Alternator with Capacitor
LINZ SP10S B 2.7 kVA 60 Hz Single-phase Brushless Alternator with Capacitor
LINZ SP10S B 2.7 kVA 60 Hz Single-phase Brushless Alternator with Capacitor
LINZ SP10S B 2.7 kVA 60 Hz Single-phase Brushless Alternator with Capacitor

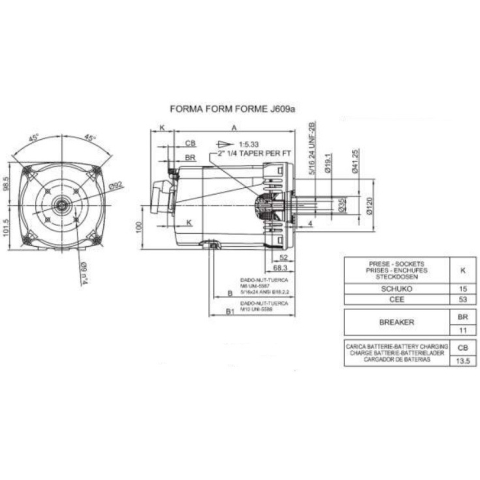

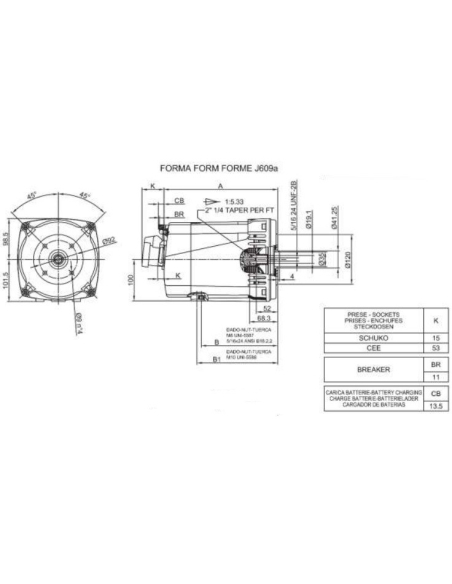

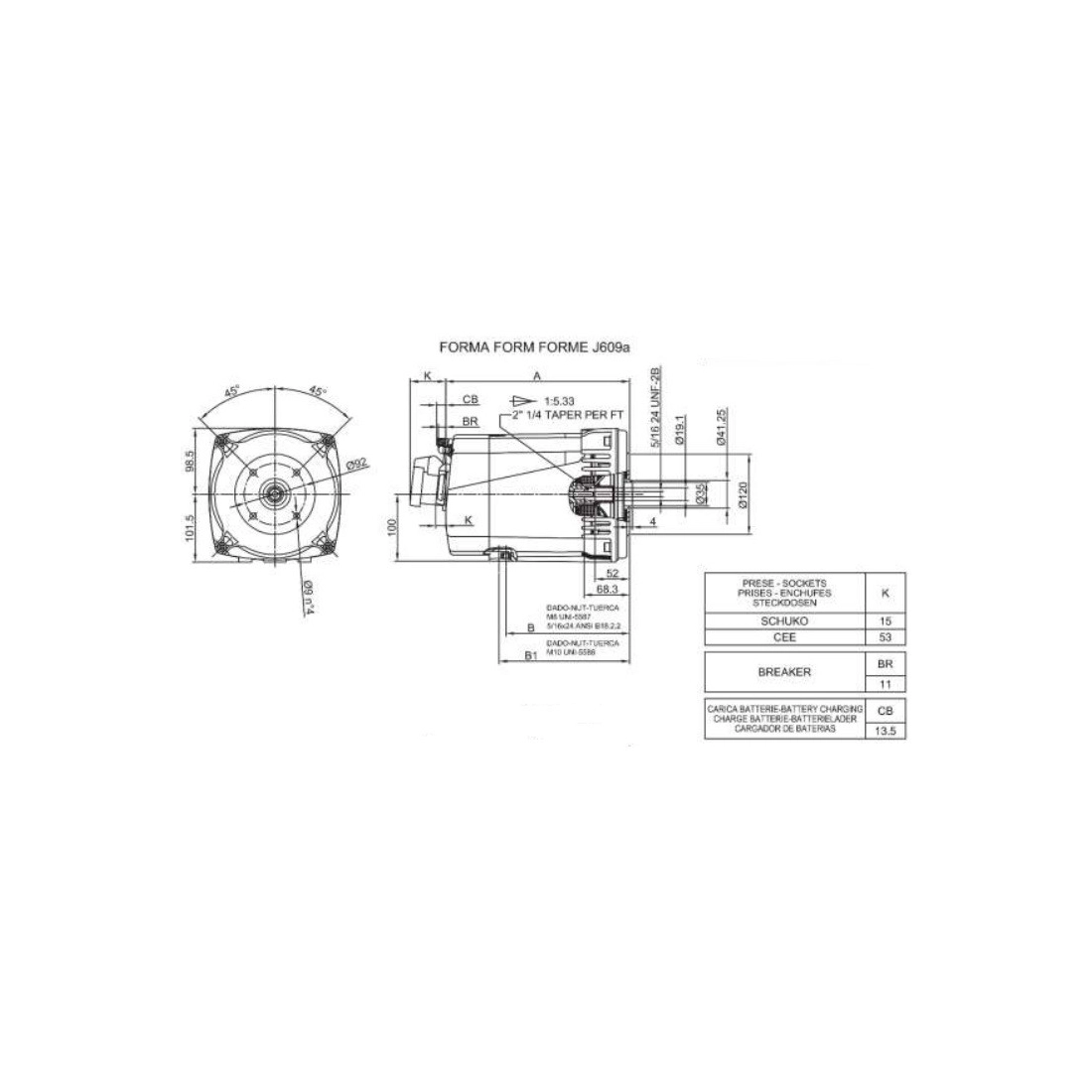

SP10S B 60 Hz J609a

Rated Power at 60Hz (kVA): 2.7
Rated Power Factor: 1
Nominal Temperature (°C)/ 40
Control System: self-excited
Execution| brushless
Regulation Type: capacitor
Insulation Class: H
Protection: IP21
Maximum Over speed (rpm): 4500
Overload 110% of rated power for one hour in a cycle of 6 hours
Air Flow Requirement (m3/min) 4,80 at 60Hz
R.F.I. Suppression Standard EN55011

Download Technical Data SP10S B

Phase
Single phase
Continuous power single phase (KW)
2.7
Continuous power single phase (KVA)
2.7
Frequency (Hz)
60
Voltage (V)
220
Engine rpm (rpm)
3600
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
2.7
Protection degree
IP21
Motor insulation class
H
Length (mm)
275
Width (mm)
200
Height (mm)
200
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
13.5
Brand

The SP series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS
Compact and easy to assemble
Possibility of vertical mounting
Rear or top accessory panel
High efficiency
Gamma: Single-phase alternators
Poles: 2
Phases: Single-phase
Adjustment: CONDENSER

Complete your order with:

Available only upon request
€187.50 €187.50
Choose the type of coupling
  • IM B35 - J609b cone 22.14
  • IM B35 - B3/B9 cone 23
  • IM B35 - J609a cone 19

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
