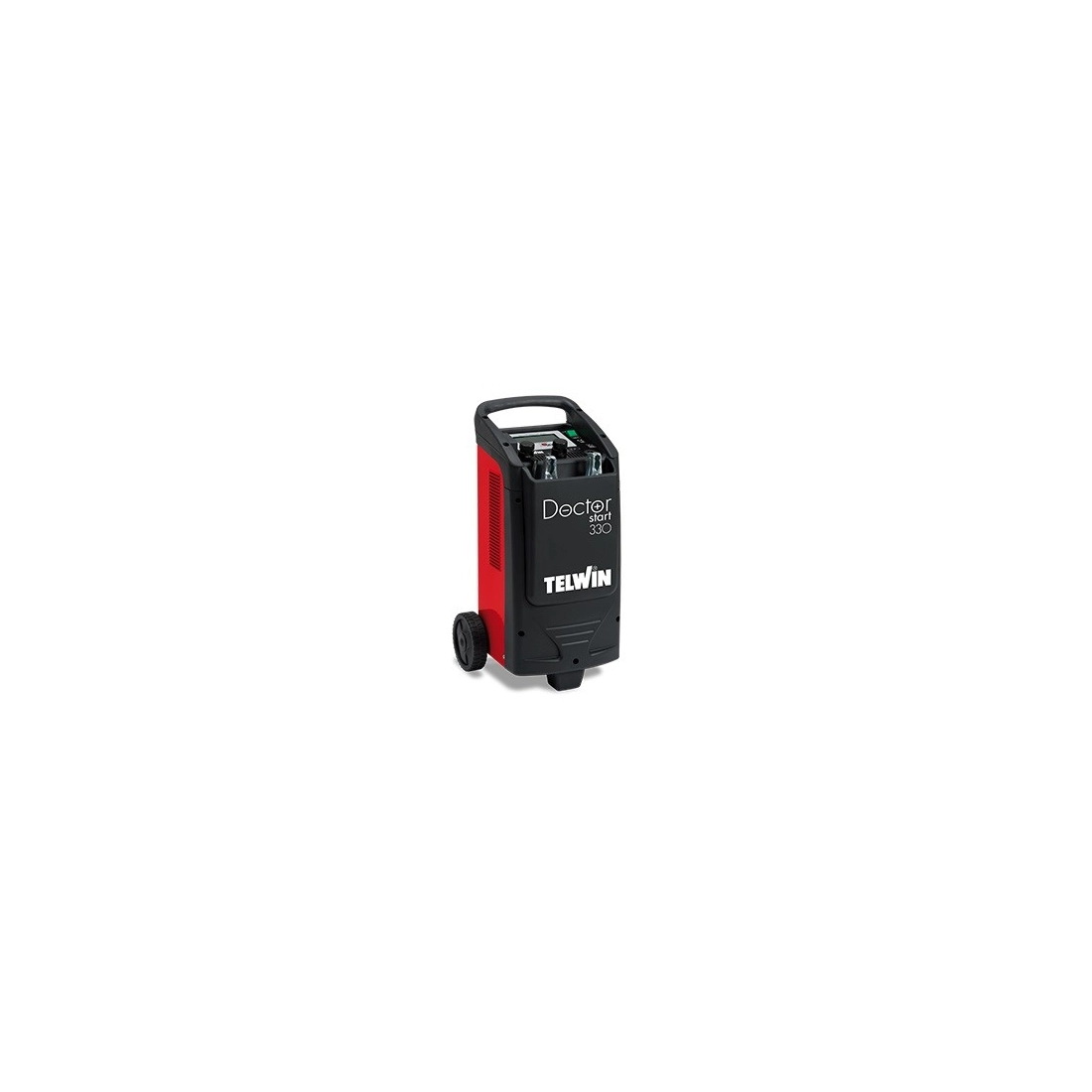

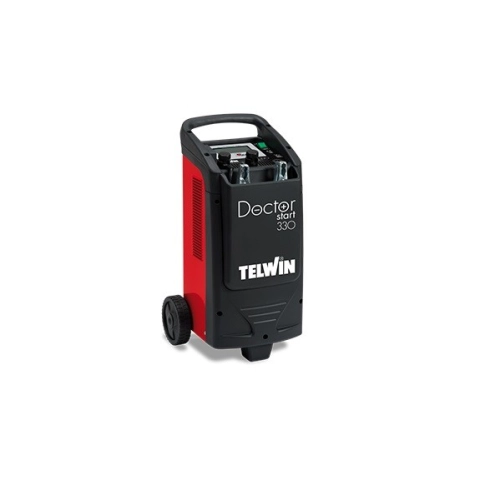

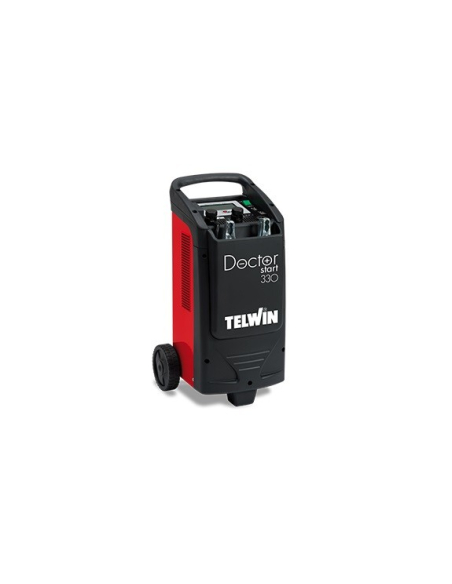

TELWIN DOCTOR START 330 230V 12-24V

Name: TELWIN DOCTOR START 330 230V 12-24V
Brand: TELWIN
SKU: 829344
Price: 404 EUR
Availability: InStock

Reference 829344

Phase Type: Single-phase
Single-phase mains voltage: 230 V
Frequency: 50 / 60 Hz
Charging power: 1 KW
Starting power: 10 KW
Charging voltage: 12 / 24 V
Effective charging current: 45 A
Charging current EN60335-2-29: 30 A
Current approx. 1v/c EN60335-2-29: 180 A
Maximum starting current: 300 A
Max. nominal ref. capacity: 450 Ah
Length: 30.5 cm
Width: 36 cm
Height: 63 cm
Weight: 12.5 Kg

Download Scheda Tecnica Doctor Start 330 Download Technical Data Doctor Start 330

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Power (W): 6400
Effective current (A): 75
Adjustment positions: 7
Charging voltage (V): 12 / 24
Length (mm): 305
Width (mm): 365
Height (mm): 630
Dry weight (Kg): 12.5
Overload protectors: Yes
Video: 2I3AlIWsa3c

Brand

DOCTOR START 330 230V 12-24 V

code 829341
Multifunction, electronic battery charger, starter and tester (BATTERY MANAGER), for WET, GEL, AGM, MF, PbCa, EFB and Li batteries at 12/24V.
It grants complete maintenance of the batteries and quick starting of cars, vans and light trucks.
It is an indispensable tool for stable power supply during battery changes.
Easy and intuitive to use thanks to the graphical LCD screen.
Features:
- Automatic charging and maintenance in Pulse Tronic;
- Battery, start and alternator test;
- Regeneration and recovery of batteries;
- Stable power source for battery changes (safeguard of the on-board electronics);
- Starting of all types of cars, vans, light trucks.
