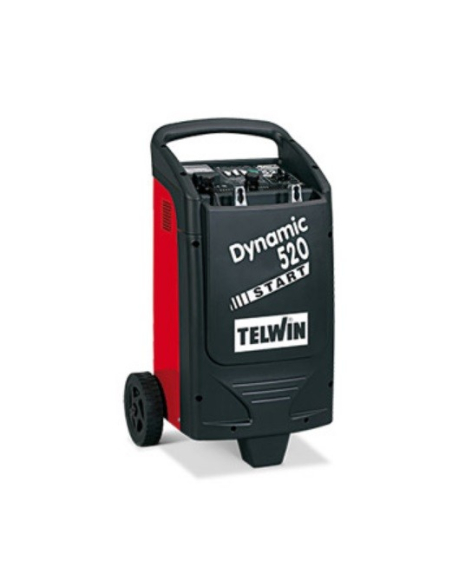

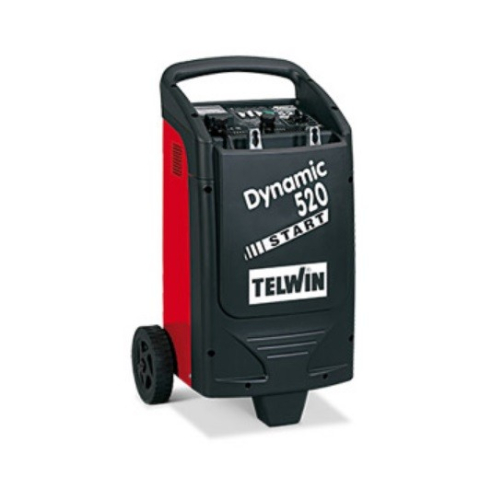

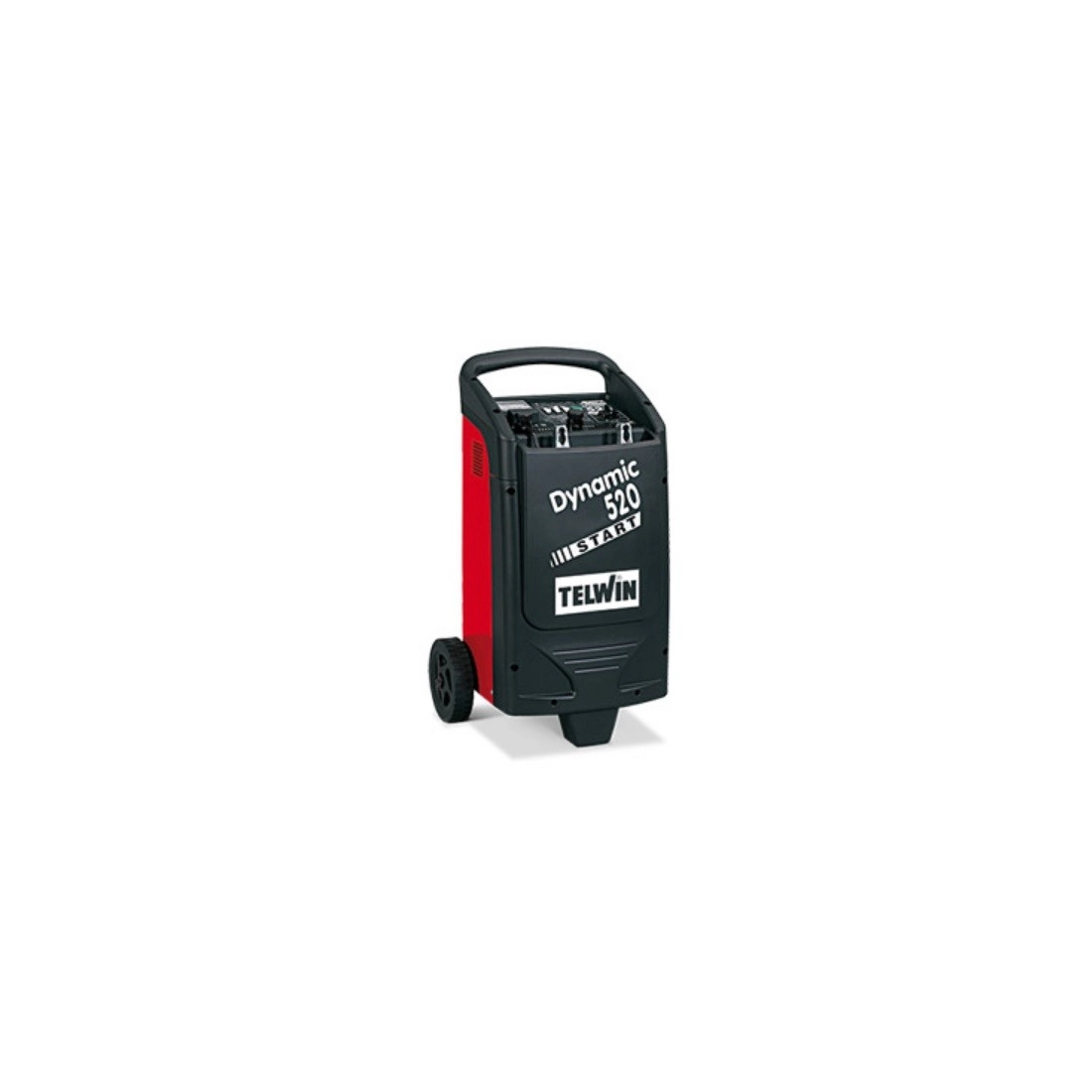

TELWIN DYNAMIC 520 START 230V 12-24V

TELWIN DYNAMIC 520 START 230V 12-24V
TELWIN DYNAMIC 520 START 230V 12-24V
829383

DISCONTINUED PRODUCT

Phase Type: Single-phase
Mains voltage Single-phase: 230 V
Frequency: 50 / 60 Hz
Charging power: 1.6 KW
Starting power: 10 KW
Charging voltage: 12 / 24 V
Effective charging current: 75 A
Charging current EN60335-2-29: 50 A
Current approx. 1v/c EN60335-2-29: 300 A
Maximum starting current: 400 A
Nom.ref.min. capacity: 20 Ah
Max. nominal ref. capacity: 1000 Ah
Adjustment positions: 4
Length: 36.5 cm
Width: 46 cm
Height: 75.5 cm
Weight: 20 Kg


Phase
Single phase
Frequency (Hz)
50 / 60
Voltage (V)
230
Power (W)
10000
Effective current (A)
Adjustment positions
4
Charging voltage (V)
12 / 24
Length (mm)
365
Width (mm)
460
Height (mm)
750
Dry weight (Kg)
Overload protectors
Yes
EAN13
800489773285
Brand

DYNAMIC 520 START 230V 12-24V

cod. 829383



Battery charger and starter for charging free electrolyte batteries (WET) with 12/24V voltage and starting all kinds of cars, vans and light trucks.
Features:
- choice of normal charge, quick charge (BOOST), quick start
- display of charging and starting current
- protection against overloads and polarity reversal.

€397.54 €397.54
Download PDF
 Calculate Shipping Cost
Shipping all over the world

Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
