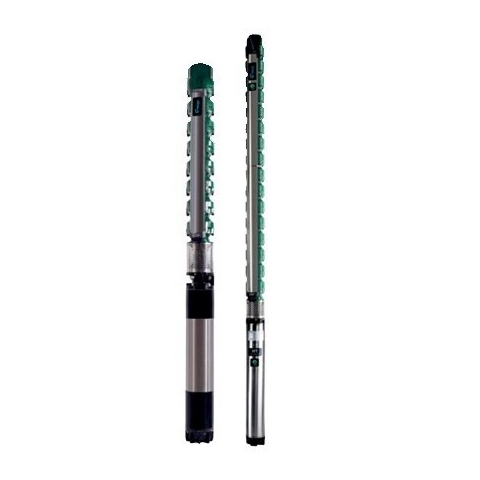

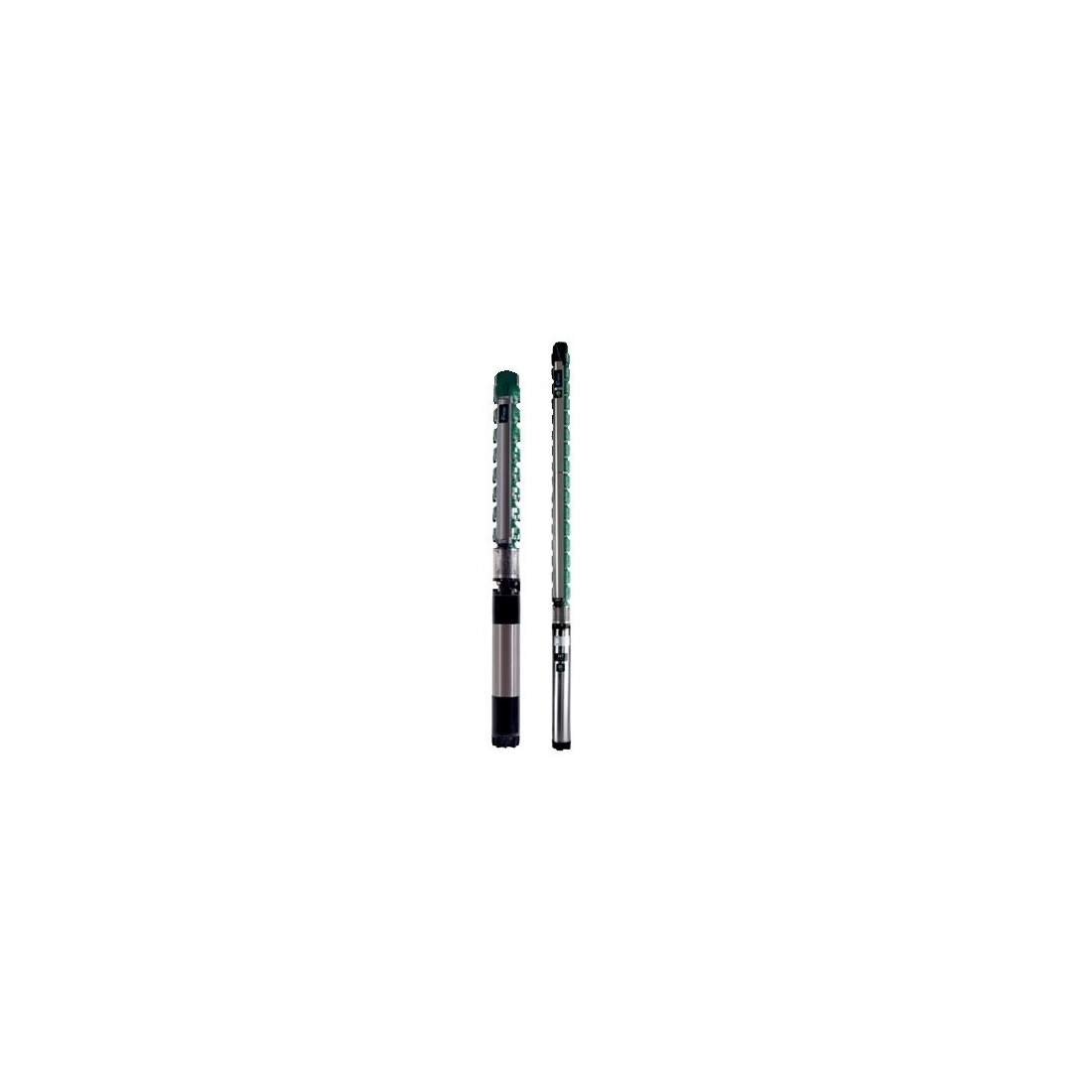

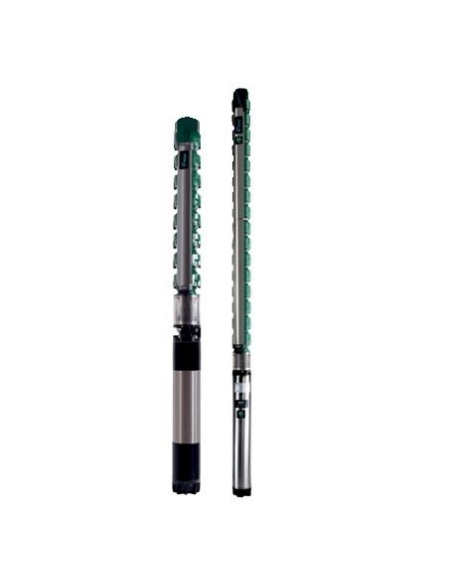

SUBMERSIBLE ELECTRIC PUMP CAPRARI E8P95/4C+MAC640A-8V
E8P95/4C
Pumped liquid: Water
Max. temperature of pumped liquid: 35 °C
Maximum density: 1 kg/dm³
Maximum viscosity: 1 mm²/s
Max. solids content: 100 g/m³
Maximum number of starts per hour: 20
Minimum emergency distance: 507.5 mm
Flow rate: 1200 l/min
Nominal power: 30 KW - 40 Hp
Rated frequency: 50 Hz
Rated voltage: 400 V
Rated current: 62.5 A
Poles: 2
Revolutions per minute: 2870
Degree of protection: IP68
Delivery diameter: G5
Check valve diameter: 5'' GAS
Maximum diameter: 203 mm
Height: 2150 mm
Weight: 154.5 Kg
Number of stages: 4
Type of installation: vertical
- Phase
- Three phase
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Engine rpm (rpm)
- 2870
- Efficiency (%)
- 79.5
- Protection degree
- IP68
- Nominal power continuous
- 30 KW
- Pump type
- Submersible Pump
- Fluid type
- Water
- Height of suction (m)
- 109
- Maximum output capacity (Lt/min)
- 1200
- Total head (m)
- 104
- Width (mm)
- 203
- Height (mm)
- 2150
