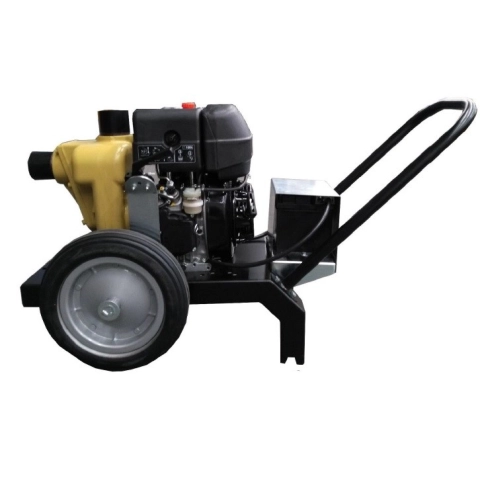

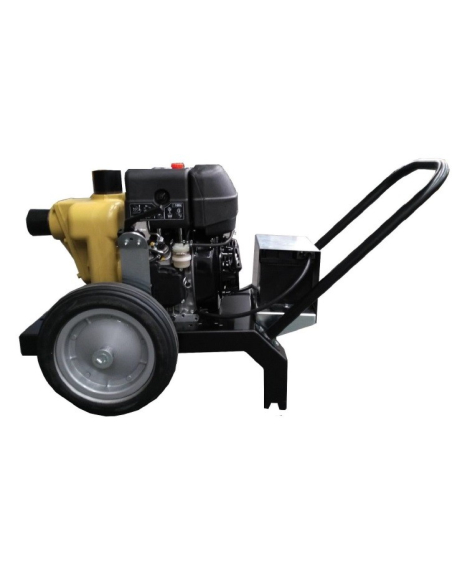

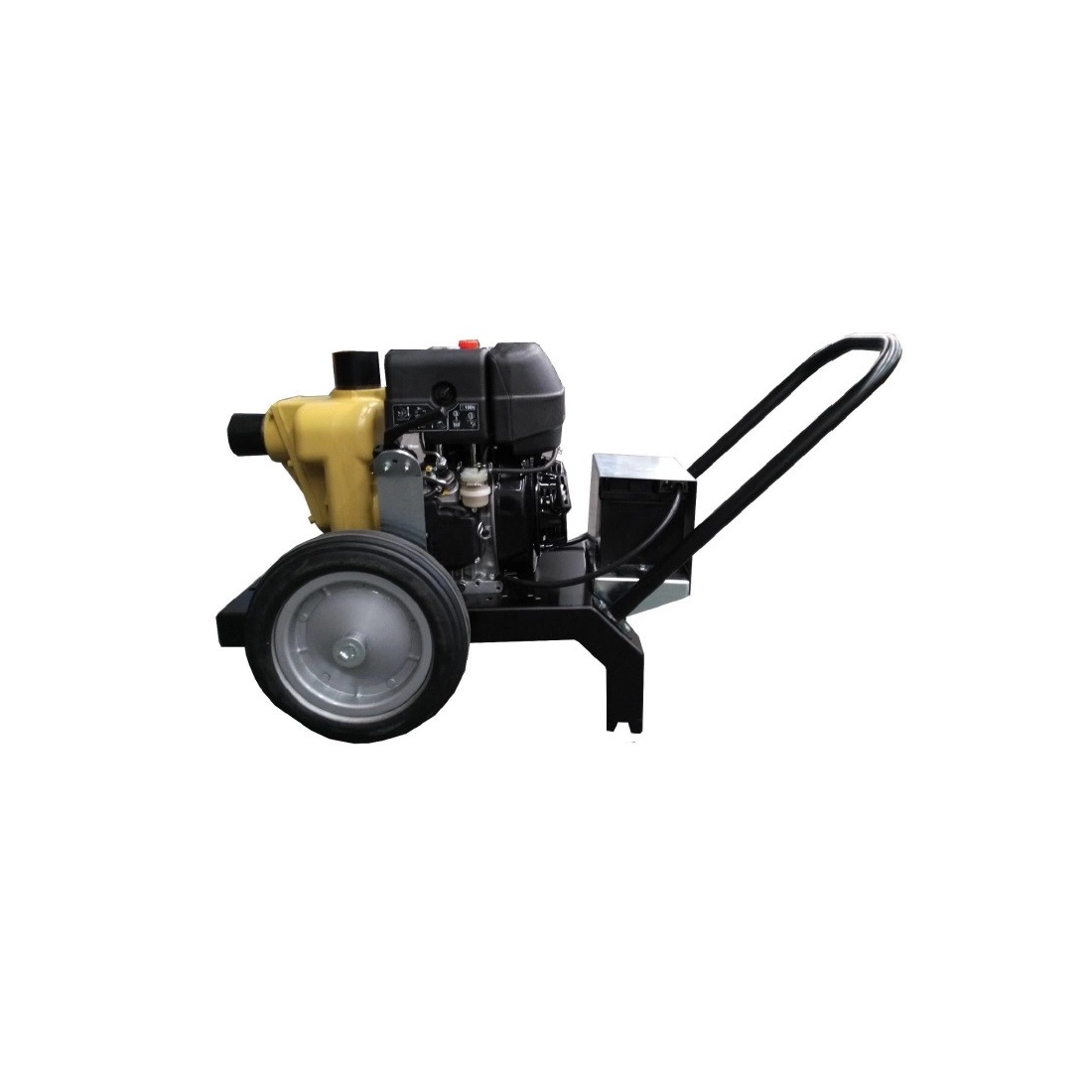

Self-priming Motor Pump Idrofoglia ZL80-1/2T-SP
ZL80-1/2T-SP
Pump type: Self-priming motor pump
Manufacturer: LOMBARDINI - KOHLER
Model: 15 LD 440
Emissions regulations: TIER 1
Power supply: Diesel
No. of cylinders: 1
Displacement: 442 cm³
Maximum debris diameter: 25x22 mm
Suction: Natural
Cooling: Air
Continuous power @ 1750 rpm: 4.0 kW - 5.4 HP
Continuous power @ 2500 rpm: 6.0 kW - 8.2 HP
Continuous power @ 3000 rpm: 6.7 kW - 9.1 HP
Maximum power @ 3600 rpm: 7.3 kW - 9.9 HP
Starting: recoil start manual
- Fuel
- Diesel
- Engine
- Lombardini 15 LD 440
- Emissions Regulations
- Stationary Use
- Starting system
- Pull starter
- Engine capacity (cm³)
- 442
- Number cylinders
- 1
- Cooling
- Air
- Pump type
- High flow rate pump
- Fluid type
- Slightly sandy wastewaters
- Height of suction (m)
- 40
- Maximum output capacity (Lt/min)
- 1600
- Max power (KW)
- 7.3
- Main body material
- Ghisa
- Inlet diameter thread type (mm/inches)
- 80 mm - 3"
- Outlet diameter thread type (mm/inches)
- 80 mm - 3"
- Mechanical power (hp)
- 9,9 Max
- Product type
- Pompa
- Brand
-
Self-priming motor-pump ZL80-1/2T-SP
Idrofoglia ZL80-1/2T-SP motor-pump with Lombardini 15LD440 diesel engine, complete with 2 spherical fittings of Ferrari type diameter 80 mm (1 delivery and 1 suction).
The motor pump Idrofoglia ZL80-1/2T-SP has a maximum flow rate of 1600 liters per minute at head 0, also allows the passage of solid debris of diameter 22x25 mm.
Self-priming Idrofoglia ZL80-1/2T-SP motor-pump with 3" - Ø80 mm inlets, performance as shown in the curve below, solids passage Ø max 25x22 mm.
Pump body: grey cast iron EN GJL 250 - Volute: spheroidal cast iron EN GJL 400 - Impeller: spheroidal cast iron EN GJL 400 - Shaft: steel C40
Painted frame on 2 wheels, with handle for manual movement. Standard tank incorporated on motor.
Manual recoil start.
Technical Characteristics Idrofoglia ZL80-1/2T-SP motor pump
Pump type: Self-priming motor pump
Manufacturer: LOMBARDINI - KOHLER
Model: 15 LD 440
Emissions regulations: TIER 1
Power supply: Diesel
No. of cylinders: 1
Displacement: 442 cm³
Maximum flow rate: 1600 litres per minute
Maximum debris diameter: 25x22 mm
Suction: Natural
Cooling: Air
Continuous power @ 1750 rpm: 4.0 kW - 5.4 HP
Continuous power @ 2500 rpm: 6.0 kW - 8.2 HP
Continuous power @ 3000 rpm: 6.7 kW - 9.1 HP
Maximum power @ 3600 rpm: 7.3 kW - 9.9 HP
Starting: recoil start manual
non-binding images and technical data.
