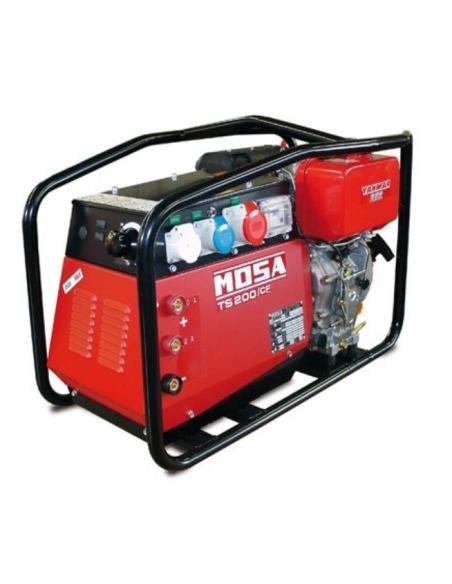

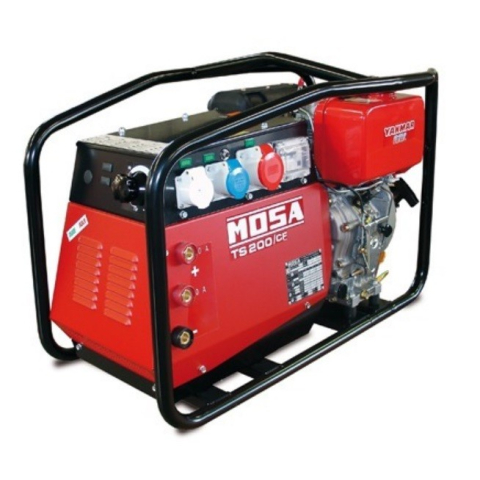

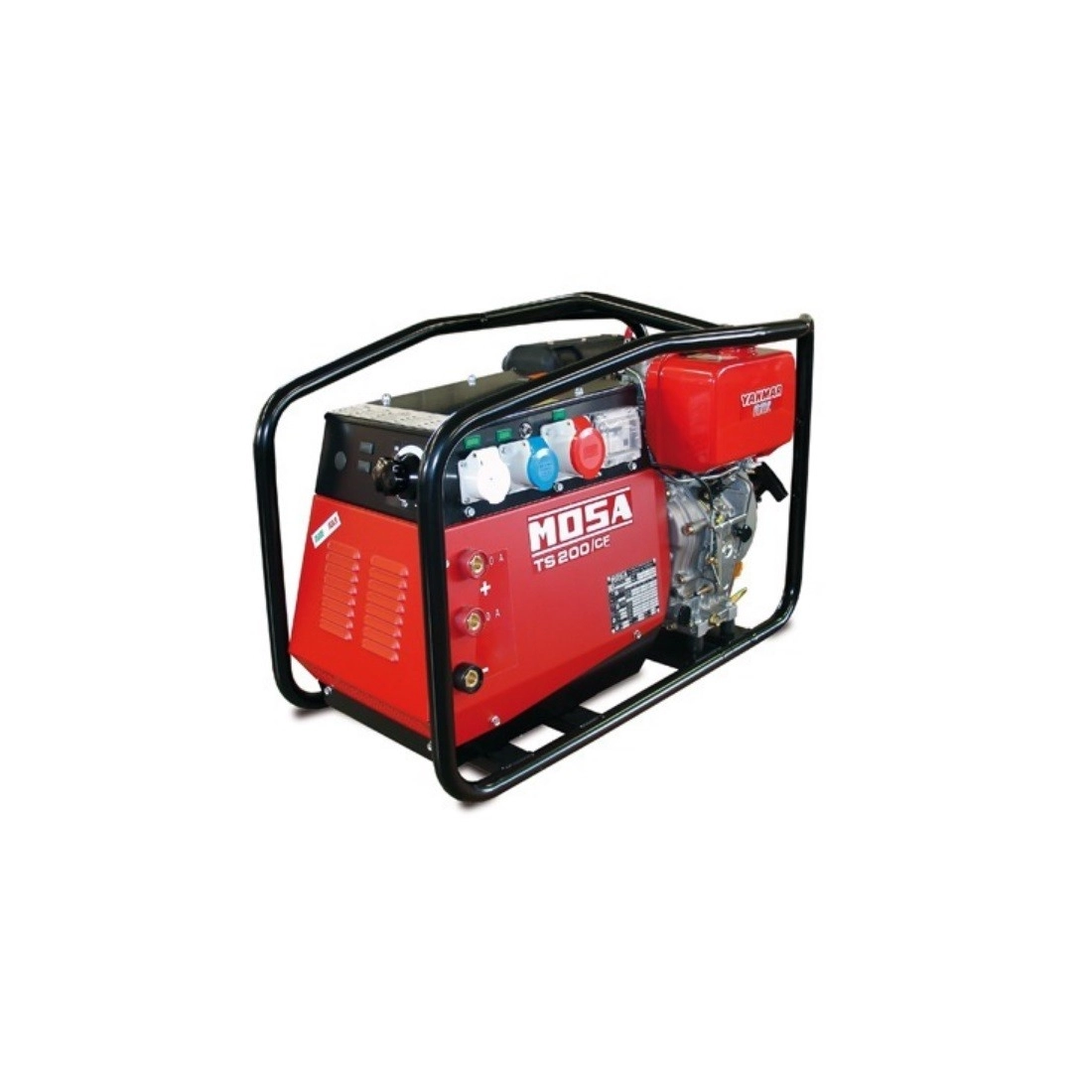

MOSA TS 200 DES/CF MMA Arc Welder Engine STAGE 5

Reference C0HP5060

Fuel: Diesel
Phase Type: Single / ThreePhase
Voltage: 48 V / 230 V / 400 V
Single-phase power 230 V (kVA): 5
Three-phase power 400 V (kVA): 6
Duty Cycle (A): 190 A al 35% - 160 A al 60% - 120 A al 100%
Welding output: CC
Type of welding: MMA STICK
Electrodes: any kind up to 4 mm
Silenced: NO
Lenght (mm): 900
Width (mm): 550
Height (mm): 620
Dry weight (Kg): 150
Electric Starter

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 4
Maximum power single phase (KVA): 5
Maximum power three phase (KW): 4.8
Maximum power three phase (KVA): 6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 48V 32A 2P CEE
Engine: YANMAR L100V STAGE 5
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 435
Number cylinders: 1
Cooling: Air
Inyección: Direct
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Regulation current (A): 20 - 190
Welding current (A): 190 at 35% - 160 at 60% - 120 at 100%
Open circuit voltage (V): 98
Maximum diameter electrodes (mm): 4
Type of welding current: DC
Type of welding: MMA
Fuel tank capacity (L): 5.5
Consumption (L/h): 1
Running time (h): 5.5
Acoustic power: 99 dB(A)
Acoustic pressure: 74 dB(A) at 7 m
Length (mm)
Width (mm): 550
Height (mm): 620
Dry weight (Kg)
Silenced: No
Super silenced: No
Engine manufacturer: Yanmar

Brand

The engine-driven welder TS-200 DES/CF is a lightweight machine without electronics: the welding current is adjusted by changing the rpm of the engine.

Equipped with a YANMAR L100N diesel engine with electrical start-up and an asynchronous alternator, it can be used as a welder or as a three-phase and single-phase electrical generator up to 6 kVA.

The welding current is continuous and has two welding scales (20-100A / 90-190A) that are selectable by connecting to two different welding sockets. You can weld with electrodes up to 4 mm in diameter.

An engine-driven welder suitable for a wide range of uses from maintenance to site welding and pipe fabrication.

In according with CE regulation

WELDING
Current range, continuous: 20 ÷ 100A / 90 ÷ 190A
Duty cycle: 190 A 35% - 160 A 60% - 120 A 100%
Open circuit voltage: 98 V
Arc welding source in D.C. welding
Welds any type of electrode, including cellulosic
Double welding scale 20-100A / 90-190A
A.C. generator, single-phase and three-phase

GENERAL
Sockets: 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
Protective frame
Dry weight TS 200 DES/CF: 150 kg
Dimensions: 900x550x620 mm
Acoustic power LwA (pressure LpA): 99 dB(A) (74 dB(A) @ 7 m)

Non-binding images and technical data.
