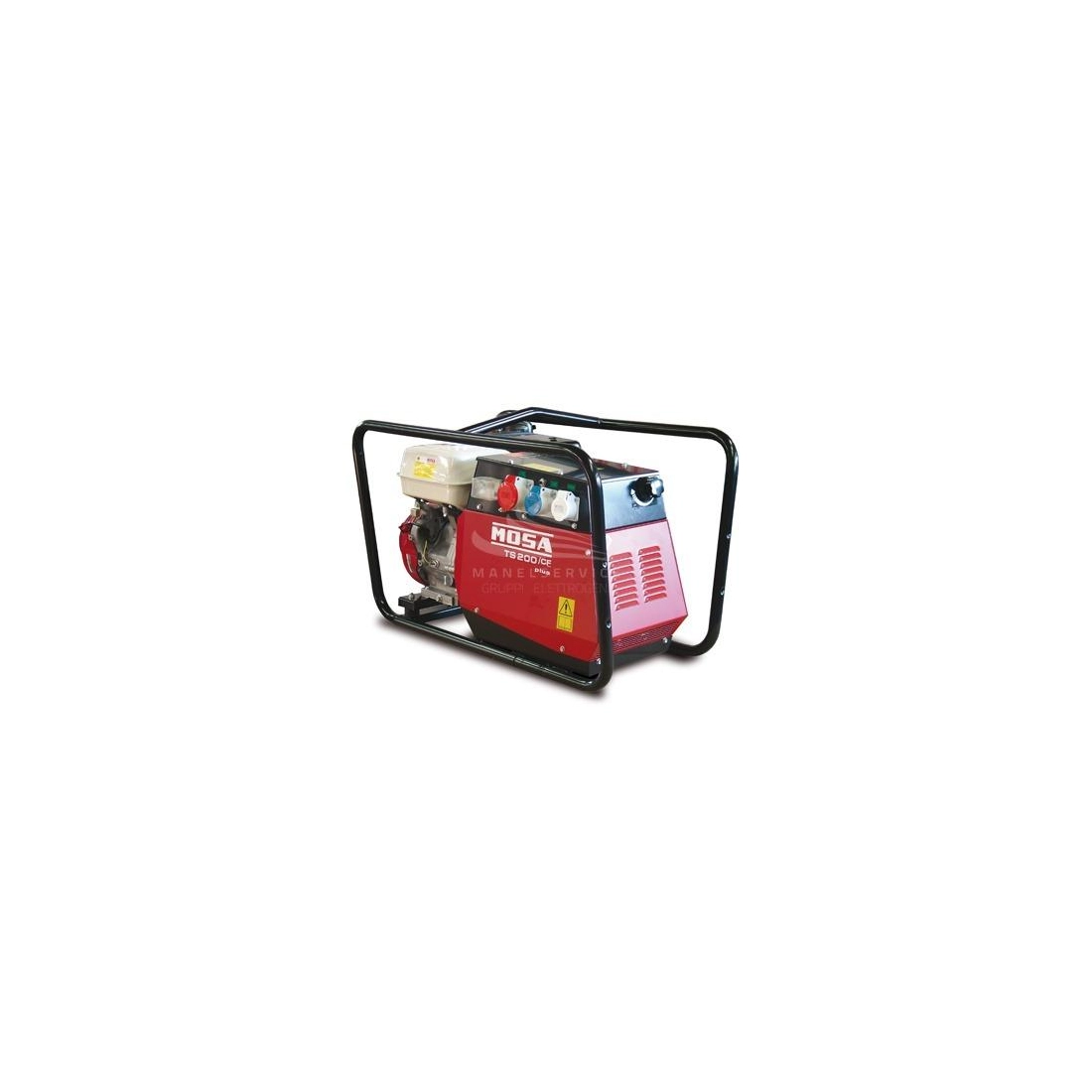

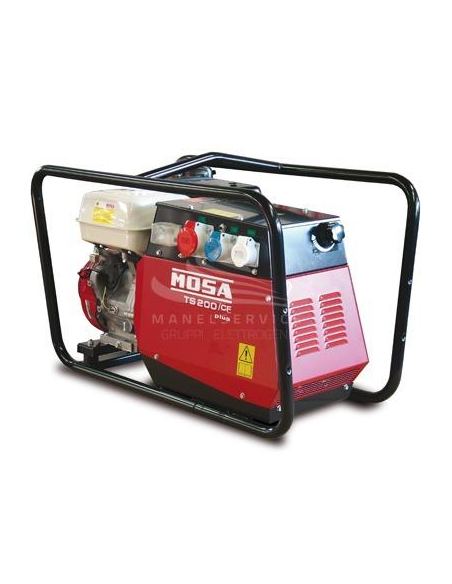

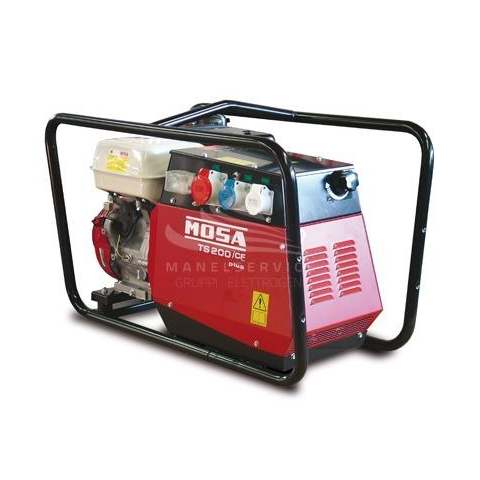

MOSA TS 200 BS-CF

Name: MOSA TS 200 BS-CF
Brand: MOSA
SKU: C0GN7060
Price: 2540 EUR
Availability: InStock

Reference C0GN7060

Fuel: Petrol
Phase Type: Single / Three Phase
Voltage: 230 V / 400 V
Single-phase power 230 V (kVA): 5
Three-phase power 400 V (kVA): 6
Duty Cycle (A): 190 A al 35% - 160 A al 60% - 120 A al 100%
Welding output: CC
Type of welding: MMA STICK
Electrodes: any kind up to 4 mm
Silenced: NO
Lenght (mm): 910
Width (mm): 530
Height (mm): 580
Dry weight (Kg): 111

Download Scheda tecnica TS 200 BS/CF Download Technical data TS 200 BS/CF Download Manual TS 200 BS/CF Download Manuale TS 200 BS/CF Download Données tech TS 200 BS/CF Download Technische daten TS 200 BS/CF

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 4
Maximum power single phase (KVA): 5
Maximum power three phase (KW): 4.8
Maximum power three phase (KVA): 6
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 48V 32A 2P CEE
Engine: Honda GX390, 4 stroke, OHV
Emissions Regulations: Stationary Use
Engine rpm (rpm): 3000
Starting system: Manual
Engine capacity (cm³): 389
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Regulation current (A): 20 - 190
Welding current (A): 190 at 35% - 160 at 60% - 120 at 100%
Open circuit voltage (V): 98
Maximum diameter electrodes (mm): 4
Type of welding current: DC
Type of welding: MMA
Fuel tank capacity (L): 6.5
Consumption (L/h): 1.86
Running time (h): 3.5
Acoustic power: 98 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 910
Width (mm): 530
Height (mm): 580
Dry weight (Kg): 111
Silenced: No
Super silenced: No
Engine manufacturer: Honda

Brand

The TS-200 BS/CF is a professional machine, without electronics capable of delivering up to 200 A with a duty cycle of 60%.

The welding current is adjusted by changing the rpm of the engine. Equipped with an 11.1 HP HONDA GX-390 petrol engine and an asynchronous alternator, it can be used as a welder or as a three-phase and single-phase electrical generator up to 6 kVA.

The welding current is available on two scales, selectable by means of the connection to two different welding sockets. The TS-200 BS/CF is able to weld any kind of electrode (rutile, basic, cellulose) up to 4 mm in diameter.

An engine-driven welder suitable for a wide range of uses from maintenance to site welding fabrication.

In according with CE regulation

WELDING
Current range, continuous: 20 ÷ 100A / 90 ÷ 190A
Duty cycle: 190 A 35% - 160 A 60% - 120 A 100%
Open circuit voltage: 98 V
Arc welding source in D.C. welding
Welds any type of electrode, including cellulosic
Double welding scale 20-100A / 90-190A
A.C. generator, single-phase and three-phase

GENERAL
Sockets: 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
Protective frame
Dry weight: 111 kg
Dimensions: 910x530x580 mm
Acoustic power LwA (pressure LpA): 98 dB(A) (73 dB(A) @ 7 m)

In according with CE regulation
