Maximum three-phase power (kW): 6.4
Maximum three-phase power (kVA): 7.1
Fuel: petrol
Frequency (Hz): 50
Voltage (V): 230
Engine: Honda GX390
Engine speed (rpm): 3000
Starting: recoil
Cooling: air
Welding current (A): 200 – 35% / 180 – 60%
Fuel tank capacity (L): 19
Autonomy (h): 9
Length (mm): 810
Width (mm): 550
Height (mm): 680
Dry weight (kg): 95
Silenced: Yes
Super Silenced: No
Maximum Current (A): 200
Engine Brand: Honda
Emissions Standard: Stage 5
Phase Type: Single-Phase

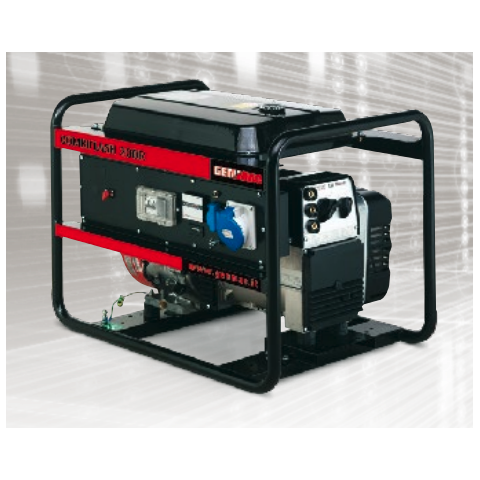

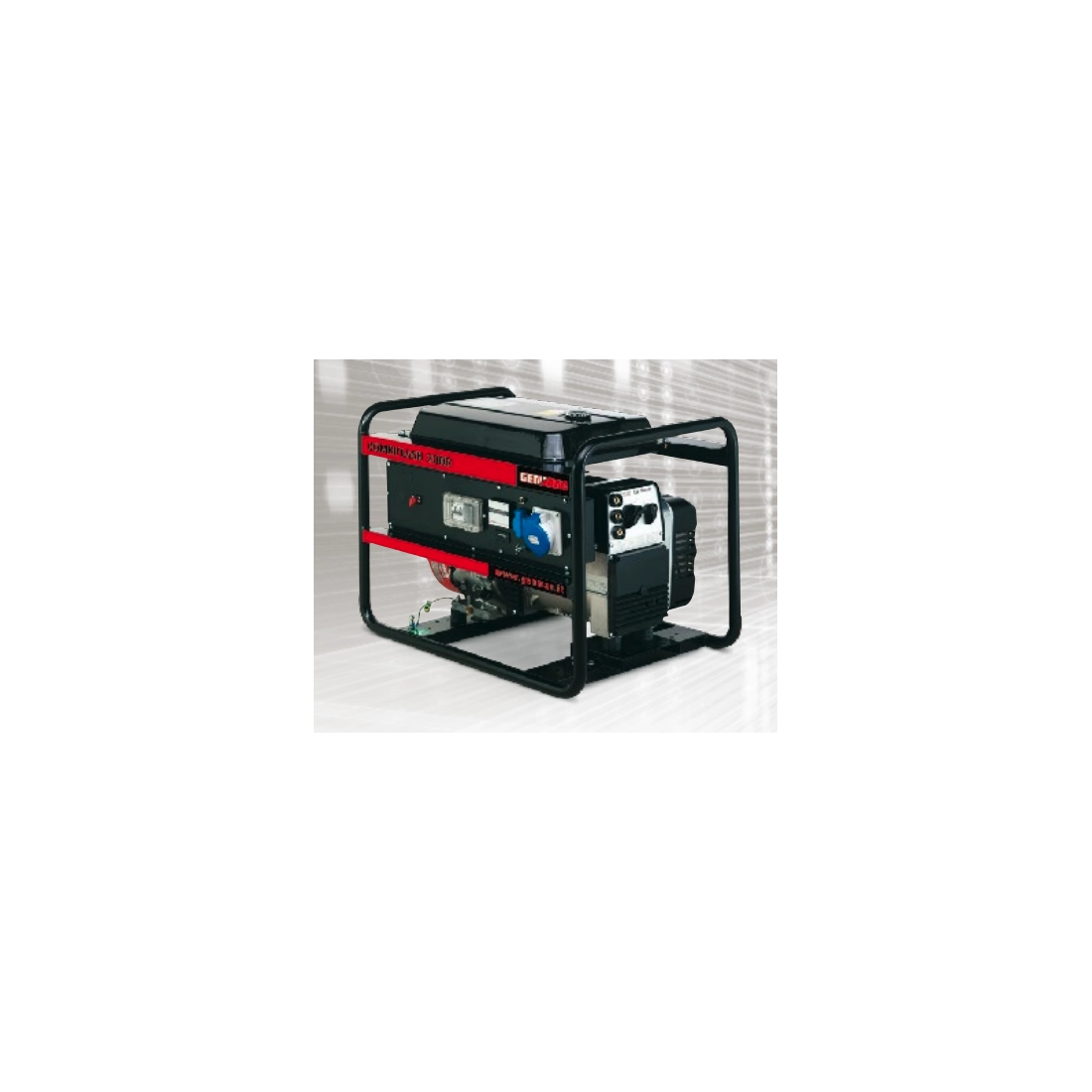

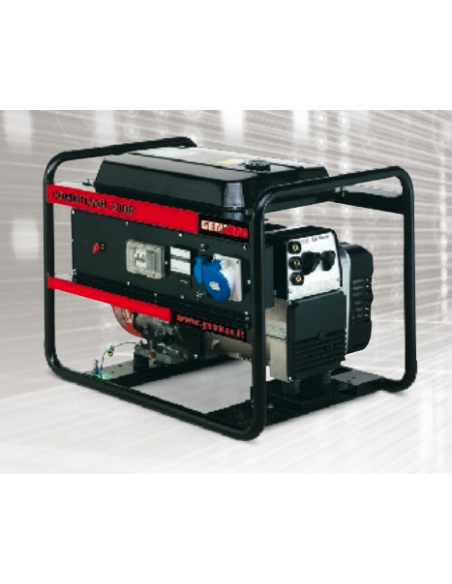

The GENMAC Combiflash RG201HO?M5 ENGINE-POWERED WELDER 7.1 kVA Stage 5 is a compact and versatile petrol-powered welder, designed for professional use on construction sites and in the artisanal sector. It is equipped with an air-cooled Honda GX390 engine, with recoil start and a maximum power of 7.1 kVA (6.4 kW) in single-phase at 230 V, 50 Hz, ideal for MMA welding with adjustable current up to 200 A (200 A at 35% and 180 A at 60%).
The 19-litre petrol tank guarantees autonomy of approximately 9 hours of work, while the compact frame (810 × 550 × 680 mm) and low weight of 95 kg make the machine easy to transport and position. The silenced (not super-silenced) version helps reduce noise levels during use, while maintaining high performance and compliance with Stage 5 emissions regulations for the engine.
Technical Features:
Maximum three-phase power (kW): 6.4
Maximum three-phase power (kVA): 7.1
Fuel: petrol
Frequency (Hz): 50
Voltage (V): 230
Engine: Honda GX390
Engine speed (rpm): 3000
Starting: recoil
Cooling: air
Welding current (A): 200 – 35% / 180 – 60%
Fuel tank capacity (L): 19
Autonomy (h): 9
Length (mm): 810
Width (mm): 550
Height (mm): 680
Dry weight (kg): 95
Silent: yes
Super silent: no
Maximum current (A): 200
Engine brand: Honda
Emissions standard: Stage 5
Phase type: single-phase
If you are looking for another product then you can consult our other cataloguemotor-driven welders.
