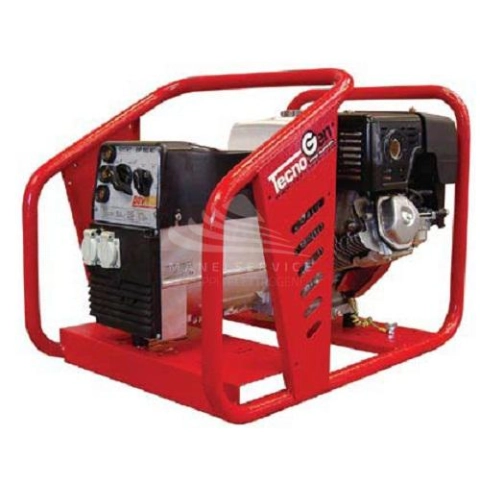

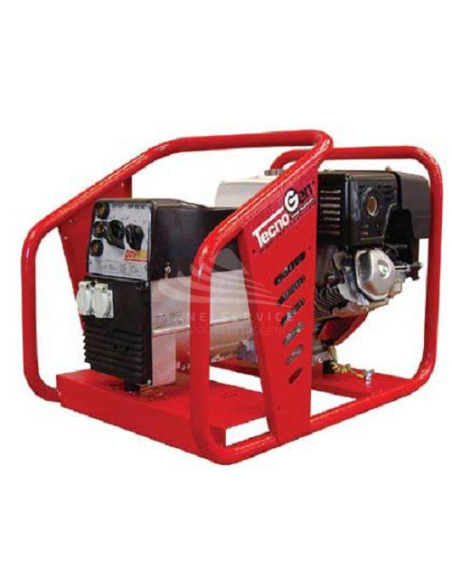

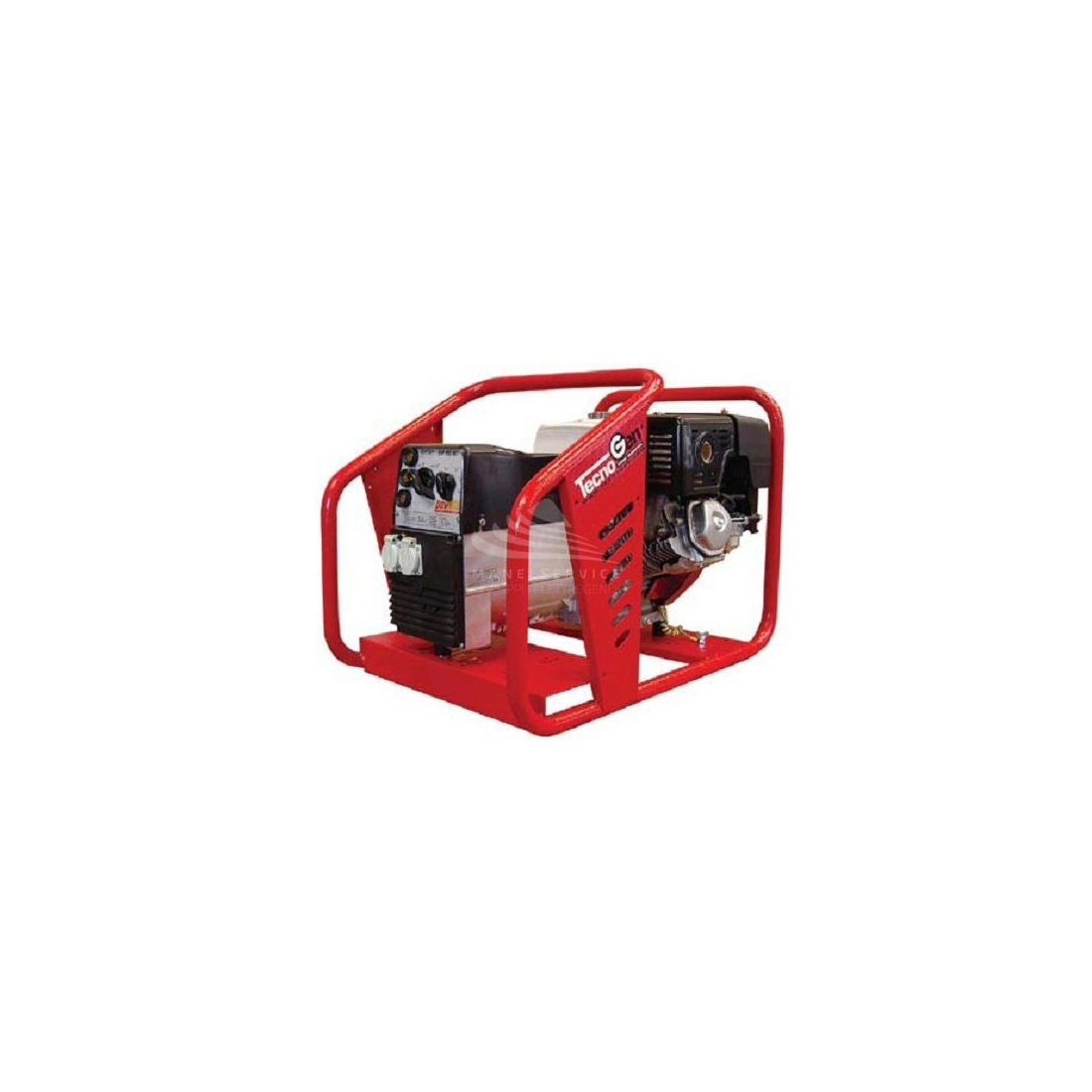

TECNOGEN SD180LE

Name: TECNOGEN SD180LE
Brand: TECNOGEN
SKU: SD180LE

Reference SD180LE

OUT OF STOCK

Soldering at 60%: 170
Maximum single-phase power: 5.5 KVA
Fuel: Diesel
Voltage: 230V
Engine: Lombardini 15LD440
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 110 Kg

Download Scheda tecnica SD180LE

Product Details
Description

Phase: Single phase
Maximum power single phase (KVA): 5.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: HONDA GC160
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 160
Number cylinders: 1
Cooling: Air
Welding current (A): 180 al 35% - 170 al 60%
Fuel tank capacity (L): 2
Consumption (L/h): 0,8 al 75% del carico
Running time (h): 2,5
Length (mm): 78
Width (mm): 52
Height (mm): 56
Dry weight (Kg): 27
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Brand

TECNOGEN SD180LE MOTORWELDER 5,5KVA

TECNOGEN SD180LE is equipped with a sturdy frame to protect a powerful Lombardini 15LD440 engine capable of delivering a power of 5.5KVA with a maximum load consumption of 2.4 L/h.

TECNOGEN SD180LE is with electric start with 12V battery supplied with acid or manual with self-winding, with control panel QM115 composed of single-phase CEE socket 2P+T 16A, thermal protection, Schuko socket 2P+T 16A.

TECHNICAL FEATURES TECNOGEN SD180LE

Soldering at 60%: 170
Maximum single-phase power: 5.5 KVA
Fuel: Diesel
Voltage: 230V
Engine: Lombardini 15LD440
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 110 Kg

Are you looking for a motorwelding with different technical characteristics? Here you can find the full range of TECNOGEN and other specialized brands.

The images are purely indicative.
