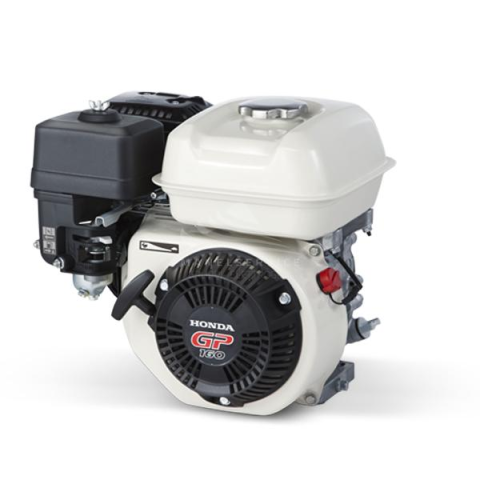

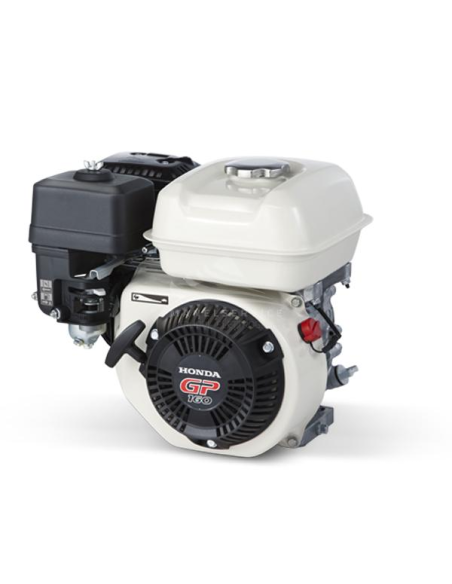

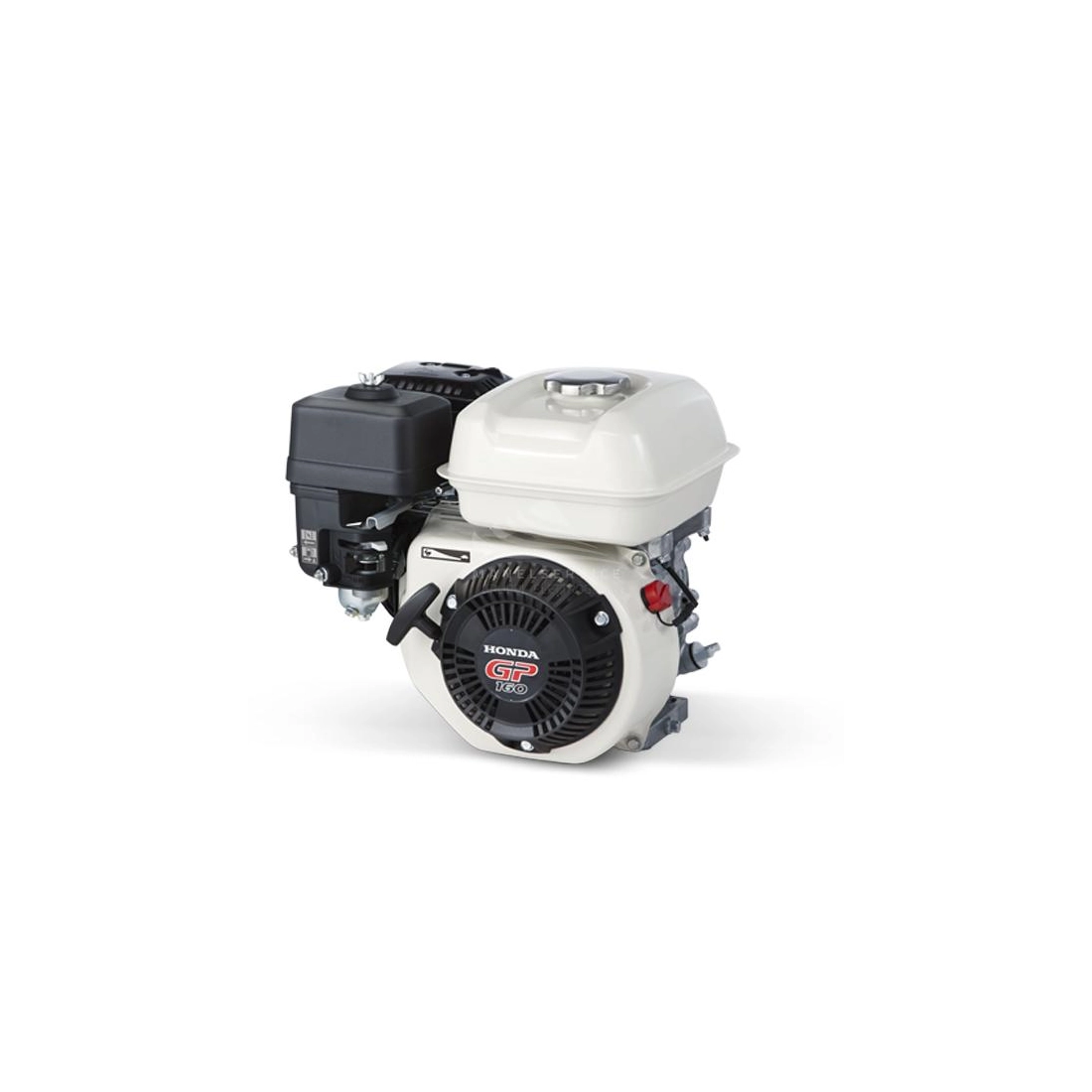

HONDA GP160H QHB1 Engine
GP160H QHB1 /
OUT OF PRODUCTION
Net power (kW): 3.6
Net power (Hp): 4.8
Fuel: Petrol
Starter system: Recoil starter
Round per minute (rpm): 3600
Displacement (cm3): 163
Lenght (mm): 314
Width (mm): 363
Height (mm): 335
Dry weight (Kg): 15.1
- Fuel
- Gasoline
- Engine
- OHC ad albero orizzontale, 4 tempi, cilindro in ghisa
- Ignition
- A transistor contactless
- Starting system
- Manual
- Engine capacity (cm³)
- 163
- Number cylinders
- 1
- Cylinders' position
- Inclined to 25°
- Oil capacity (L)
- 0.6
- Cooling
- Forced air
- Bore x stroke (mm)
- 68 x 45
- Compression ratio
- 8.5 : 1
- Net power (kW)
- 3.6

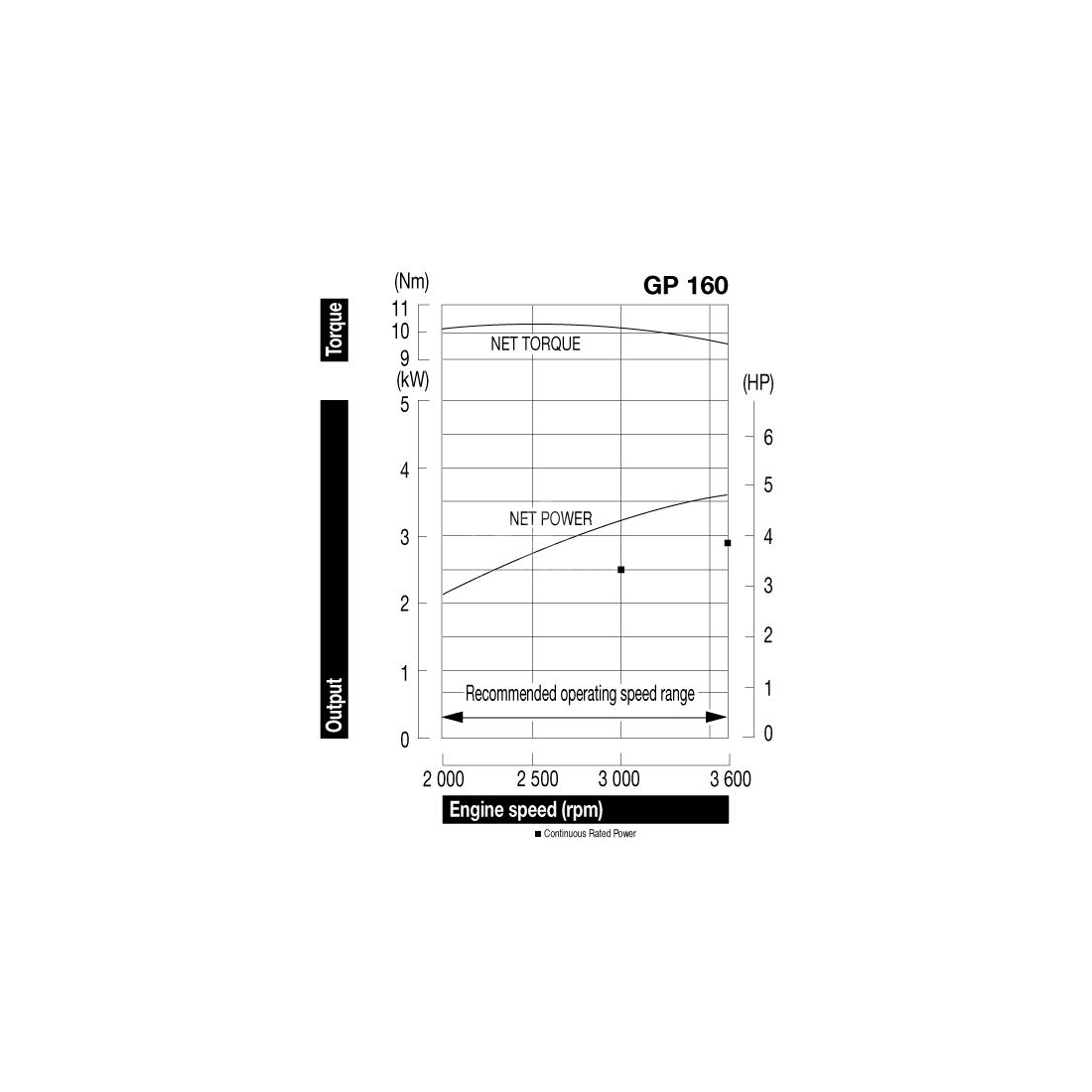

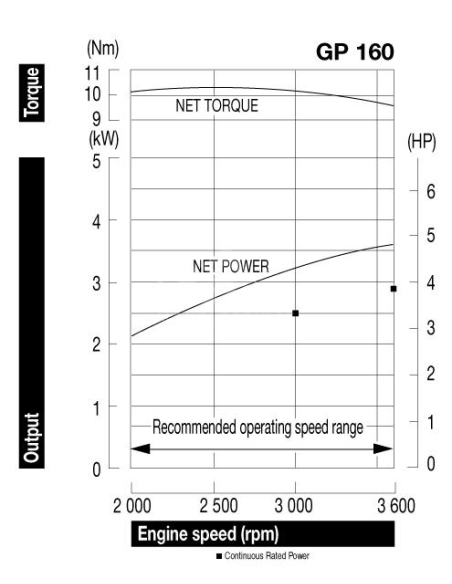

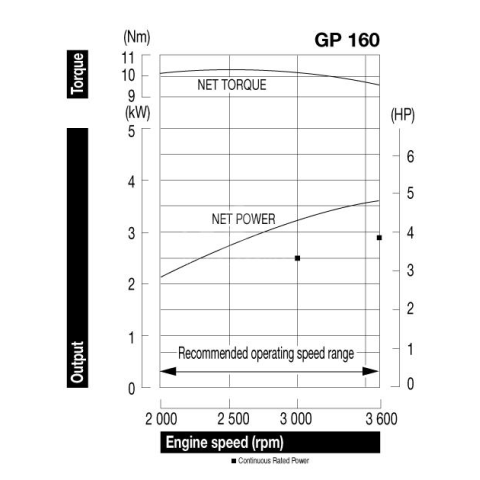

- Nominal power continuous
- 2.5 KW (3.4 HP) / 3000 rpm - 2.9 KW (3.9 HP) / 3600 rpm
- Maximum torque
- 10.3 Nm / 1.05 kgfm / 2500 rpm
- Fuel tank capacity (L)
- 3.1
- Consumption (L/h)
- 1.4
- Running time (h)
- 2.21
- Length (mm)
- 314
- Width (mm)
- 363
- Height (mm)
- 335
- Dry weight (Kg)
- 15.1
- Engine manufacturer
- Honda
- Brand
-
