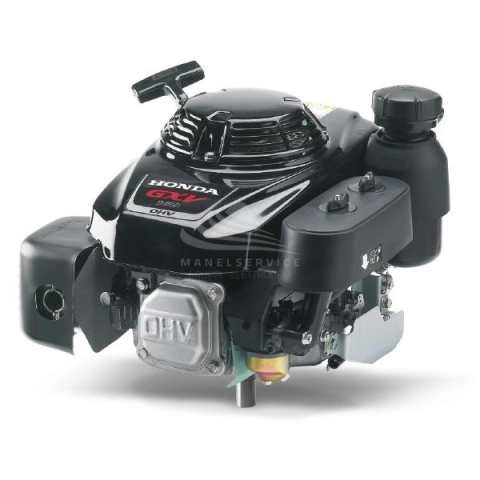

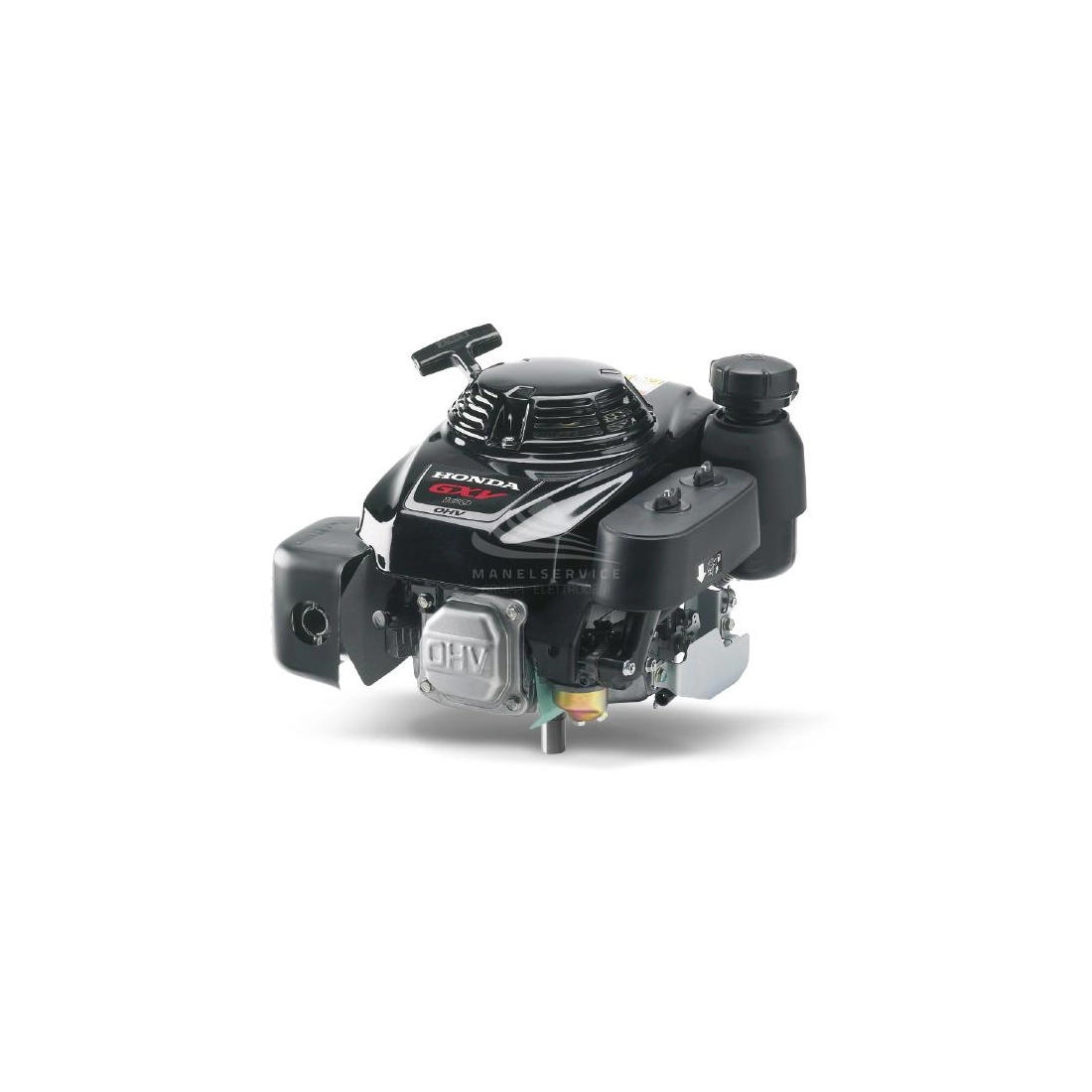

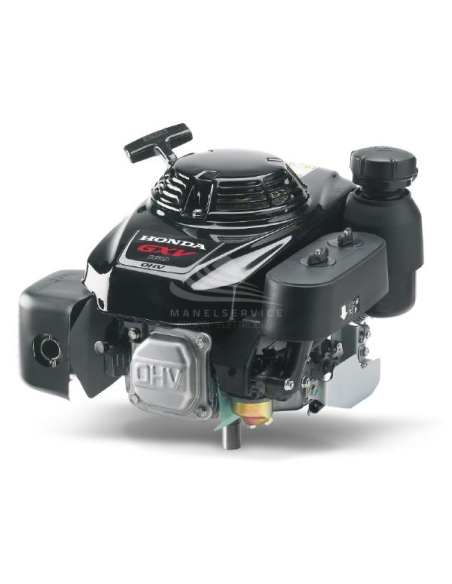

HONDA GXV160H2 A1-N5 Engine
GXV160H2 A1-N5 /
OUT OF PRODUCTION
Net power (kW): 3.2
Net power (Hp): 4.3
Fuel: Petrol
Starter system: Manual
Round per minute (rpm): 3600
Displacement (cm3): 163
Lenght (mm): 420
Width (mm): 365
Height (mm): 357
Dry weight (Kg): 15.5
Fuel tank capacity (Lt.): 1.4
Compression ratio: 8 : 1
- Fuel
- Gasoline
- Engine
- OHV vertical shaft, 4 stroke, cast iron cylinder
- Ignition
- A transistor contactless
- Starting system
- Manual
- Engine capacity (cm³)
- 163
- Number cylinders
- 1
- Oil capacity (L)
- 0.65
- Cooling
- Forced air
- Bore x stroke (mm)
- 68 x 45
- Compression ratio
- 8.0 : 1
- Net power (kW)
- 3.2
- Nominal power continuous
- 2.0 KW (2.7 HP) / 3000 rpm
- Maximum torque
- 9.6 Nm / 0.98 kgfm / 2500 rpm
- Fuel tank capacity (L)
- 1.8
- Consumption (L/h)
- 1.1
- Running time (h)
- 1.63
- Length (mm)
- 420
- Width (mm)
- 365
- Height (mm)
- 357
- Dry weight (Kg)
- 15.5
- Engine manufacturer
- Honda
- Brand
-
