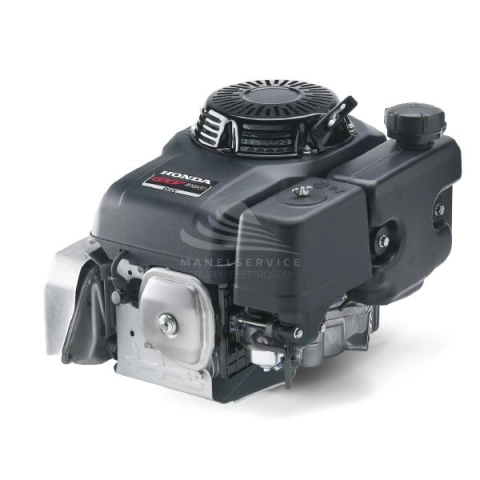

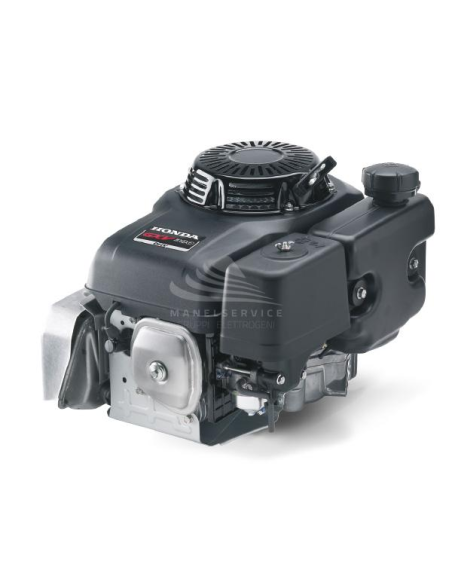

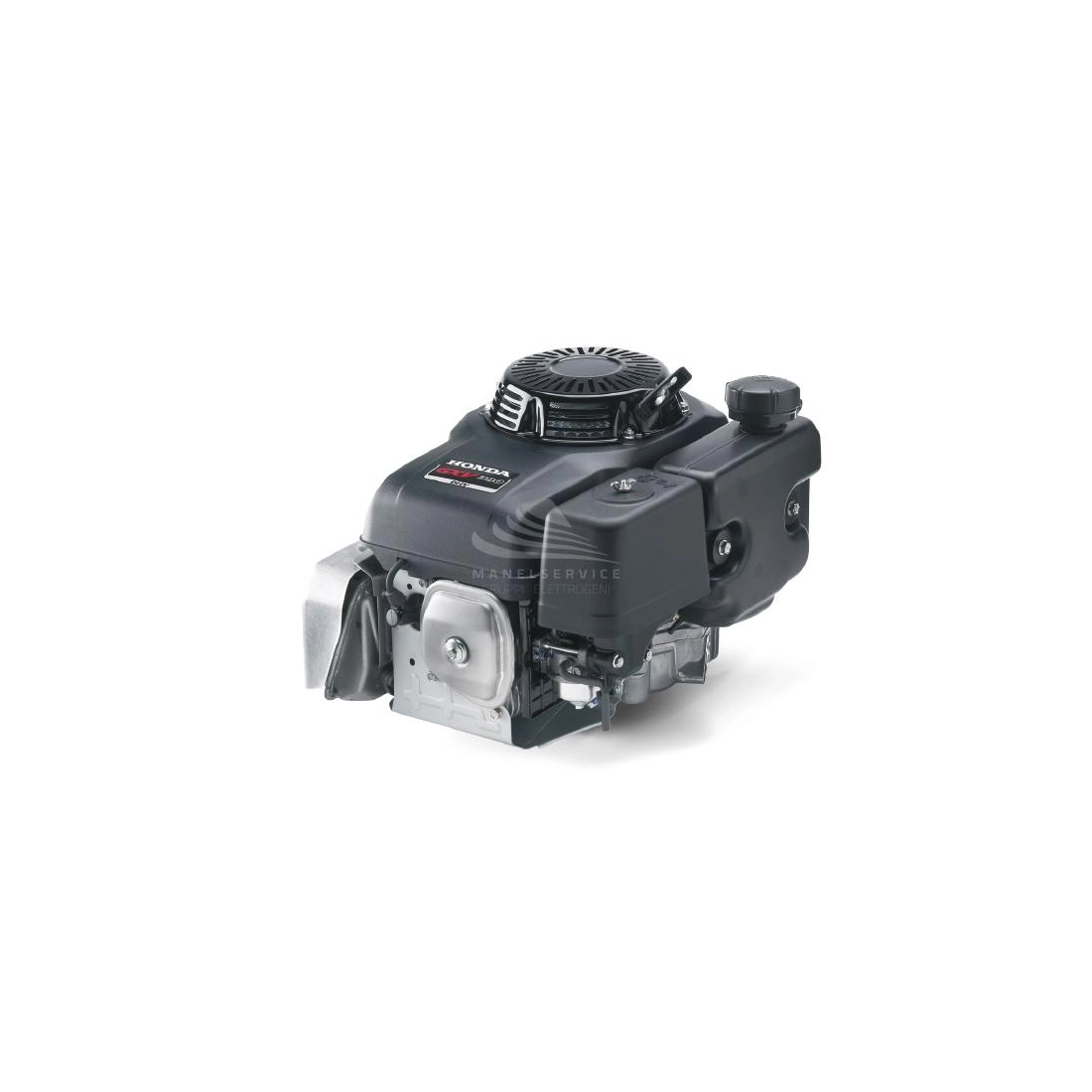

HONDA GXV390T1 DN5 Engine

Name: HONDA GXV390T1 DN5 Engine
Brand: HONDA
SKU: GXV390T1 DN5
Price: 1565 EUR
Availability: InStock

Reference GXV390T1 DN5

Fuel: Gasoline
Engine: OHV vertical shaft, 4-stroke, cast iron cylinder
Starting system: Recoil (electric optional)
Displacement: 389 cm³
Net power: 7.6 kW (10.2 HP)
Fuel tank capacity: 2.1 L
Length: 430 mm
Width: 385 mm
Height: 410 mm
Weight: 33 Kg

Download Scheda tecnica GXV390 Download Technical data GXV390

Product Details
Description

Fuel: Gasoline
Engine: OHV vertical shaft, 4 stroke, cast iron cylinder
Ignition: A transistor contactless
Starting system: Manual
Engine capacity (cm³): 389
Number cylinders: 1
Oil capacity (L): 1.1
Cooling: Forced air
Bore x stroke (mm): 88 x 64
Compression ratio: 7.7 : 1
Net power (kW): 7.6

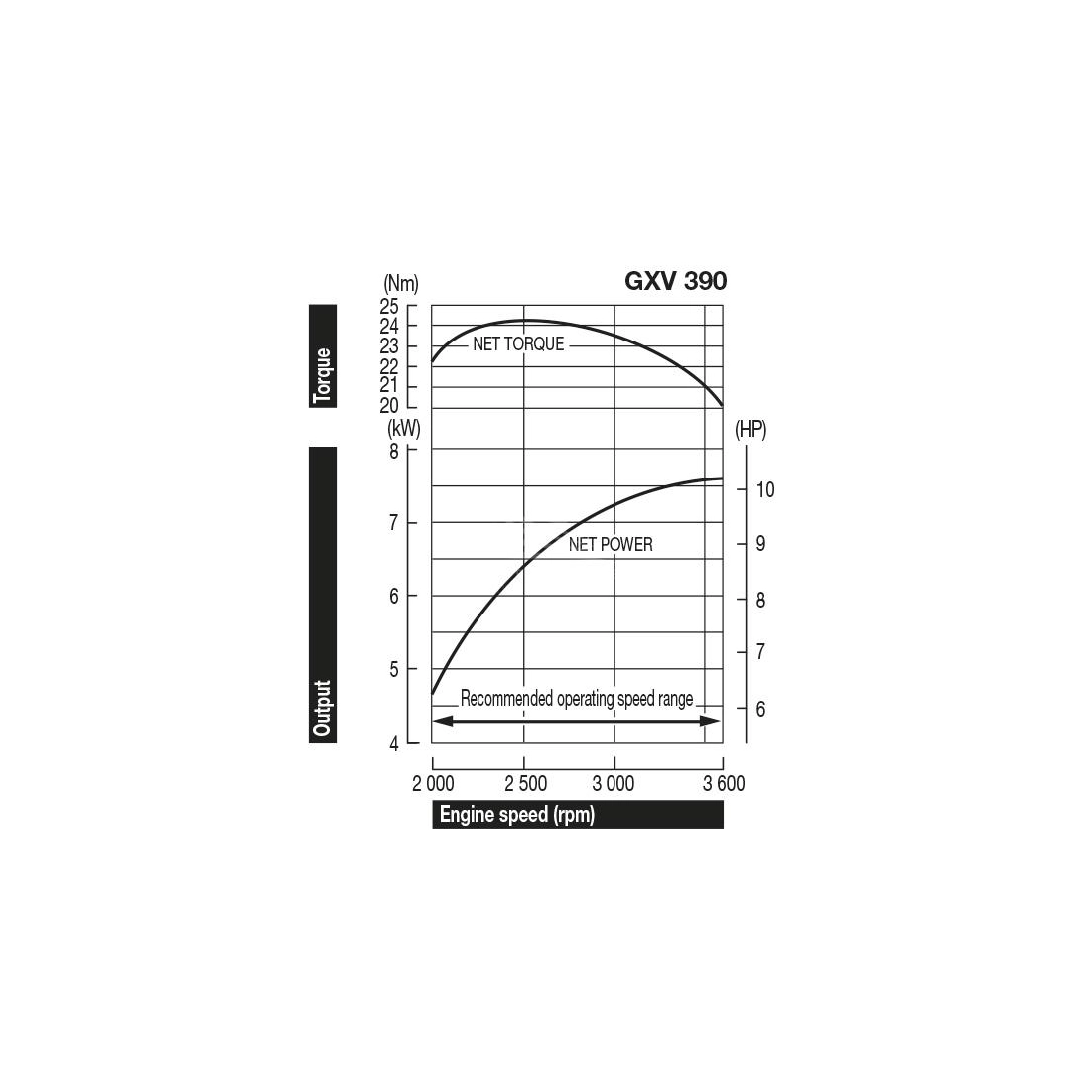

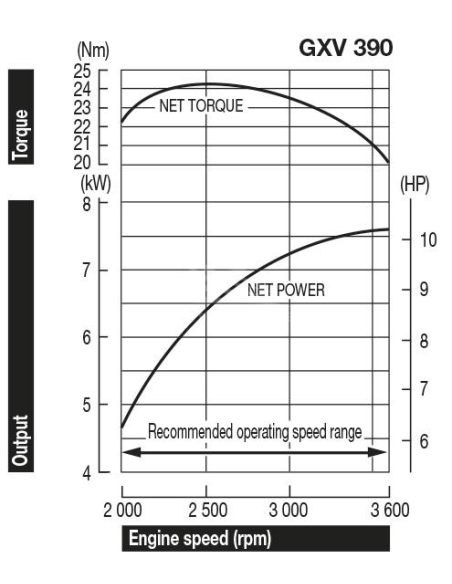

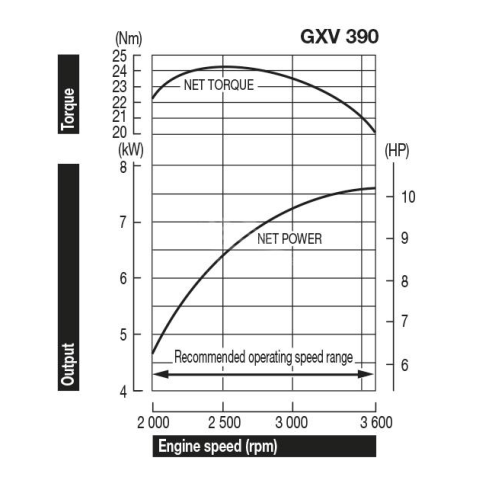

Nominal power continuous: 5.2 KW (7.0 HP) / 3000 rpm
Maximum torque: 24.2 Nm / 2.47 kgfm / 2500 rpm
Fuel tank capacity (L): 2.1
Consumption (L/h): 2.5
Running time (h): 0.84
Length (mm): 430
Width (mm): 385
Height (mm): 410
Dry weight (Kg): 33
Engine manufacturer: Honda

Brand

HONDA GXV390T1 DN5 Engine

The GXV390 engines are recommended for a wide range of professional machines such as ride-on lawn mowers, construction equipment, and other industrial applications.

Features of the HONDA GXV390T1 DN5 Engine:

- The OHV configuration ensures very efficient combustion.
- A high power-to-displacement ratio.
- Easy and light starting, thanks also to an efficient decompression system and an ergonomic recoil starter handle.
- High-quality materials, designed and built to last a very long time.
- The engines comply with all the strictest regulations in force in Europe.
- Very low fuel consumption.
- Reduced vibrations and noise.

Color: Black
Muffler: Standard
Air filter: Dual element
Fuel tank: Standard
Synchro-balanced engine

Technical specifications HONDA GXV390T1 DN5 Engine:
