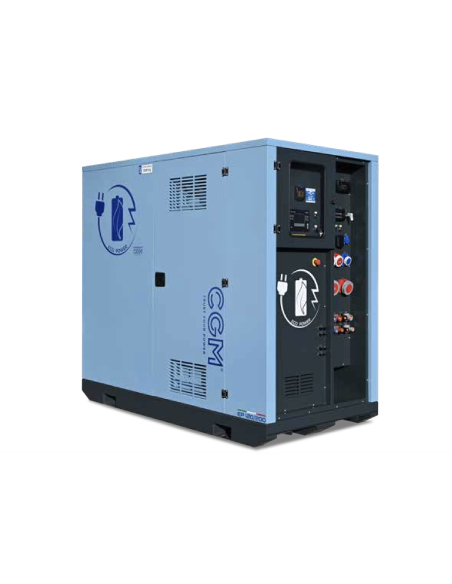

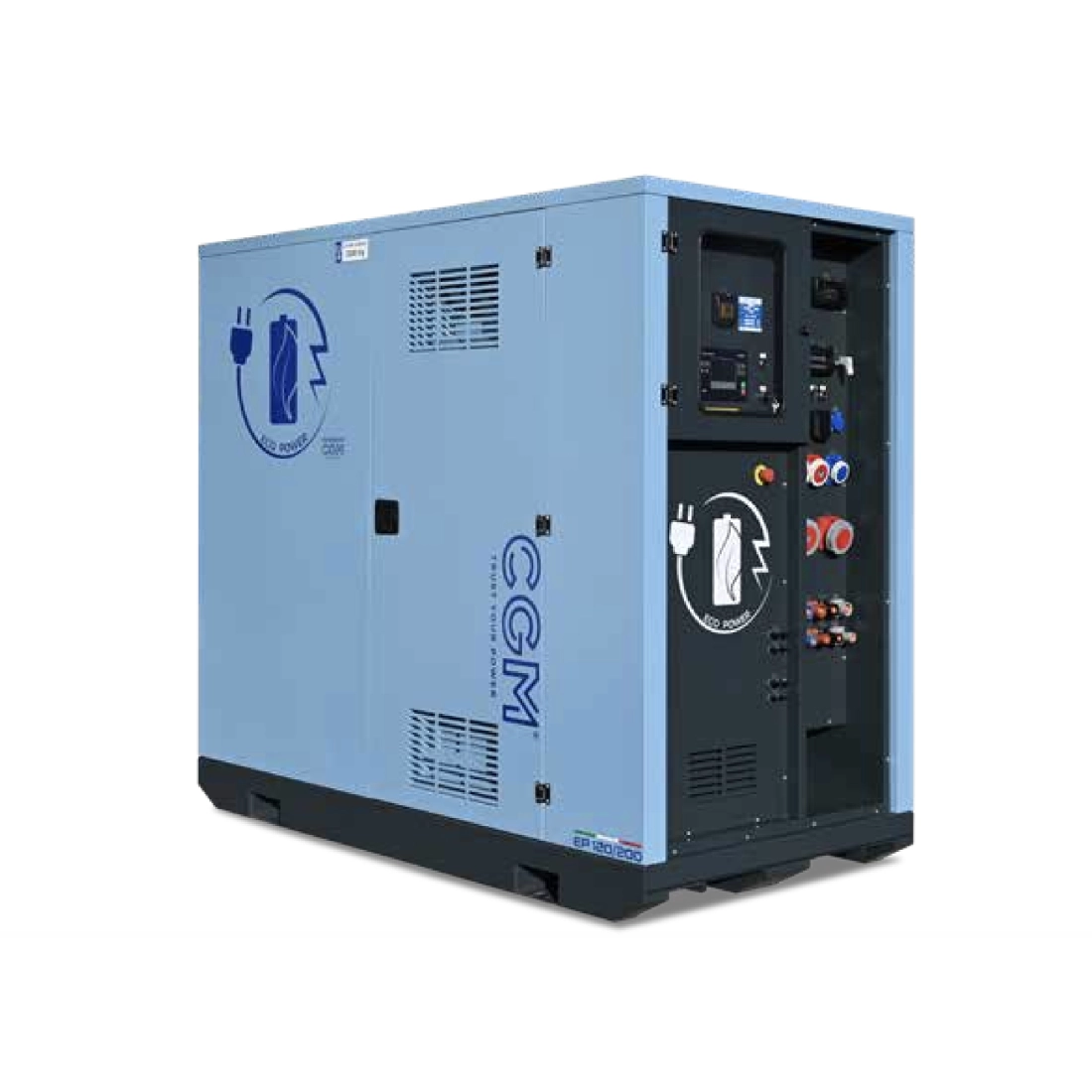

CGM Eco power EP120/200 Full Electric Generator BESS Technology 120KVA

Name: CGM Eco power EP120/200 Full Electric Generator BESS Technology 120KVA
Brand: CGM
SKU: EP120/200
Price: 186880 EUR
Availability: InStock

Reference EP120/200

Nominal Power: 120 kVA / 96 kW
Storage Capacity: 207.2 kWh
Voltage: 400 V (3P+N)
Frequency: 50 Hz
Power Factor: 0.8
Continuous Power Amperage: 174 A
Batteries
Technology: LiNMC (Lithium Nickel Manganese Cobalt)
Quantity: 8 modules
Power: 120kVA/207.2kWh
Cycles @90%: 6000
Inverter
Type: three-phase bidirectional inverter
Quantity: 3
Inverter power: 120 kVA
Dimensions and weight
Length: 2400 mm
Width: 1240 mm
Height: 2100 mm
Weight: 3200 kg
Environmental Conditions
Operating Temperature: -10°C to +40°C
Maximum Altitude: 1000 m above sea level
Humidity: up to 60%
Electrical Panel

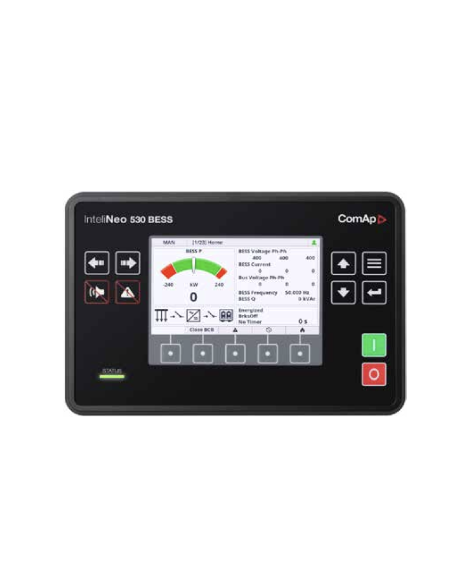

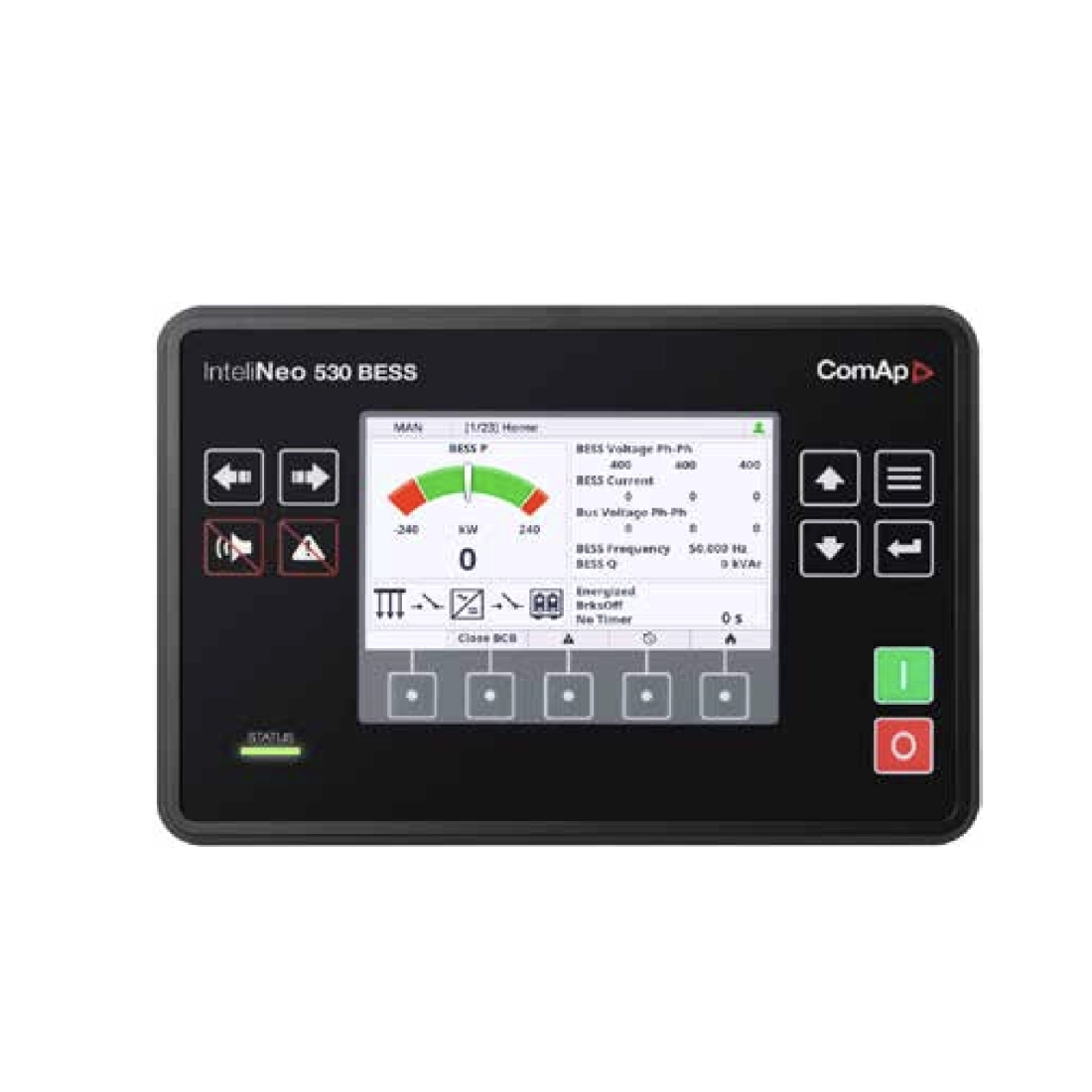

ComAp InteliNeo 530 BESS control unit
Three-phase socket: 400V (125A, 63A, 32A, 16A)
Single-phase socket: 230V (16A and Schuko)
EV charging socket
Connectors for photovoltaic panels
Protection switches and emergency button

Download Scheda Tecnica Cgm EP120/200

Product Details
Description

Phase: Three phase
Continuous power three phase (KW): 96
Continuous power three phase (KVA): 120
Fuel: Batteria
Frequency (Hz): 50
Voltage (V): 400
Battery type: LINMC
Number of batteries: 8
Length (mm): 2400
Width (mm): 1240
Height (mm): 2100
Super silenced: Yes
Weight (Kg): 3200
capacità di accumulo: 207,2 kWh
Cycles @ 90%: 6000

Brand

CGM Eco power EP120/200 Full Electric Generator BESS Technology 120KVA

The ideal solution for industrial applications, construction sites, the EP 120/200 is a compact, powerful and sustainable energy storage system. Equipped with a bidirectional three-phase inverter and high-performance batteries, it ensures energy continuity and intelligent network management.
Perfect for indoor and outdoor environments, it is equipped with a complete electrical panel and a robust painted galvanized steel cabin.
Maximum energy reliability in every context: the EP 120/200 system guarantees autonomy and operational continuity even in critical situations.
Latest generation lithium technology for a lifespan of up to 6000 cycles and optimal load management.
Green solution for the future of energy: reduces consumption, optimizes costs and promotes environmental sustainability.

Technical Features:

Nominal Power: 120 kVA / 96 kW
Storage Capacity: 207.2 kWh
Voltage: 400 V (3P+N)
Frequency: 50 Hz
Power Factor: 0.8
Continuous Power Amperage: 174 A
Batteries
Technology: LiNMC (Lithium Nickel Manganese Cobalt)
Quantity: 8 modules
Power: 120kVA/207.2kWh
Cycles @90%: 6000
Inverter
Type: Three-phase bidirectional inverter
Quantity: 3
Inverter Power: 120 kVA
Dimensions and Weight
Length: 2400 mm
Width: 1240 mm
Height: 2100 mm
Weight: 3200 kg
Environmental Conditions
Operating Temperature: -10°C to +40°C
Maximum Altitude: 1000 m above sea level
Humidity: up to 60%
Electrical Panel
ComAp InteliNeo 530 BESS control unit
Three-phase sockets: 400V (125A, 63A, 32A, 16A)
Single-phase sockets: 230V (16A and Schuko)
EV charging socket
Connectors for photovoltaic panels
Protection switches and start button emergency
