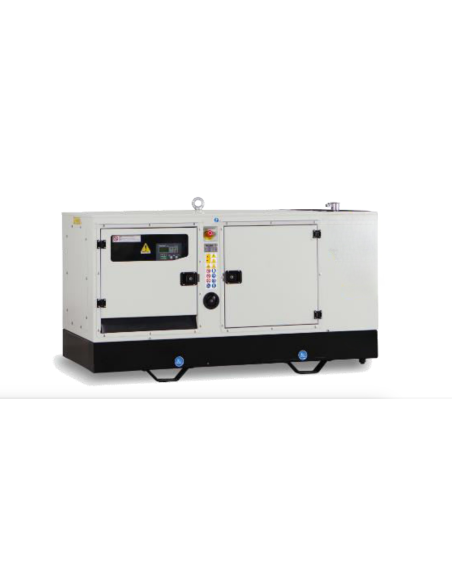

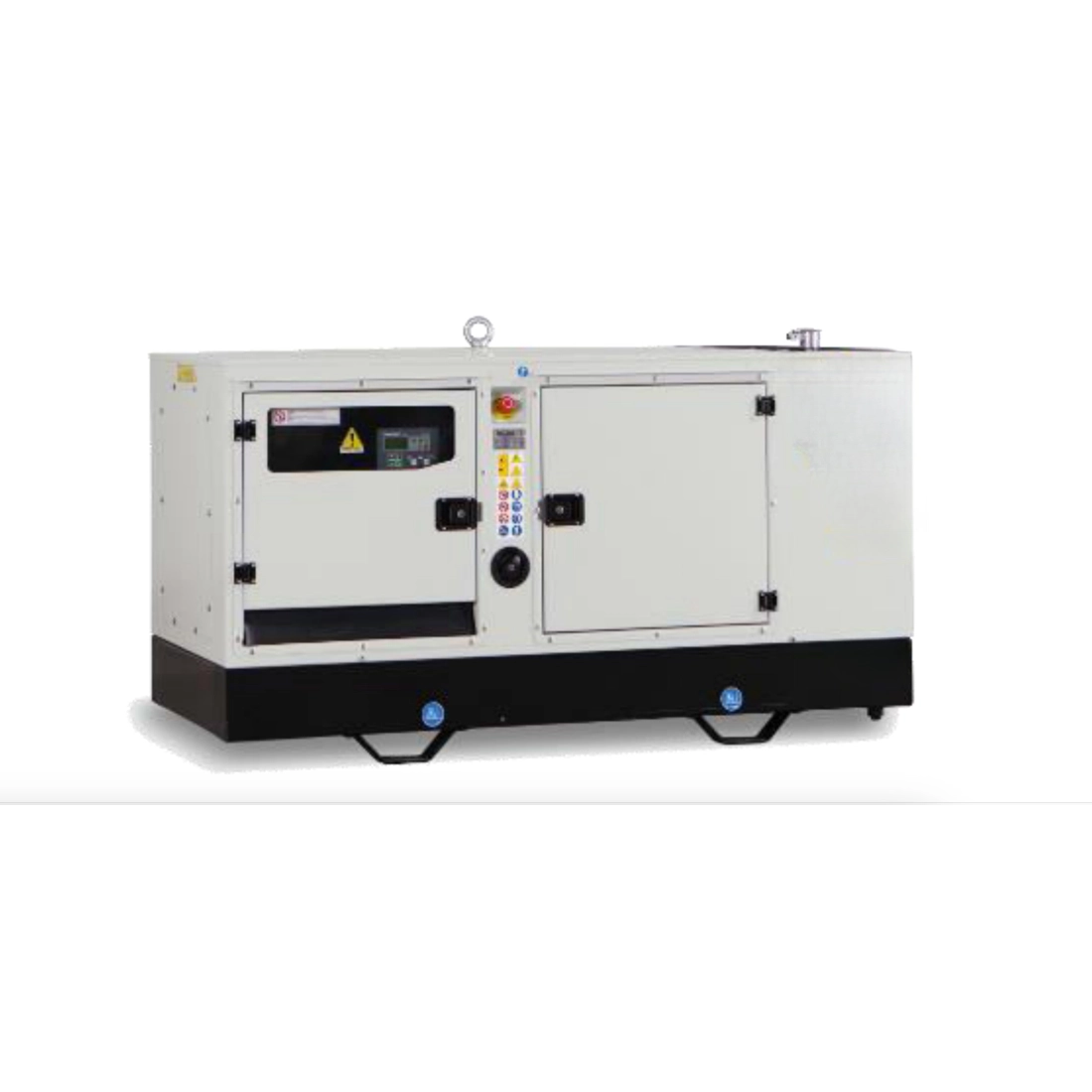

Generator Super-silenced 100KVA STAGE V

Reference GE100SV

Phase type: Single-phase / Three-phase
Continuous power: 100 KVA / 80 KW
Maximum power: 100 KVA / 80 KW
Engine: IVECO
Engine speed: 1500 rpm
Emissions standard: Stage V
Starting: Electric
Voltage available at terminals: 230 / 400 V
Frequency: 50 Hz
Tank capacity: 170 l
Consumption at 75% load: 23.6 Lt/h
Sound pressure level: 66 dB(A) @ 7 m
Length: 3000 mm
Width: 1100 mm
Height: 1820 mm
Dry weight: 2000 kg
Number of poles: 4
Insulation class: H
Degree of protection: IP23
Alternator: Mecc Alte
Displacement: 3600 cc
Cylinders: 4

Product Details
Description

Phase: Single phase / Three phase
Maximum power three phase (KW): 80
Continuous power three phase (KW): 80
Maximum power three phase (KVA): 100
Continuous power three phase (KVA): 100
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: IVECO FTT F36ETVP03.A94
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Elettrico
Engine capacity (cm³): 3600
Number cylinders: 4
Alternator: MECC ALTE ECP34-2S/4C
Poles: 4
Protection degree: IP23
Fuel tank capacity (L): 170
Consumption (L/h): 23.6 al 75% del carico
Acoustic pressure: 66 dB(A) at 7 m
Length (mm): 3000
Width (mm): 1100
Height (mm): 1820
Dry weight (Kg): 2000
Silenced: Yes
Super silenced: Yes
Product type: Generator
Engine manufacturer: FPT Iveco

Brand

100KVA Super-Silent STAGE V Generator

Latest-generation 100KVA Super-Silent STAGE V Generator, designed to offer exceptional performance and extremely quiet operation. With a continuous power of 80 kW and an IVECO FTT F36ETVP03.A94 engine,
compliant with Stage V emissions regulations, this generator is the ideal solution for a wide range of applications, both industrial and civil.

Main Features:

Flexibility: Thanks to the ability to supply both single-phase and three-phase voltage, this V generator adapts to different needs.

Power: With a continuous power of 80 kW, it can power a wide variety of equipment and machinery.
Quiet: The Green GP110S-I-SV Power's design and careful soundproofing ensure extremely low noise levels, making it ideal for noise-sensitive environments.
Efficiency: The IVECO engine ensures Excellent efficiency and low consumption.
Compact and easy to handle: Its small size makes it easy to transport and install.
Eco-friendly: Thanks to Stage V compliance, this generator meets the most stringent emissions standards.

Main features:

Product Supplied with:
170 L capacity, double-walled construction

Oil pump included

Special C4-H paint on the cover

Zinc phosphating treatment (anti-corrosion coating)

Integrated water heater

Sensor for detecting liquids in the containment tank

Automatic refueling device

Electrical sockets: n. 01 32A 400V 5-pole socket + n. 1 x 16A 230V 3-pin socket

Battery disconnect switch

Phase type: Single-phase / Three-phase
Continuous power: 100 KVA / 80 KW
Maximum power: 100 KVA / 80 KW
Engine: IVECO
Engine speed: 1500 rpm
Emissions standard: Stage V
Starting: Electric
Voltage available at terminals: 230 / 400 V
Frequency: 50 Hz
Tank capacity: 170 l
Consumption at 75% load: 23.6 L/h
Sound pressure level: 66 dB(A) @ 7 m
Length: 3000 mm
Width: 1100 mm
Height: 1820 mm
Dry weight: 2000 kg
Number of poles: 4
Insulation class: H
Degree of protection: IP23
Alternator: Mecc Alte
Displacement: 3600 cc
Cylinders: 4
