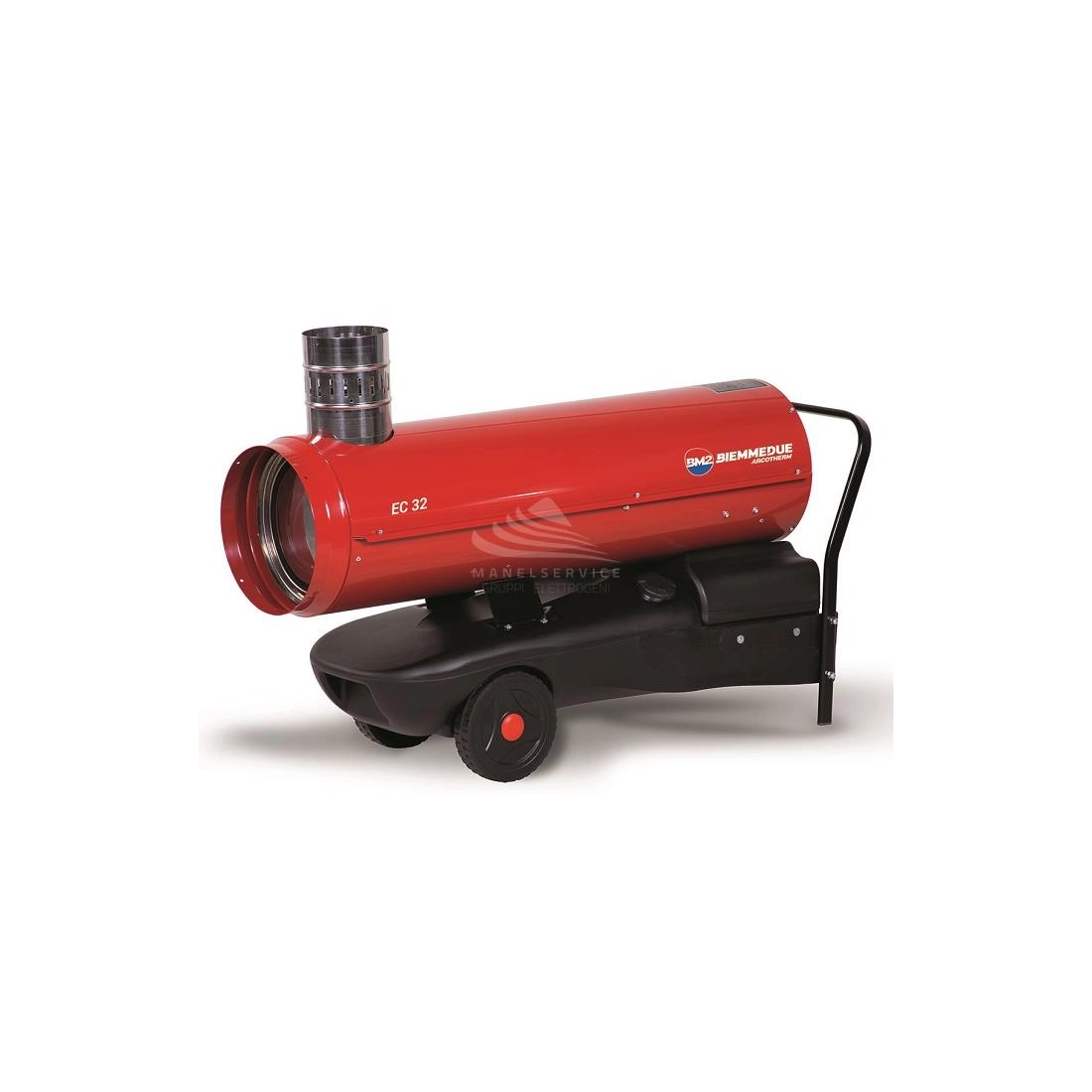

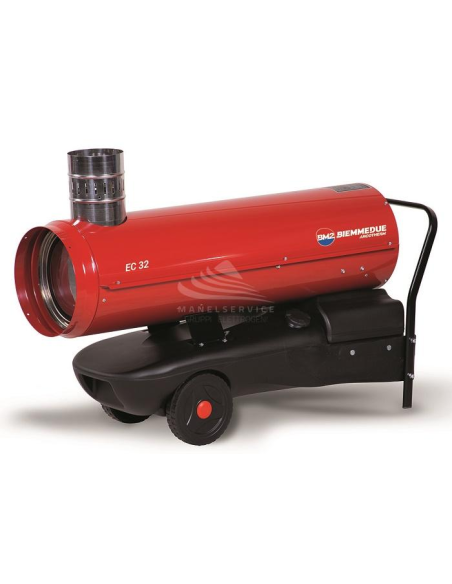

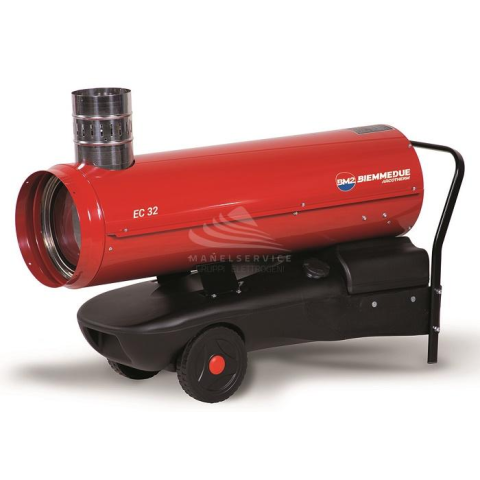

BM2 FORCED AIR SPACE HEATER EC 32

BM2 HOT AIR GENERATOR EC 32

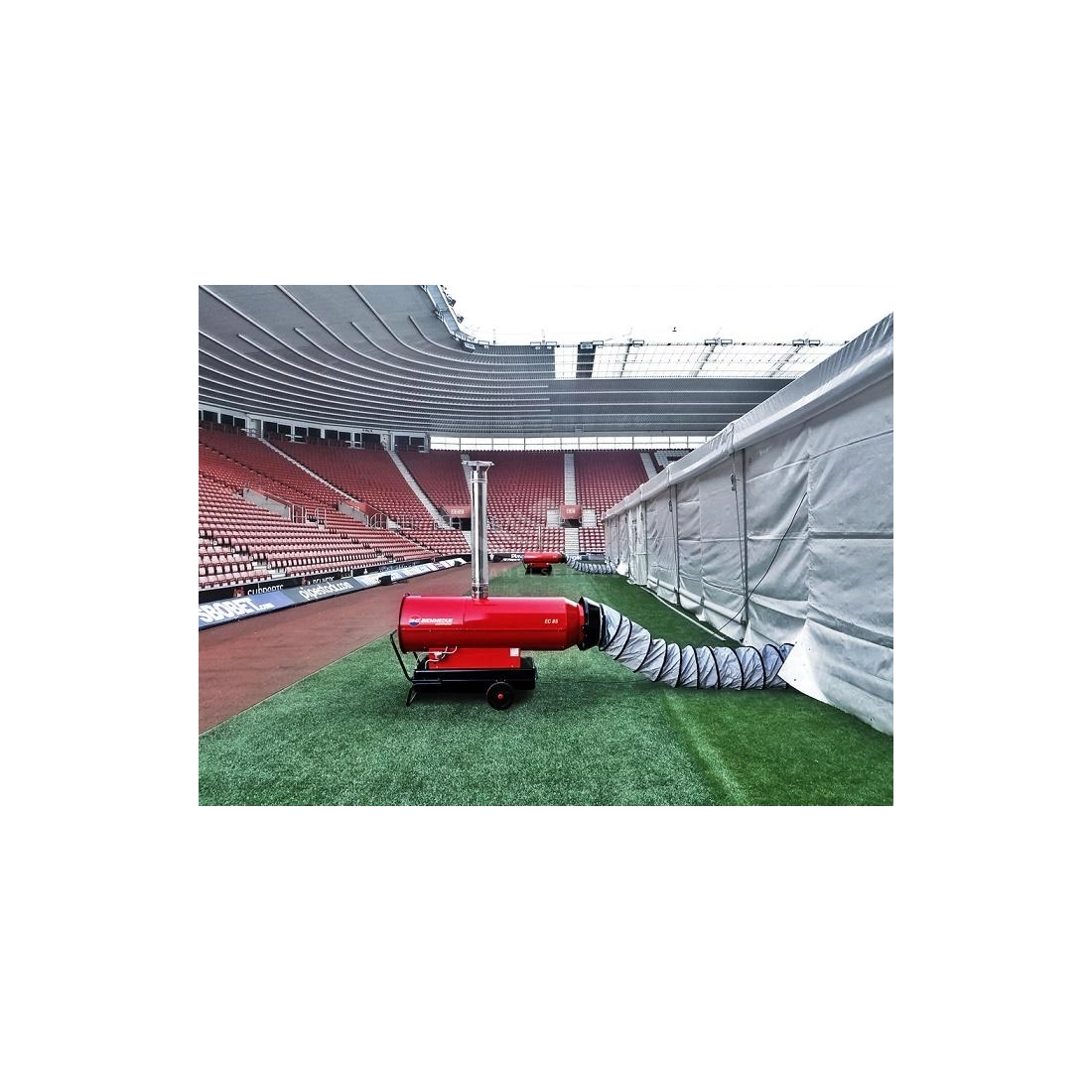

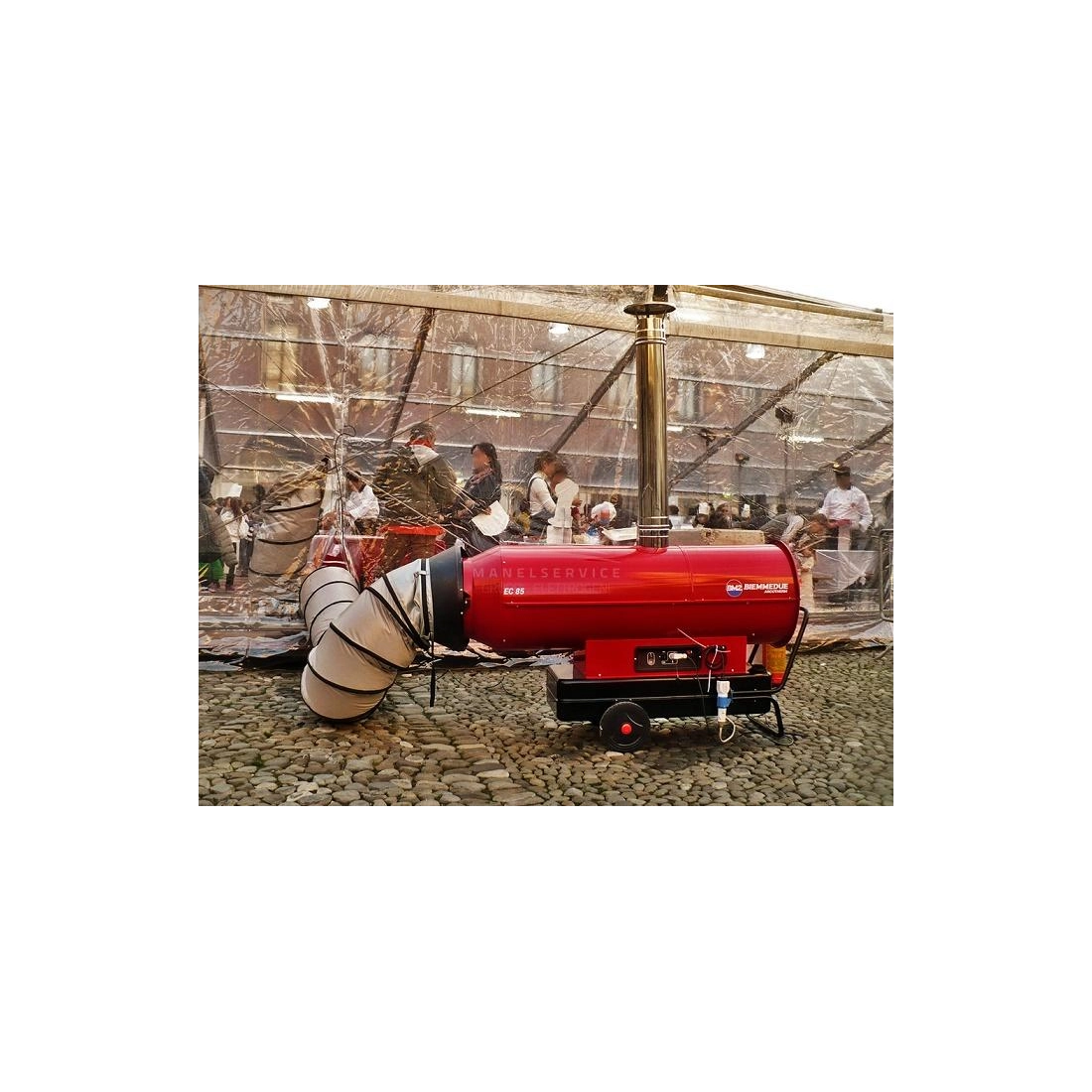

BM2 EC32 is an oil-fired hot air generator, with integrated indirect combustion burner, equipped with a heat exchanger that allows the evacuation of fumes through a chimney that can be connected to the outside.

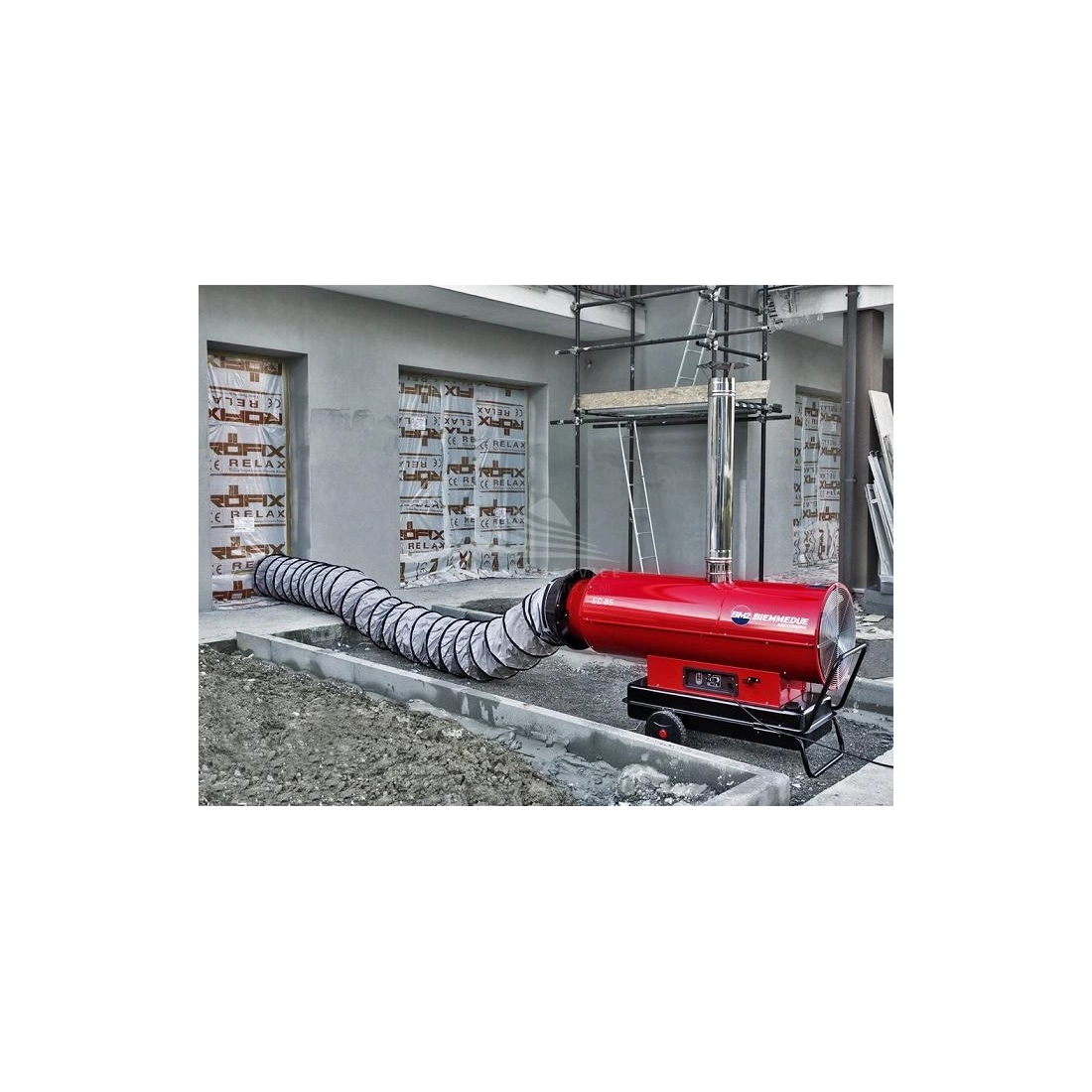

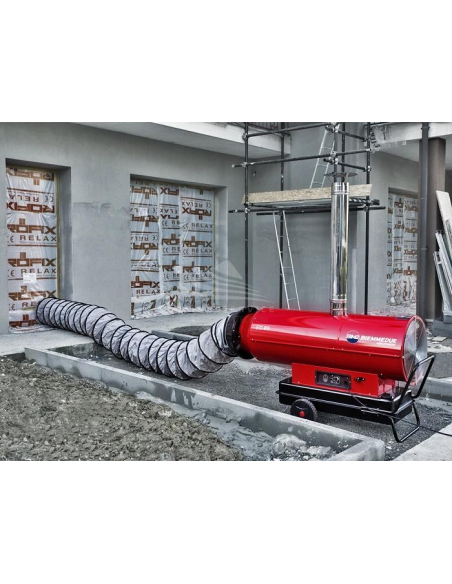

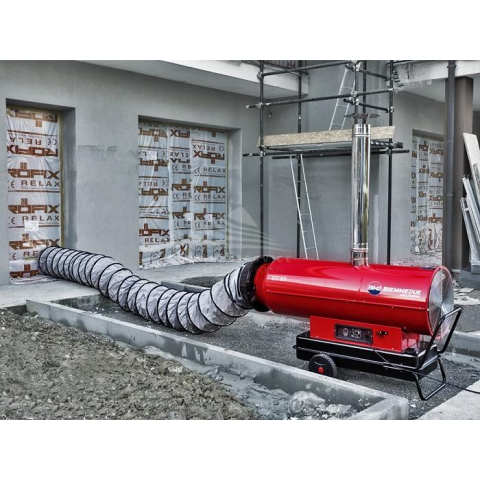

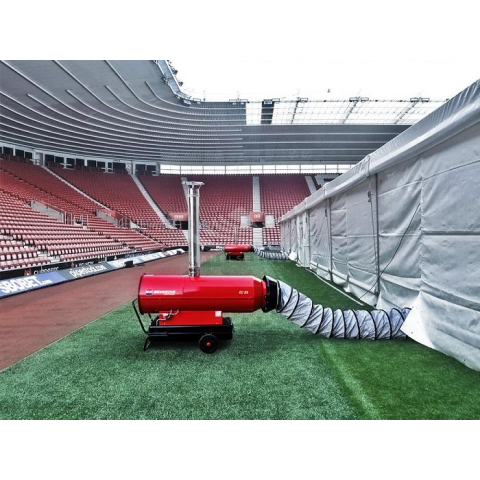

BM2 EC32 thanks to its characteristics, can be used inside closed rooms, on the other hand have a higher cost and an efficiency around 90%, having to calculate, in reduction, the amount of heat evacuated through the chimney.

The hot air generator BM2 EC32 is supplied complete with:

- Integrated oil burner
- Socket for connection to thermostat, humidistat or timer
- Power supply cable (1. 5 m) with plug

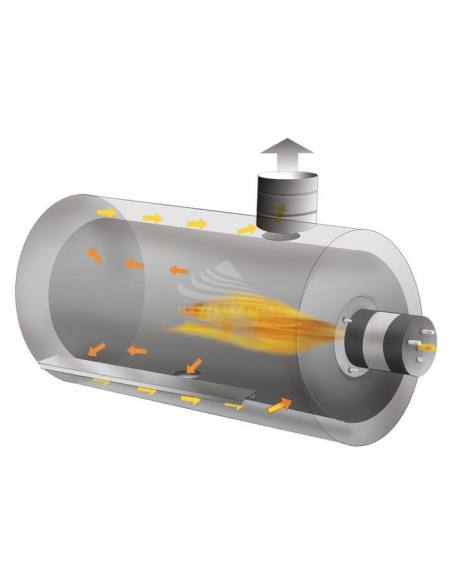

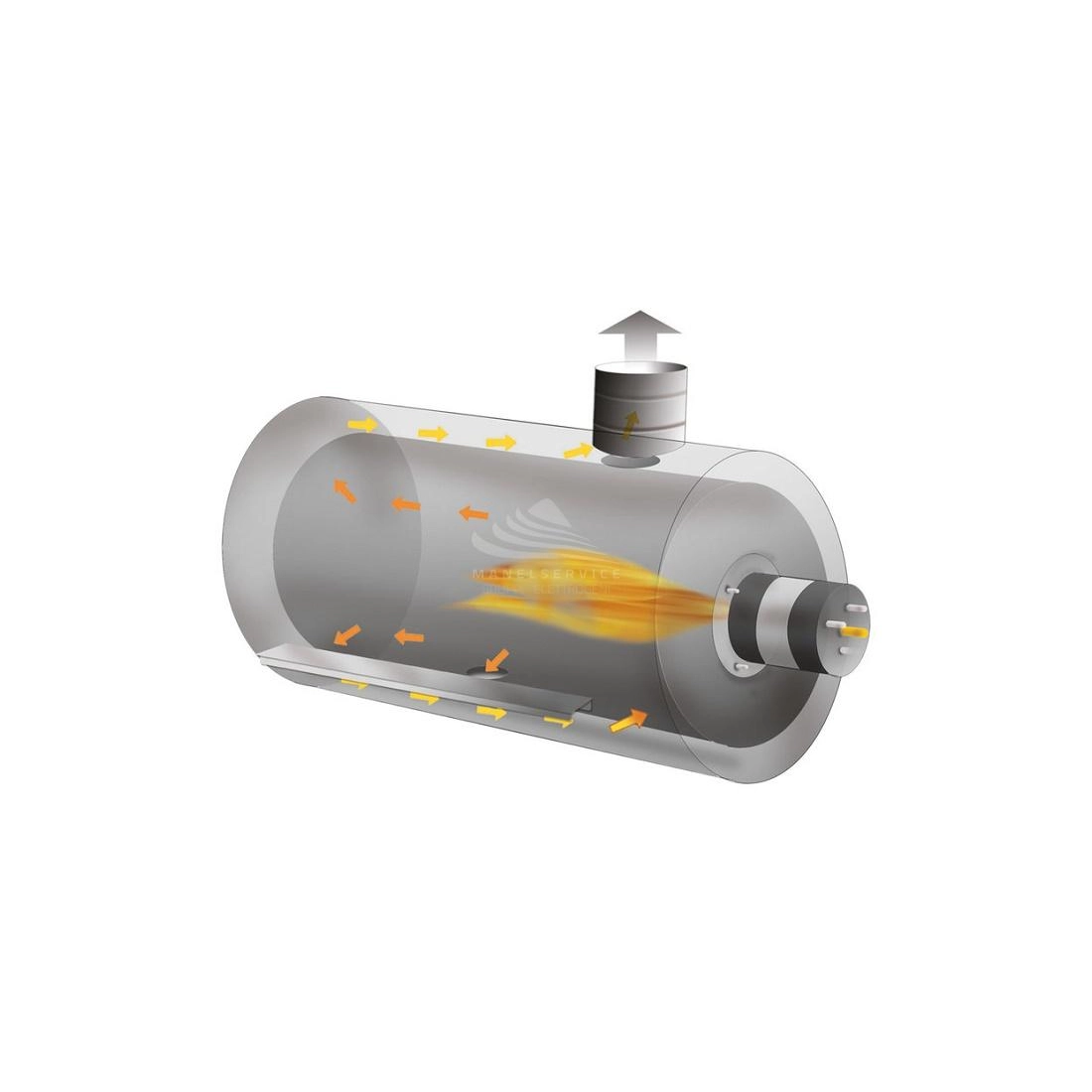

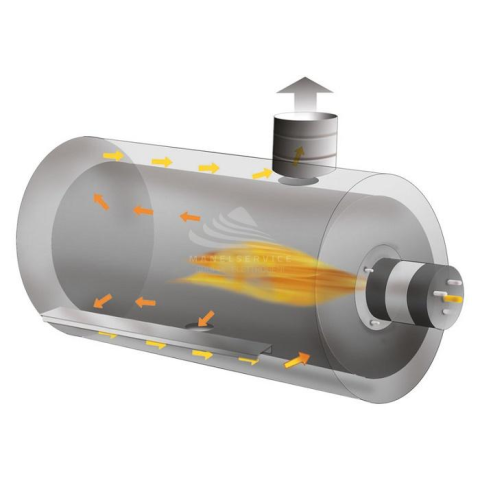

- Stainless steel AISI 430 combustion chamber; with three smoke passes
- Timed after-ventilation for the cooling of the combustion chamber
- Electronic flame control
- Overheating thermostat
- Oil feeding hoses made of rubber resistant to hydrocarbons with textile reinforcing mesh covering
- Tank made of shockproof polyethylene
- Bayonet tank closing cap
- Tank fuel draining cap
- Electric control panel

TECHNICAL FEATURES BM2 EC32

Phase Type: Single-Phase
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Nominal Thermal Power: 34.1 KW - 28349 Kcal/H - 116803 BTU/H
Power Output: 28. 9 KW - 24828 Kcal/H - 98815 BTU/H
Thermal Efficiency (%): 84.6
Flow Rate (M³/H): 1150
Thermal Heat Gain At 20°C (°C): 75
Fuel Consumption (Kg/H): 2. 7
Electrical Power (W): 370
Combustion Type: Indirect
Fireplace Diameter (mm): 150
Outlet Duct Diameter (mm): 300
Fuel Tank Capacity (L): 42
Length (mm): 1215
Width (mm): 440
Height (mm): 670
Dry Weight (Kg): 48
