GREEN POWER GP33S-P-N SOUNDPROOF

Name: GREEN POWER GP33S-P-N SOUNDPROOF
Brand: GREEN POWER
SKU: 00303
Price: 9983 EUR
Availability: InStock

GREEN POWER GP33S/P-N SOUNDPROOF WITH AVR-LINZ ALTERNATOR (MANUAL CONTROL UNIT)

Reference 00303 AVR-Mecc alte automatica

Maximum three-phase power: 33 KVA
Maximum three-phase power: 26.4 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: PERKINS 1103A-33G
Start: Electric
Length: 2100 mm
Width: 900 mm
Height: 1165 mm
Weight: 980 Kg

Download Technical data GP33-N

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 26.4
Continuous power three phase (KW): 24
Maximum power three phase (KVA): 33
Continuous power three phase (KVA): 30
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: PERKINS 1103A-33G, 4 stroke naturally aspirated
Emissions Regulations: NON EMISSIONATO
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 3300
Number cylinders: 3
Cylinders' position: In line
Cooling: Water
Alternator: MECC ALTE ECP28-VL/4
Poles: 4
Protection degree: IP23
Fuel tank capacity (L): 100
Consumption (L/h): 5.4 al 75% del carico
Running time (h): 12.96 h al 75% del carico
Acoustic pressure: 61 dB(A) ±3
Length (mm): 2100
Width (mm): 870
Height (mm): 1165
Dry weight (Kg): 940
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: AVR

Brand

The GREEN POWER 1500 rpm generators are designed for versatile use, from construction sites to industry, from agriculture to civil protection.
Robust welded steel frames with built-in tank of variable capacity produced by Green Power, engines and alternators supplied by the most important manufacturers in the sector and cutting-edge control units are the elements to ensure generators of excellent quality.
The hoods are made of steel, which allows them to be used in tropical environments. The Green Power covers guarantee maximum accessibility for maintenance and cleaning operations.
Green Power's strong point is the design and implementation within the company, a feature that helps to reduce the time to market of the product and allows any customization.

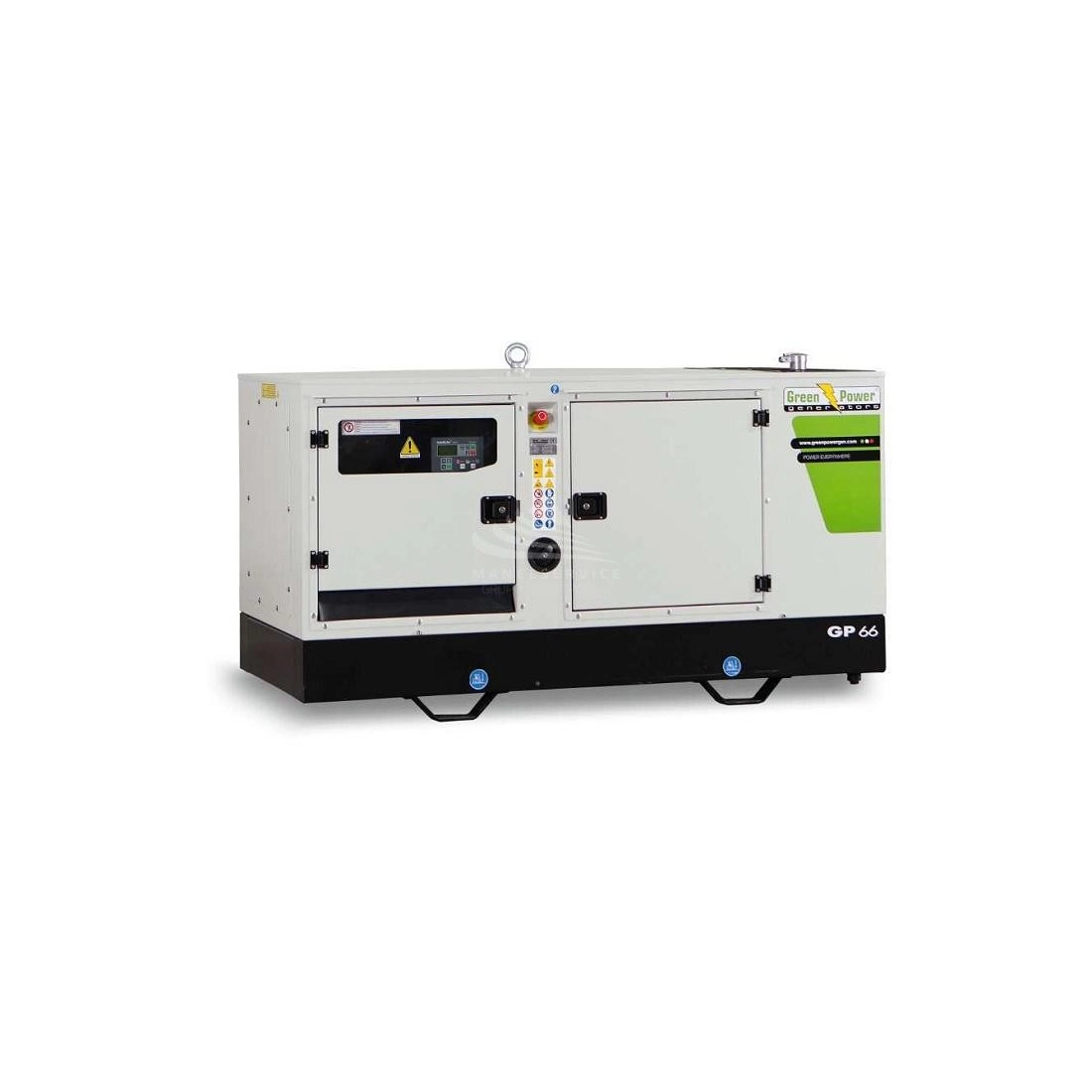

The image is purely indicative.
