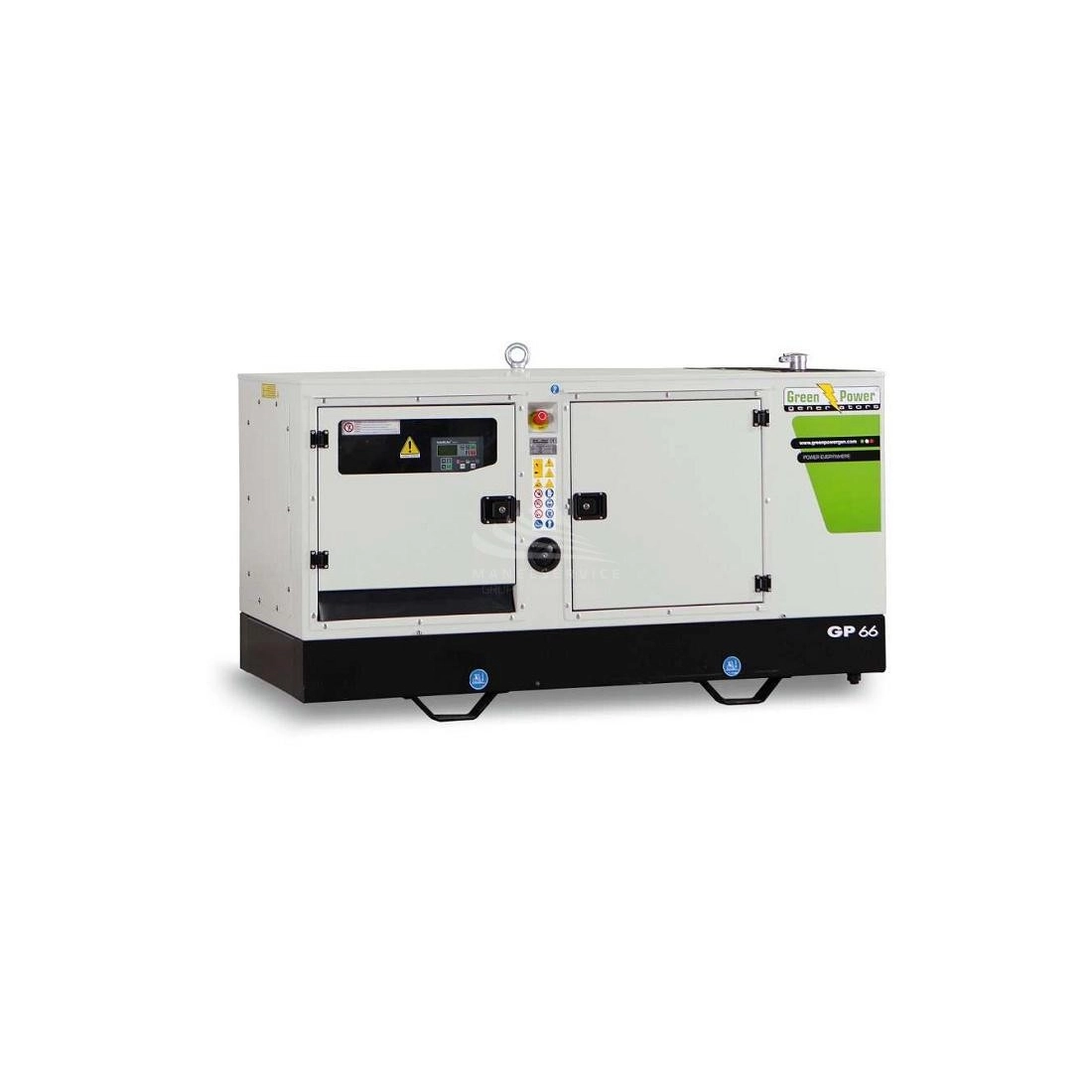

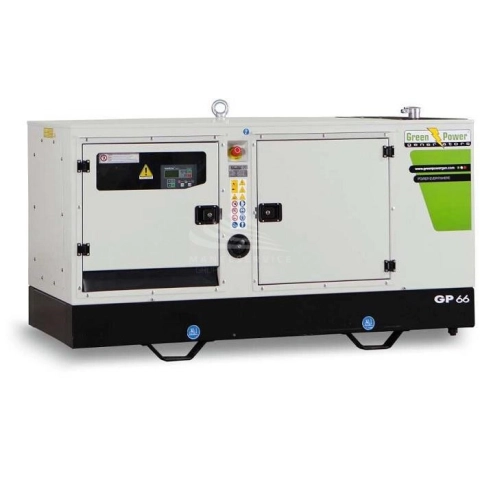

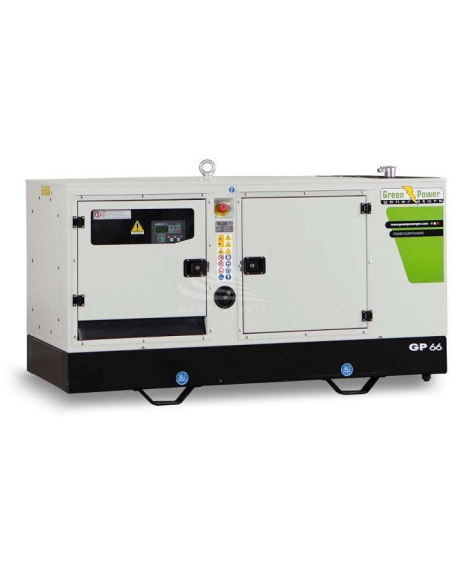

GREEN POWER GP44S-P-N SUPER SILENCED AUTOMATIC CONTROL PANEL

Name: GREEN POWER GP44S-P-N SUPER SILENCED AUTOMATIC CONTROL PANEL
Brand: GREEN POWER
SKU: 00306 AVR-Mecc alte automatica
Price: 10585 EUR
Availability: InStock

GREEN POWER GP33A/P-N OPEN WITH COMPOUND-LINZ ALTERNATOR (MANUAL CONTROL UNIT)

Reference 00306 AVR-Mecc alte automatica

It is possible to choose between several versions:

-Super-silenced group with AVR-Leroy alternator (automatic control unit)

-Super-silenced generator set with AVR-Mecc alte alternator (automatic control unit)

-Super-silenced generator set with AVR-Stamford alternator (automatic control unit)

Maximum three-phase power: 46 KVA
Maximum three-phase power: 37 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: PERKINS 1103A-33TG1
Start: Electric
Length: 2100 mm
Width: 900 mm
Height: 1165 mm
Weight: 1095 Kg

Download Technical data GP44-N

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 35.2
Continuous power three phase (KW): 32
Maximum power three phase (KVA): 44
Continuous power three phase (KVA): 40
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: PERKINS 1103A-33TG1, aspirazione sovralimentata
Emissions Regulations: NON EMISSIONATO
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 3300
Number cylinders: 3
Cylinders' position: In line
Cooling: Water
Alternator: MECC ALTE ECP30-2L/4
Poles: 4
Protection degree: IP23
Fuel tank capacity (L): 100
Consumption (L/h): 8.2 al 75% del carico
Running time (h): 8.5 at 75% of the load
Length (mm): 2100
Width (mm): 870
Height (mm): 1165
Dry weight (Kg): 1005
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: AVR

Brand

The GREEN POWER 1500 rpm generators are designed for versatile use, from construction sites to industry, from agriculture to civil protection.
Robust welded steel frames with built-in tank of variable capacity produced by Green Power, engines and alternators supplied by the most important manufacturers in the sector and cutting-edge control units are the elements to ensure generators of excellent quality.
The hoods are made of steel, which allows them to be used in tropical environments. The Green Power covers guarantee maximum accessibility for maintenance and cleaning operations.
Green Power's strong point is the design and implementation within the company, a feature that helps to reduce the time to market of the product and allows any customization.

It is possible to choose between several versions:

-Super-silenced group with AVR-Leroy alternator (automatic control unit)

-Super-silenced generator set with AVR-Mecc alte alternator (automatic control unit)

-Super-silenced generator set with AVR-Stamford alternator (automatic control unit)

The image is purely indicative.
