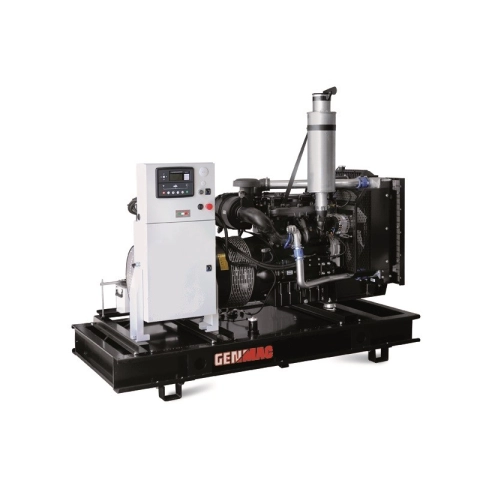

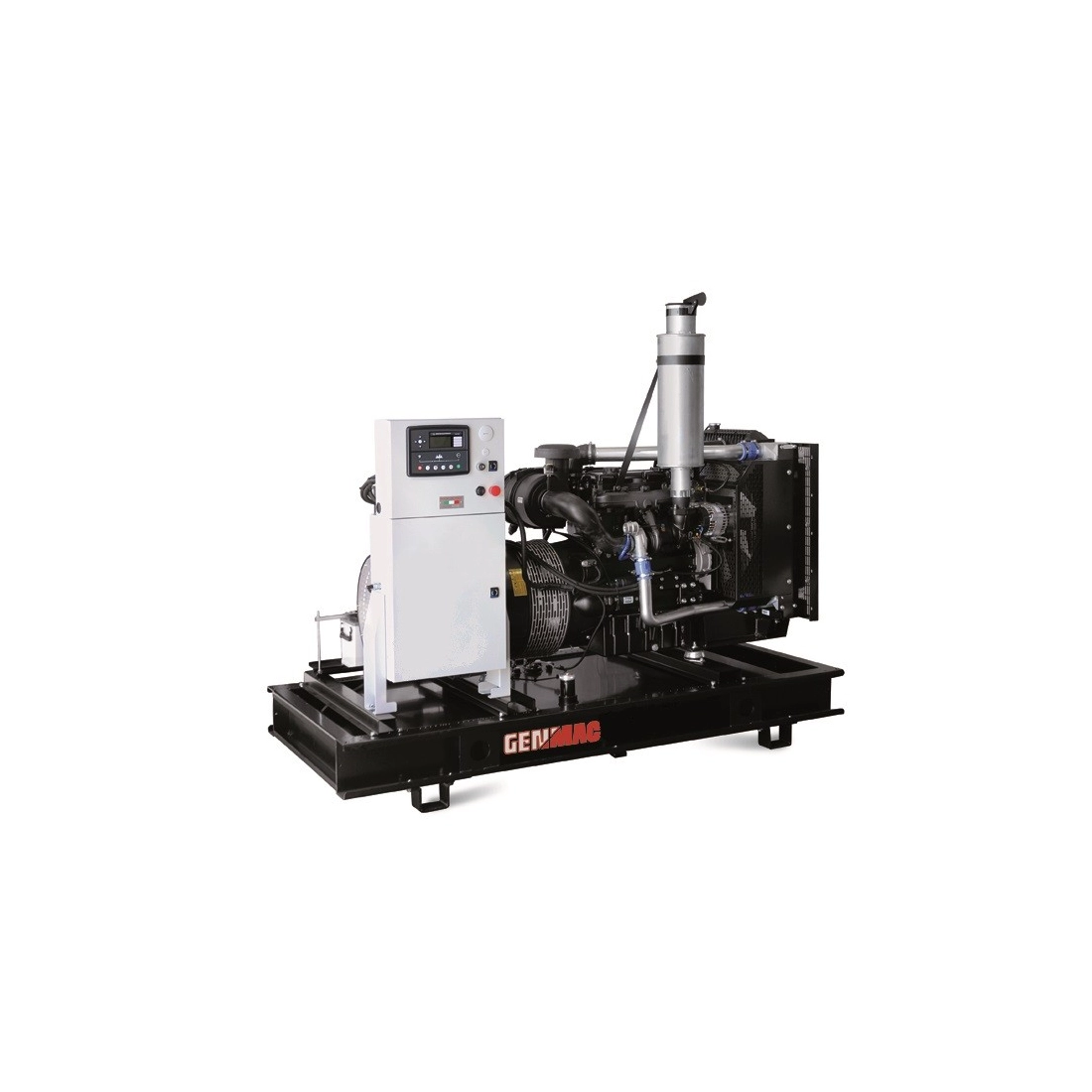

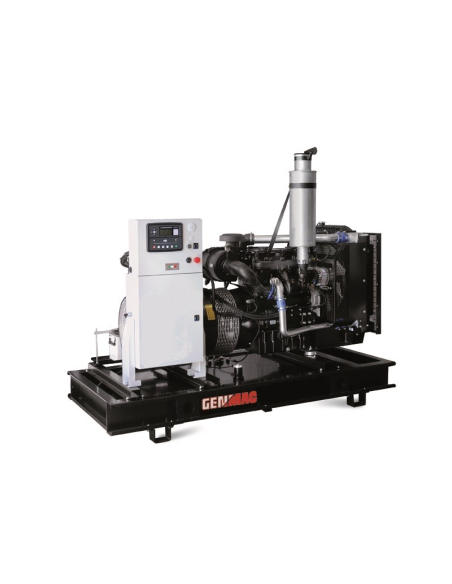

GENMAC GAMMA G100I0
GAMMA G100I0
Fuel: Diesel
Phase Type: Three-phase
Maximum power (L.P.T.): 110 KVA - 88 KW
Continuous power (P.R.P.): 100 KVA - 80 KW
ISO8528-1
Voltage: 400 V
Frequency: 50 Hz
Cosphs: 0.8
Cooling: Liquid
Radiator: Tropicalized
Iveco engine NEF45-TM2A
1500 RPM
Number of cylinders: 4
Cubic Capacity: 4500 cm3
Tank: 270 Lt.
Autonomy: 18 h at 75% of load
Consumption: 15 Lt. per hour at 57% of the load
Dimensions: 2250x1020x1161 mm
Weight: 1330 Kg
Panel: QT2A-4520 AMF IP65
Thermal-magnetic circuit breaker
Emergency stop button and siren
Terminal block for connection Automatic Framework ATS-C or ATS-M
Door Reading Can Bus
Battery Charger
On/Off switch
Automatic control unit DSE4520 AMF (see data sheet for further details)
- Phase
- Three phase
- Maximum power three phase (KW)
- 88
- Continuous power three phase (KW)
- 80
- Maximum power three phase (KVA)
- 110
- Continuous power three phase (KVA)
- 100
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- Terminal box
- Engine
- NEF45TM2A
- Engine rpm (rpm)
- 1500
- Speed governor
- Mechanical
- Starting system
- Electric
- Engine capacity (cm³)
- 4500
- Number cylinders
- 4
- Oil capacity (L)
- 12.8
- Cooling
- Water
- Alternator
- Synchronous, self-excited
- Poles
- 4
- Fuel tank capacity (L)
- 270
- Consumption (L/h)
- 15 at 75% of the load
- Running time (h)
- 18 at 75% of the load / 13.5 at 100% of the load
- Length (mm)
- 2250
- Width (mm)
- 1020
- Height (mm)
- 1611
- Dry weight (Kg)
- 1330
- Silenced
- No
- Control unit
- Automatica AMF DSE4520
- ATS Switch device
- Optional ATS
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Engine manufacturer
- FPT Iveco
- Brand
-
