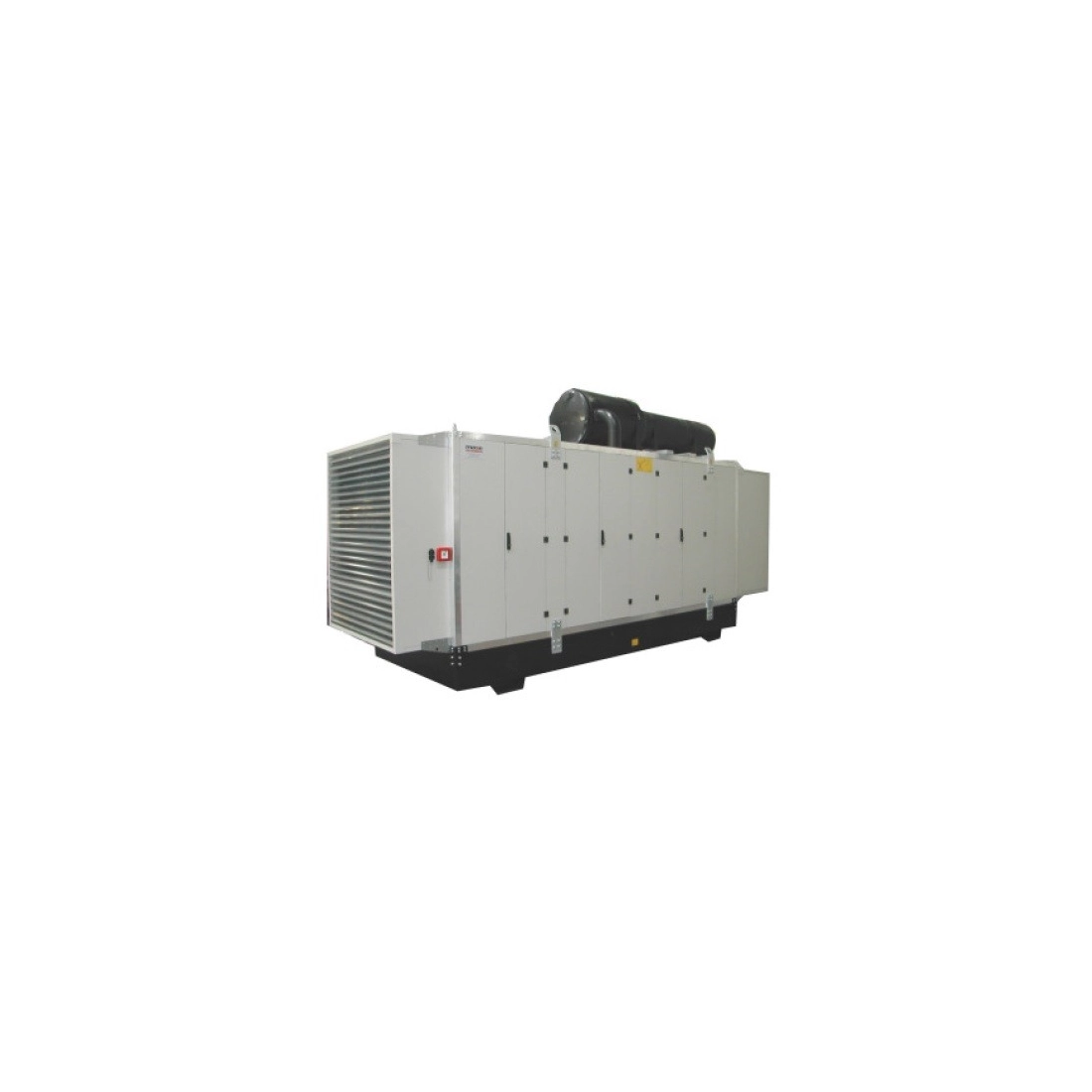

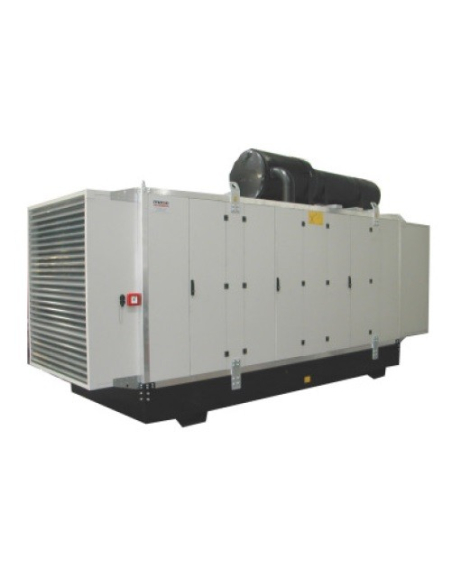

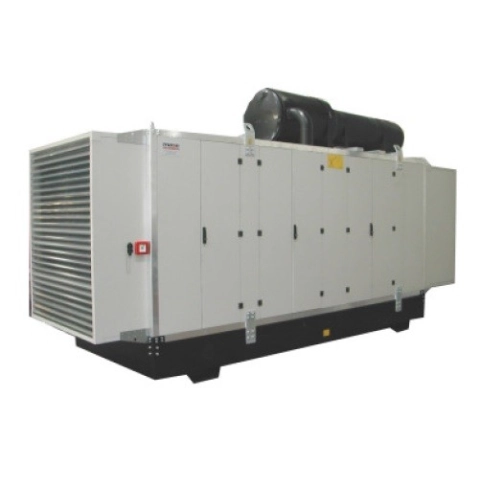

MASE MPL 550 S 550 KVA Silenced Generating Set with ATS
MPL 550 S-P ATS
Phase Type: Three-phase
Power supply: diesel
Maximum three-phase power: 550 KVA
Three-phase continuous use power: 500 KVA
Power factor: 0.8
Alternator: synchronous
Engine: Perkins 2506C-E15TAG2
Cooling: water
Cubic Capacity: 15200 c.c.
Number of cylinders: 6
Maximum power: 664 HP
RPM: 1500
Tank capacity: 370
Autonomy: 4.5 h at 75% of load
Starting: electric
Length: 4730 mm
Width: 1800 mm
Height: 3080 mm
Weight: 6500 Kg.
- Phase
- Three phase
- Maximum power three phase (KW)
- 440
- Continuous power three phase (KW)
- 400
- Maximum power three phase (KVA)
- 550
- Continuous power three phase (KVA)
- 500
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Engine
- 2506C-E15TAG2
- Engine rpm (rpm)
- 1500
- Speed governor
- Electronic
- Starting system
- Electric
- Engine capacity (cm³)
- 15200
- Number cylinders
- 6
- Cooling
- Water
- Alternator
- Synchronous
- Poles
- 4
- Mechanical power (hp)
- 664
- Fuel tank capacity (L)
- 370
- Consumption (L/h)
- 82.2 Lt./h @ 75%
- Running time (h)
- 4.5 at 75% of the load
- Acoustic power
- 95 dB(A)
- Length (mm)
- 4730
- Width (mm)
- 1800
- Height (mm)
- 3080
- Silenced
- Yes
- ATS Switch device
- ATS Included
- Type of alternator
- Constant Speed
- Engine manufacturer
- Perkins
- Power factor control
- 0.8
- Brand
-
Generating sets with diesel engines cooled by water or oil, which meet all power requirements and ensure high performance and high quality standards.
The product offers a wide range of customization options. Engines conforming to the directive 2002/88/EC "Pollutant Emissions".
